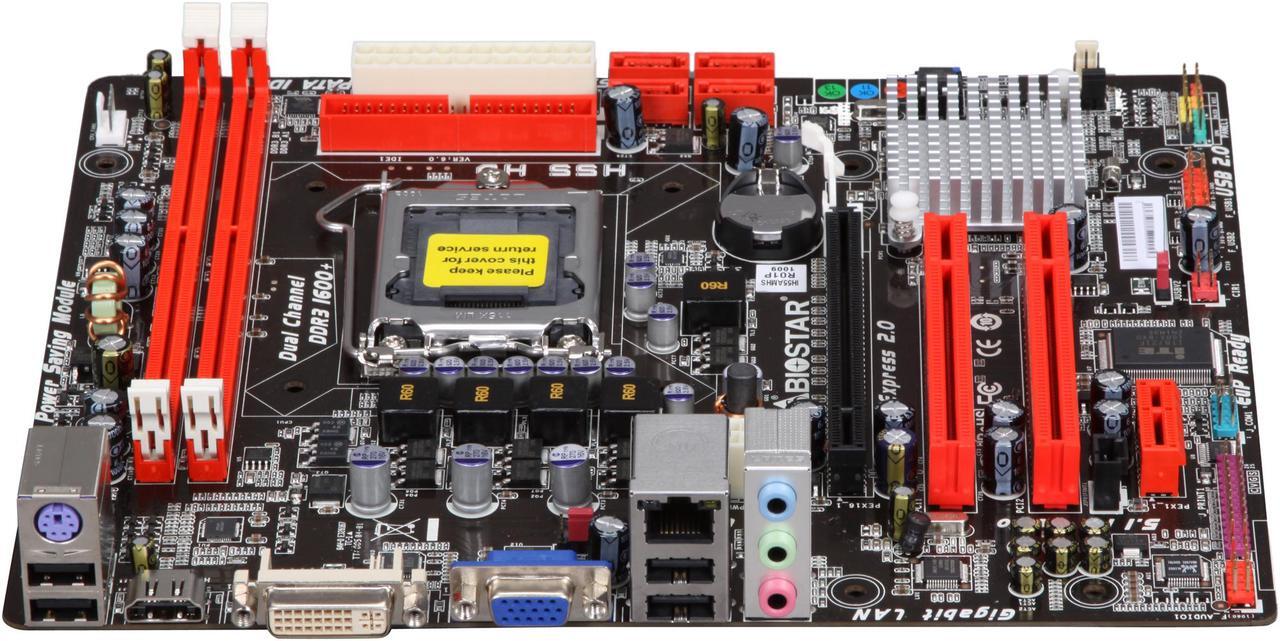

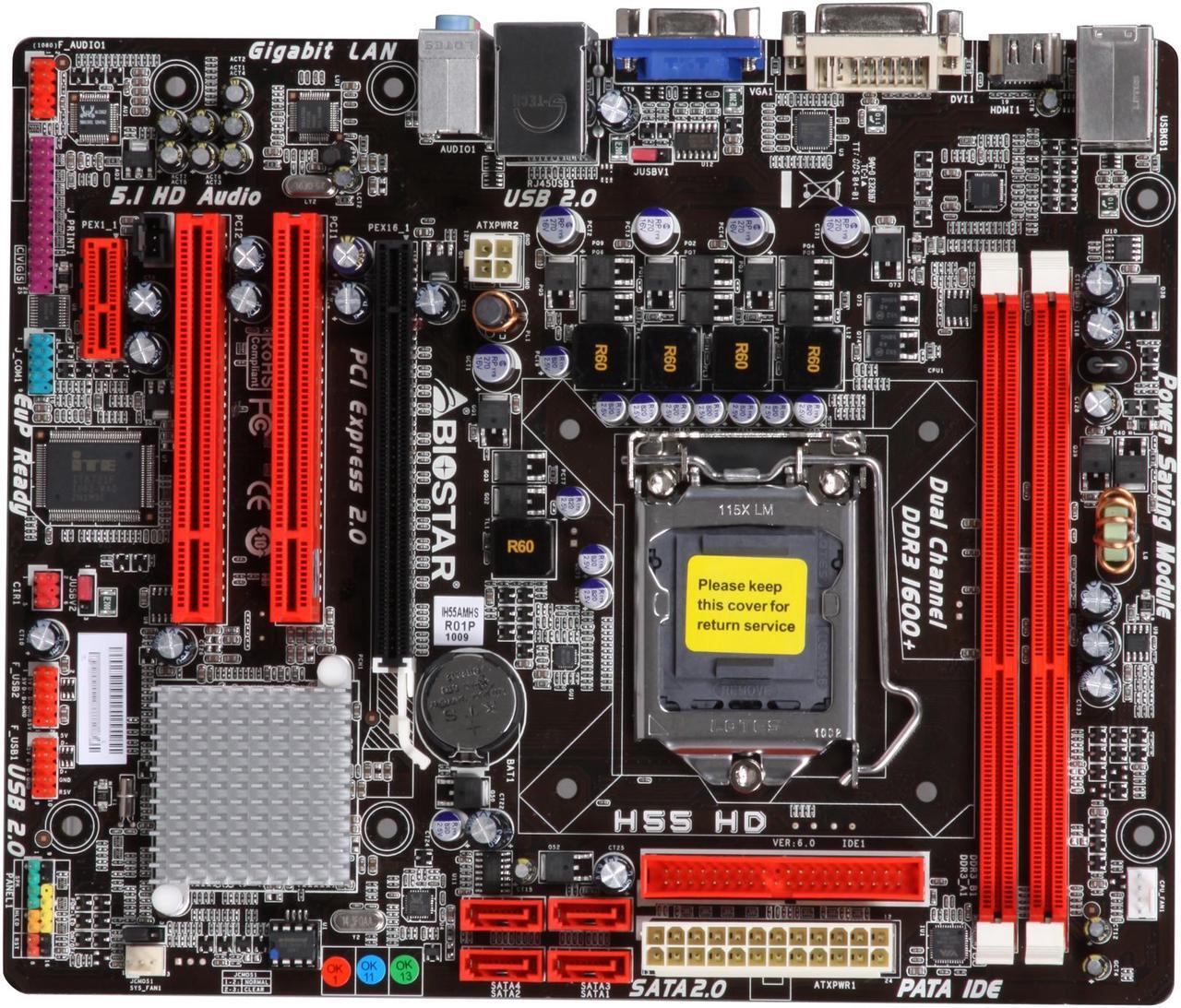

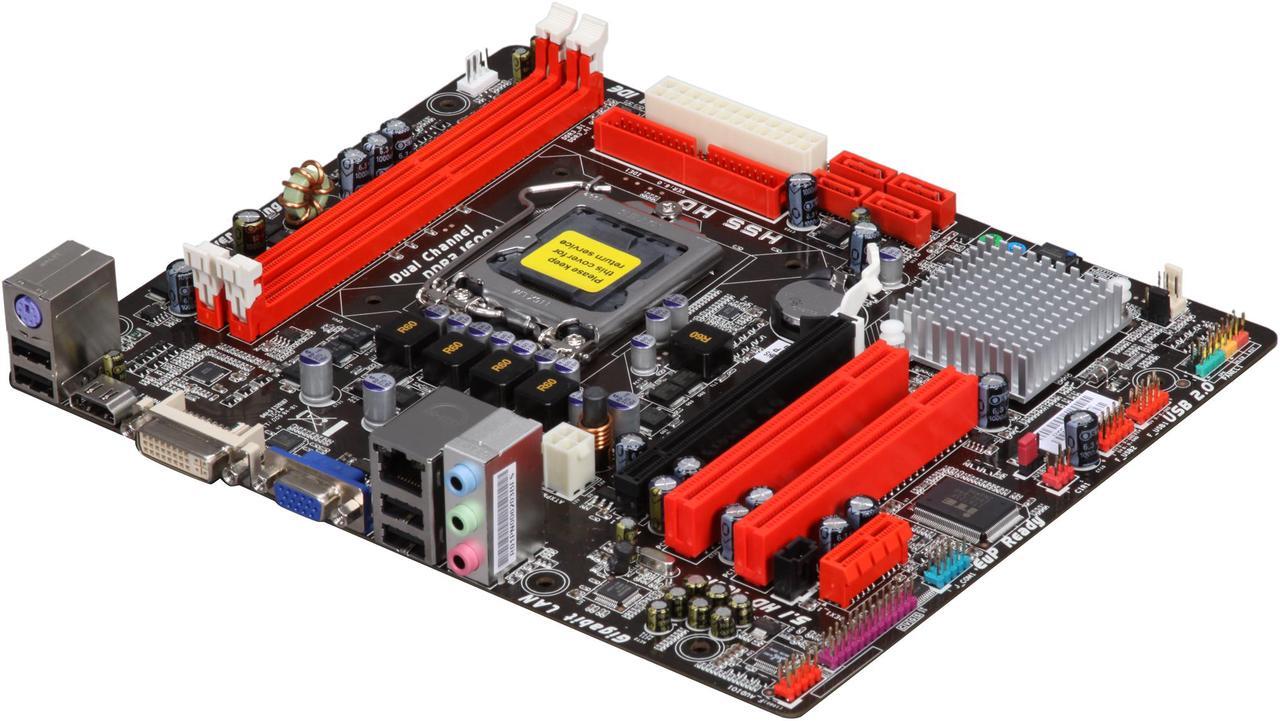

BIOSTAR H55 HD LGA 1156 Intel H55 HDMI Micro ATX Intel Motherboard

(19) Write a Review
  • Intel H55
  • Core i7 / i5 / i3 / Pentium (LGA1156) Maximum CPU TDP (Thermal Design Power) : 95Watt
  • DDR3 1600(OC)/1333/1066/800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (19)

Learn more about the Biostar H55 HD

Model
Brand BIOSTAR
Model H55 HD
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i7 / i5 / i3 / Pentium (LGA1156)
Maximum CPU TDP (Thermal Design Power) : 95Watt
Chipsets
Chipset Intel H55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1600(OC)/1333/1066/800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x HDMI / 1 x PS/2 / 4 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.9"
Power Pin 24 Pin
Features
Features 5 Phases Power Design
With HDCP Supporting all HD formats including 720P, 1080i, 1080P. (Required processors with Intel HD Graphics)
CPU integrated Graphics performance tunable via BIOS
Optimized to deliver full windows 7 Experience
Additional Information
Date First Available March 09, 2010
