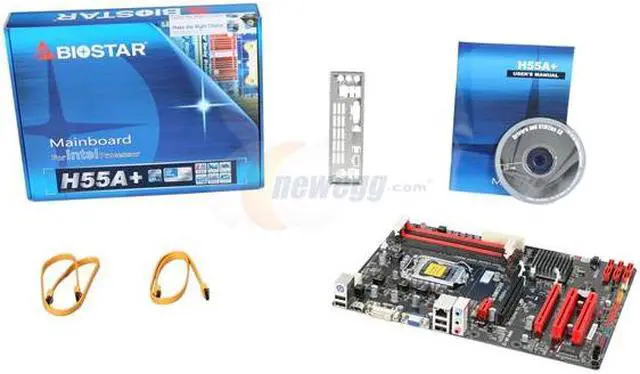

Images from RETAIL item, box contents may vary.

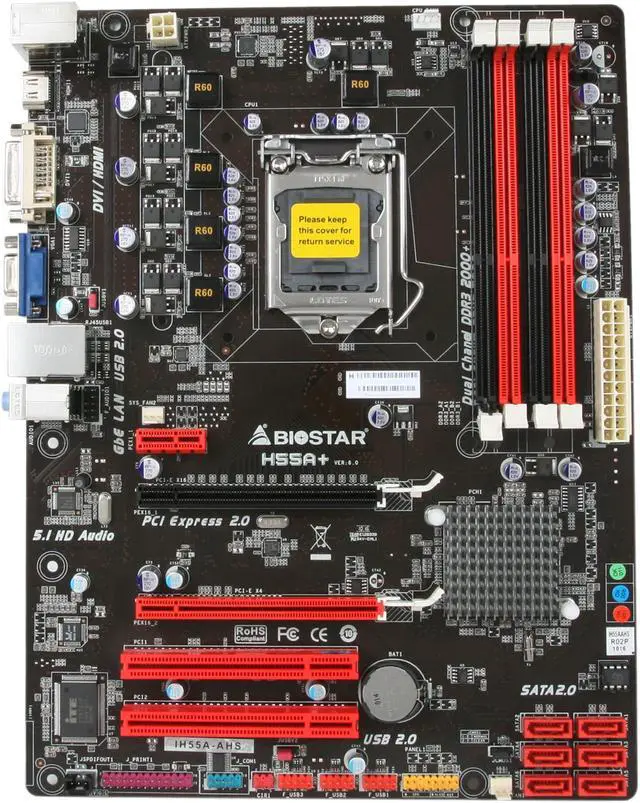

BIOSTAR H55A+ LGA 1156 Intel H55 HDMI ATX Intel Motherboard
OPEN BOX Product Type
- Intel H55
- Core i7 / i5 / i3 / Pentium (LGA1156) Maximum CPU TDP (Thermal Design Power) : 95Watt
- DDR3 1866(OC)/1600(OC)/1333/1066
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar H55A+
| Brand | BIOSTAR |
|---|---|
| Model | H55A+ |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium (LGA1156) Maximum CPU TDP (Thermal Design Power) : 95Watt |
| Chipset | Intel H55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1866(OC)/1600(OC)/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |

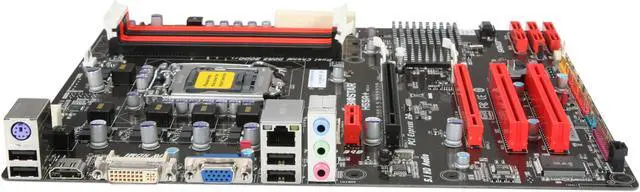

| Back I/O Ports | 1 x HDMI / 1 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.3" |
| Power Pin | 24 Pin |
| Features | Intel H55 single chip architecture 5 Phases Power Design Integrated HDMI/DVI interface with HDCP Supporting all HD formats including 720P, 1080i, 1080P. (Required processors with Intel HD Graphics) CPU integrated Graphics performance tunable via BIOS Optimized to deliver full windows 7 Experience |
|---|
| First Listed on Newegg | July 20, 2010 |
|---|
