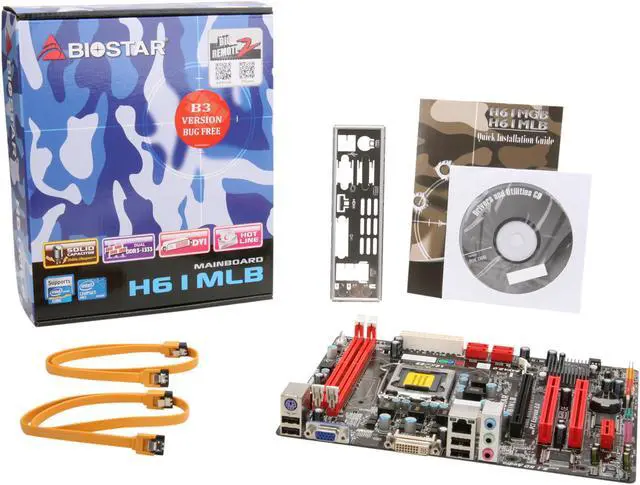

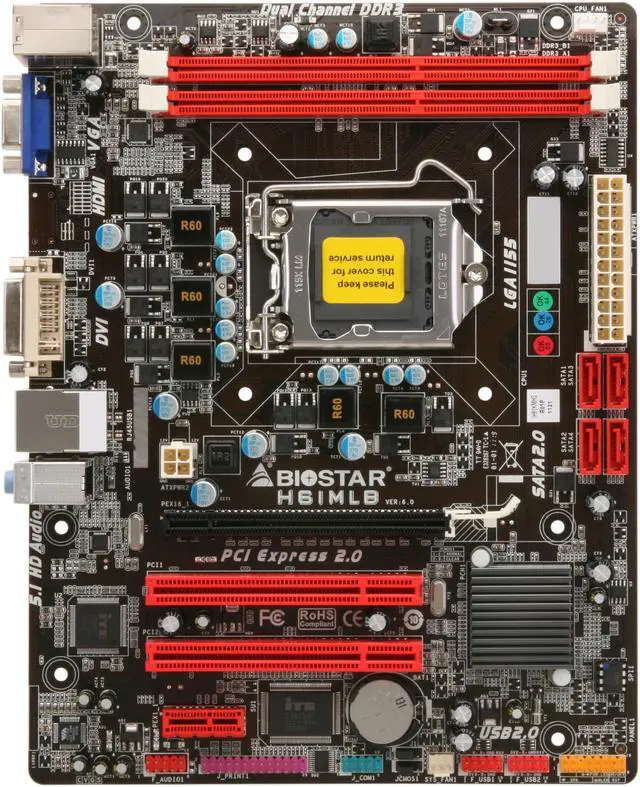

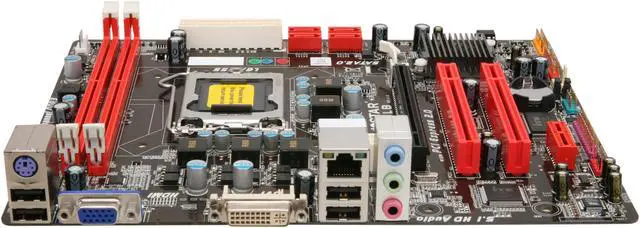

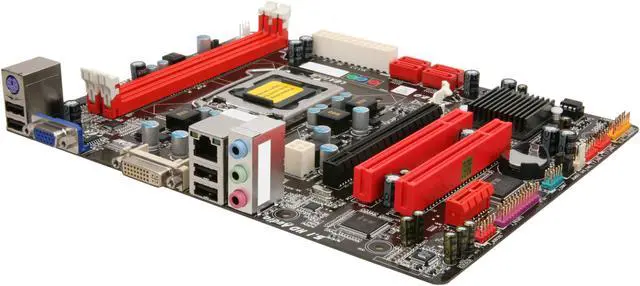

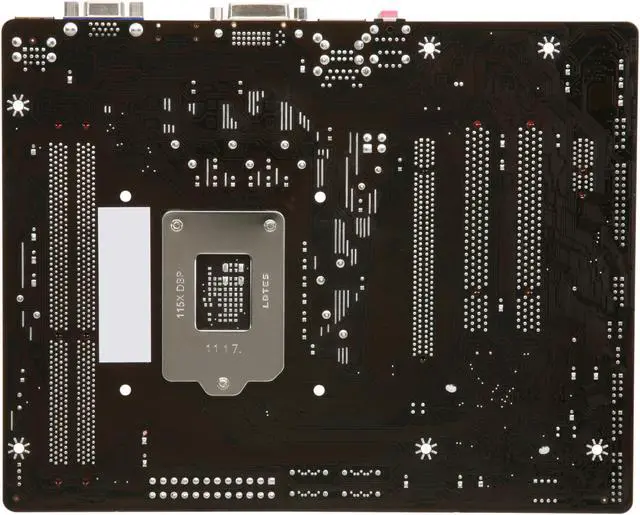

BIOSTAR H61MLB LGA 1155 Intel H61 Micro ATX Intel Motherboard

(5) Write a Review
  • Intel H61
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • DDR3 1333 / 1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (5)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar H61MLB

Model
Brand BIOSTAR
Model H61MLB
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Chipsets
Chipset Intel H61
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333 / 1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Onboard Audio
Audio Chipset VIA VT1708B
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Atheros AR8152
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 / 4 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x Printer Header
1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.48"
Power Pin 24 Pin
Additional Information
First Listed on Newegg September 29, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

Manufacturer Contact Info
