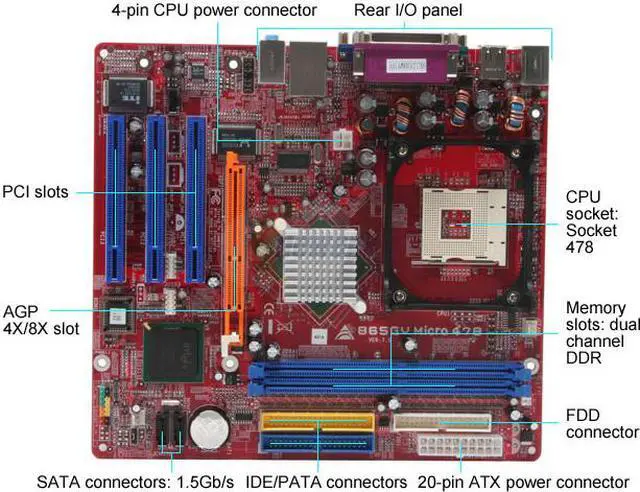

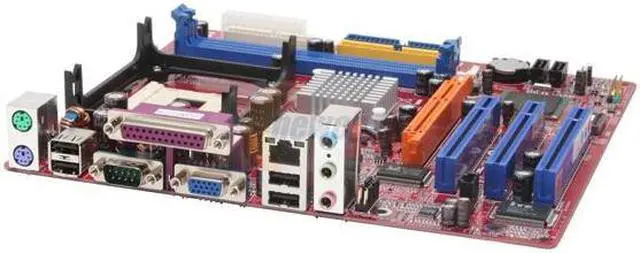

BIOSTAR I86GVM4 Socket 478 Intel 865GV Micro ATX Intel Motherboard
- Intel 865GV
- Pentium 4 / Celeron
- DDR 400
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar I86GVM4
| Brand | BIOSTAR |
|---|---|
| Model | I86GVM4 |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865GV |
|---|---|
| South Bridge | Intel ICH5 |
| Onboard Video Chipset | Intel Extreme2 Graphics |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Slots | 3 x PCI Slots |
| Audio Channels | 6 Channels |
|---|
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| Power Pin | 20 Pin |

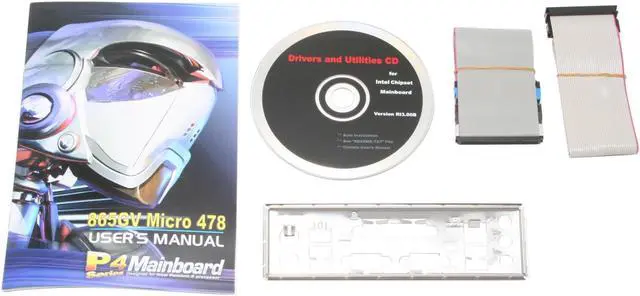

| Package Contents | I86GVM4 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable |
|---|
| First Listed on Newegg | July 18, 2006 |
|---|
