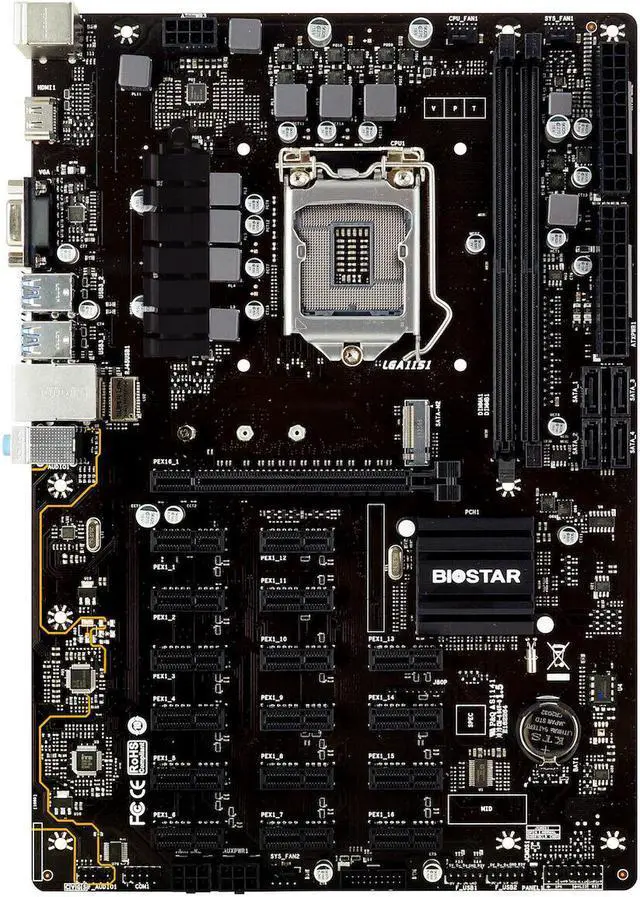

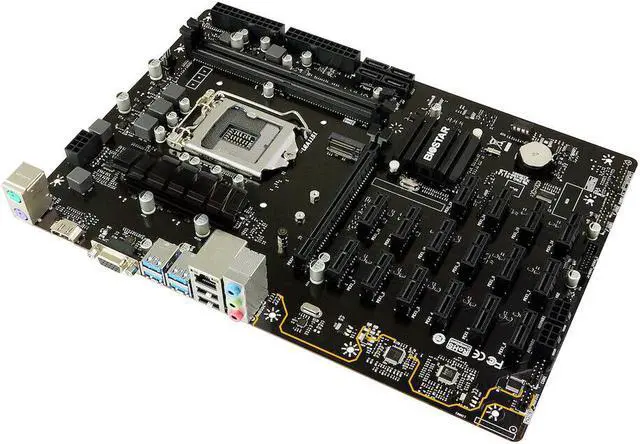

Biostar TB360-BTC Expert 2.0 Motherboard CPU i3 i5 LGA1151 Intel DDR4 17x PCI-E

TB360-BTC Expert

Socket : 1151



Supports 9th & 8th Generation Intel® Core™ Processor

Intel H370 single chip architecture

Support 2-DIMM DDR4-1866/2133/2400/2666 up to 32G maximum capacity

Support 17 x PCI-E 3.0 slots

Support M.2 (6Gb/s) Connector

Support HDMI Connector

CPU SUPPORT 9th Gen Intel® Core™ i9 LGA 1151 Processor

9th Gen Intel® Core™ i5 LGA 1151 Processor

9th Gen Intel® Core™ i3 LGA 1151 Processor

8th Gen Intel® Core™ i7 LGA 1151 Processor

8th Gen Intel® Core™ i5 LGA 1151 Processor

8th Gen Intel® Core™ i3 LGA 1151 Processor

8th Gen Intel® Pentium® LGA 1151 Processor

8th Gen Intel® Celeron® LGA 1151 Processor

Maximum CPU TDP (Thermal Design Power) : 95Watt

8th *Generation Intel® Core™ Processor Family only support 300-Series.

MEMORY Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz

2 x DDR4 DIMM Memory Slot

Max. Supports up to 32GB Memory

Each DIMM supports non-ECC 4/8/16GB DDR4 module

INTEGRATED VIDEO By CPU model

Supports DX12

Supports HDCP

STORAGE 4 x SATA III Connectors (6GB/s)

1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD

LAN Realtek RTL8111H - 10/100/1000Mb/s Controller

Support Super LAN Surge Protection

AUDIO CODEC Realtek ALC887 8-Channel HD Audio

USB 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)

6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot

16 x PCI-E 3.0 x1 Slots

*Maximum VGA cards mining support are depending on VGA Driver or mining software.

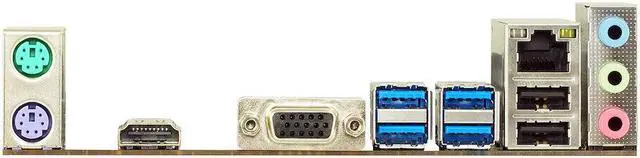

REAR I/O 1 x PS/2 Mouse

1 x PS/2 Keyboard

4 x USB 3.1 Gen1 Ports

2 x USB 2.0 Ports

1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4

1 x VGA Port ,resolution up to 1920 x 1200 @60Hz

1 x LAN Port

3 x Audio Jacks

INTERNAL I/O 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

4 x SATA III Connectors (6Gb/s)

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector

2 x System Fan Connector

1 x 8-Pin Power Connector

2 x 6-Pin PCIe Power Connector

2 x 24-Pin Power Connector

1 x Clear CMOS Header

1 x COM Port Header

H/W MONITORING CPU / System Temperature Monitoring

CPU / System Fan Monitoring

System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L )

OS SUPPORT Supports Windows 10(64bit)

?Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE BullGuard

ACCESSORIES 2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x User Manual

FEATURES Supports 100% Solid capacitor

PCI-E Slot Detection BIOS Boot Screen
