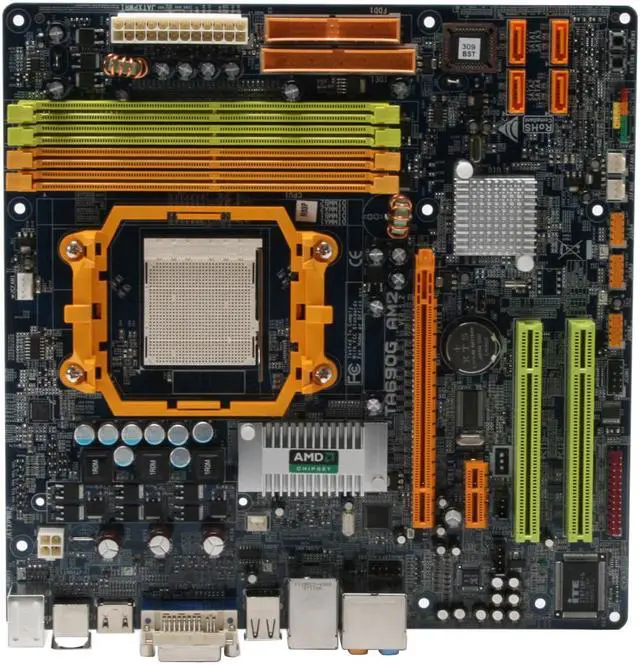

BIOSTAR TA690G AM2 AM2 AMD 690G HDMI Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 690G
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
Specs
Reviews

Learn more about the Biostar TA690G AM2

Model
Brand BIOSTAR
Model TA690G AM2
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset AMD 690G
South Bridge ATI SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 4 x SATA 3Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon Xpress 1250
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111B(PCI-E)
Max LAN Speed 10/100/1000Mbps

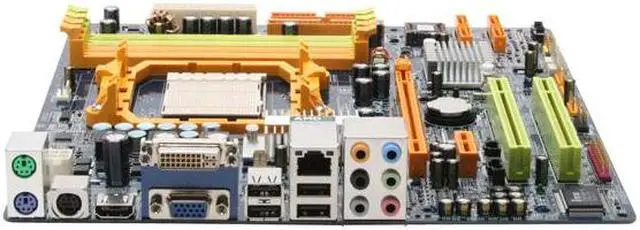

Rear Panel Ports
PS/2 2
Video Ports D-Sub + DVI
S-Video 1
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents TA690G AM2
Driver Disk
User Manual

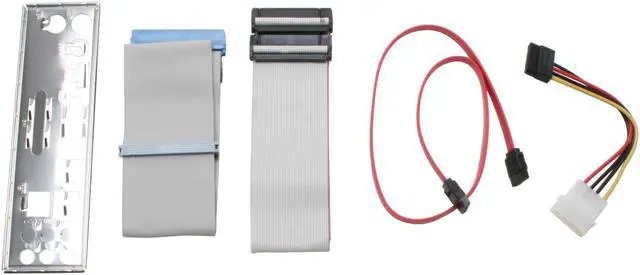

Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
Date First Available April 13, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
