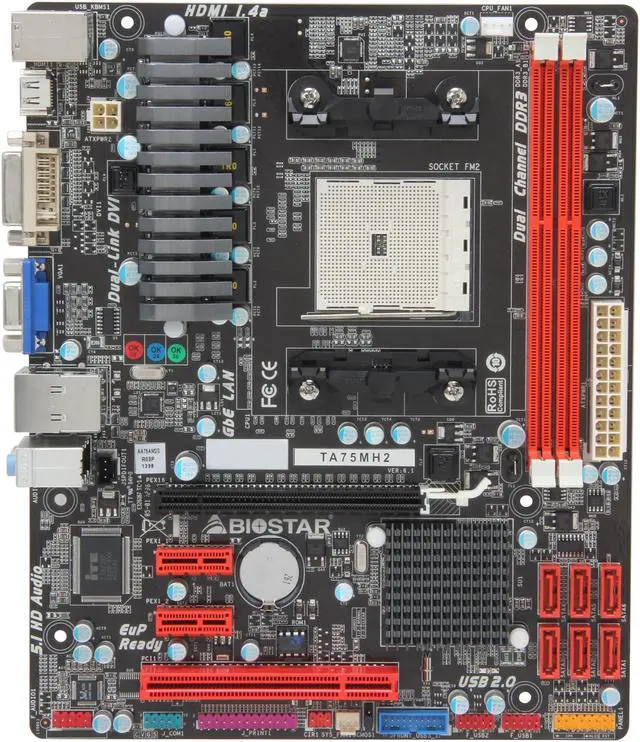

Main image of BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

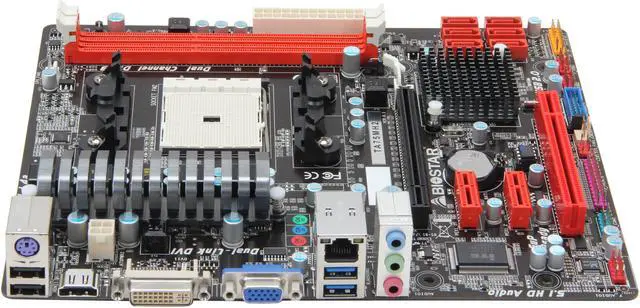

Alt view image 2 of 5 - BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

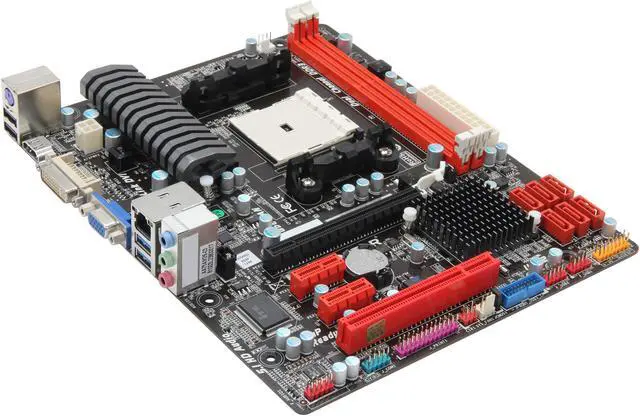

Alt view image 3 of 5 - BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

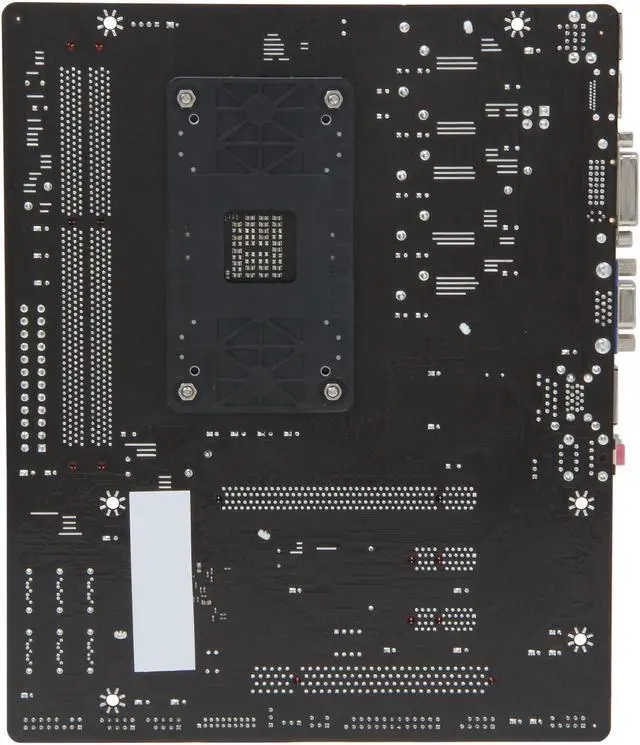

Alt view image 4 of 5 - BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

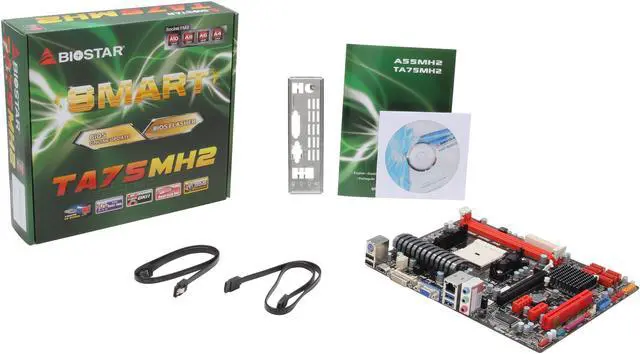

Alt view image 5 of 5 - BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

Shop All Biostar Products

BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

(30) Write a Review

AMD A75 (Hudson D3)
APU (FM2 Socket)
DDR3 1866/1600/1333/1066/800

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (30)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	BIOSTAR
Model	TA75MH2

Supported CPU
CPU Socket Type	FM2
CPU Type	APU (FM2 Socket)

Chipsets
Chipset	AMD A75 (Hudson D3)

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1866/1600/1333/1066/800
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	2 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	None

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8111F
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks
PS/2	1
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x Printer Header 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header 1 x CIR Header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 7.87"
Power Pin	24 Pin

Features
Features	Supported Socket FM2 processors AMD A-series/ E2-series processor Supported AMD Mutil Core(x4,x2) AMD 100W processor support AMD A75 Chipset 2 DIMM supported DDR3-1866/ 1600/ 1333/ 1066/ 800 Supported SATA 6Gb/s 2X speed than current SATA 3G Supported USB 3.0 AMD Dual Graphics Technology 100% X.D.C solid capacitor

Additional Information
First Listed on Newegg	October 01, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 909-444-3785 menu 2
Support Email: [email protected]
