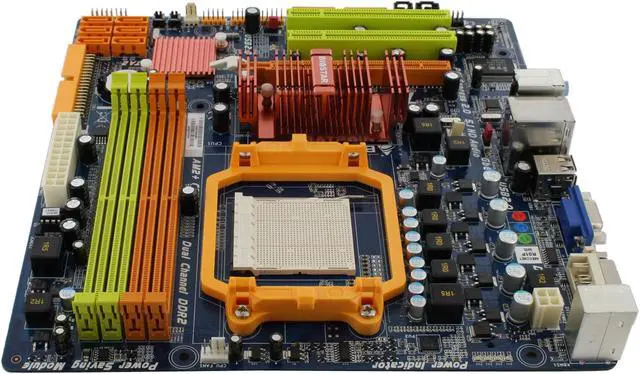

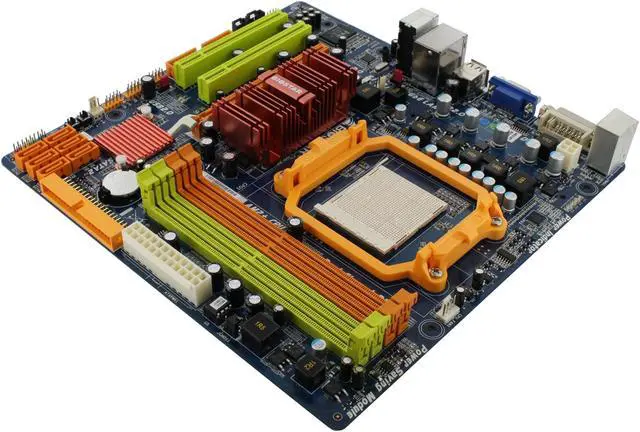

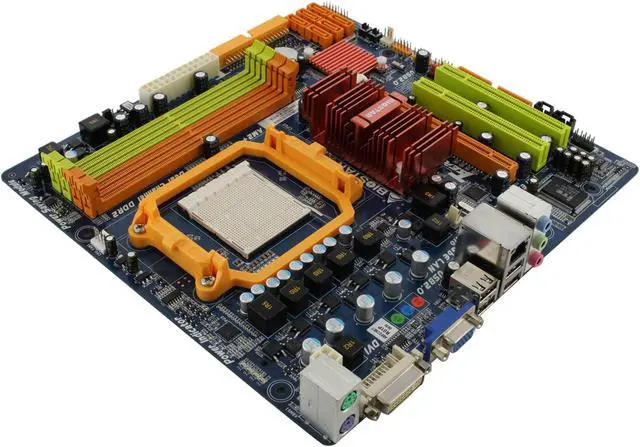

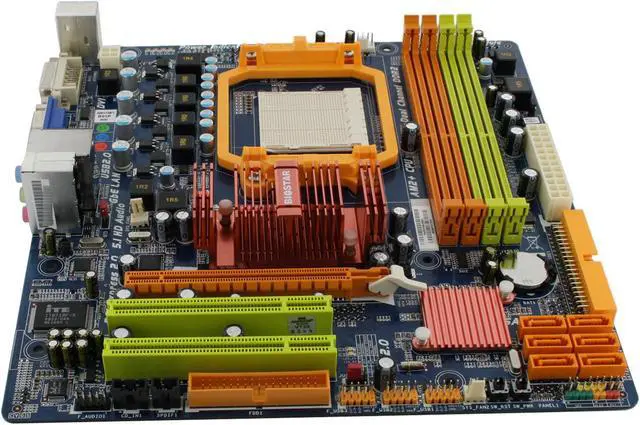

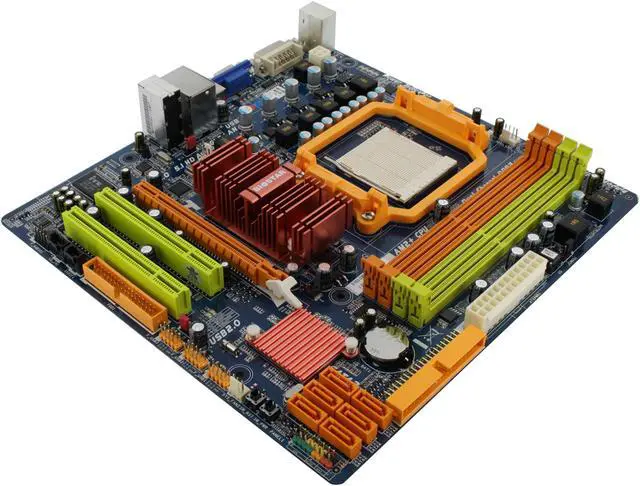

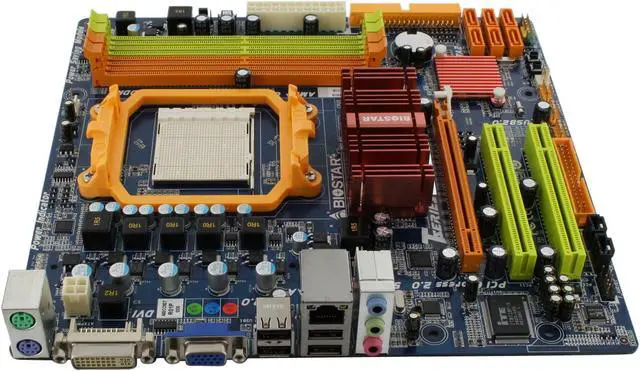

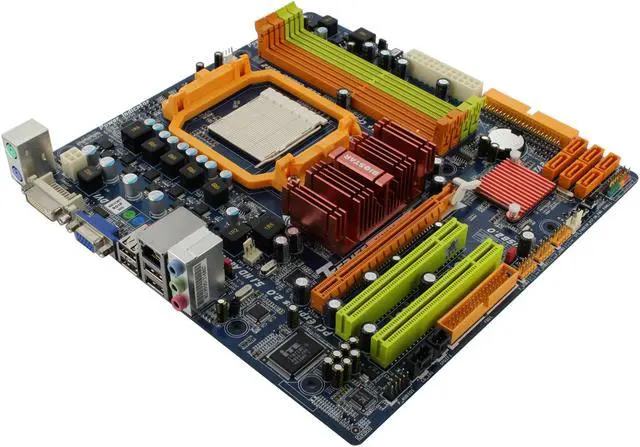

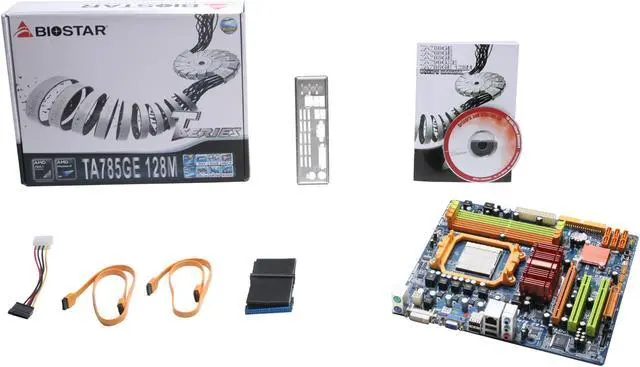

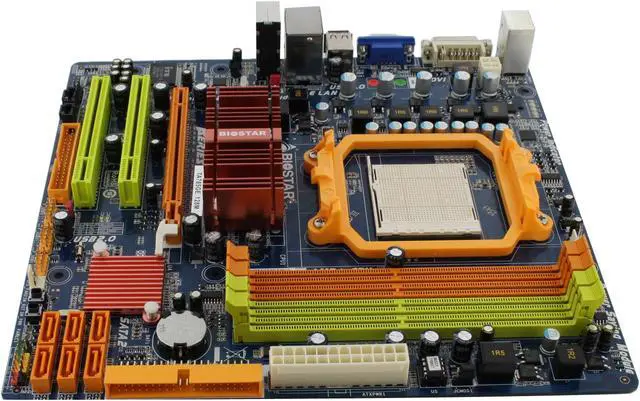

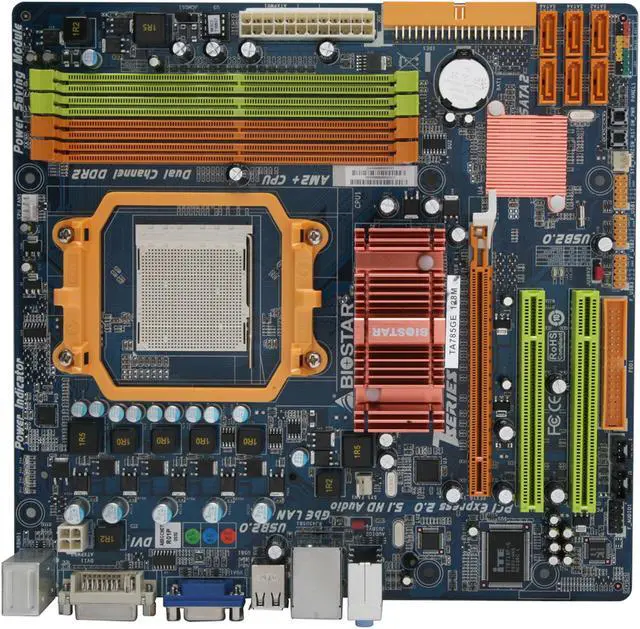

Main image of BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 2 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 3 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 4 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 5 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 6 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 7 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 8 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 9 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 10 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Alt view image 11 of 11 - BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Shop All Biostar Products

BIOSTAR TA785GE 128M AM3/AM2+/AM2 AMD 785G Micro ATX AMD Motherboard

Name: BIOSTAR TA785GE 128M AM3/AM2+/AM2 Micro ATX AMD Motherboard
Brand: Biostar
SKU: N82E16813138155
Rating: 4 (40 reviews)

(40) Write a Review

AMD 785G
Phenom II / Phenom / Athlon II / Athlon64 /Sempron
DDR2 533/667/800/1066(1066 by AM2+ CPU)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (40)

Learn more about the Biostar TA785GE 128M

Model
Brand	BIOSTAR
Model	TA785GE 128M

Supported CPU
CPU Socket Type	AM3/AM2+/AM2
CPU Type	Phenom II / Phenom / Athlon II / Athlon64 /Sempron
FSB	2600 MHz

Chipsets
Chipset	AMD 785G
South Bridge	AMD SB710

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR2 533/667/800/1066(1066 by AM2+ CPU)
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA133 2 Dev. Max
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated ATI Radeon HD4200 DX10.1 Graphics 128M side-port graphic memory

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8111DL
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	3 x USB header (support 6 ports)

Physical Spec
Form Factor	Micro ATX

Features
Features	AMD Cool ‘n’ Quiet Technology Low ESR polymer solid capacitor designation for CPU power supply up to 140W Green Power Utility (G.P.U.) for Energy Saving X.D.C Solid Caps Rapid Switch, Power Indicator LED BIO-Flash, BIO-Relife2 T-series Utilities

Additional Information
Date First Available	July 31, 2009
