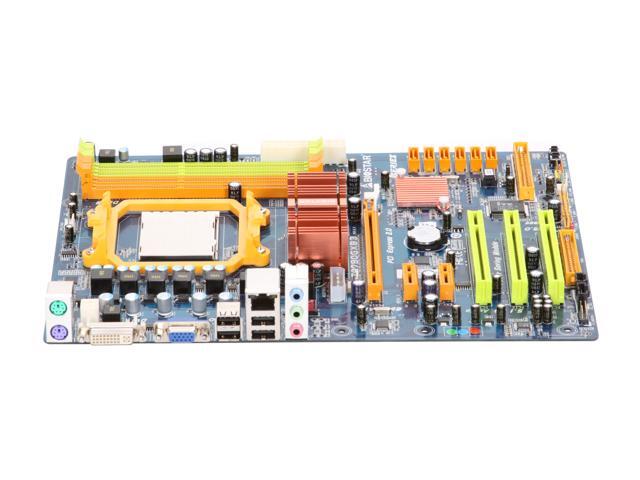

BIOSTAR TA790GXB3 AM3 AMD 790GX ATX AMD Motherboard

OPEN BOX Product Type
OUT OF STOCK.
  • AMD 790GX
  • Phenom II / Athlon II / Sempron
  • DDR3 800/1066/1333/1600(OC)
Specs

Learn more about the Biostar TA790GXB3

Model
Brand BIOSTAR
Model TA790GXB3
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 790GX
South Bridge AMD SB750
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 800/1066/1333/1600(OC)
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 3300
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features AMD 125W processor support
ATI Hybrid Graphics Support
Integrated DVI interface with HDCP Support 1080P HD Video Experience
AMD OverDrive Utility Support
AMD OverDrive with ACC feature (Advanced Clock Calibration) supported
Additional Information
Date First Available December 15, 2009
