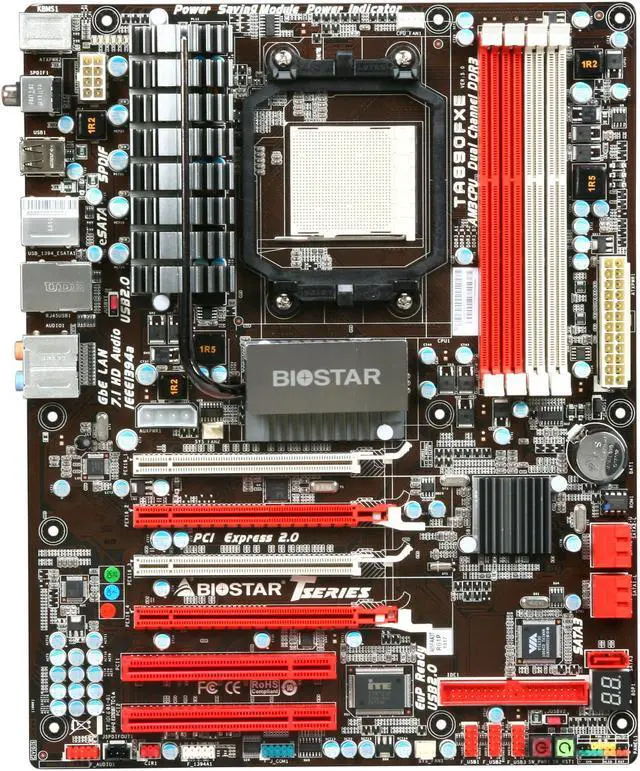

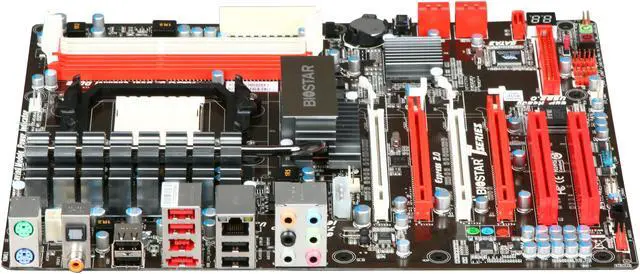

BIOSTAR TA890FXE AM3 AMD 890FX ATX AMD Motherboard

(91) Write a Review
  • AMD 890FX
  • Phenom II / Athlon II / Sempron 100 Series Max. TDP 140W.
  • DDR3 1800(OC)/1600(OC)/1333/1066/800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (91)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar TA890FXE

Model
Brand BIOSTAR
Model TA890FXE
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Max. TDP 140W.
FSB 2600 MHz
Chipsets
Chipset AMD 890FX
South Bridge AMD SB850
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1800(OC)/1600(OC)/1333/1066/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 4 x PCI-E x16 2.0 Slot (x16,x16, x4, x1)
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
Serial ATA (SATA) 5 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features 4+2 phases power design
Support up to 6 cores processors
2 dedicated phases for memory
100% X.D.C. Solid capacitors
BIOS Flash, BIOS Re-life
Optional BIO-Remote
Support ATI CrossfireX
Additional Information
First Listed on Newegg May 07, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
