Question 1

I installed every parts but it does not boot.

It makes one high tone and short beep and 8 lower tone/longer beeps.

I have replaced the board and have replaced ram. Still have same problem.

I have 6 different GPUs, Tried each GPU, still have same problem.

I directly connected DVI to GPU since ryzen 1700 does not have integrated graphics.

what's the problem?

Accepted Answer

I have 2 of three motherboards of the same model functioning. First thing you have to do is reset your bios. Then try to boot with just the processor and one stick of RAM and one graphic card installed on the PCIe 16 slot. Ryzen 7 takes a little longer to post so give it time. Try to connect your DVI from graphic card to the DVI on monitor. Next update your bios with the most recent available. I used B35BG209.BSS  AGESA Pinnacle PI 1.0.0.0a update ( Beta )    This is what I did and they are working perfect with 6 graphic cards installed and Ryzen.

Question 2

Can you update the bios online, w/o having to flash a usb?

Accepted Answer

You Require a USB to update the flash, but be careful.. i tried to update and it failed.. at least i was able to set it back to the previous version. If it works don't update the bios. will probably not give much more performance.

Question 3

I installed every parts but it does not boot.

It makes one high tone and short beep and 8 lower tone/longer beeps.

I have replaced the board and have replaced ram. Still have same problem.

I have 6 different GPUs, Tried each GPU, still have same problem.

I directly connected DVI to GPU since ryzen 1700 does not have integrated graphics.

what's the problem?

Accepted Answer

Check all power connectors...if you upgraded the bios that may be an issue. Ensure that all of the motherboard power connectors are installed. Verify that you have a supported ram speed for the correct CPU. DDR4 2666 for AMD Ryzen. If you are mining Ryzen 5 is the sweet spot. Ryzen 7 1800x will only get you 430 H/s where as Ryzen 5 (much cheaper) is pretty close but will OC to 520 H/s easy. The board is picky with correct RAM if all else fails, disconnect the power, pull the batter and reset the jumper as noted in the manual....Replace the battery, move jumper to operating position, seat only one stick of RAM and off you go.

Brand	BIOSTAR
Model	TB350-BTC

CPU Socket Type	AM4
CPU Type	AMD A-series APU / Ryzen CPU / NPU for Socket AM4 Maximum CPU TDP (Thermal Design Power): 95W

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 * DDR4 2667 for AMD Ryzen CPU
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
PCI Express x1	2 x PCI-E x1 3.0 Slots 3 x PCI-E x1 2.0 Slots

Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	0/1/10

Best Sellers

Meet Your Seller

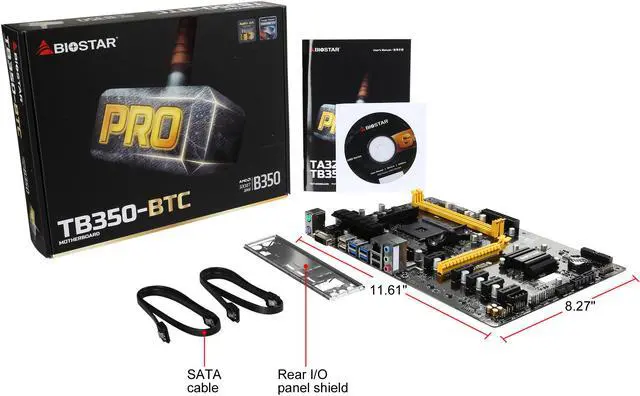

BIOSTAR TB350-BTC AM4 AMD B350 SATA 6Gb/s USB 3.1 ATX AMD Motherboard for Cryptocurrency Mining (BTC)

Learn more about the Biostar TB350-BTC

Customer Reviews of the Biostar TB350-BTC

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PS/2	1 x PS/2 Mouse 1 x PS/2 Keyboard
Video Ports	1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen1 Port
USB 1.1/2.0	2 x USB 2.0 Port 2 x USB 2.0 Port (only 5V power, up to 1.5A)
Audio Ports	3 Ports

Onboard USB	1 x USB 3.1 Gen1 Header 2 x USB 2.0 Headers
Other Connectors	1 x SATA Power Connector(for rear USB power enhancement) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header 2 x PCI-E 12V 4Pin Connector (Must be installed when using for bitcoin mining.)

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Dimensions (W x L)	11.6" x 8.3"
