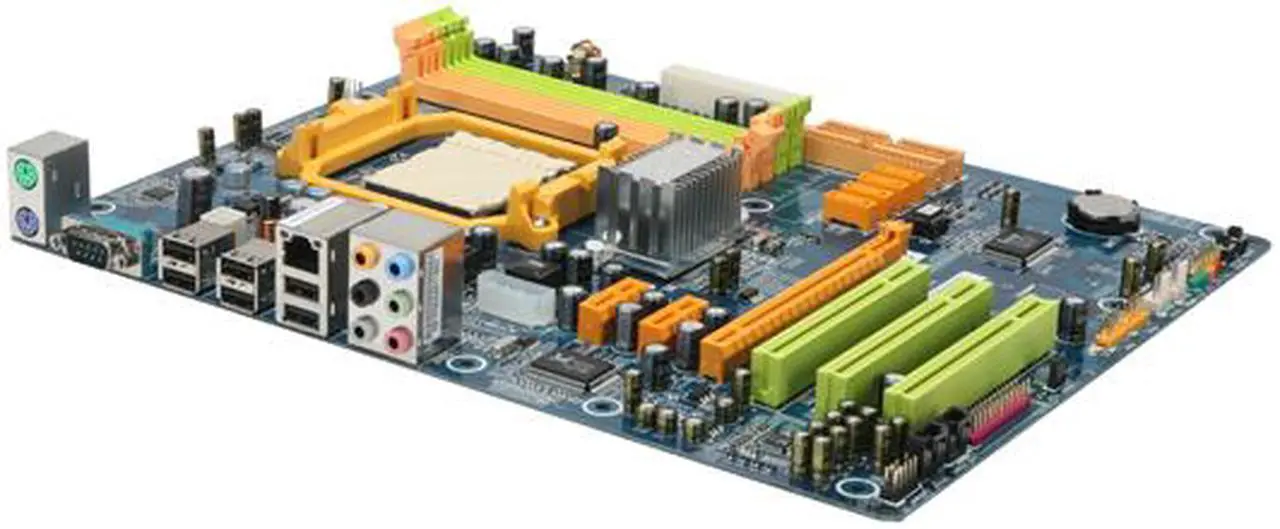

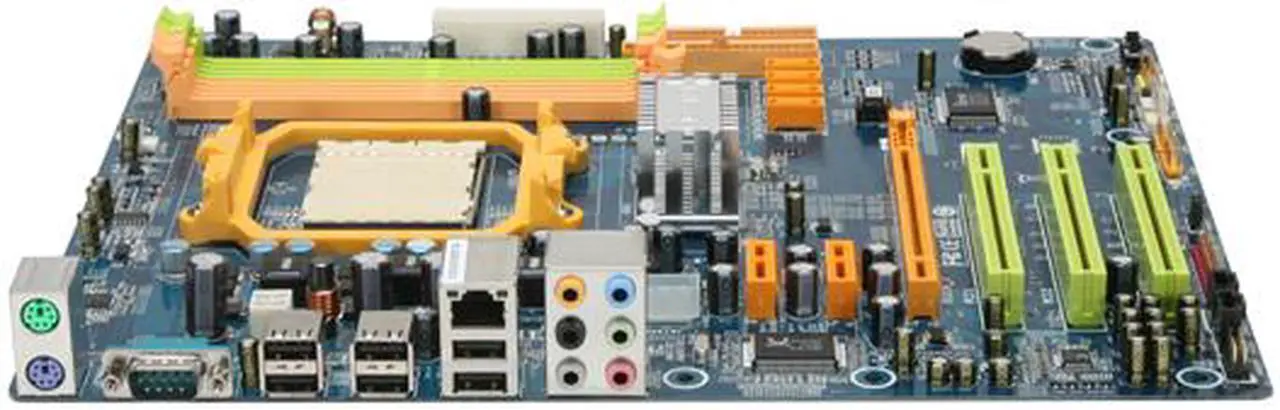

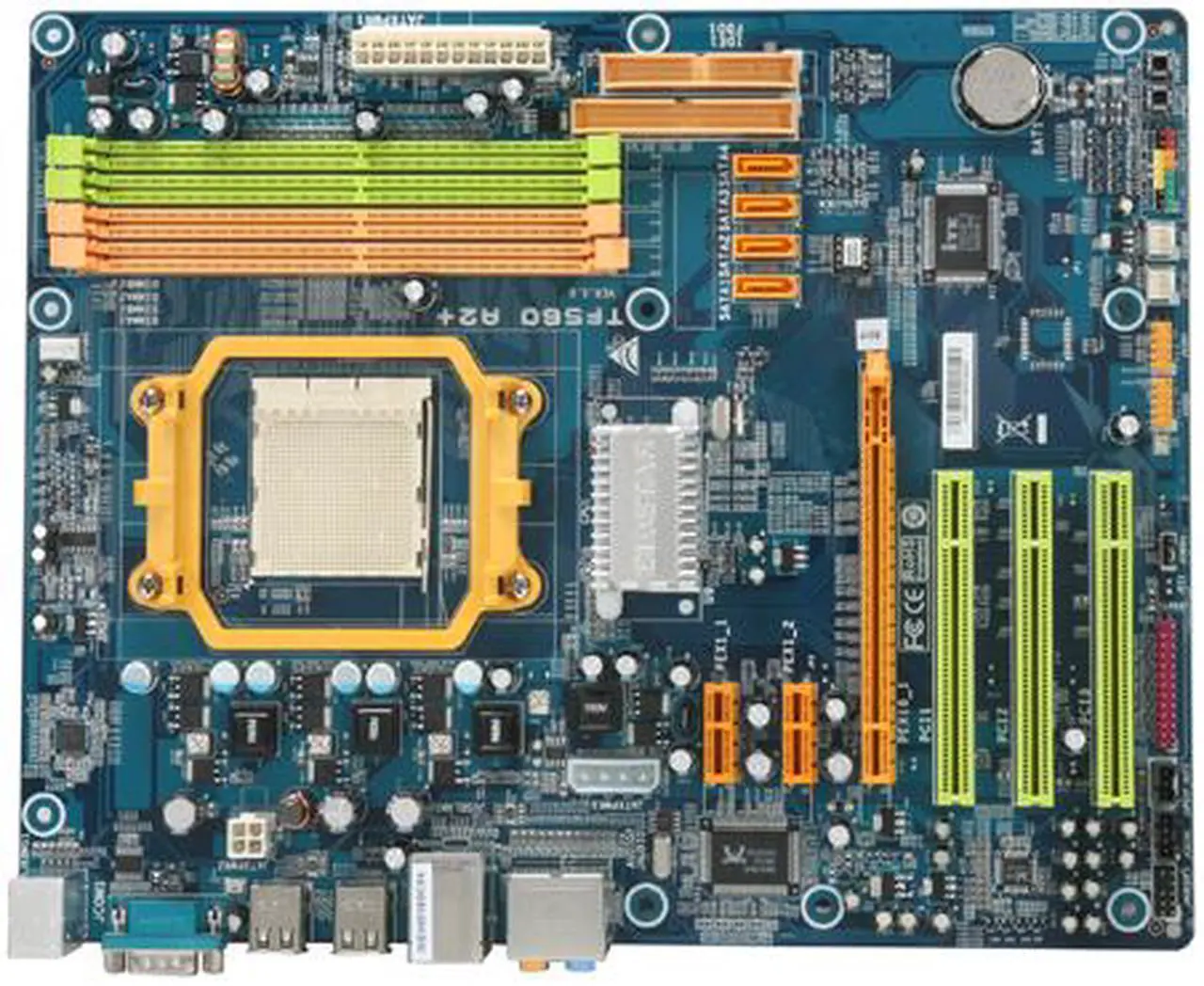

BIOSTAR TF560 A2+ AM2+/AM2 NVIDIA nForce 560 MCP ATX AMD Motherboard

  • NVIDIA nForce 560 MCP
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (82)

Learn more about the Biostar TF560 A2+

Model
Brand BIOSTAR
Model TF560 A2+
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce 560 MCP
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8+2-Channel
Onboard LAN
LAN Chipset Realtek 8110SC
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available June 28, 2007
