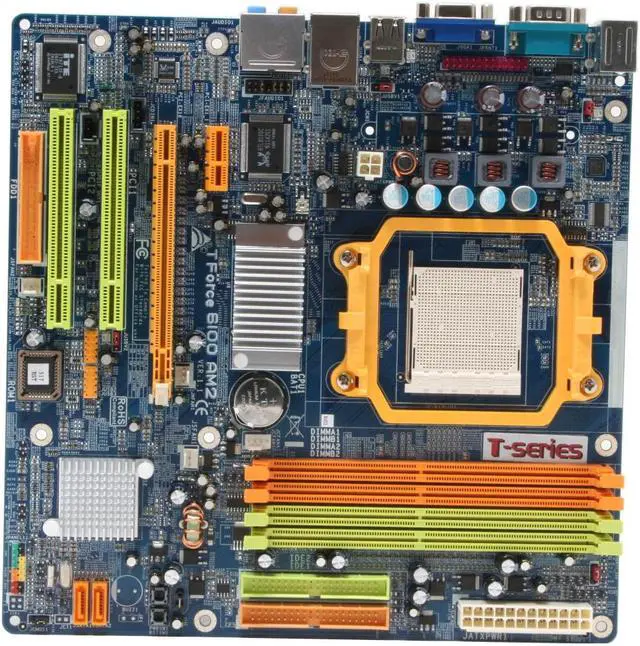

BIOSTAR TForce 6100 AM2 AM2 NVIDIA GeForce 6100 Micro ATX RoHs compliant AMD Motherboard

OPEN BOX Product Type
  • NVIDIA GeForce 6100
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Biostar TForce 6100 AM2

Model
Brand BIOSTAR
Model TForce 6100 AM2
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA GeForce 6100
South Bridge NVIDIA nForce 410
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset NVIDIA GeForce 6100
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps

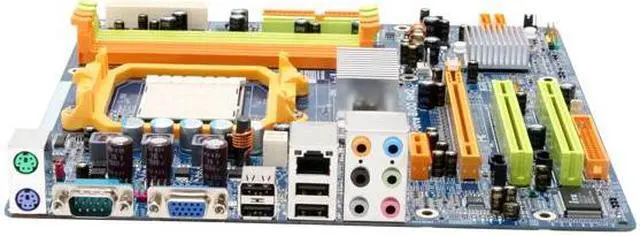

Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features RoHs compliant
Additional Information
First Listed on Newegg July 12, 2006
