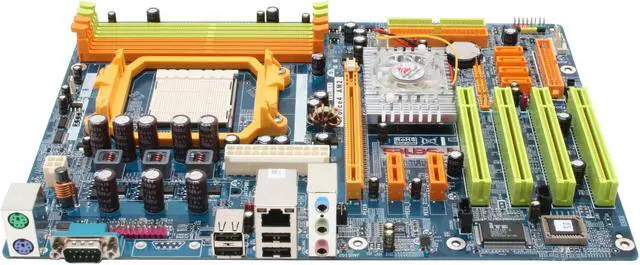

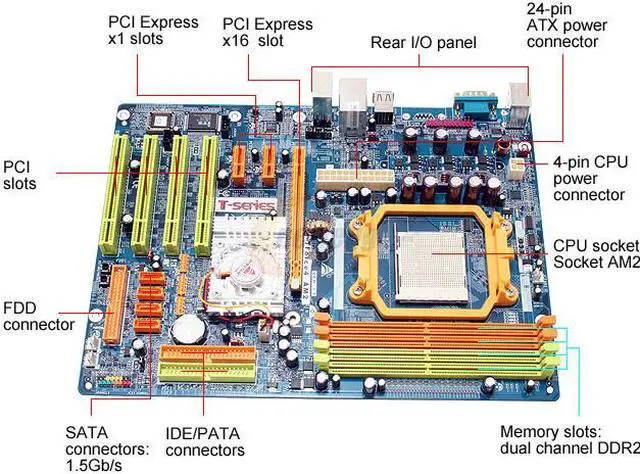

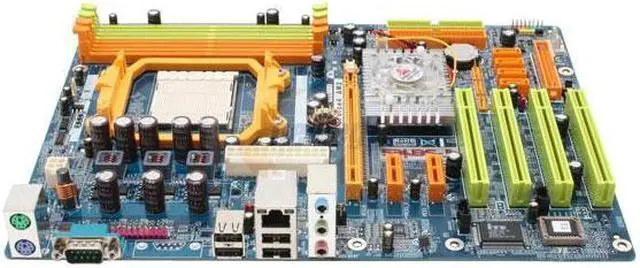

BIOSTAR TFORCE4 AM2 AM2 NVIDIA nForce4 ATX RoHs compliant AMD Motherboard
- NVIDIA nForce4
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (18)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar TFORCE4 AM2
| Brand | BIOSTAR |
|---|---|
| Model | TFORCE4 AM2 |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | NVIDIA nForce4 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 4 x PCI Slots |
| SATA RAID | NV RAID 0/1/0+1 JBOD |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | RoHs compliant |
|---|

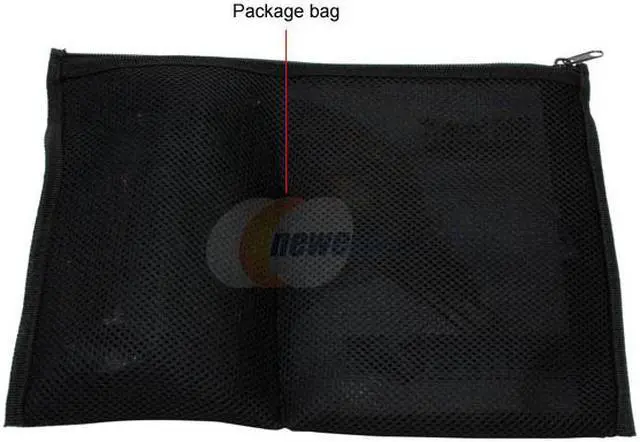

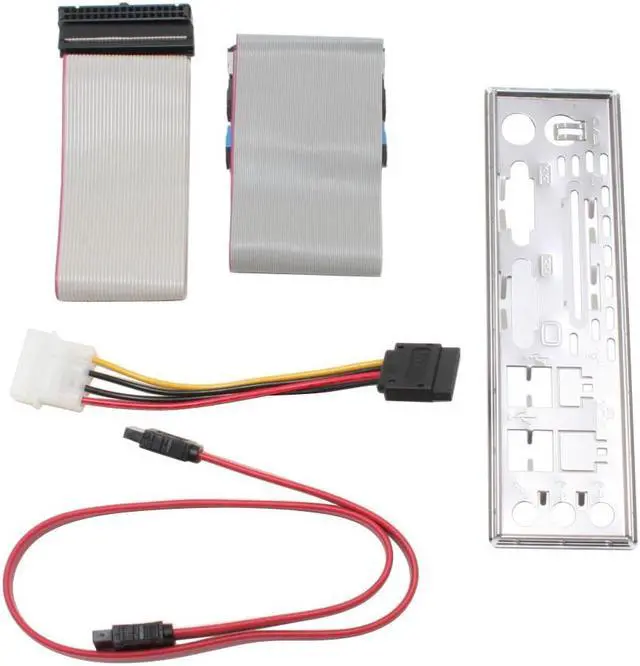

| Package Contents | TFORCE4 AM2 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Power Cable Package Bag |
|---|
| First Listed on Newegg | June 01, 2006 |
|---|
