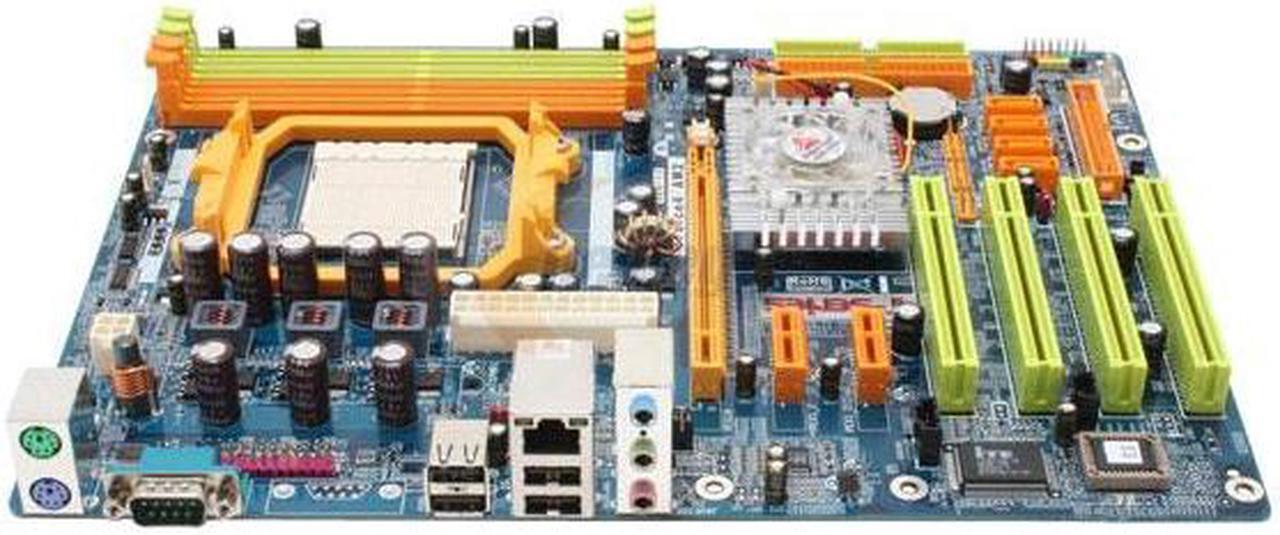

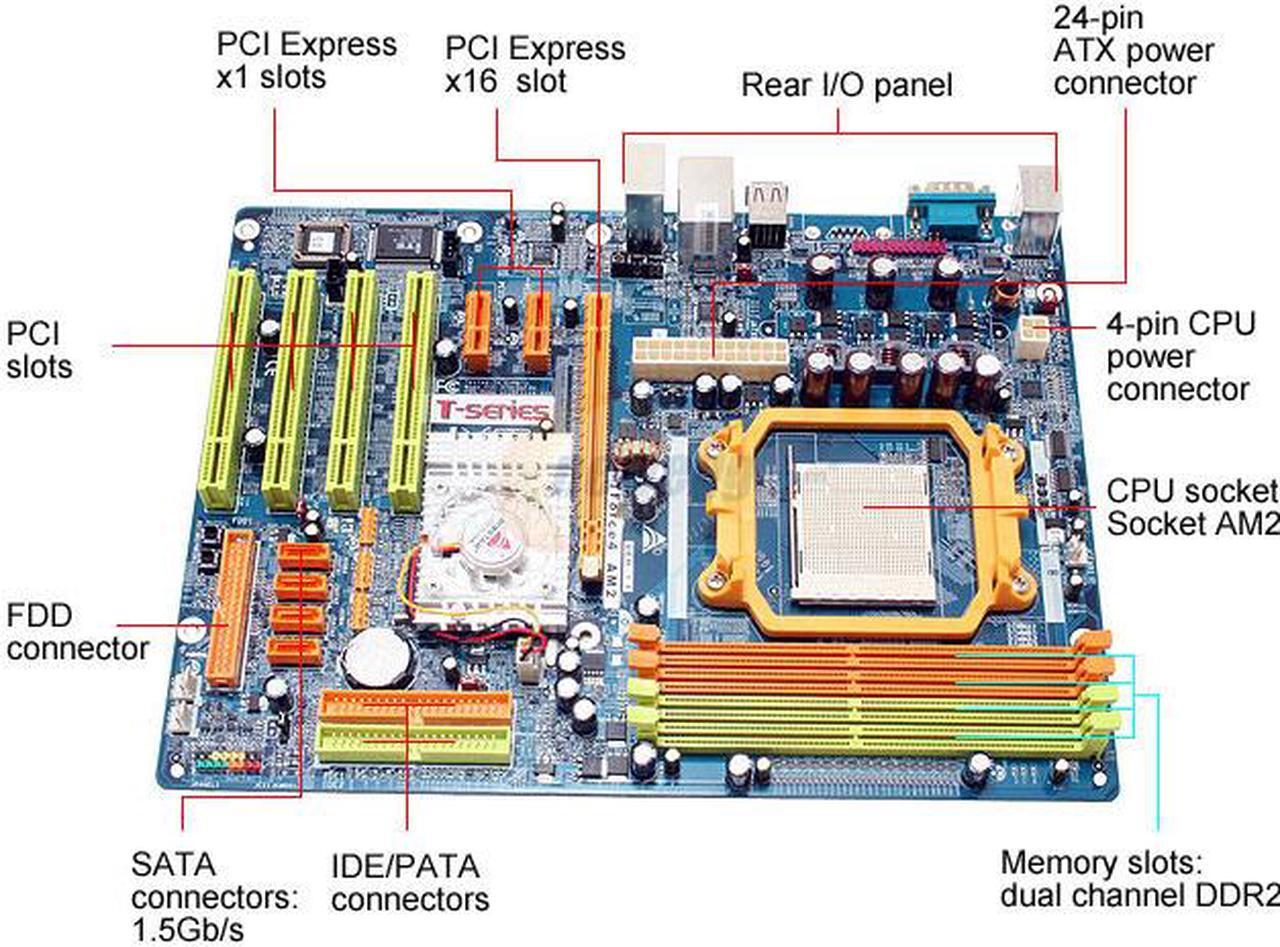

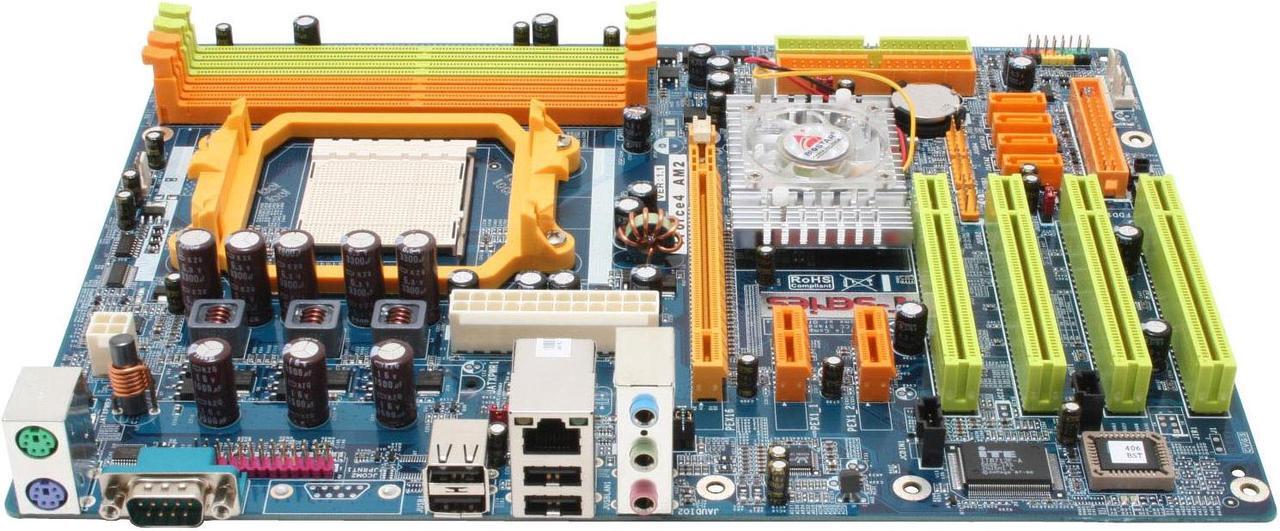

BIOSTAR TFORCE4 AM2 AM2 NVIDIA nForce4 ATX RoHs compliant AMD Motherboard

OPEN BOX Product Type
  • NVIDIA nForce4
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs

Learn more about the Biostar TFORCE4 AM2

Model
Brand BIOSTAR
Model TFORCE4 AM2
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce4
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 4 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
PATA RAID NV RAID 0/1/0+1 JBOD
SATA 1.5Gb/s 4 x SATA 1.5 Gb/s
SATA RAID NV RAID 0/1/0+1 JBOD
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features RoHs compliant
Additional Information
Date First Available July 12, 2006
