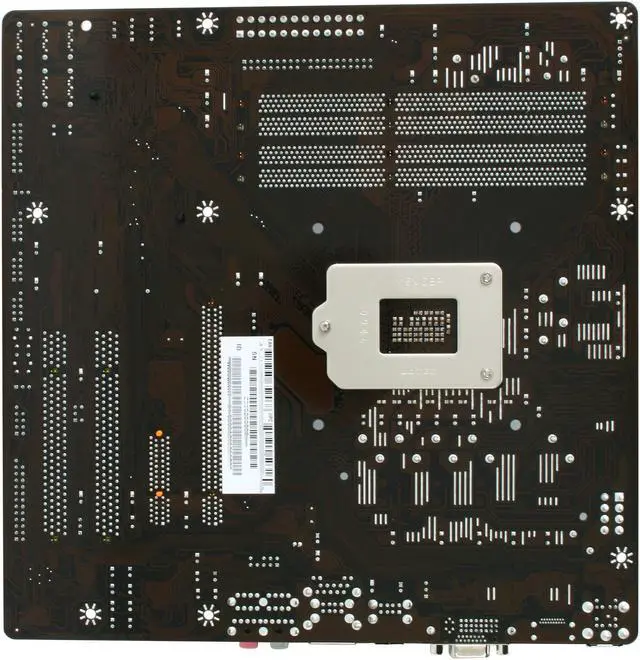

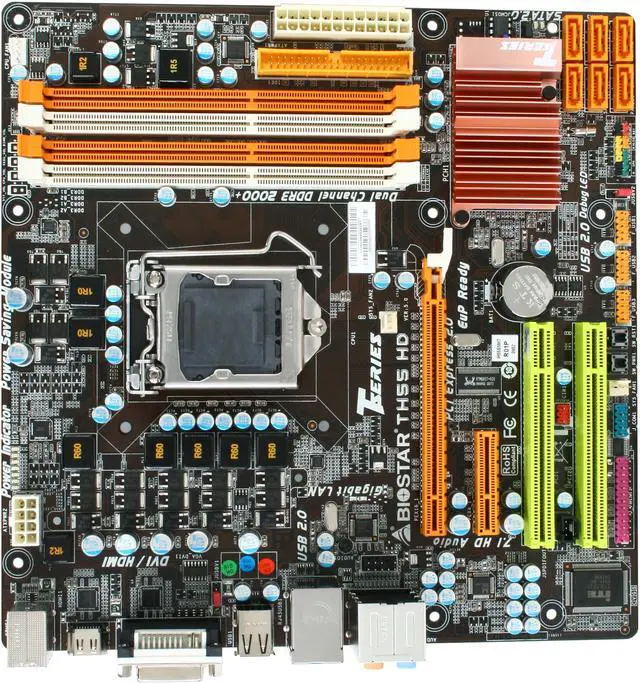

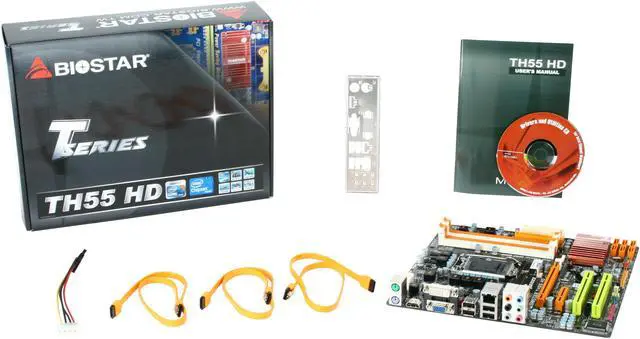

    BIOSTAR TH55 HD LGA 1156 Intel H55 HDMI Micro ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel H55
    • Core i7 / i5 / i3 / Pentium (LGA1156)
    • DDR3 800/1066/1333/1600(OC)/1800(OC)/2000(OC)
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Biostar TH55 HD

    Model
    Brand BIOSTAR
    Model TH55 HD
    Supported CPU
    CPU Socket Type LGA 1156
    CPU Type Core i7 / i5 / i3 / Pentium (LGA1156)
    Chipsets
    Chipset Intel H55
    Onboard Video
    Onboard Video Chipset None
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 800/1066/1333/1600(OC)/1800(OC)/2000(OC)
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Express x4 1 x PCI Express x4
    PCI Slots 2 x PCI Slots
    Storage Devices
    PATA 1 x ATA133 2 Dev. Max
    Onboard Audio
    Audio Chipset Realtek ALC888
    Audio Channels 8+2 Channel
    Onboard LAN
    LAN Chipset Realtek 8111DL
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1
    PS/2 2
    Video Ports D-Sub + DVI
    HDMI 1 x HDMI
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 6 x USB 2.0
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Features
    Features 7 phase power design
    100% X.D.C Solid capacitor
    T-overclock UTILITY
    GPU (Green Power Utility) for Dynamic CPU power consumption control
    Additional Information
    First Listed on Newegg October 07, 2024
