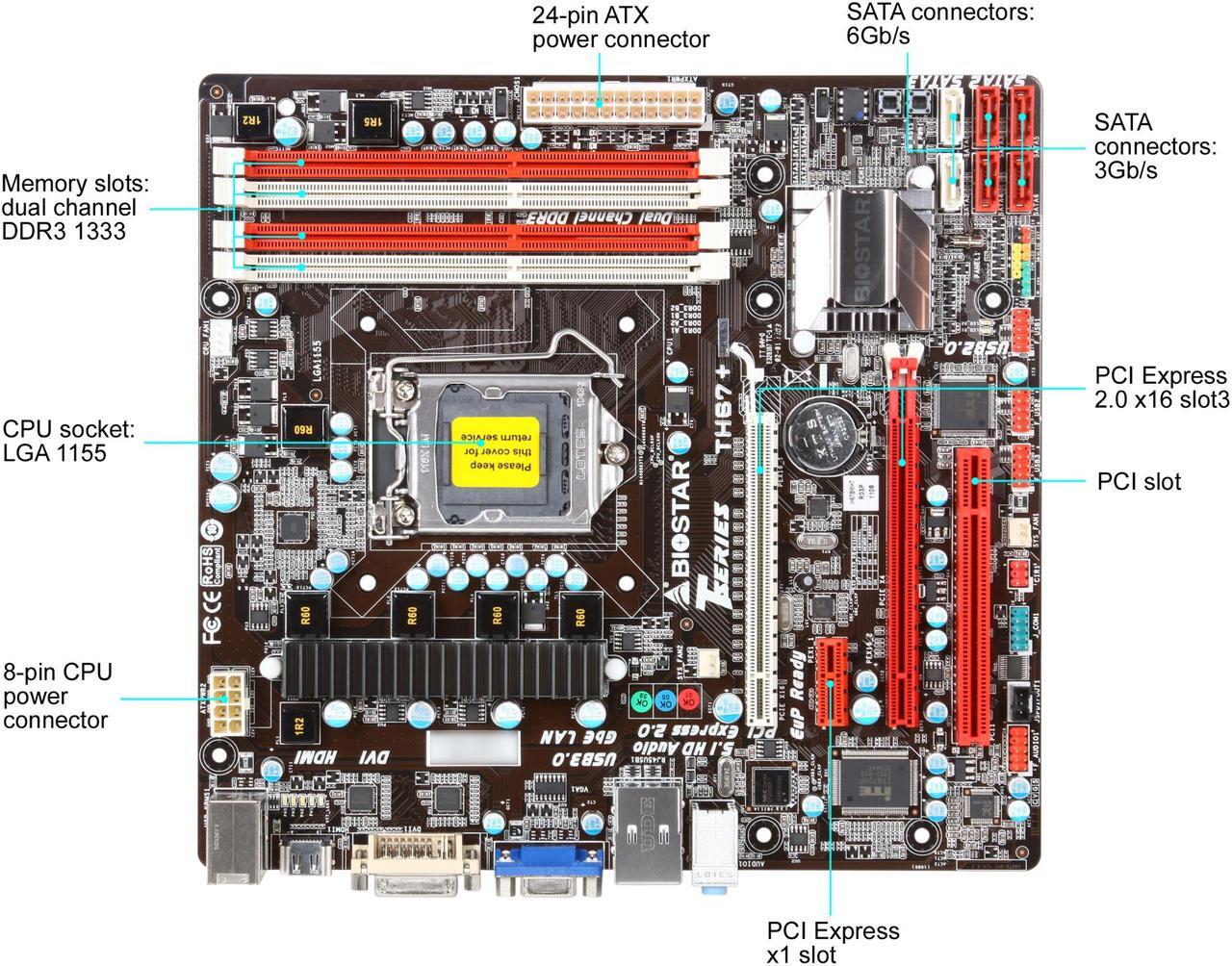

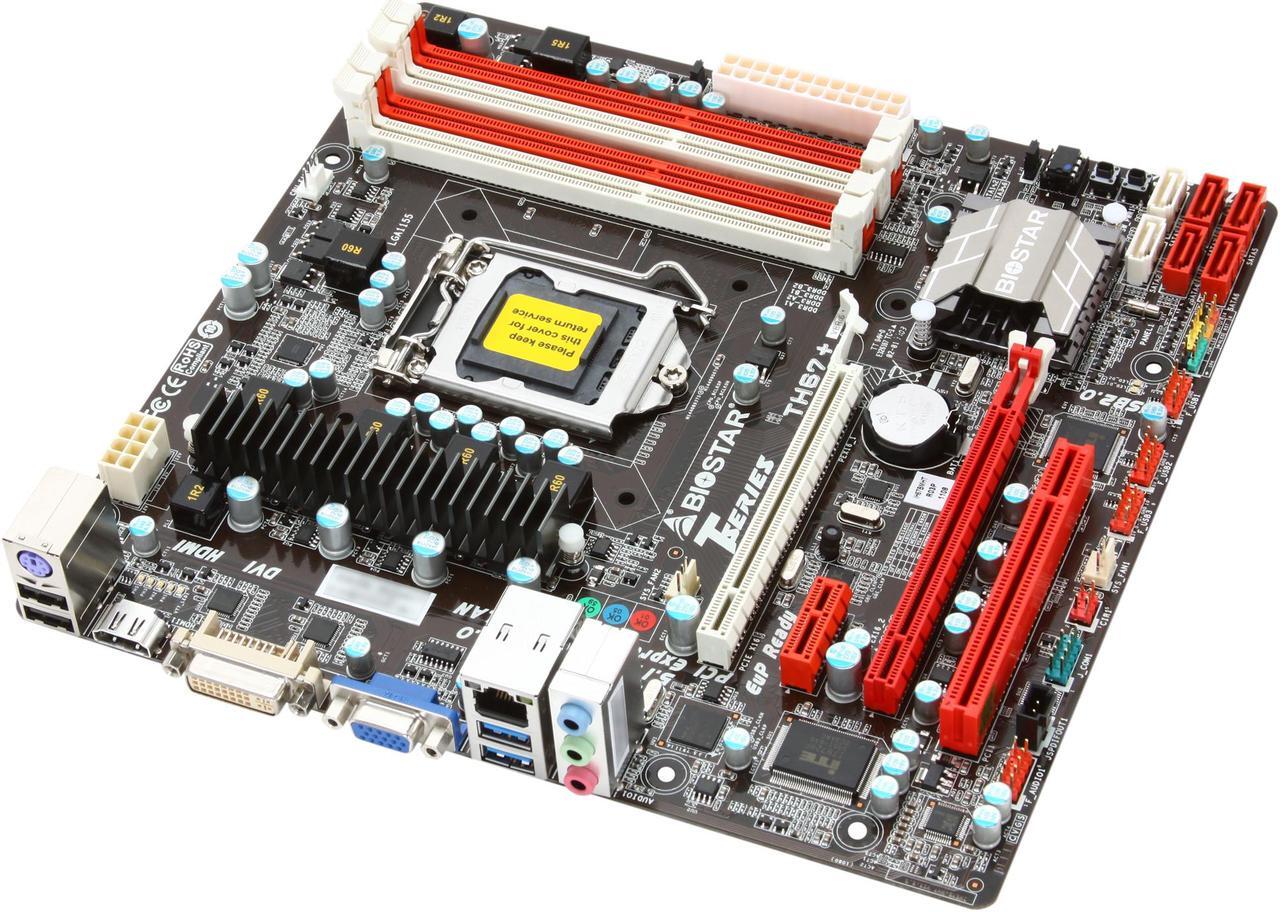

    BIOSTAR TH67+ LGA 1155 Intel H67 HDMI USB 3.0 Micro ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel H67
    • Core i7 / i5 / i3 (LGA1155)
    • DDR3 1333/1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the Biostar TH67+

    Model
    Brand BIOSTAR
    Model TH67+
    Supported CPU
    CPU Socket Type LGA 1155
    CPU Type Core i7 / i5 / i3 (LGA1155)
    Chipsets
    Chipset Intel H67
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 1333/1066
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 2 (x16, x4)
    PCI Express x1 1 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    Serial ATA (SATA) 2 x SATA 6Gb/s
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 6 Channels
    Onboard LAN
    LAN Chipset Realtek 8111E
    Max LAN Speed 1Gbps
    Rear Panel Ports

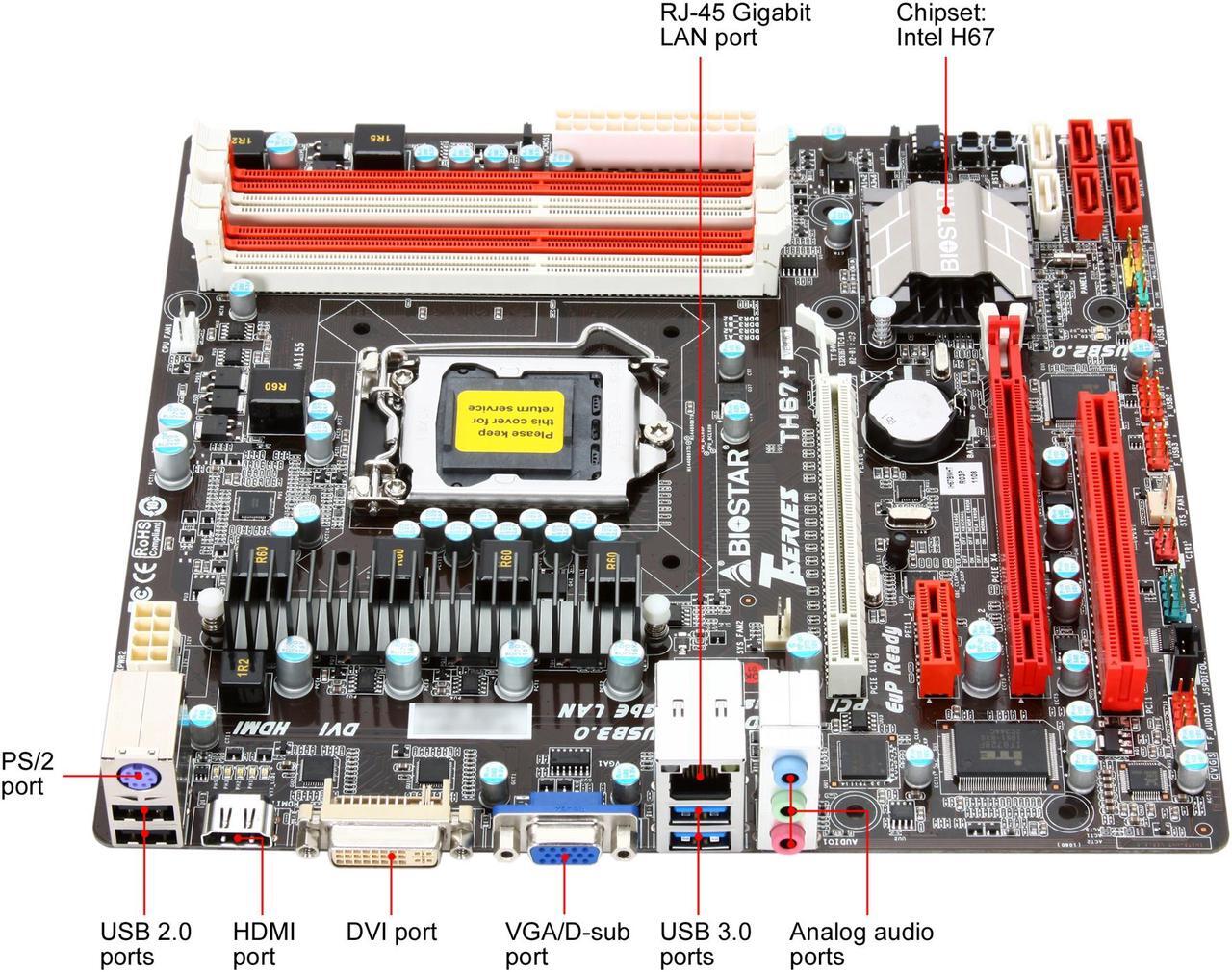

    Back I/O Ports 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.0
    PS/2 1 x PS/2 Keyboard
    Video Ports D-Sub + DVI
    HDMI 1 x HDMI
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 2 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 6 x USB 2.0
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.06"
    Power Pin 24 Pin
    Features
    Features Supports the Intel 2nd generation Core i7 and Core i5 processors in the 1155 package

    Intel H67 single chip architecture

    Support 4-DIMM DDR3-1333/1066 up to 16G maximum capacity

    Support ATI CrossfireX Technology

    Support SATA 6Gb/s 2X speed than current SATA 3G

    Support USB 3.0

    100% X.D.C solid capacitor

    BIOSTAR G.P.U (Green Power Utility) Technology for Energy Saving

    BIOSTAR Toverclocker utility
    Additional Information
    Date First Available July 18, 2024
