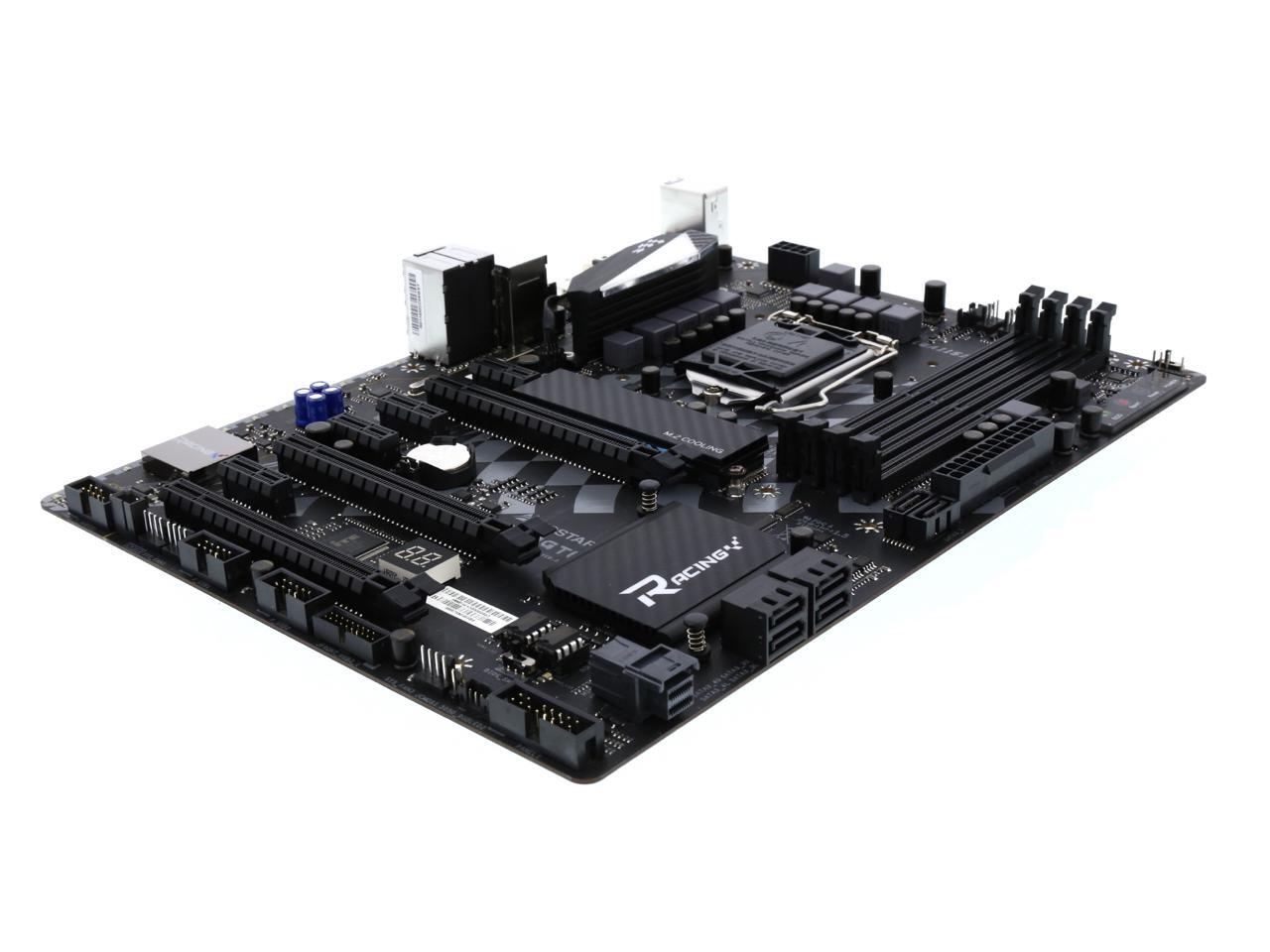

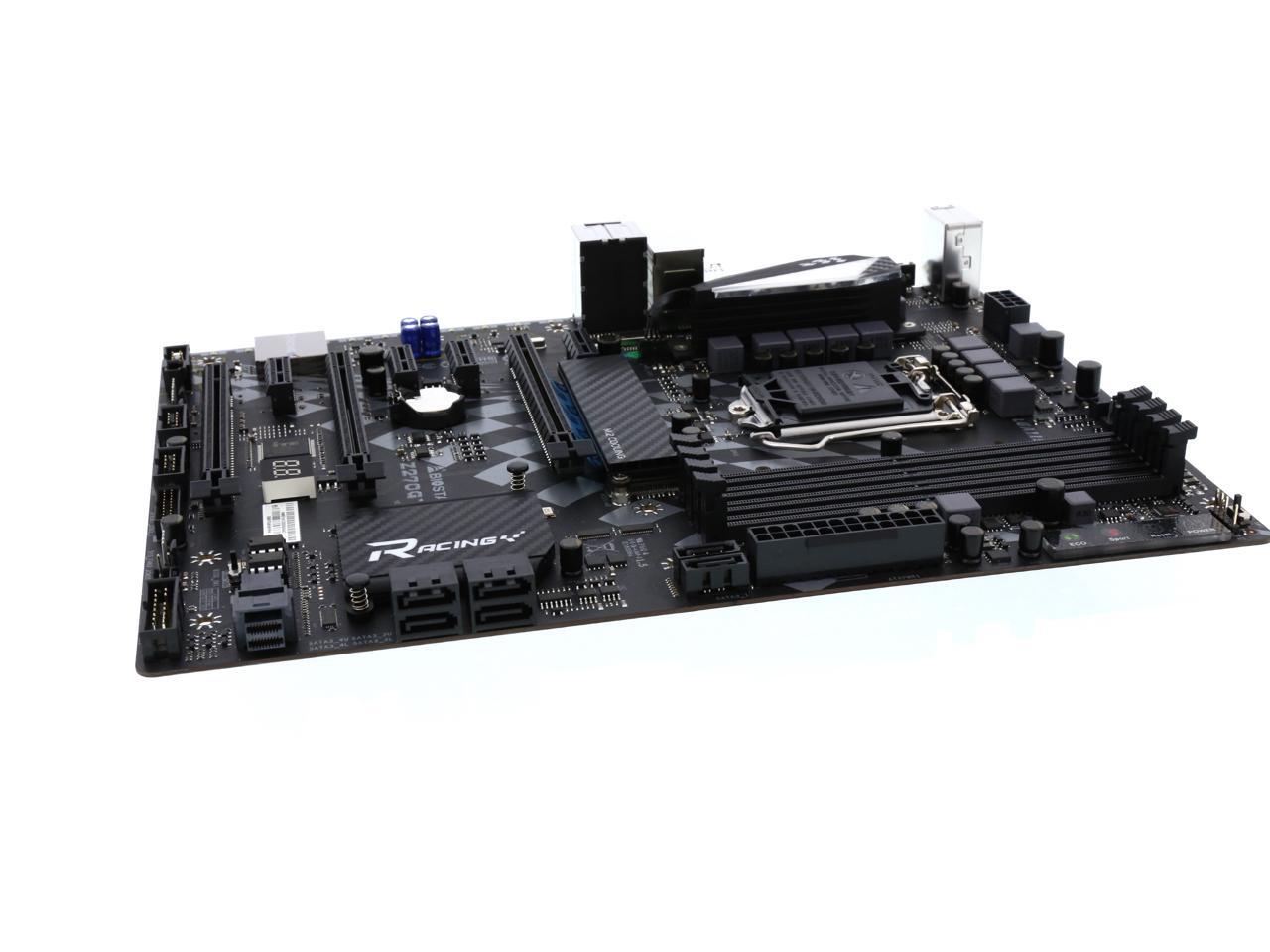

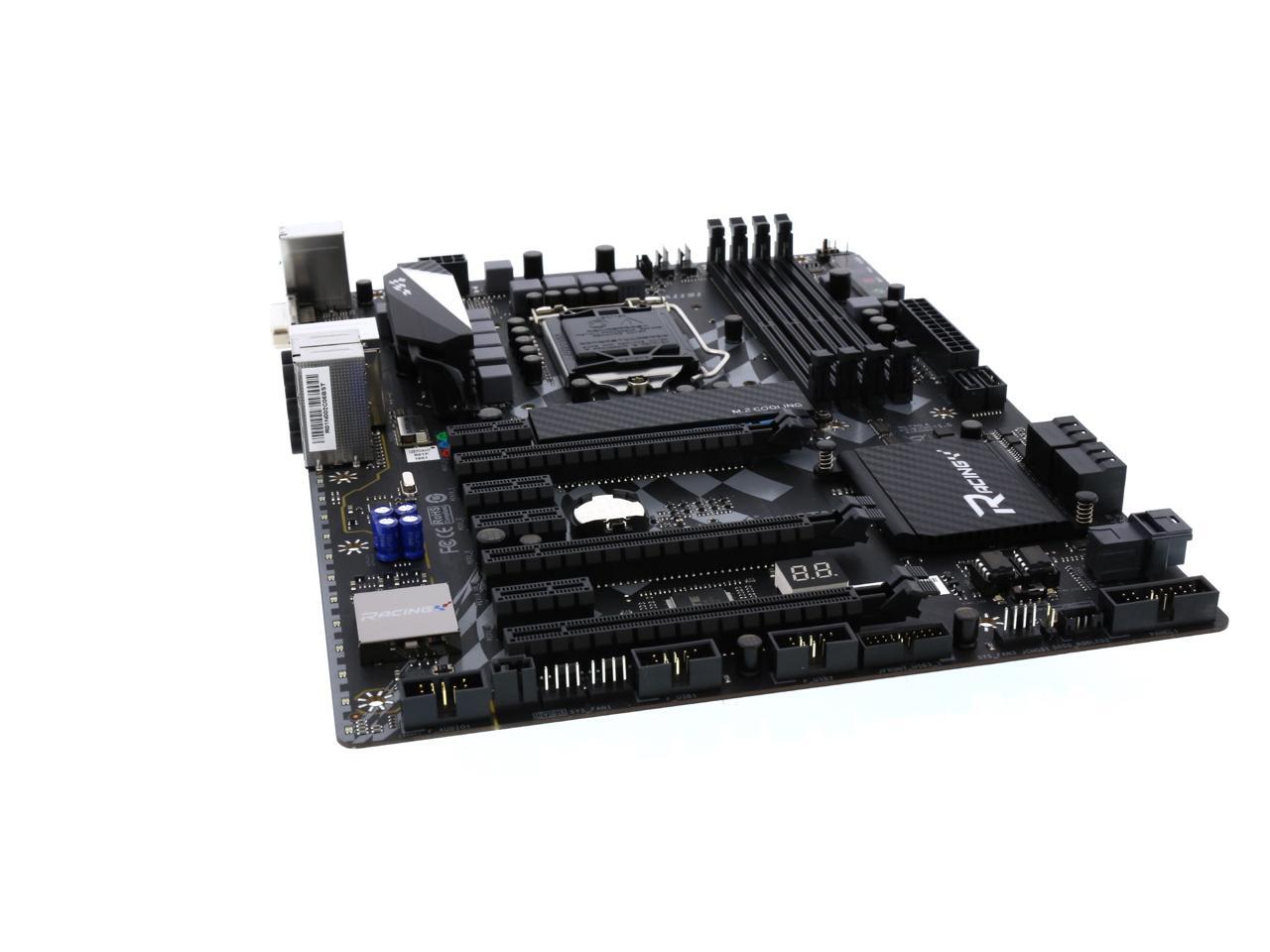

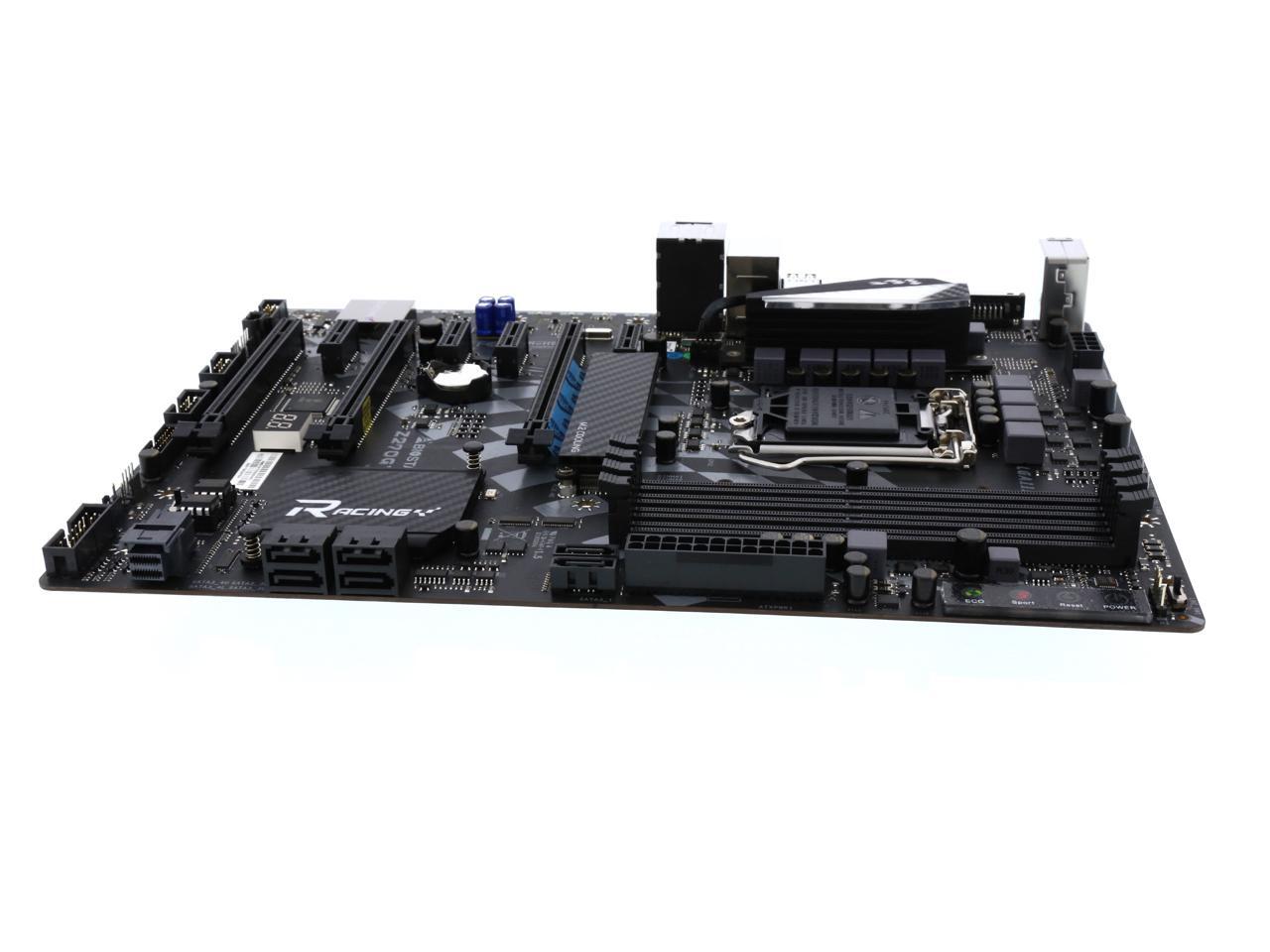

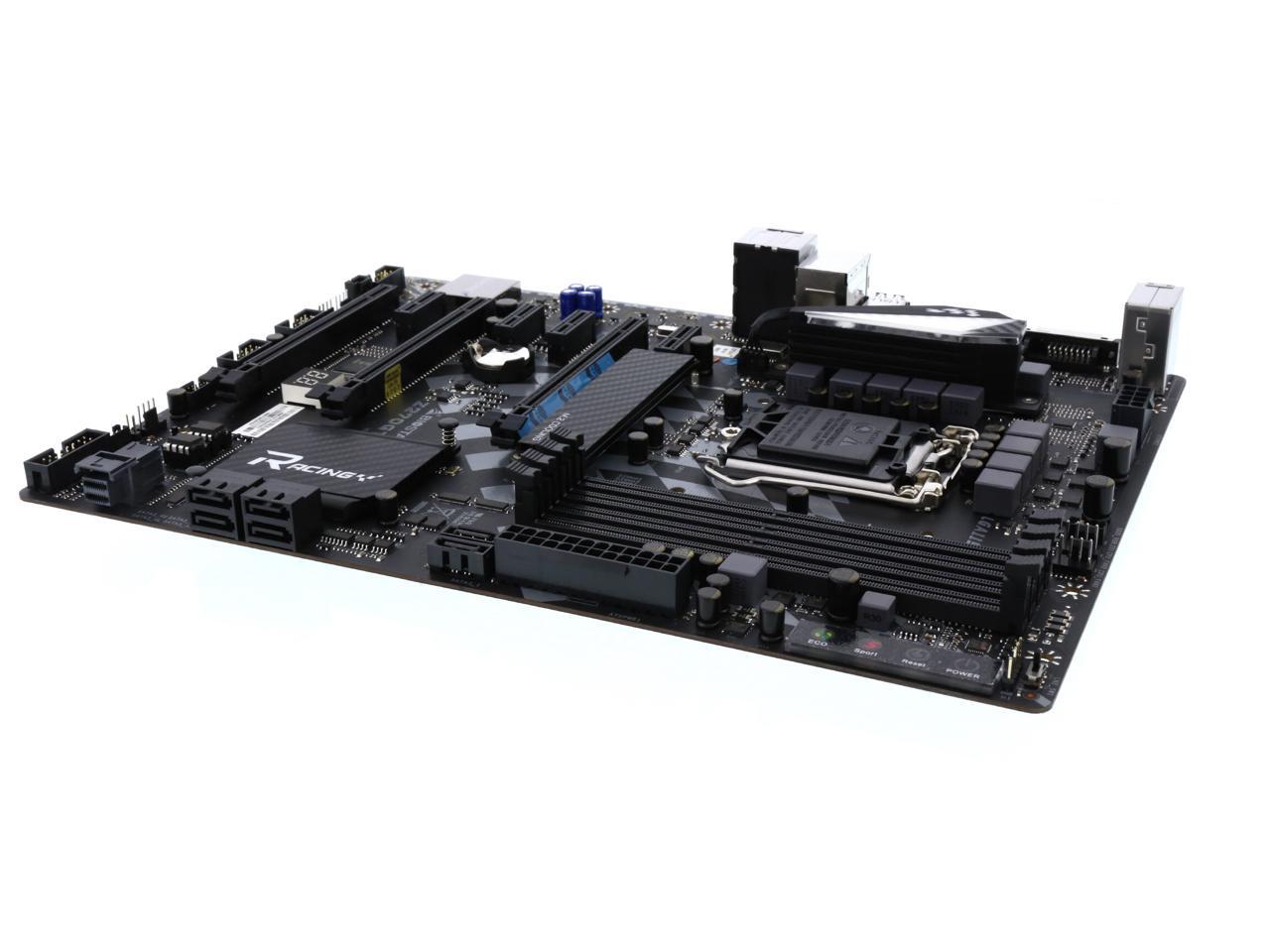

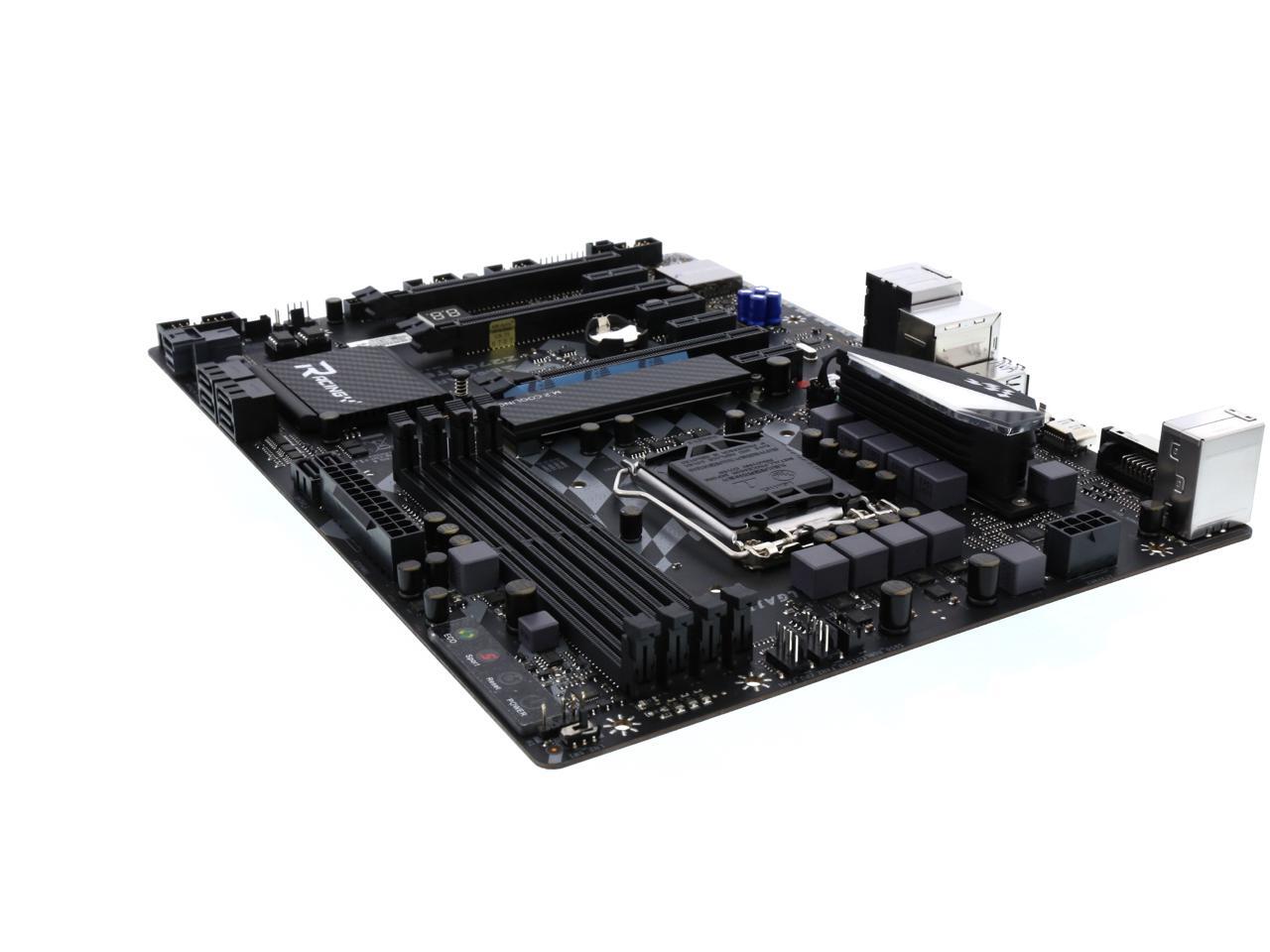

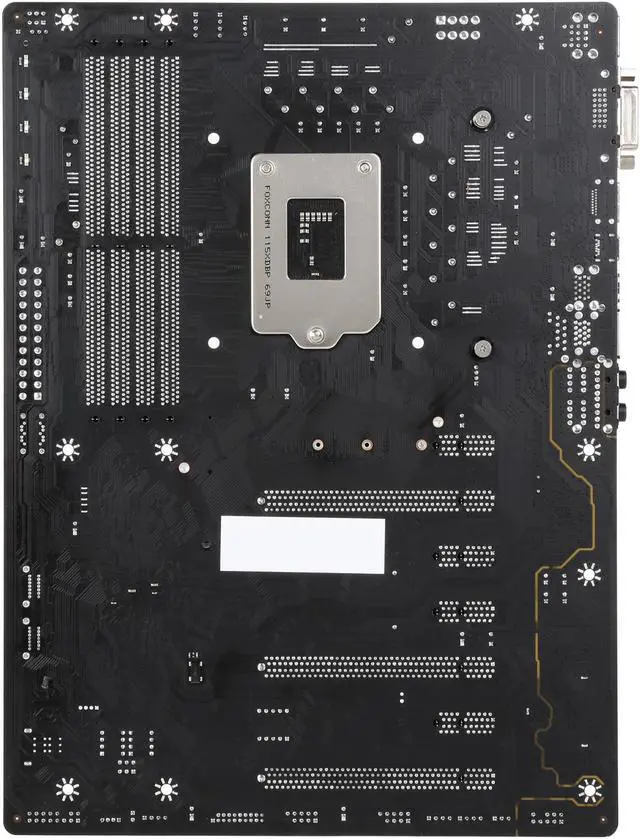

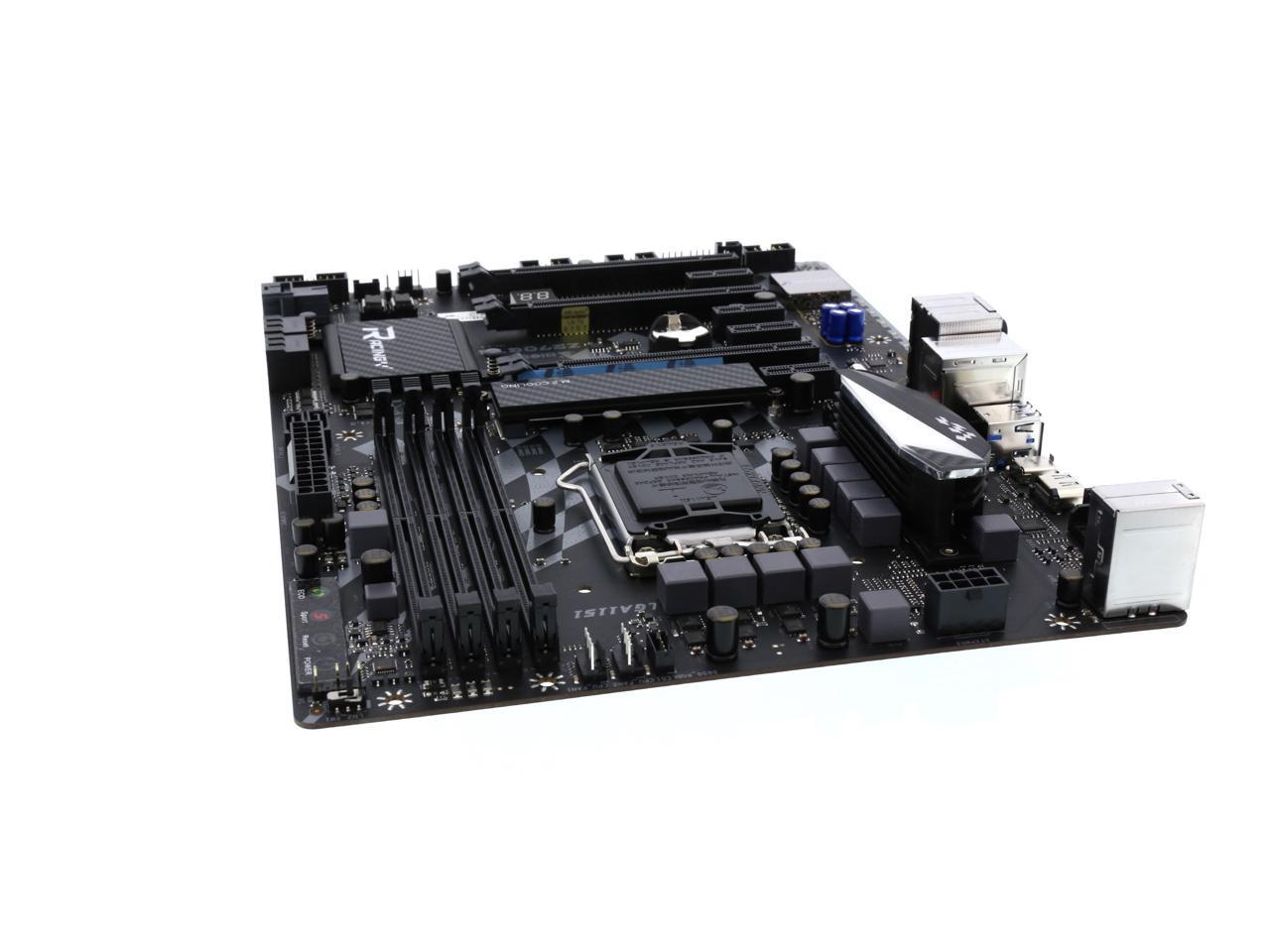

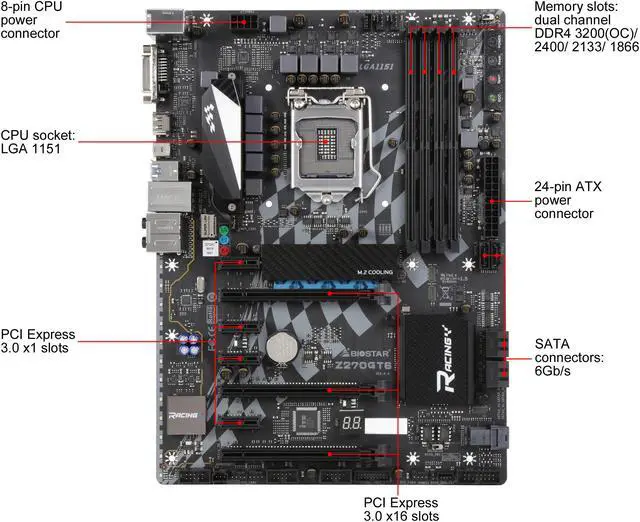

BIOSTAR Z270GT6 LGA 1151 Intel Z270 HDMI USB 3.0 ATX Intel Motherboard

(2) Write a Review
  • Intel Z270
  • 7th & 6th Gen Intel Core i7 LGA 1151 Processor
  • 7th & 6th Gen Intel Core i5 LGA 1151 Processor
  • 7th & 6th Gen Intel Core i3 LGA 1151 Processor
  • 7th & 6th Gen Intel Pentium LGA 1151 Processor
  • 7th & 6th Gen Intel Celeron LGA 1151 Processor
  • Maximum CPU TDP (Thermal Design Power): 95W
  • DDR4 3200(OC)/ 2400/ 2133/ 1866
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar Z270GT6

Model
Brand BIOSTAR
Model Z270GT6
Supported CPU
CPU Socket Type LGA 1151
CPU Type 7th & 6th Gen Intel Core i7 LGA 1151 Processor
7th & 6th Gen Intel Core i5 LGA 1151 Processor
7th & 6th Gen Intel Core i3 LGA 1151 Processor
7th & 6th Gen Intel Pentium LGA 1151 Processor
7th & 6th Gen Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power): 95W
Supported CPU Technologies * Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset Intel Z270
Onboard Video
Onboard Video Chipset By CPU model
Supports DX12
Supports HDCP
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 3200(OC)/ 2400/ 2133/ 1866
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI-E x16 3.0 Slot (x16)
2 x PCI-E x16 3.0 Slot (x4) (Intel Optane Technology ready)
PCI Express x1 4 x PCI-E x1 3.0 Slot
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
M.2 1 x U.2 32Gb/s Connector, support PCI-E Storage (share w/ SATA3_4U, 4L) (Intel Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/2260/2280 SATA 6Gb/s (share w/ SATA3_1) & PCI-E Storage (share w/ PEX16_SB_1) (Intel Optane Technology ready)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps

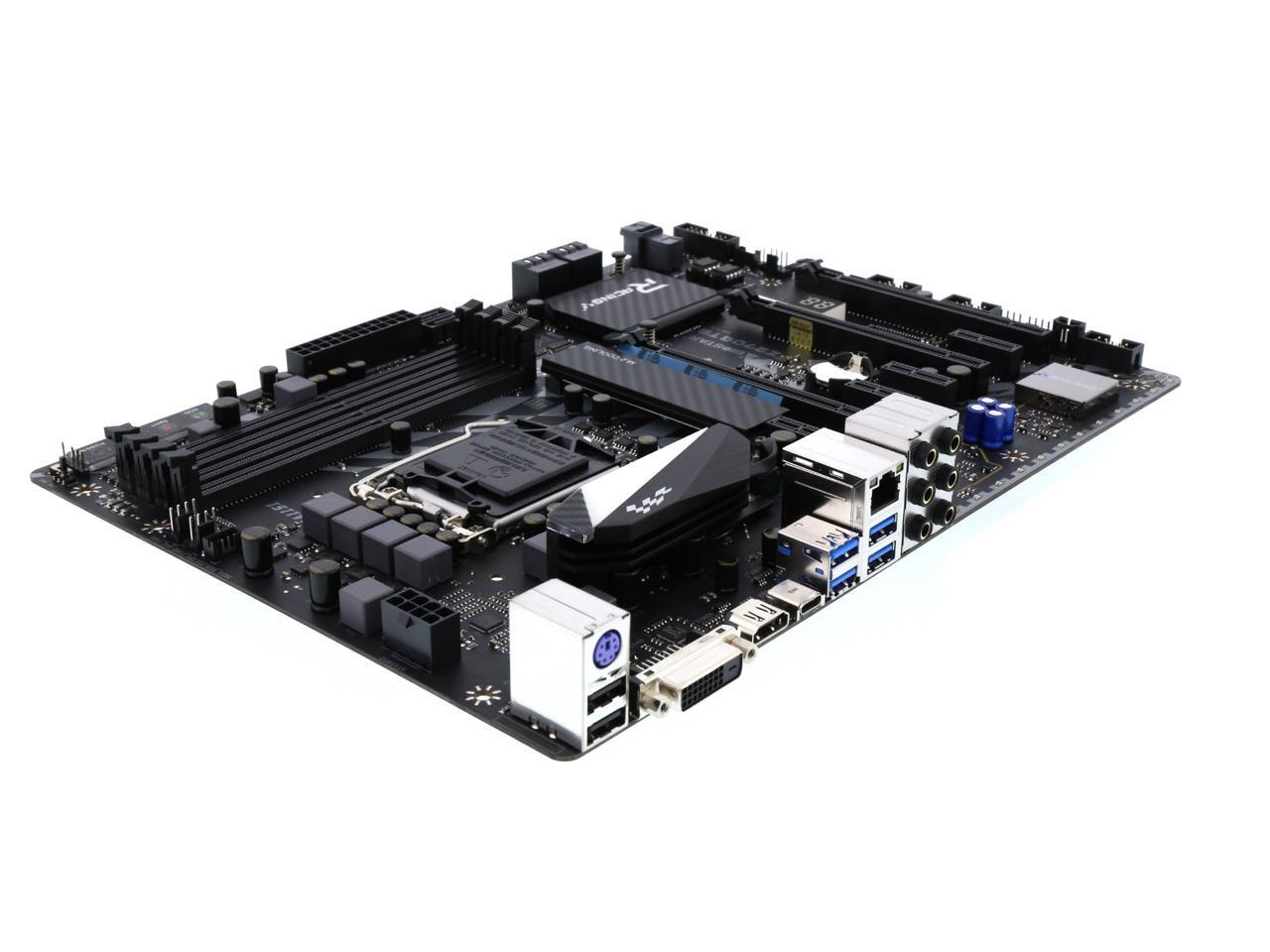

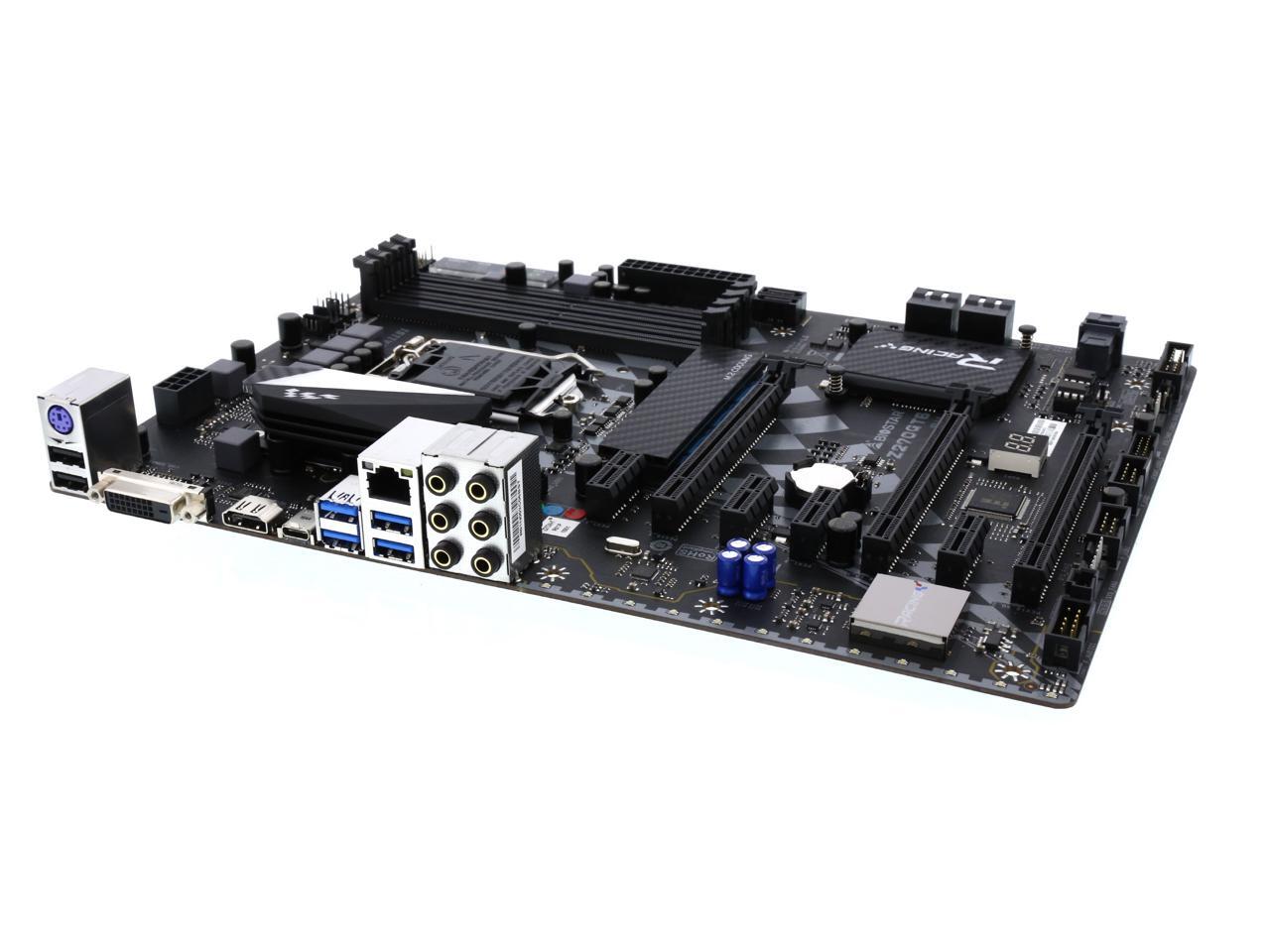

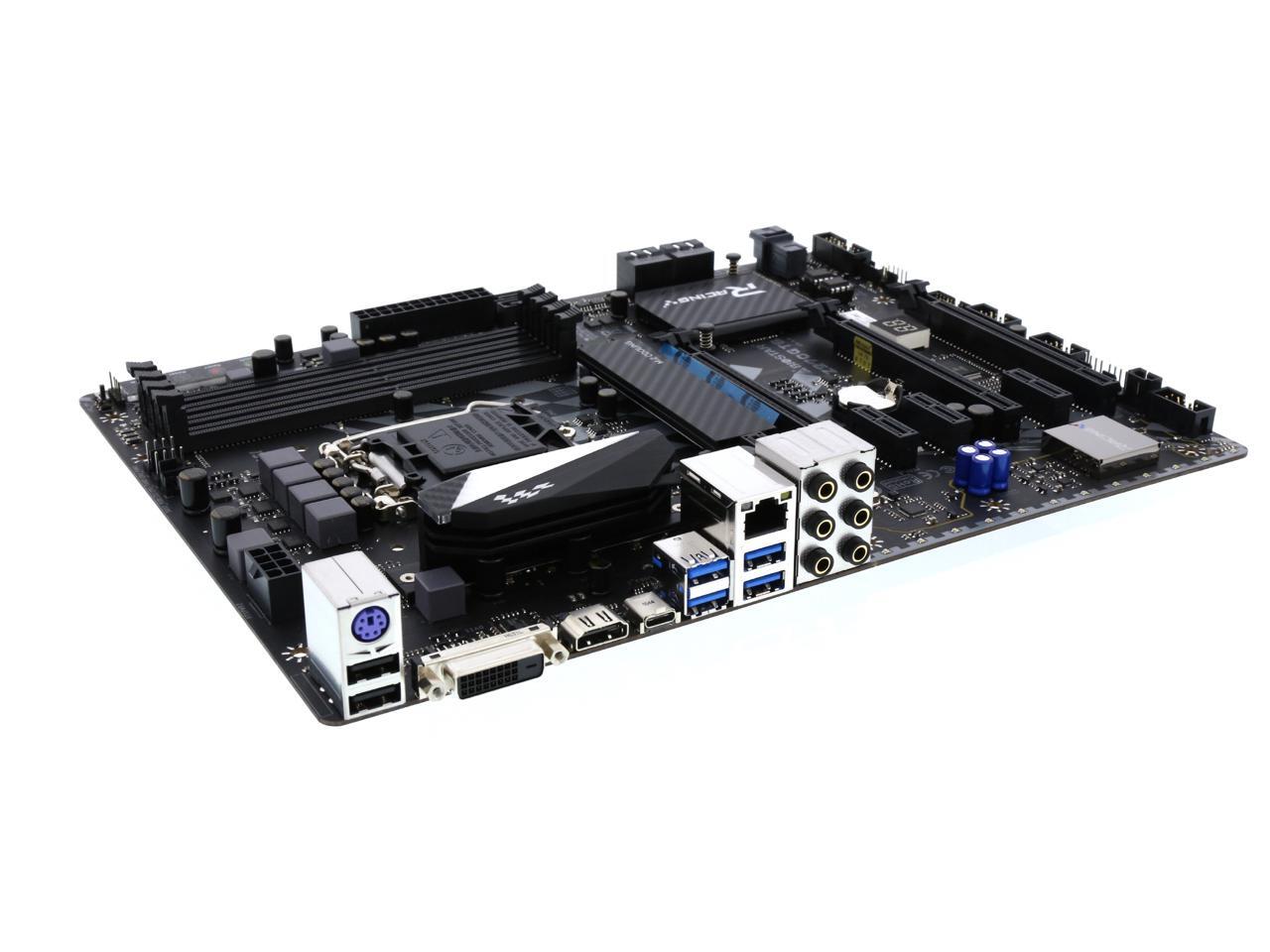

Rear Panel Ports
PS/2 1
Video Ports 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
HDMI 1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4
RJ45 1 x RJ45
USB 3.0 4 x USB 3.0 Port
USB 1.1/2.0 2 x USB 2.0
USB Type-C 1 x USB 3.0 Type-C Port
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.0 Header
2 x USB 2.0 Header
Other Connectors 1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Header
3 x System Fan Header
1 x LN2 Switch
2 x 5050 LED Header
Physical Spec
Form Factor ATX
LED Lighting 5050 LED FUN ZONE
Dimensions (W x L) 12.0" x 8.9"
Features
Features Supports 7th Generation Intel Core Processor, enables overclocking on Unlocked Intel Core Processors

Intel Z270 single chip architecture

Support 4-DIMM DDR4-3200(OC)/ 2400/ 2133/ 1866 up to 64G maximum capacity

BIOSTAR Hi-Fi Technology inside

Support USB 3.0 Type-C

Support M.2 (32Gb/s) (Intel Optane Technology Ready)

Support U.2 (32Gb/s) (Intel Optane Technology Ready)

Support HDMI 4K resolution

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring

OVERVOLTAGE:
CPU Vcore / VSA / VCC_IO / VGT / VCC_PLL_OC / DDR / DDR VPP / PCH 1.0V

OS SUPPORT:
Support Windows 10 (x64) for Intel 7th Generation Processor
* Support Windows 7 / 8.1 (x64) / 10 (x64) for Intel 6th Generation Processor

BUNDLE SOFTWARE:
Racing GT Utility
BullGuard
Intel Rapid Storage Technology
Packaging
Package Contents ACCESSORIES:
4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
1 x RGB LED Adapter Cable (Optional)
Additional Information
Date First Available January 05, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
