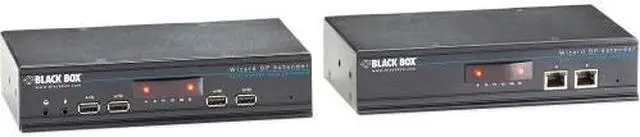

Black Box ACU5800A Black Box Dual-Head DisplayPort KVM Extender over CATx - 1 Computer(s) - 1 Remote User(s) - 492 ft Range - 6 x Network (RJ-45) - 6 x USB

Black Box ACU5800ABrand NewIncludes 2 Year WarrantyProduct # ACU5800AThe Black Box DisplayPort Extender is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station while maintaining the same user desktop experience. It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560 x 1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables. Perfect digital video, real time control The system is uncompressed, sending every pixel of every frame without loss.

The receiver supports DisplayPort Dual Mode (DP++), meaning monitors that only support HDMI or DVI can be used (with the correct adapter cable). Single CATx cable Video, USB, and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension and increased video bandwidth. Up to 492 feet (150 m) extension distances Distance is dependent on the monitor resolution, number of monitors, cable type, and the number of connection breaks for patch panels and wall plates. USB 2.0 Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog wheels, joysticks and 3D explorers.

Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port. EDID management The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer. Plug and play This extender solution is plug-and-play. There is no need for drivers or software to be installed. Digital audio Supports the S/PDIF interface via an optical 3.5 mm jack socket (dual use with analog audio via mini Toslink). HD-quality analog audio HD-audio quality (stereo channel 24 bit sampled at 96kHz) is available to transfer audio from local to remote for Line In / Line.

Headsets with integrated microphone use cases are also supported.
ACU5800A Features: Connectivity
Technology: Wired Number of
Computers Supported: 1 Number of
Remote Users Supported: 1
Maximum Operating Distance: 492 ft
Graphic Mode: 4K Maximum
Video Resolution: 4096 x 2160
Network (RJ-45): Yes
USB: Yes Number of
Network (RJ-45) Ports: 6 Number of
USB Ports: 6
Platform Supported: PC
Platform Supported: Mac
Platform Supported: Sun
Platform Supported: Linux
Platform Supported: Unix
Green Compliant: Yes Green
Compliance Certificate/Authority: RoHS
