Looking For Flexibility to Choose Your Own Fiber SFP miniGBIC module with Media Converter?
AN-UM-SMC-AS-J is Designed Just For That - Use Any Standard SFP Module You Have In Hand to Plug In SFP slot and You Are Done - It Works!
Changing Distance or Fiber Type? Again, Change the SFP module While Keeping the Same Media Converter!
But Wait, There is More!
AN-UM-SMC-AS Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
All These Important Features Are All Supported:

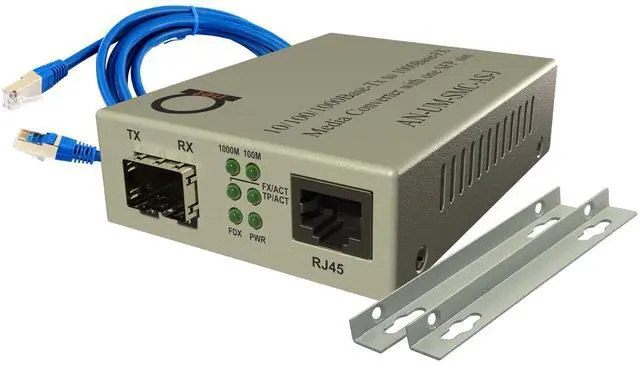

- Provides 1 slot for SFP miniGbic (Gigabit Type) modules, all major SFP brands are supported, 100M and 1G modules are supported!
- One 10/100/1000Base-T RJ-45 port autosensing featured
- Supporting hot-swap of SFP modules
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX/SX (depends on SFP module used)
- CE, FCC, ROHS, LVD certified
- Supports Jumbo Ethernet frames up to 9000 bytes (if needed, configurable by dip switches)
- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)

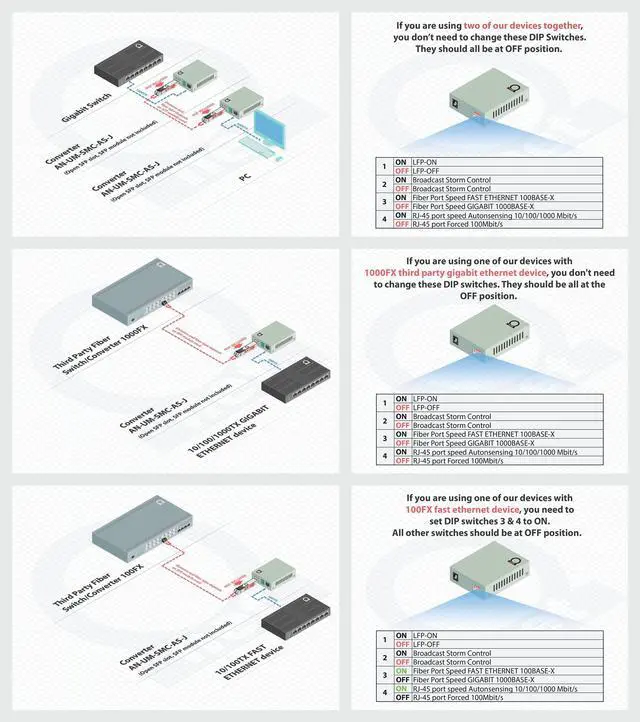

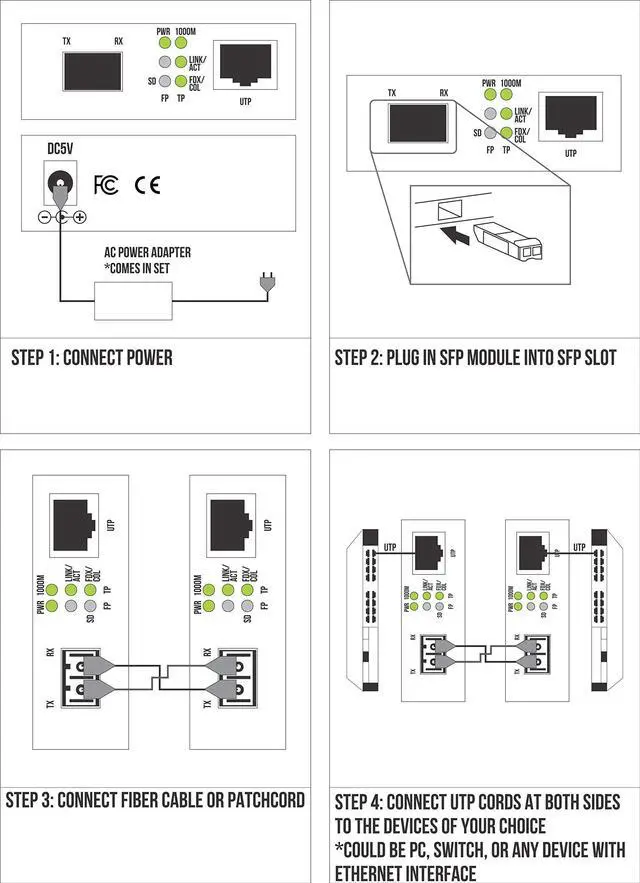

Setup of these units is really easy as the 3 steps are shown in the gallery, and default settings will work for all of your cases, but for sophisticated users, we made some more customized settings available via dip switches on the unit's back panel.
Questions during installation? Not sure if it your network? We are always here to answer You and guide You through!
 4 x RJ-45 slots & 1 Standard Open SFP slot mini switch / media converter |  10GbE Media Converter with Open SFP+ slot |  SFP to SFP slot - Fiber to Fiber Converter - Extender |  Open SFP slot Gigabit Ethernet Media Converter |  2.5G Ethernet to Fiber Media Converter | Dual Fiber SFP Slot Configurable for... |  Open SFP Slot DIN Rail Gigabit Ethernet Switch, 4X 10/100/1000Base-TX + 1x 10... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Speed | Gigabit | 10 Gigabit / 1 Gigabit | Gigabit | Gigabit | 1G/2.5G | Gigabit |
| Autosensing to 10 / 100 / 1000 Mbit/s | ? | ? | ? | ? | ? | ? |
| Fiber Type | Universal (depends of SFP module used) | Universal (depends of SFP+ module used) | Universal (depends of SFP module used) | Universal (depends of SFP module used) | Universal (depends of SFP module used) | Universal (depends of SFP module used) |
| Fiber Connector | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Universal (depends of SFP module used) |
| Wavelength | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Universal (depends of SFP module used) | Universal (depends of SFP module used) |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | 2 adapters in Set: AC/5VDC and DC48V to DC5V |
| Maximum Reach | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Universal (depends of SFP module used) |
| Size | 27mm (H) * 134mm (L) * 82 mm (W) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) |
| LFP & Jumbo Frame Support | Jumbo frame | not applicable | not applicable | ? | LFP & Jumbo Frame Support | Jumbo Frame |
| UTP cable & Wall Mount Ears in Set | no data | ? | ? | ? | ? | no data |
Versatile Protocol & Features Support
- One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
- Compliant with IEEE 10/100/1000Base-T and 1000Base-FX/SX/LX
- Connect RJ-45 UTP copper port to Gigabit or Fast Ethernet ports or even legacy 10Mbit/s ports - all will work!
Sturdy, Stable, and Easy To Use
- Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
- Supports QinQ and VLAN's - MTU size big enough to pass them through;
- Automatically adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed and Extends in over Fiber - Distance and Fiber Type Depends on SFP Module You Choose

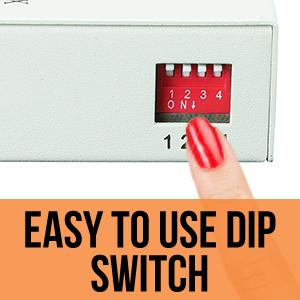

Optional Dip Switch Settings - Even More Flexibility!
- Broadcast Storm Control On/Off
- Ethernet Speed on RJ-45 port forced to 100M or Autosensing 10/100/1000M
- Fiber Port Speed 1000FX (Gigabit) or 100FX Fast Ethernet
- LFP (LLF) feature On/Off
By default, all DIP switches are set to 'off,' accommodating 99% of applications seamlessly. Unsure about adjusting settings? Our support team is eager to assist you, ensuring a hassle-free setup.
Technical Specifications
Looking For Flexibility to Choose Your Own Fiber SFP miniGBIC module with Media Converter?
AN-UM-SMC-AS-J is Designed Just For That - Use Any Standard SFP Module You Have In Hand to Plug In SFP slot and You Are Done - It Works!
Changing Distance or Fiber Type? Again, Change the SFP module While Keeping the Same Media Converter!
But Wait, There is More!
AN-UM-SMC-AS Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
All These Important Features Are All Supported:
- Provides 1 slot for SFP miniGbic (Gigabit Type) modules, all major SFP brands are supported, 100M and 1G modules are supported!
- One 10/100/1000Base-T RJ-45 port autosensing featured
- Supporting hot-swap of SFP modules
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX/SX (depends on SFP module used)
- CE, FCC, ROHS, LVD certified
- Supports Jumbo Ethernet frames up to 9000 bytes (if needed, configurable by dip switches)
- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
Setup of these units is really easy as the 3 steps are shown in the gallery, and default settings will work for all of your cases, but for sophisticated users, we made some more customized settings available via dip switches on the unit's back panel.
Questions during installation? Not sure if it your network? We are always here to answer You and guide You through!
4 x RJ-45 slots & 1 Standard Open SFP slot mini switch / media converter | 10GbE Media Converter with Open SFP+ slot | SFP to SFP slot - Fiber to Fiber Converter - Extender |  Open SFP slot Gigabit Ethernet Media Converter | 2.5G Ethernet to Fiber Media Converter | Dual Fiber SFP Slot Configurable for... | Open SFP Slot DIN Rail Gigabit Ethernet Switch, 4X 10/100/1000Base-TX + 1x 10... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Speed | Gigabit | 10 Gigabit / 1 Gigabit | Gigabit | Gigabit | 1G/2.5G | Gigabit |
| Autosensing to 10 / 100 / 1000 Mbit/s | ? | ? | ? | ? | ? | ? |
| Fiber Type | Universal (depends of SFP module used) | Universal (depends of SFP+ module used) | Universal (depends of SFP module used) | Universal (depends of SFP module used) | Universal (depends of SFP module used) | Universal (depends of SFP module used) |
| Fiber Connector | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Universal (depends of SFP module used) |
| Wavelength | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Universal (depends of SFP module used) | Universal (depends of SFP module used) |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | 2 adapters in Set: AC/5VDC and DC48V to DC5V |
| Maximum Reach | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Depends on SFP module used | Universal (depends of SFP module used) |
| Size | 27mm (H) * 134mm (L) * 82 mm (W) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) |
| LFP & Jumbo Frame Support | Jumbo frame | not applicable | not applicable | ? | LFP & Jumbo Frame Support | Jumbo Frame |
| UTP cable & Wall Mount Ears in Set | no data | ? | ? | ? | ? | no data |
Versatile Protocol & Features Support
- One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
- Compliant with IEEE 10/100/1000Base-T and 1000Base-FX/SX/LX
- Connect RJ-45 UTP copper port to Gigabit or Fast Ethernet ports or even legacy 10Mbit/s ports - all will work!
Sturdy, Stable, and Easy To Use
- Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
- Supports QinQ and VLAN's - MTU size big enough to pass them through;
- Automatically adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed and Extends in over Fiber - Distance and Fiber Type Depends on SFP Module You Choose
Optional Dip Switch Settings - Even More Flexibility!
- Broadcast Storm Control On/Off
- Ethernet Speed on RJ-45 port forced to 100M or Autosensing 10/100/1000M
- Fiber Port Speed 1000FX (Gigabit) or 100FX Fast Ethernet
- LFP (LLF) feature On/Off
By default, all DIP switches are set to 'off,' accommodating 99% of applications seamlessly. Unsure about adjusting settings? Our support team is eager to assist you, ensuring a hassle-free setup.
Technical Specifications
| Fiber Port | Open SFP slot, supports 1G & 100M modules, all fiber type and distance supported |
| Ethernet Port | RJ-45 10/100/1000Base-T RJ-45 port autosensing featured or set to 100M by dip switch, default gigabit |
| Hot Swap Feature for SFP | Supported |
| Link Loss Feature | Supported |
| Operating temperature | 0 to 70 degree celsius |
| Dimensions | 70.5mm(L)X94mm(W)X26.5mm(H) |
| Standards Supported | IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX/SX (depends on SFP module used) |
| Environment | Relative humidity; 5% to 90% |
| Power supply | 100 to 240VAC 50 to 60Hz (you get AC/DC US Plug power adapter in set) |
| Mounting Features | Desktop or WallMount (You Get Wall Mount Ears in Set) |
| MTU size | Supports Jumbo Ethernet frames up to 9000 bytes |
