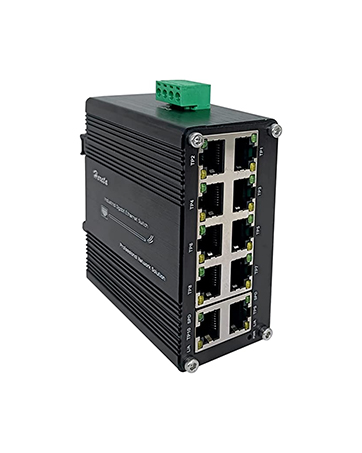

Ethernet Switch 10 RJ45 Port

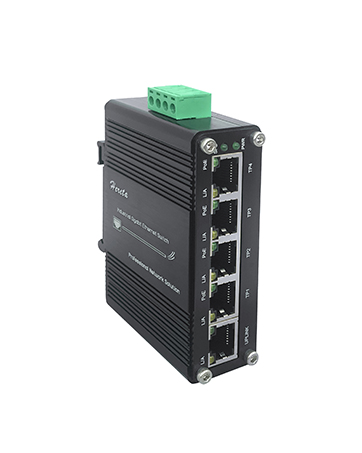

PoE Switch 5-Port
8 RJ45 Port +6 SFP Port Switch
4 RJ45 Port +2 SFP Port Switch

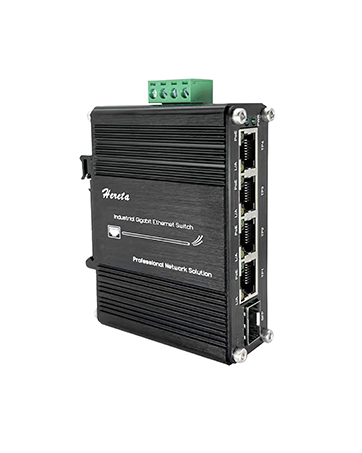

4 RJ45 Port +1 SFP Port Switch

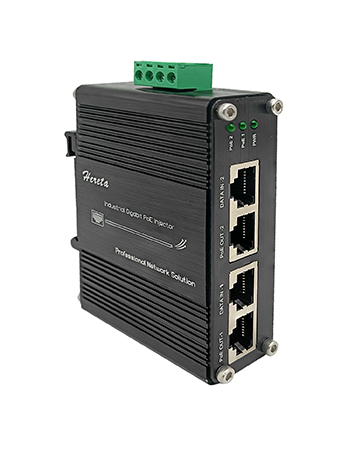

2 Ports PoE Injector 30W

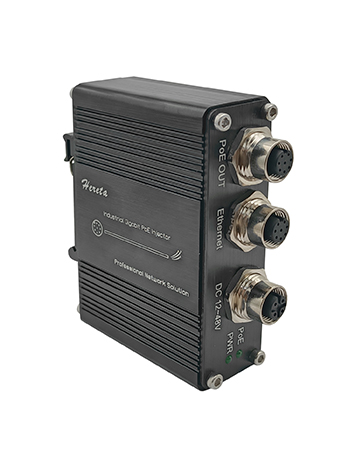

PoE+ Injector M12 Waterproof

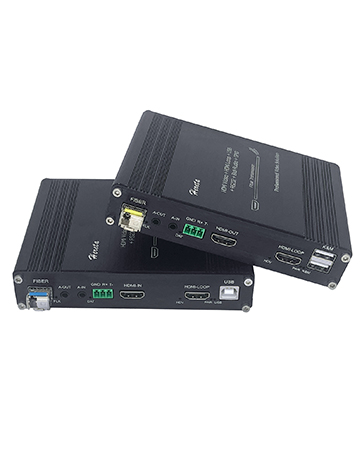

1080P HDMI KVM Fiber Extender
Gigabit Fiber Media Converter

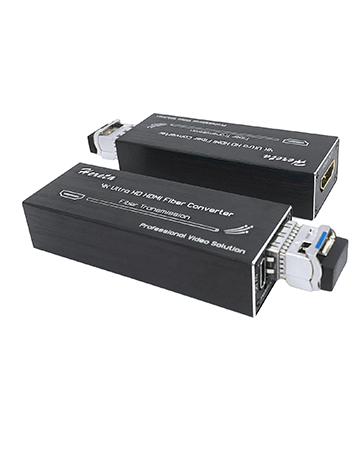

4K HDMI Fiber Extender

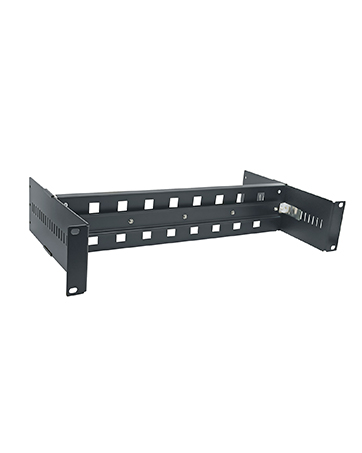

19" Rack Mount Din Rail Kit 2U

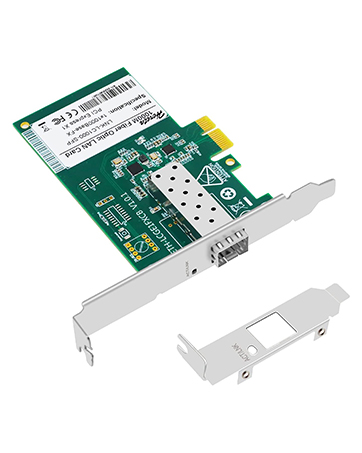

10GB PCIe Network Card
Rack Mount Power Strips -Red
Rack Mount Power Strips -Blue

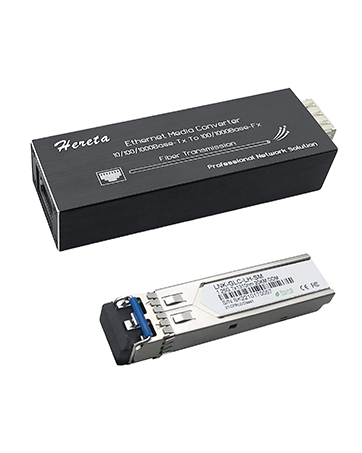

Hereta Mini Gigabit Ethernet Media Converter

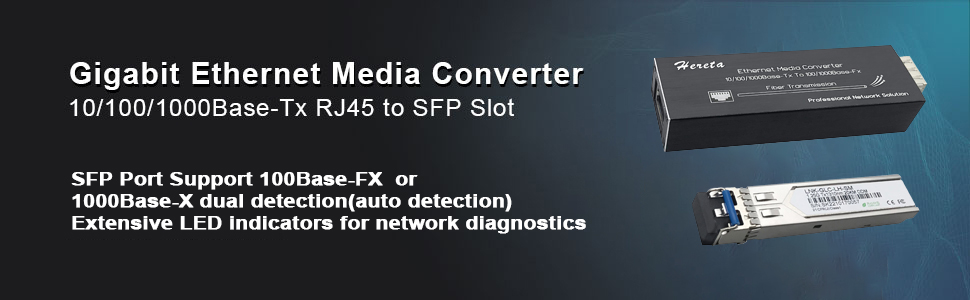

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in single mode dual fiber.
This media converter is ultra small in size, it’s easy to install and integrated in other equipments. It support both 100M and 1000M on fiber port, that makes it compatible with more devices.
Product Features:
- Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 100/1000Base-SX/LX
- 10/100/1000Mbps media converter with SFP port
- Supporting full-duplex and half-duplex and its auto-sensed
- Support 9k jumbo frame
- Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

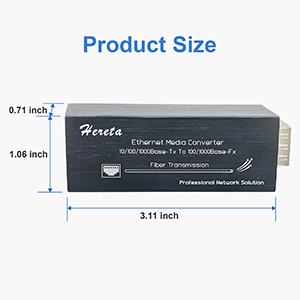

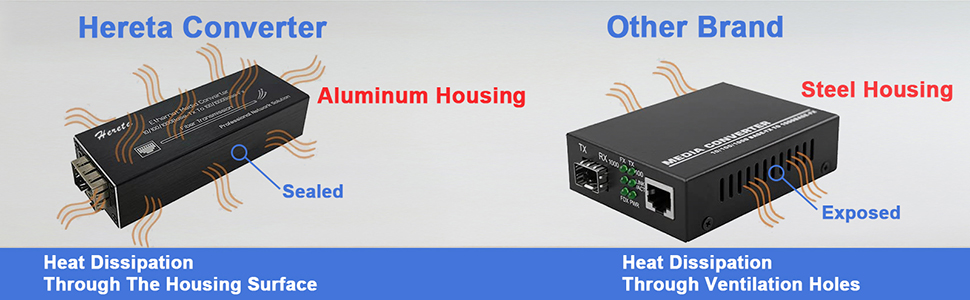

Compact Size with Aluminum Material

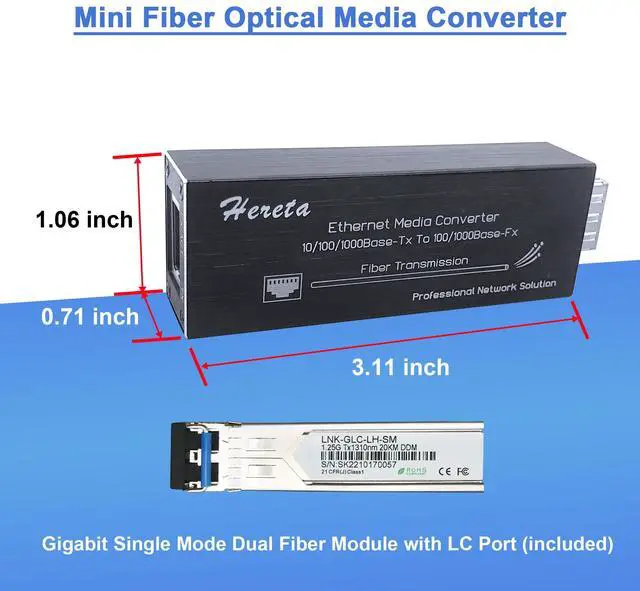

L*W*H: 3.11*0.71*1.06inch
Compact design, even smaller than other similar ultra compact design.

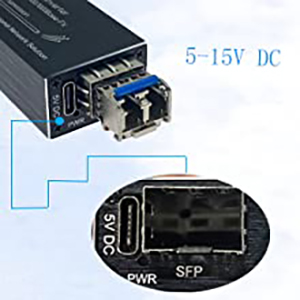

5-15V DC

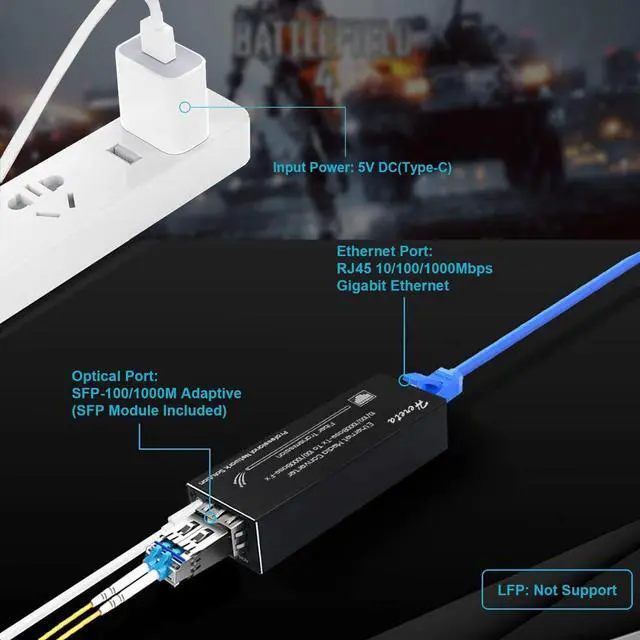

Power Supply: 5-15V DC USB C Port

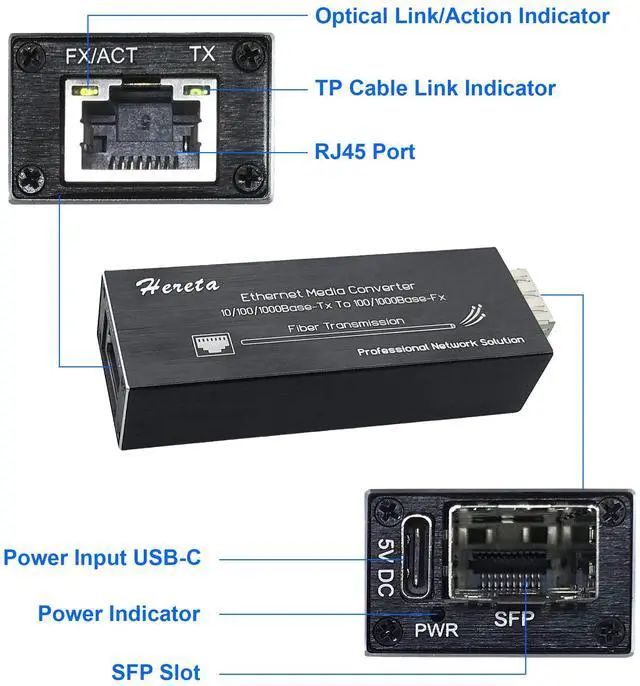

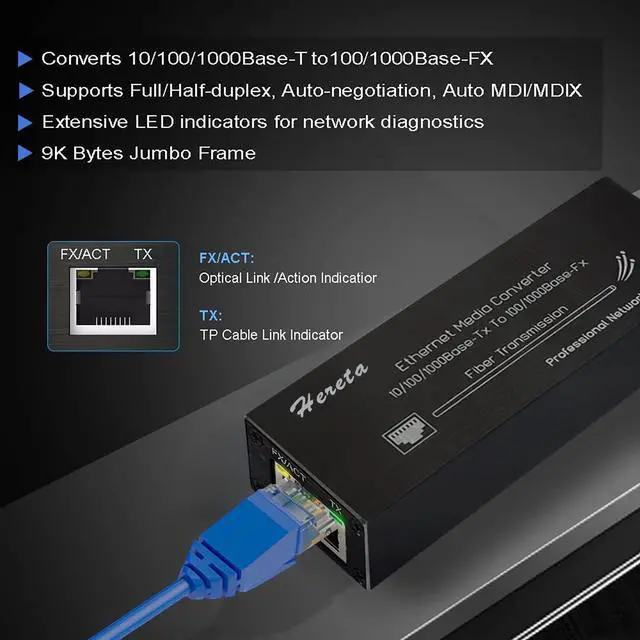

LED Indicator
- PWR(power supply)
- TX(LINK100/1000, TP cable rate 100/1000M)
- FX/ACT (Optical link action /TP cable packet forwarding action)

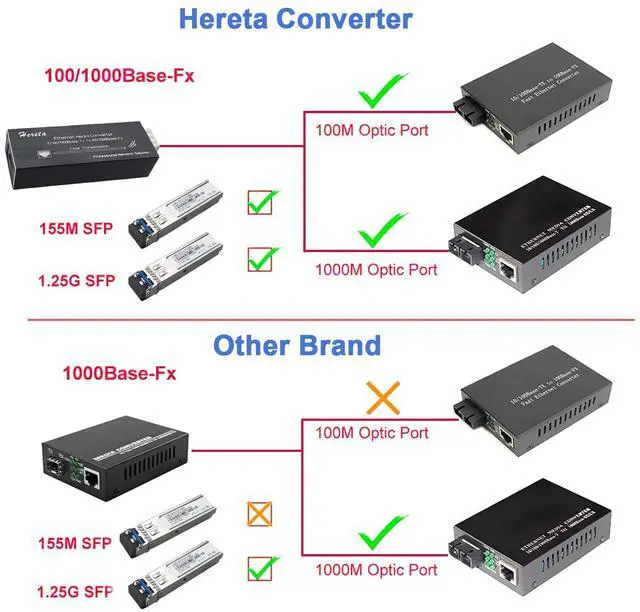

AUTO SENSING 100/1000Base-FX
Access mode:

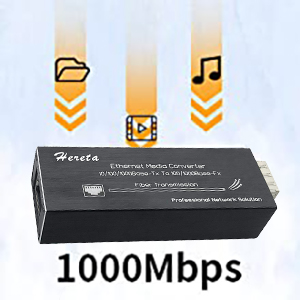

10/100/1000Mbps Gigabit Ethernet

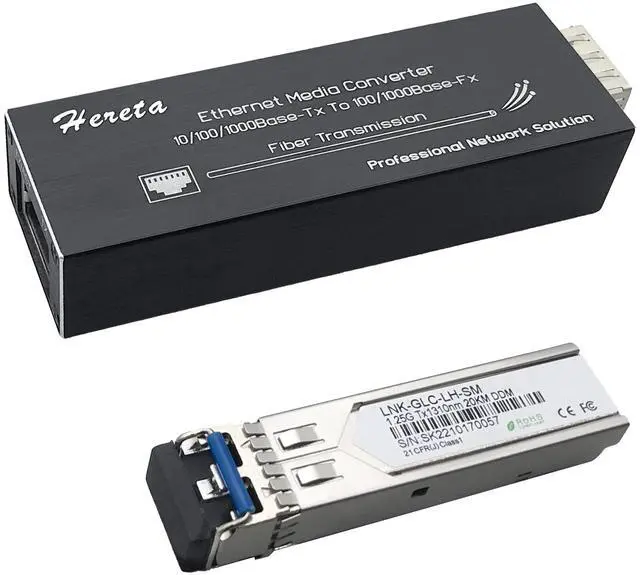

The SFP Fiber port Support 100/1000Base-FX, auto detect. 1.25G SFP module included.

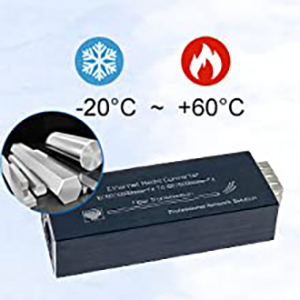

Works Well in Extreme Weather
Operating temperature
-20~60ºC
Maintaining temperature
-40~70ºC

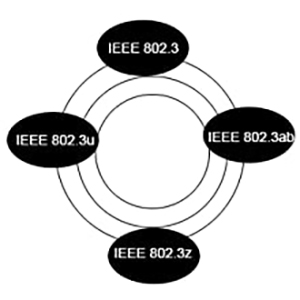

Standard
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX/FX Fast Ethernet IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

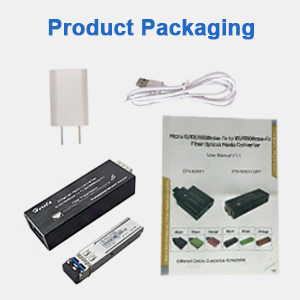

Package
- SFP Ethernet Converter*1
- SFP Module*1
- Charger*1
- USB Cable*1
- User Manual*1
Gigabit Ethernet Media Converter Application
With its reliable design and ease of use, the gigabit Ethernet Media Converter Application is a great choice for Community Network, Security Serveillance, Fiber to Home, Office Network and so on.
Specifications
Hereta Mini Gigabit Ethernet Media Converter
LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in single mode dual fiber.
This media converter is ultra small in size, it’s easy to install and integrated in other equipments. It support both 100M and 1000M on fiber port, that makes it compatible with more devices.
Product Features:
- Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 100/1000Base-SX/LX
- 10/100/1000Mbps media converter with SFP port
- Supporting full-duplex and half-duplex and its auto-sensed
- Support 9k jumbo frame
- Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Compact Size with Aluminum Material
L*W*H: 3.11*0.71*1.06inch
Compact design, even smaller than other similar ultra compact design.
5-15V DC
Power Supply: 5-15V DC USB C Port
LED Indicator
- PWR(power supply)
- TX(LINK100/1000, TP cable rate 100/1000M)
- FX/ACT (Optical link action /TP cable packet forwarding action)
AUTO SENSING 100/1000Base-FX
Access mode:
10/100/1000Mbps Gigabit Ethernet
The SFP Fiber port Support 100/1000Base-FX, auto detect. 1.25G SFP module included.
Works Well in Extreme Weather
Operating temperature
-20~60ºC
Maintaining temperature
-40~70ºC
Standard
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX/FX Fast Ethernet IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Package
- SFP Ethernet Converter*1
- SFP Module*1
- Charger*1
- USB Cable*1
- User Manual*1
Gigabit Ethernet Media Converter Application
With its reliable design and ease of use, the gigabit Ethernet Media Converter Application is a great choice for Community Network, Security Serveillance, Fiber to Home, Office Network and so on.
Specifications
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port | SFP - 100/1000M adaptive |
| Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
| Port | One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
| Transmission distance | Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
| Conversion means | Media conversion |
| LFP | Not Support |
| MTBF | 100,000 hours |
| LED indicator | PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
| Power supply | DC 5V (Type-C) |
| Power consumption | <3W |
| Operating temperature | -20~60ºC |
| Maintaining temperature | -40~70ºC |
| Dimensions (W x D x H) | 78 x 27 x 18 mm |
| Weight | 46g |
