    Black Box VX-HDMI-HDIP-RX MediaCento IPX HD Extender Receiver - HDMI-over-IP

    • Better video: supports up to 1080p HD (High Def).
    • Better configuration: Setup units using only the front panel interface, no additional configuration required.
    • Better compatibility: Intercompatible with the MediaCento 4k
    • Any source to any screen, over IP.
    • Extend HDMI video signals over a Gigabit Ethernet network.
    • Create eye-catching video walls of up to 8x8 displays.
    • PoE power eliminates external power supplies.
    • Use with the MediaCento Controller for matrix switching and video wall control.
    • See the same content on multiple screens exactly the same time - maximum latency 2 frames or 33ms.
    +
    +
    Specs
    Reviews
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

    Learn more about the Black Box Corporation VX-HDMI-HDIP-RX

    Model
    Brand Black Box
    Model VX-HDMI-HDIP-RX
    Details
    Type HDMI over Ethernet
    Max Extend Distance 328 feet
    Color Black
    Specifications Audio: Supports high-definition audio (HD) 5.1/6.1/7.1 surround sound: Dolby TrueHD, DTS-HD Master Audio LPCM channels up to 7.1 channels 192 kHz
    Operating Humidity: 0 to 80% relative humidity
    Operating Temperature: 32° to 122° F (0° to 50° C)
    PoE: Complies with IEEE 802.3at standard, Class 4;
    Power: Normal input: 48 VDC;
    Input Range: 36 to 57 VDC
    Power: (1) External 5 VDC, 3 A
    Power Consumption: POE: 10.5 W
    Storage Temperature: -4° to +140° F (-20° to +60° C)

    User Controls:
    B1: Set/Reset Pushbutton;
    B2: Function Selection Pushbutton;
    Rotary switch: Select from 16 Video Channels (HEX 0–F), Paired TX and RX units must use the same channel
    Connectors
    Connector A HDMI female
    Connector B RJ45 Ethernet
    Features
    Features Better video: supports up to 1080p HD (High Def).
    Better configuration: Setup units using only the front panel interface, no additional configuration required.
    Better compatibility: Intercompatible with the MediaCento 4k
    Any source to any screen, over IP.
    Extend HDMI video signals over a Gigabit Ethernet network.
    Create eye-catching video walls of up to 8x8 displays.
    PoE power eliminates external power supplies.
    Use with the MediaCento Controller for matrix switching and video wall control.
    See the same content on multiple screens exactly the same time - maximum latency 2 frames or 33ms.
    Dimensions & Weight

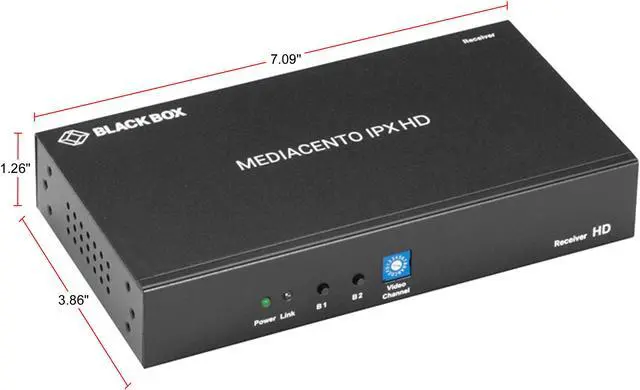

    Dimensions 1.26"H x 7.09"W x 3.86"D
    Weight 1.04 lbs.
    Additional Information
    First Listed on Newegg October 28, 2020

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
    • Read full details

    Return Policies

      We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

    • Return for refund until: January 31, 2027
    • Return for replacement until: January 31, 2027
    • This item is covered by Newegg.com's Extended Holiday Return Policy.
    • Read full return policy for details.
    LOADING...

    The Black Box VX-HDMI-HDIP-RX is a MediaCento IPX HD receiver that delivers HDMI video and audio over a Gigabit Ethernet network, supporting up to 1080p, PoE, and latency up to 33 ms. It suits businesses and venues distributing synchronized content to multiple displays or building video walls, when paired with a compatible transmitter.

    Recommended For

    • AV teams distributing one HDMI source to multiple digital-signage screens over a wired Gigabit Ethernet network, including screens beyond a standard direct HDMI cable run.
    • Schools and corporate training teams sending the same 1080p presentation or lesson feed to displays in multiple rooms over an existing Ethernet network.
    • Control-room or operations teams routing a shared HDMI feed to several monitoring screens, where synchronized playback and low stated latency matter more than 4K resolution.
    • AV integrators building a multi-screen video wall or a configurable source-to-display setup using compatible MediaCento transmitters, receivers, and—when needed—the controller.

    Spec Summary

    AttributeValue
    Best ForExtending HDMI sources over Ethernet to displays, including multi-screen video wall setups
    Signal And CompatibilityHDMI-over-Ethernet extension up to 328 feet; supports resolutions up to 1080p HD and is compatible with MediaCento 4K
    Video And AudioSupports Dolby TrueHD, DTS-HD Master Audio, and LPCM surround sound up to 7.1 channels at 192 kHz; maximum latency is 2 frames or 33 ms
    Network And ControlsRJ45 Ethernet connection; front-panel setup, set/reset and function-selection buttons, and a rotary switch for 16 video channels (HEX 0–F). Paired transmitters and receivers must use the same channel
    PowerSupports IEEE 802.3at Class 4 PoE with 10.5 W consumption, or external power options listed as 48 VDC input and 5 VDC, 3 A
    Operating And Storage ConditionsOperating temperature: 32° to 122° F (0° to 50° C); operating humidity: 0–80% relative humidity; storage temperature: -4° to +140° F (-20° to +60° C)
    Physical SpecificationsBlack receiver measuring 1.26 × 7.09 × 3.86 inches and weighing 1.04 lbs
    Model IdentifiersBlack Box VX-HDMI-HDIP-RX; HDMI female connector
