USB 3.0 x 2 (int.) USB 2.0 x 2 Audio In & Out x 1(supports HD Audio) Front Ports
3 External 5.25" Drive Bays
6 Internal 3.5" Drive Bays

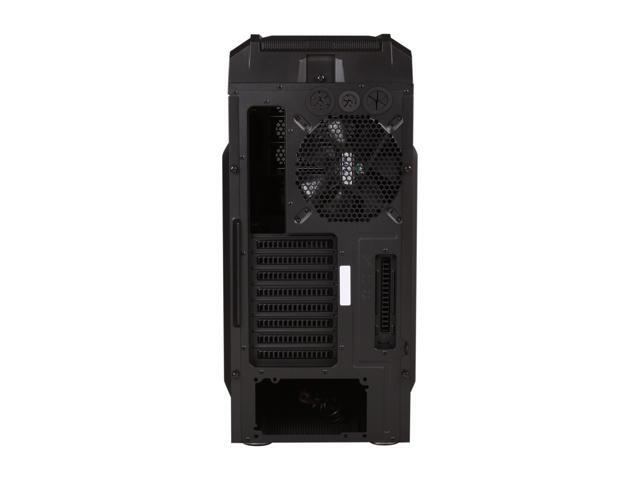

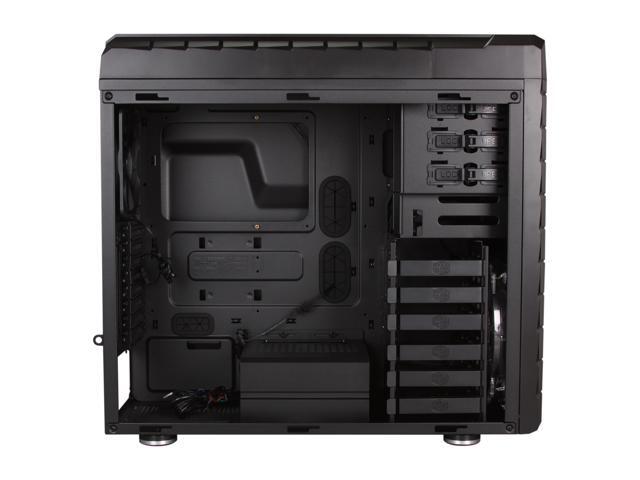

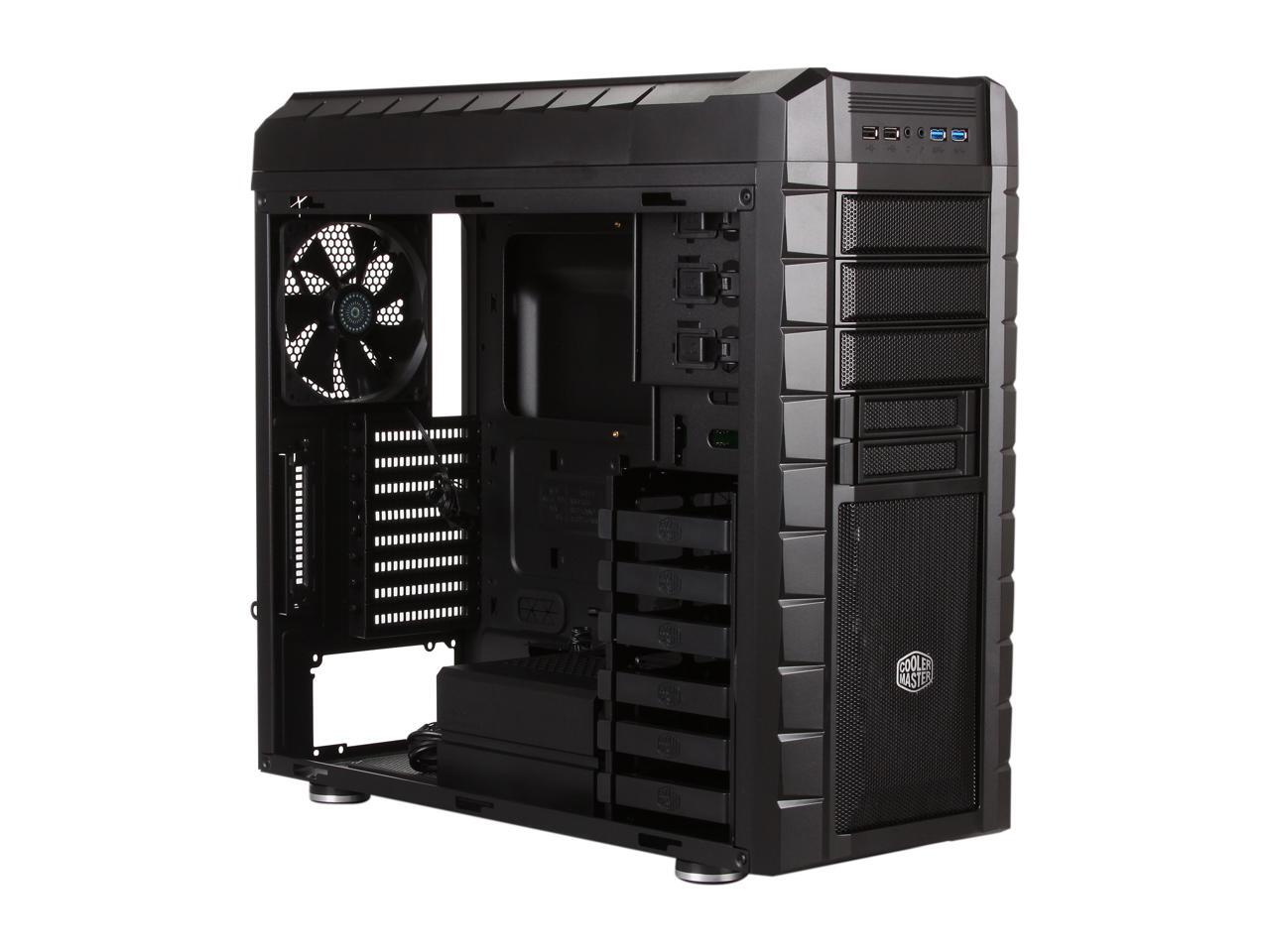

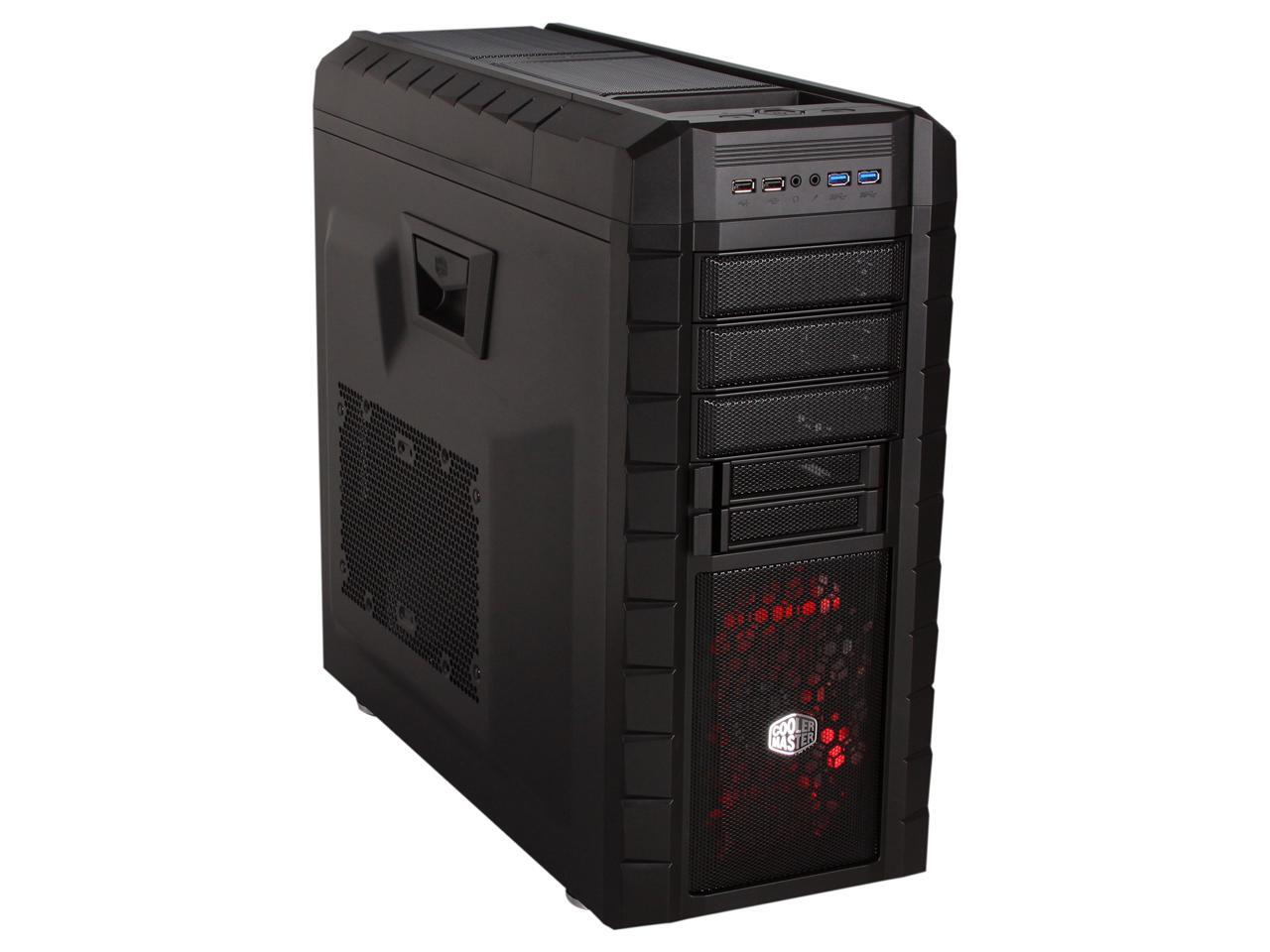

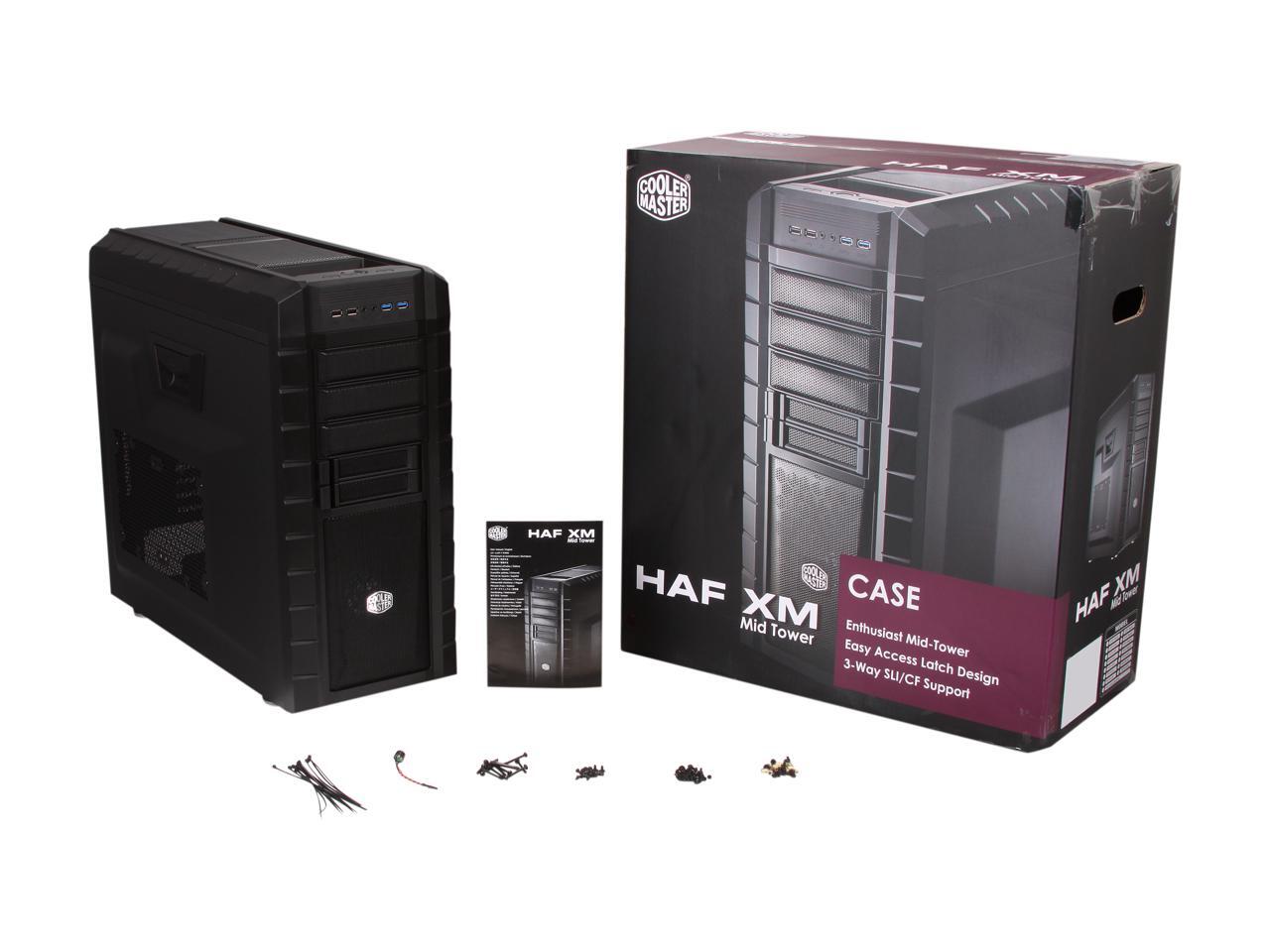

The pure essence of the HAF X packed into a mid-tower size, HAF XM supports up to four huge 200mm fans (Top x 2, Front, and Side), a large 140mm rear exhaust fan, and ample space for even the most demanding system builds. Liquid cooling support, an easy-access 90 degree rotated latched side panel, front HDD or SSD X-Docks, USB 3.0, and a support for a hidden 2.5” HDD/SSD behind the motherboard tray make the HAF XM the ultimate setup for those that want enthusiast-grade features in a mid-tower package.
Scalable CoolingFor efficient ventilation and effective system cooling, the COOLER MASTER RC-922XM-KKN1 supports 2 x 200mm top fans (1 is optional; converted to 120mm fan x 2 / 140mm fan x 2) or 280mm, 240mm or 120mm radiators, 1 x 140mm rear fan (converted to 120mm fan x 1) or 120mm rear radiator, 1x 200mm front fan (converted to 120mm fan x 2 / 140mm fan x 1), 1 x 200mm side fan (optional; converted to 140mm fan x 2) and 2 x 120mm fans (optional, cool the HDD cage). Moreover, bottom air-intake and meshes on top cover and front panel helps dissipate heat more efficiently.

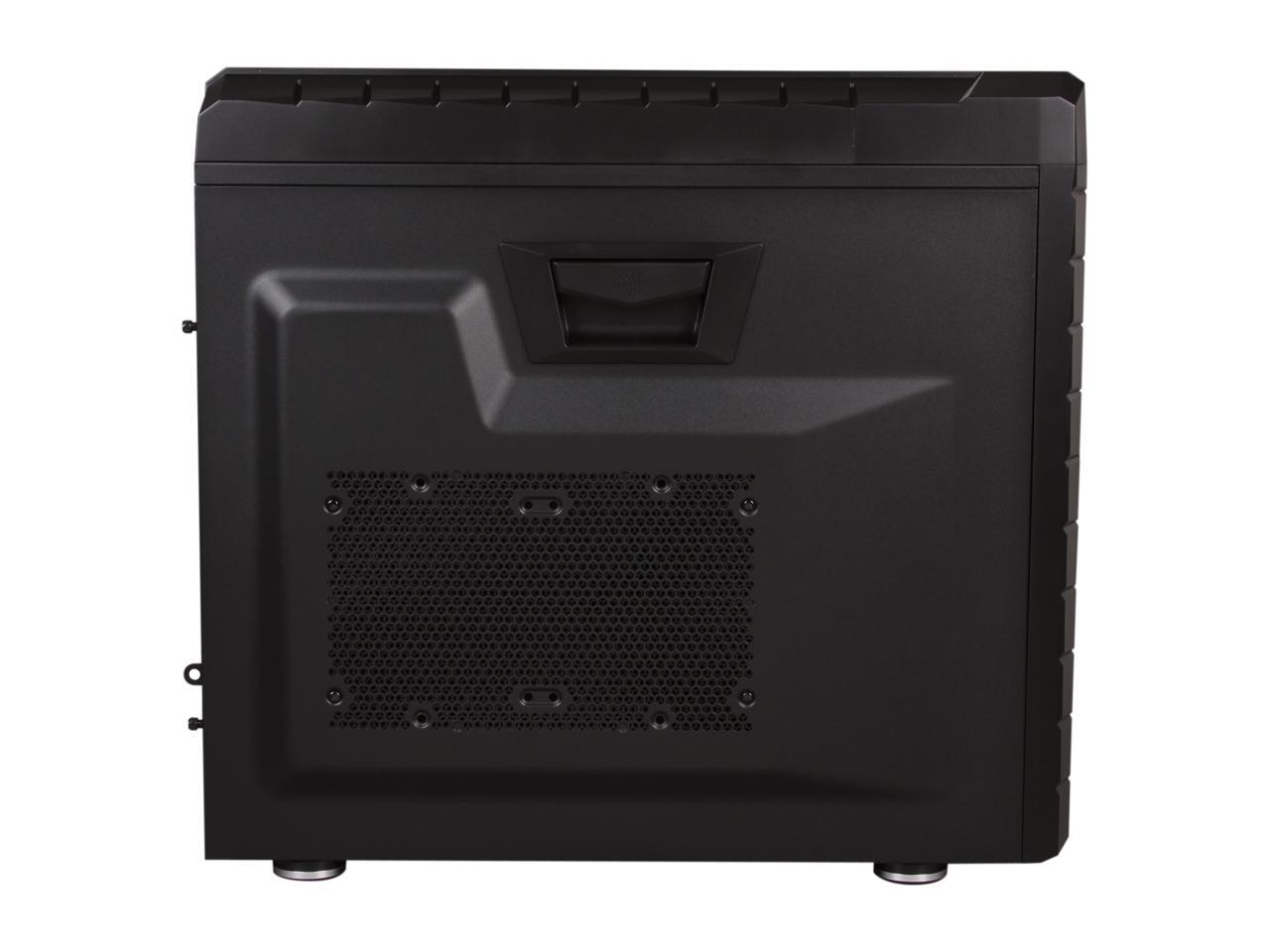

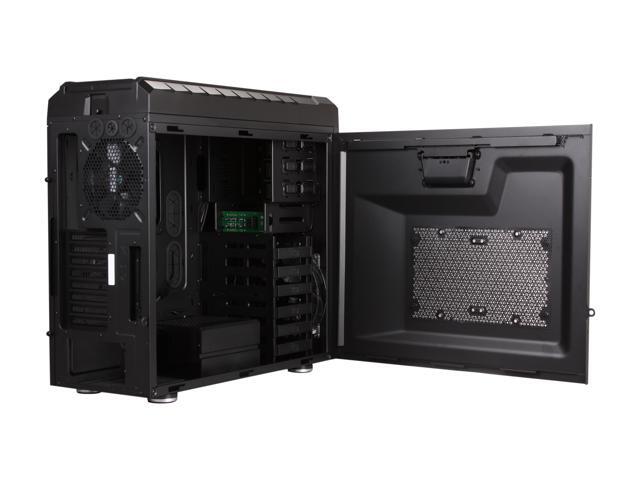

90 degree rotated latched side panelWith 90 degree rotated latched side panel, the COOLER MASTER RC-922XM-KKN1 offers quick and convenient system access.

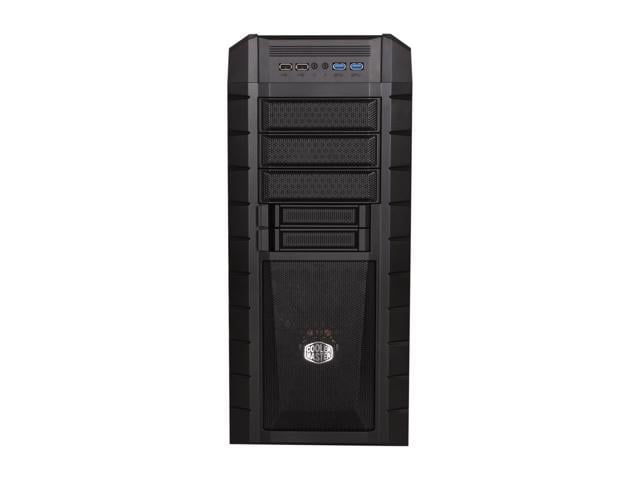

Rich I/O PanelThe rich I/O panel allows easy access to two USB 3.0 port, two USB 2.0 ports and two Audio In & Out jacks (supports HD Audio). On the top of this case, a LED switch is offered for front fan’s LED control and a compartment with rubber pad is provided for placing personal belongs.
Long graphics card supportUp to 463.0mm* graphics card (18.2 inch) is supported when HDD cage is removed. The COOLER MASTER RC-922XM-KKN1 supports CPU cooler with 196.0mm/7.7 inch in height. (*supports 354mm/13.9 inch graphics card with HDD cage.)
Dust filtersDust filters at every intake prevent dust buildup.
Learn more about the Cooler Master RC-922XM-KKN1
ATX Mid Tower
Mesh, Plastic, Steel
With Power Supply
Power Supply Mounted
Micro ATX / ATX / Extended ATX
Side Panel Window
External 5.25" Drive Bays
External 3.5" Drive Bays
2 x X-Dock
Internal 3.5" Drive Bays
Internal 2.5" Drive Bays
Front Panel Ports
USB 3.0 x 2 (int.) USB 2.0 x 2 Audio In & Out x 1(supports HD Audio)
Dimensions & Weight
Dimensions (H x W x D)
20.90" x 9.90" x 22.50"
Enthusiast case, supports four 200mm fans
Latch on 90 degree rotated side panel and top cover for easy system access
Rich I/O panel with two USB 3.0 super speed ports
8+1 expansion slots for NVIDIA 3-way SLI and AMD CrossFireX
Supports up to 9 HDDs, including two X-Dock slots
Sliding PSU cable cover for improved cable management
Universal water cooling radiator after removing the top cover
Top compartment with rubber pad for placing personal belongings
Maximum Compatibility: - VGA card length: 354.0 mm / 13.9 inch - CPU cooler height: 196.0 mm / 7.7 inch
Cooling System: Front: 200mm Red LED fan x 1;or 140mm fan x 1, 120mm fan x 2 (optional) Top: 200mm fan x 2 (1 for optional); or 140/120mm fan x 2 (optional) Rear: 140mm fan x 1; or 120mm fan x 1 (optional) Side: 200mm fan x 1 (optional); or 140mm fan x 2 (optional) HDD cage: 120mm fan x 2 (optional)
Date First Available
April 25, 2012
