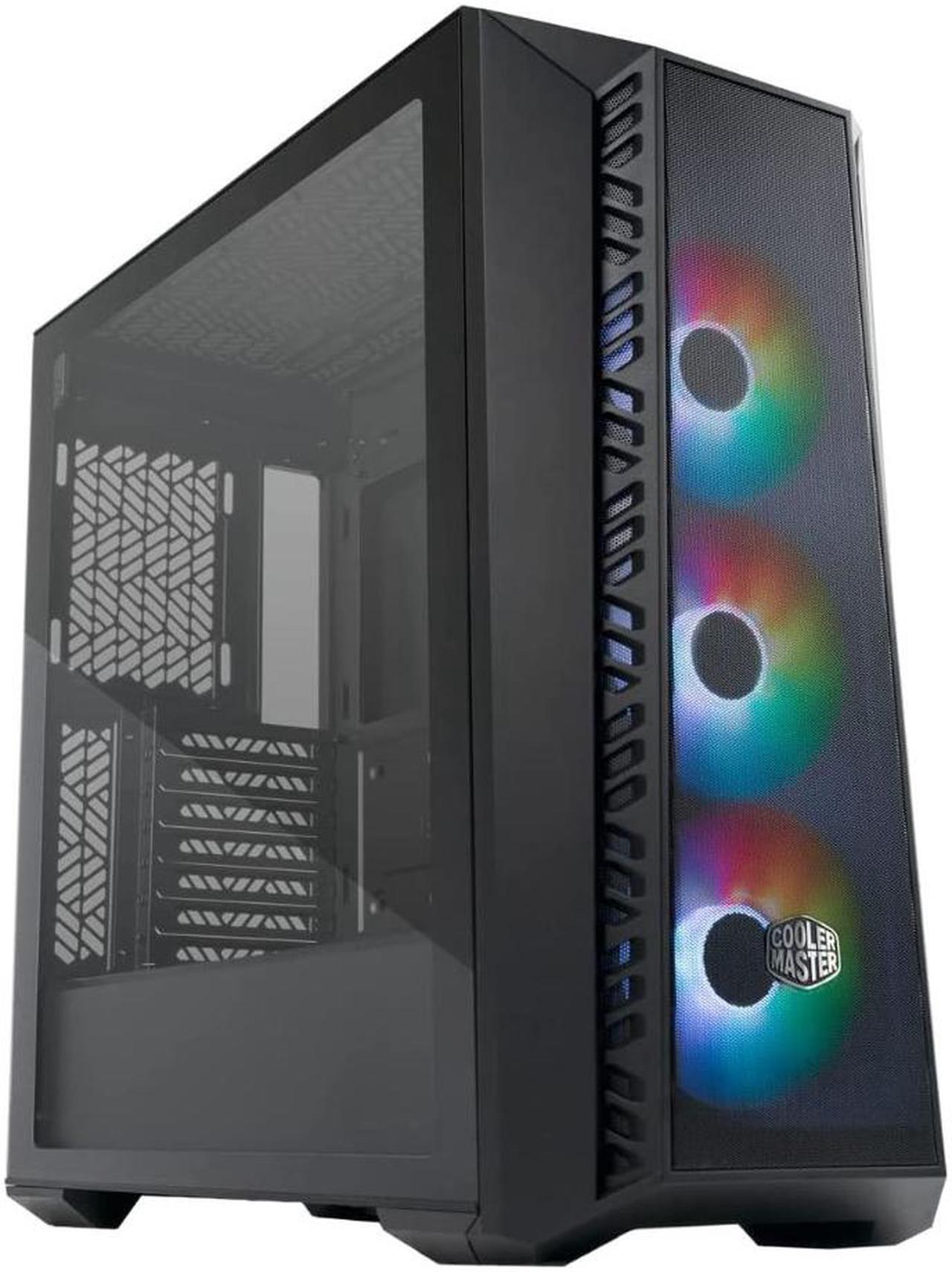

Cooler Master MasterBox 520 Mesh Black Edition Airflow ATX Mid-Tower, Mesh Front Panel, Tempered Glass Panel , E-ATX*(*up to 12”x 10.7”, USB 3.2 Gen2 Type-C

(1)(3) Write a Review
  • Mesh, Steel, ABS Plastic, Tempered Glass ATX Mid Tower
  • 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button Front Ports
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (1)

Learn more about the Cooler Master MB520-KGNN-S00

Model
Brand Cooler Master
Series MasterBox Series
Model MB520-KGNN-S00
Details
Type ATX Mid Tower
Color Black

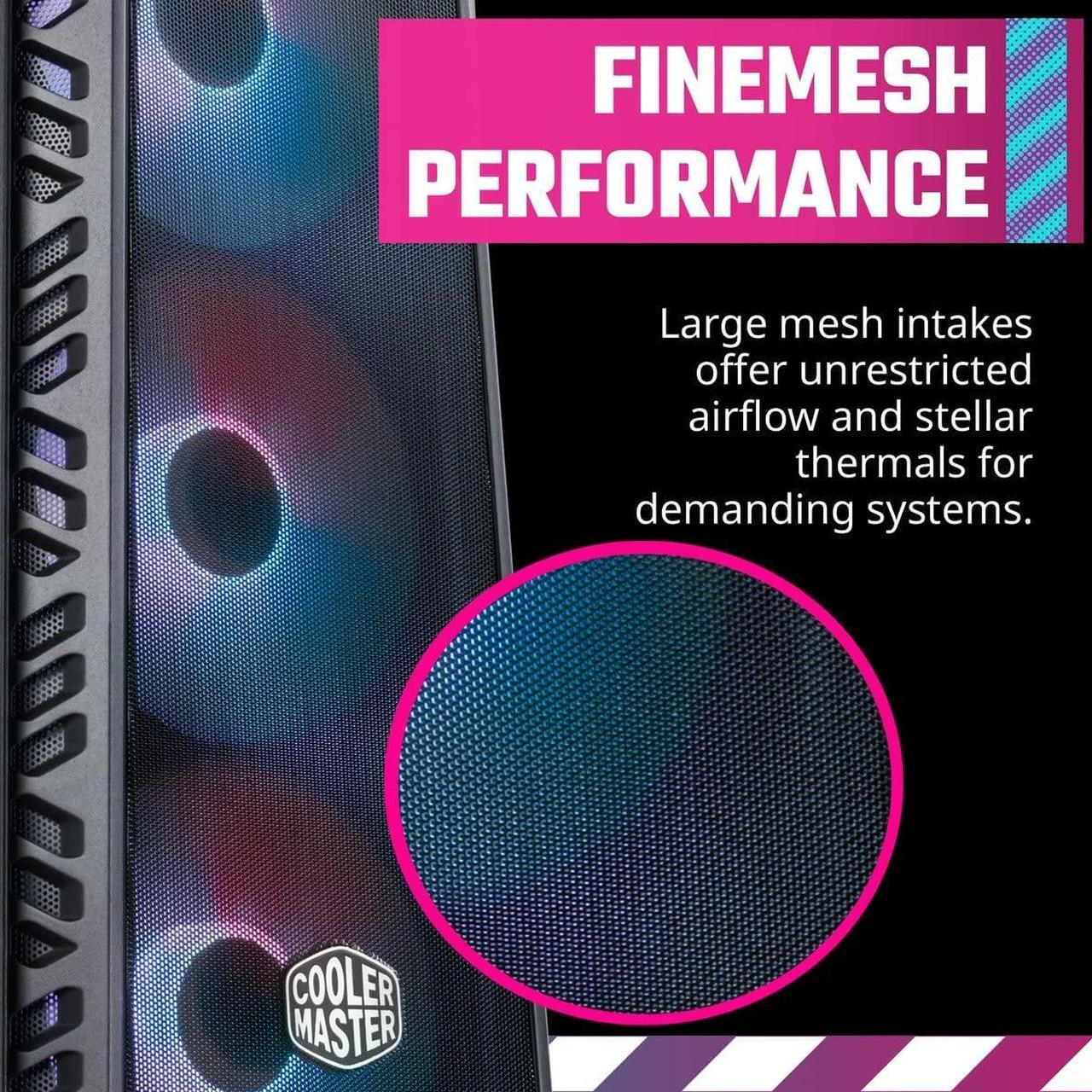

Case Material Mesh, Steel, ABS Plastic, Tempered Glass

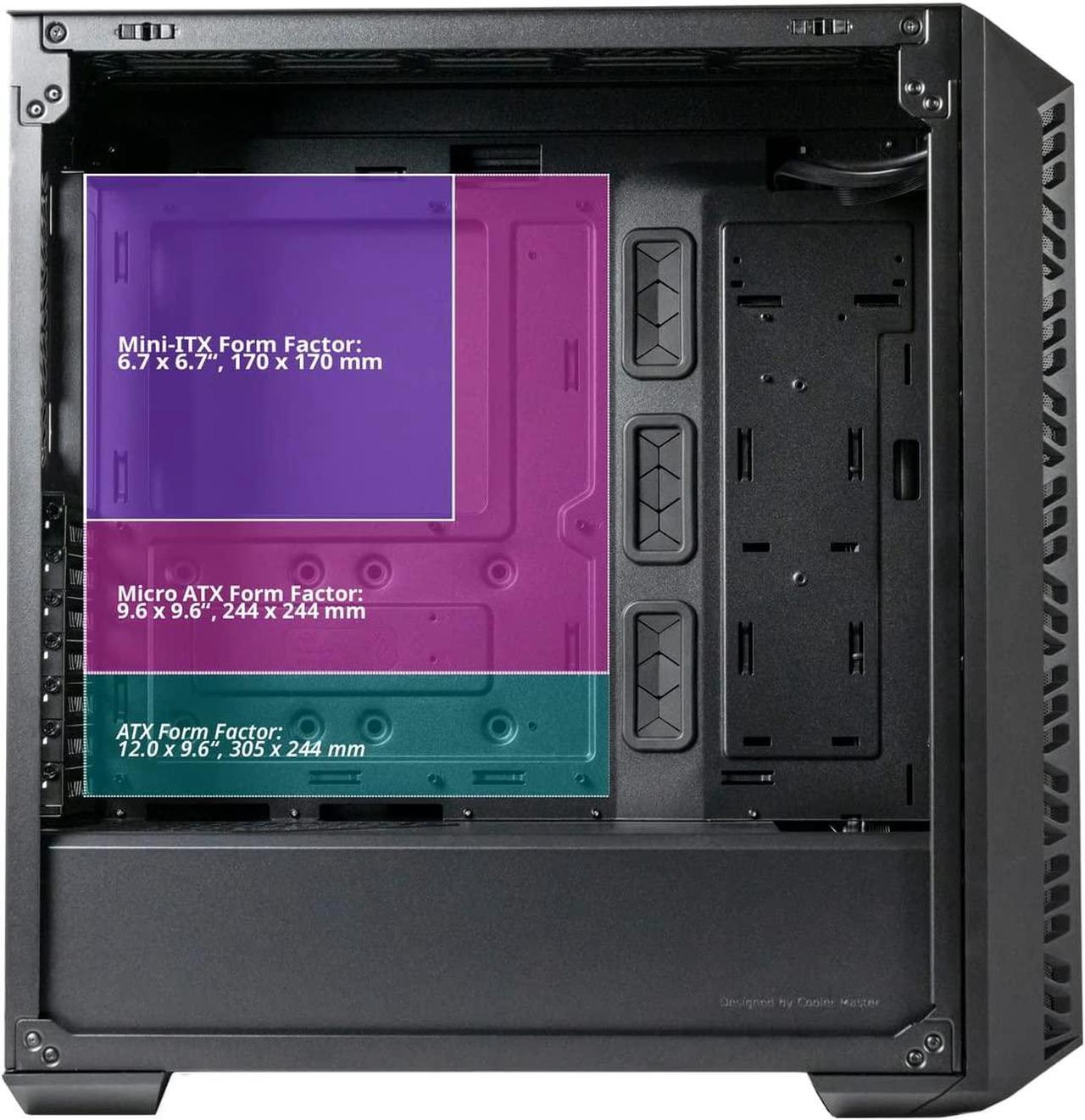

Motherboard Compatibility Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)

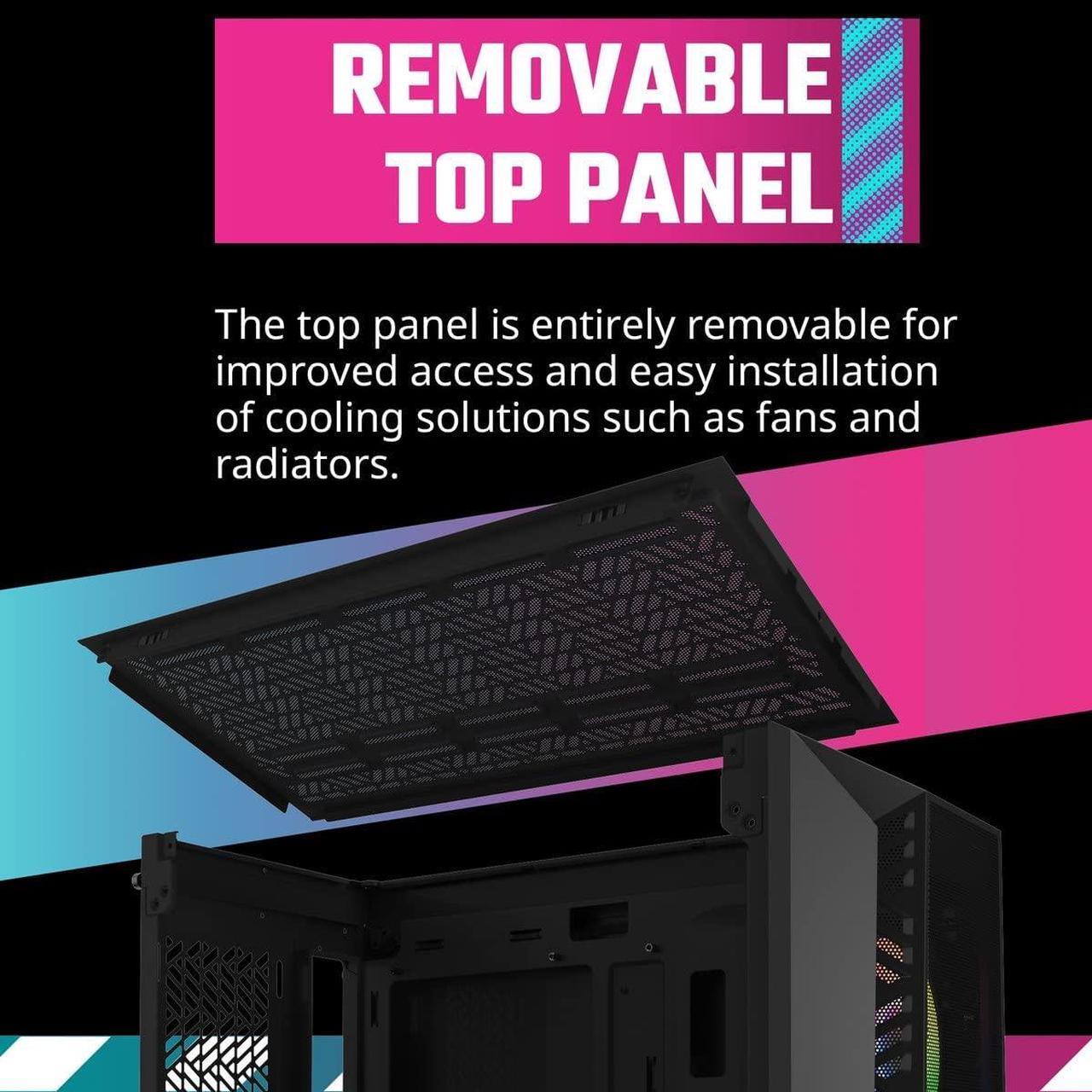

Dust Filters Bottom / Front / Top
Expansion
Internal 3.5" Drive Bays 2
Internal 2.5" Drive Bays 3
Expansion Slots 7
Front Panel Ports
Front Ports 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
Cooling System

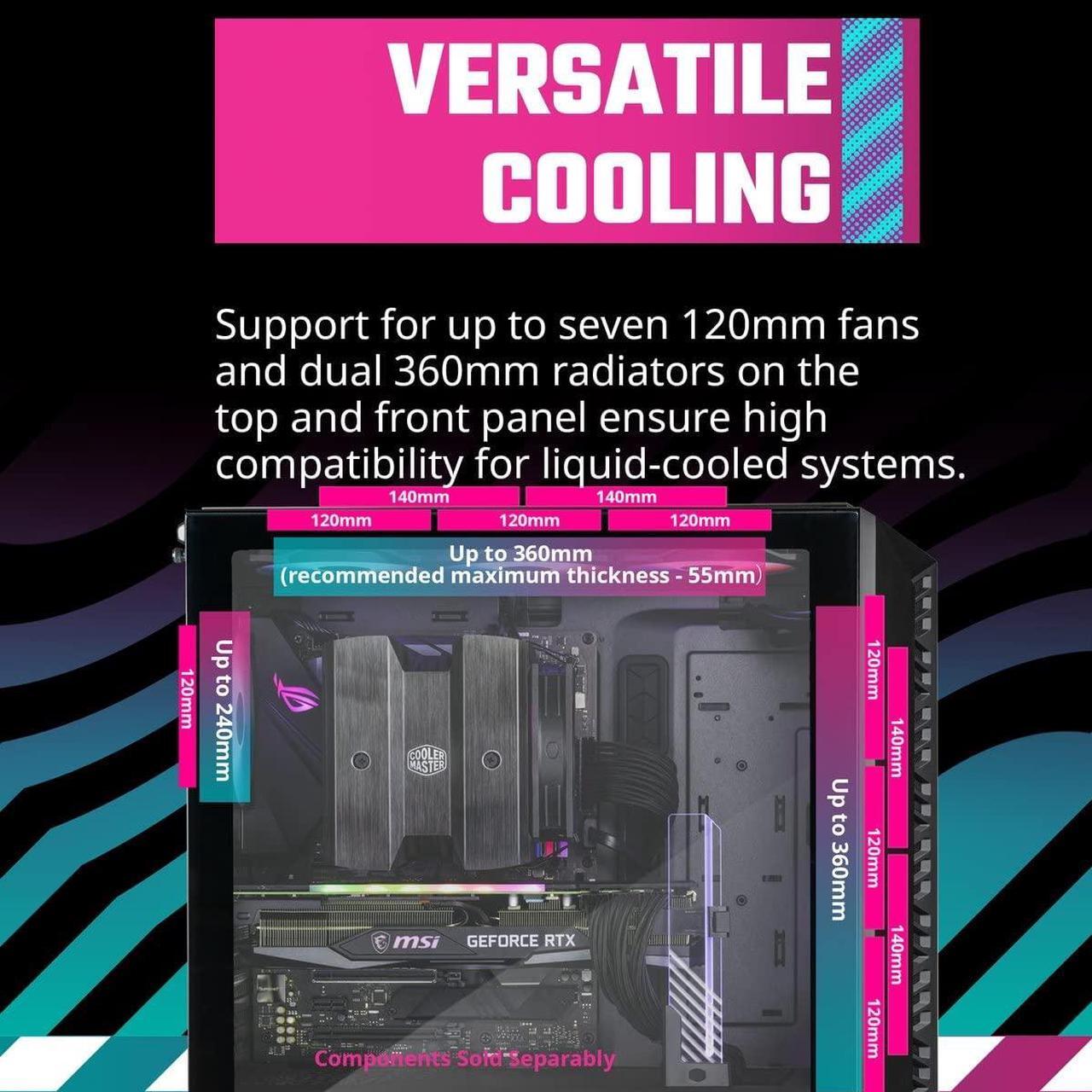

Fan Options Top: 3x 120mm, 2x 140mm
Front: 3x 120mm, 2x 140mm
Rear: 1x 120mm

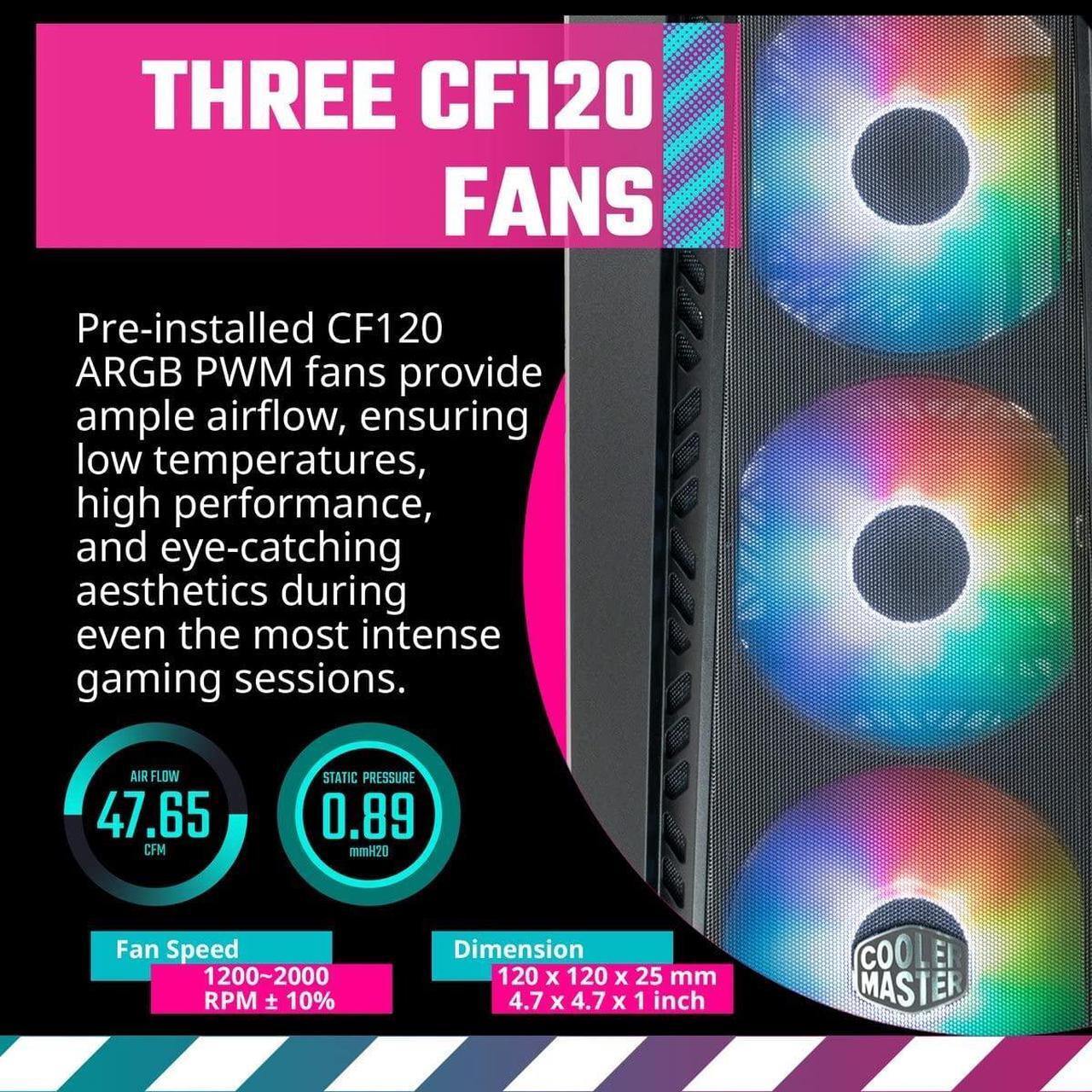

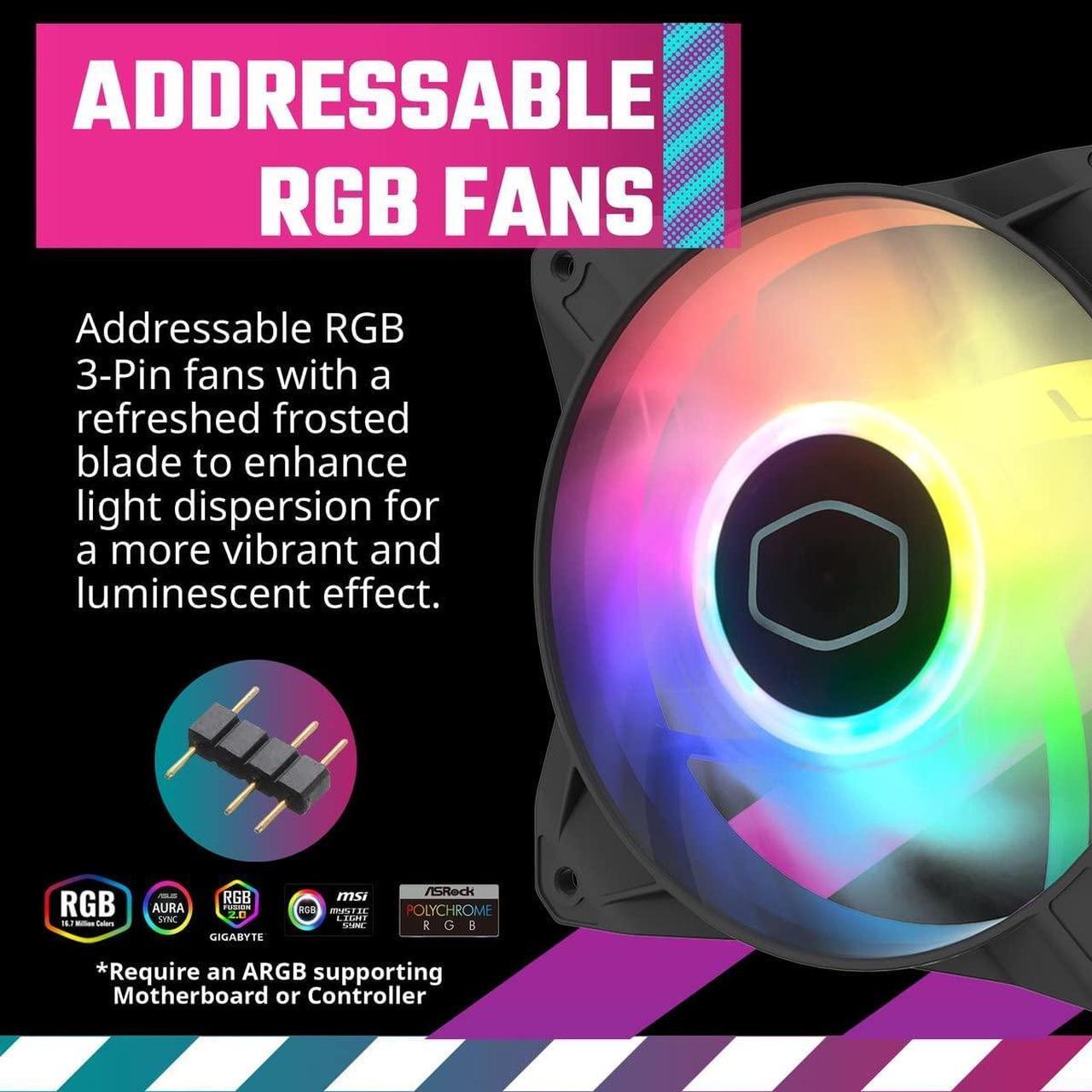

Pre-installed Fans - Front: 3x CF120 ARGB
Radiator Options Top: 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Front: 120mm, 140mm, 240mm, 280mm, 360mm
Rear: 120mm
Dimensions & Weight
Max GPU Length 410mm/16.1"
Max CPU Cooler Height 165mm/6.49"
Max PSU Length 200mm, (Recommended up to 170mm)
Additional Information
Date First Available December 21, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
