general information

A Great Accessory for Any Thunderbolt 3 Enabled Notebooks

The compact, versatile Dell Thunderbolt Dock TB16 - 240W gives you a cost-effective, easy, fast way to make your mobile workstation more powerful.

Simply connect it to your Thunderbolt 3 enabled notebook by using a single USB Type-C Thunderbolt cable, and the docking station instantly adds an array of connectivity options (e.g. one HDMI port, one VGA port, USB 3.0 ports etc.) to your system. So, you can easily connect to multiple displays, USB-enabled peripherals, and other accessories to your notebook.

With up to 40 Gbps data throughput, the TB16 -240W helps you avoid the nuisance of bandwidth bottlenecks when connecting multiple displays and peripherals to your notebook. Moreover, the TB16 - 240W can provides power to both your Thunderbolt 3 enabled notebook and attached peripherals.

One Dock. One Cable. Ultimate Performance.

The Dell Thunderbolt Dock TB16 - 240W with Intel Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files, such as video editing files.

Small Footprint and Big Flexibility

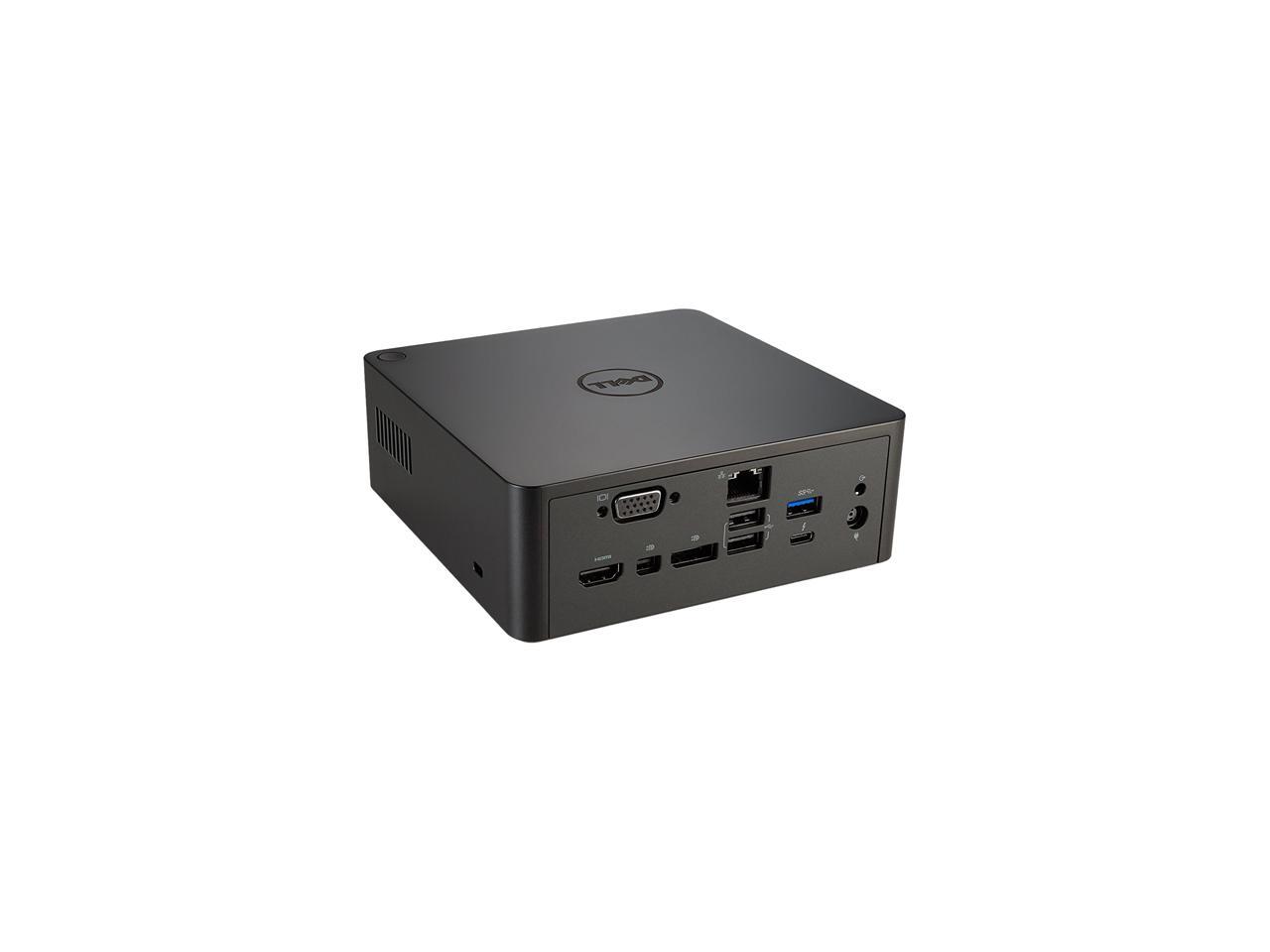

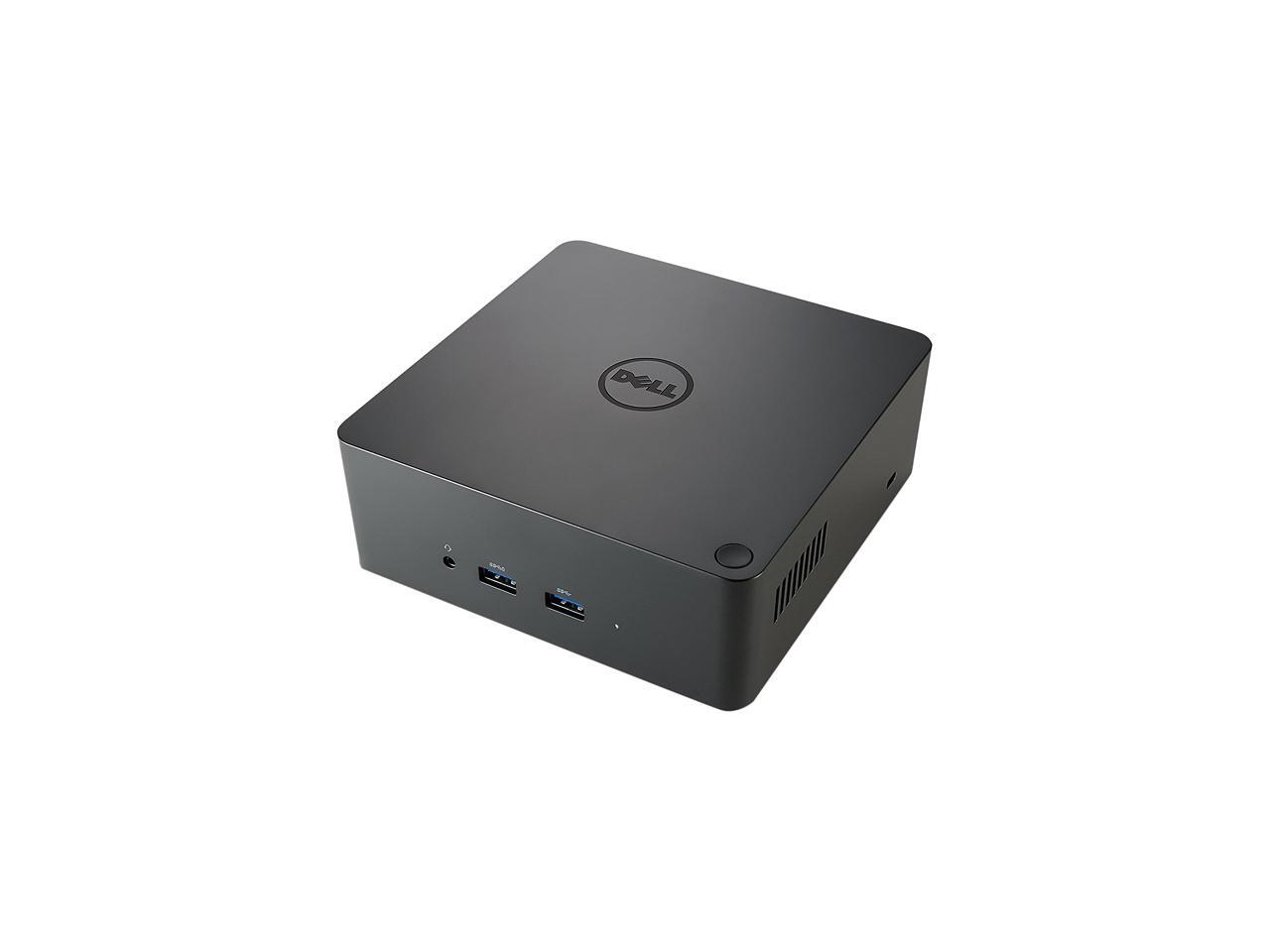

The Dell Thunderbolt Dock TB16- 240W is small in size - just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports*, enhancing productivity.

*It offers a rich set of connectivity options, including

One HDMI port
One VGA port
One Mini DisplayPort
One DisplayPort
Two USB 2.0 ports Three USB 3.0 ports
One combo audio (front)
One speaker output (rear)
One Gigabit Ethernet

One Source for Power

The Dell Thunderbolt Dock TB16 - 240W can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt 3 port can receive up to 130W of power.

Compatibility

This product is compatible with the following systems:

Latitude 5480, 5580
Latitude 7275, 7280, 7370, 7480
Latitude E5570
Precision 15 3000 Series (3510), Precision 15 5000 Series (5510), Precision 15 7000 Series (7510)
Precision 17 7000 Series (7710)
Precision 3520
Precision 5520
XPS 12 (9250), XPS 13 (9350), XPS 13 (9360), XPS 15 (9550), XPS 9365, and XPS 9560

What's in the Box?

Dell Thunderbolt Dock TB16
USB Type-C Thunderbolt Cable
240W AC Adapter

NOTE:

5120 x 2880 (5K) @ 60Hz only supported if 1) A USB Type C to Dual DisplayPort 1.2 adapter is plugged into the Thunderbolt 3 port on the back of TB16 which is then connected to two DisplayPort cables plugged into the 5K monitor or 2) System with discrete graphics has display setting set to discrete and 5K monitor is connected to mDP and DP ports of the dock with DP 1.2 cables.
Dell Thunderbolt Dock TB16 does not support wired vPro. If vPro is needed, the host Ethernet port can be used, or Wi-Fi vPro within the host.
The dock will pass through the NB/Tablet MAC address. USB Type-C and USB-C are trademarks of USB Implementers Forum.
