Question 1

Goal: copy old VCR tapes to computer, by connecting VCR player to computer with this device. Does this work?

Accepted Answer

Yes, the cord works fine. The program is alittle glitchy and it can be tricky to make sure you are capturing the sound and the video but overall it works fine. But whatever you do, do not leave your computer while this is running and let the tape stop....your computer will crash and it could kill your hard drive.

Question 2

how does this work?

Accepted Answer

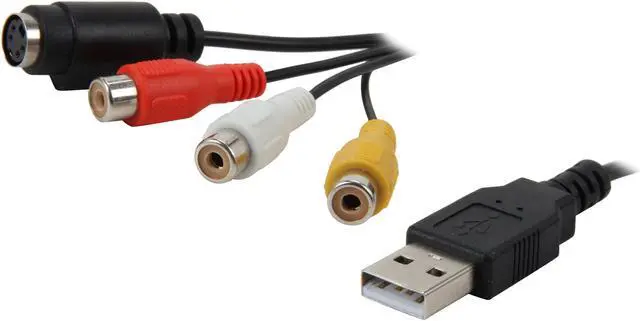

You plug the red and white into the audio out on your VCR, and either the yellow into the video port on the VCR, or the S Video into the S Video port on your VCR

Install drivers first before plugging the USB cable into your computer.  When prompted plug the USB cable into your computer.

When you launch their Screen Capture software after installation it will pop up a viewing window, and select play on your VCR to watch your tape in the viewing window.  You can also select to record, and while watching the VCR it will record to your hard disk so you can play back later from your computer.

Once on your computer you can actually watch it on a larger screen than the one that comes with the software by selecting Windows Media Player to play the recorded movie, etc.

Hope this helps

Question 3

Anyone try this on  Windows 8?

Accepted Answer

i used it on windows 8,  works perfect. just install the software and run it.   i did however have to search for the exe file after installation. a shortcut wasnt put on the desktop or pinned in the start page.

Question 4

My
vc 500 came with EZ Grabber  but it will not work with win 7. I have been looking to buy an updated version of EZ but no  luck. I have also been trying to find Arc Soft Show Biz. It was supposed to be with the  VC 500 but was not there. Do I really need these additional programs or will the VC 500 alone do the job?

Accepted Answer

I've had VC500, EZ Grabber and Arc Soft for a couple of years and use them infrequently,  I need to get back to it.  There is a large archive of analog video that awaits digitizing.  The system seems to work sufficiently well.  I've run all three on a Windows 7 Dell laptop, a Windows 8 Dell PC, a Windows 10 Dell PC and a Windows 8 HP PC.  I'm not an expert, and it has been some time since I've used it.  I believe the paperwork included indicates a website where you can find answers to the installation and use.  There is also a video that was helpful.  You can either find the video through the website, or perhaps directly on YouTube.
You need EZ Grabber software to use the device.  I don't know if other capture software will work with it.  Arc Soft Biz is another software, used to manipulate the video into a finished product, but other softwares can be used for that.  For the price the whole system has worked nicely.  I've recommended it to others.

Question 5

Does this require a certain video card?

Accepted Answer

No.  Just a USB Port.  This device captures video and sound FROM a DVD, VHS, or other video source to a PC.   The video source needs RCA or S-video output ports.

Question 6

Can you use this to record gameplay from an Xbox 360 or PS3 or other game console?

Accepted Answer

It records audio exceptionally well, video/audio OK, but you must have a pretty fast machine.  I record music out of a digital mixing studio quite easily and with a good quality ..

Hope that helps!

Question 7

I have a PAL VCR and want to capture PAL VHSs and burn the capture to a DVD. Tried several other USB capture devices and capture software and they captured NTSC just fine, but none would capture PAL. Would appreciate someone telling me that he was quite successful in capturing PAL VHSs (obviously from a PAL VCR). If so, how were you successful?

Accepted Answer

According to the manufacturers specifications it should capture PAL though I have never tried myself.
 See MFG Web Page for details.
New Egg will not allow me to attach the link within this reply.

Copied text below.
DIAMOND VC500 One Touch Video Capture Edit Stream or Burn to DVD USB 2.0
Bus Type: USB | Part Number: VC500

Capture videos with the touch of a button. The One Touch video Capture VC500 captures video and audio from almost any device. Capture content from VCRs, Camcorders, DVD players, or any device supporting video output through an S-Video or composite RCA connection.

PC TV Parental Control Notice
Easy to Use Capture by the Touch of One Button
Capture Video from Almost Any Video Source
Preserve Your VHS tapes with One Touch
Software included to burn full screen video capture, edit and create DVD
Capture directly from your gaming console and upload to YouTube from one application
Support for Windows 8
Interface: USB 2.0
Video Standards: NTSC/PAL
Push Button: Press to start/stop video capturing
Video capturing formats: MPEG 4/2/1 formats
Video Inputs: Composite RCA or S-Video
Still image capturing: JPG or BMP formats
NTSC Video Capture:720x480 @30FPS
PAL Video Capture: 720x576 @25FPS
Burn support files to DVD/VCD
Arcsoft Show Biz video capture, editor and DVD creator

Question 8

Are Windows 10 drivers available?

Accepted Answer

I have used it on Windows 10 with no problems.

Question 9

Why does it chop up video?

Accepted Answer

Define "chop up"?

Are there video encoding artifacts?  No.

Does it make smaller clips? Not automatically, it will make one continuous video, depending on how long you record.

For instance if you set a video to record and leave for several hours, if the input source runs out it will continue to record the blank screen.

You will have to remove the unwanted parts in post production software.

Question 10

I know it says you can record gameplay from ps3 and xbox but can you hook it up and just play your ps3 on your laptop screen? im stuck in the hospital for months and would love to be able to hook my ps3 up to my laptop and play it, im running windows 8 soon to be windows 10 on wed

Accepted Answer

I don't think that is going to work.  Even if you wrote a bunch of custom software.  The VC500 is not designed for real time video conversion.  I've also never seen a laptop with a video in port or that can take compressed video coming in via a USB port and display it.  Maybe get an inexpensive LCD screen or a projector?

Type	Video Capture & Editing
Color	Black
Others	CD-ROM Drive 300MB Hard Disk Space 600MB to 3GB per 1 Hour of Recording Digital flat-panel (DFP) displays or DVI-I Compatilbe or digital CRT display or High-resolution VGA monitor
Specifications	Interface: USB 2.0 Video Standards: NTSC/PAL Push Button: Pres to start/stop video capturing Video capturing formats: MPEG 4/2/1 formats Video Inputs: Composite RCA or S-Video Still image capturing: JPG or BMP formats NTSC Video Capture:720x480 @30FPS PAL Video Capture: 720x576 @25FPS Burn support files to DVD/VCD Arcsoft Show Biz video capture, editor and DVD creator

Processor	Intel or AMD CPU 1.4GHz or faster
Memory	1GB System RAM
Available Slot	Available USB 2.0 port
Operating Systems Supported	Microsoft Windows7, Windows XP, Windows Vista 32Bbit, Microsfot MCE

DIAMOND VC500 One Touch Video Capture, Edit and Burn to DVD USB 2.0 Adapter

Learn more about the Diamond Multimedia VC500

Customer Reviews of the Diamond Multimedia VC500

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Interface	USB 2.0
Video System	NTSC 30fps 720 x 480, PAL 25fps 720 x 576
Video Format	MPEG 4/2/1
Image Format	JPG or BMP
Ports In	Composite RCA or S-Video

Model
Brand	DIAMOND
Model	VC500
