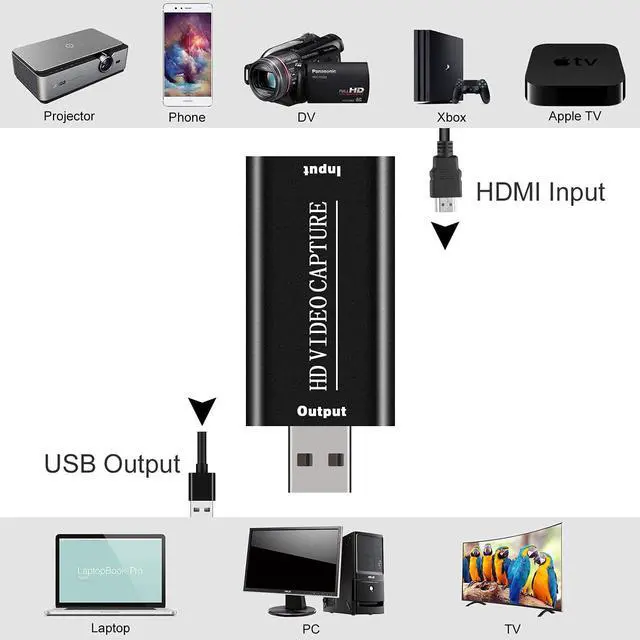

Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable
Connect the computer to the usb port of the video capture with usb cable.

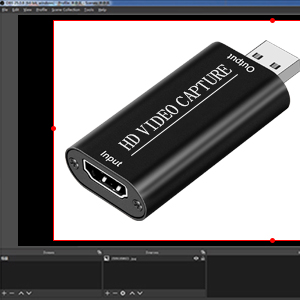

Operation steps for USB video capture(OBS):
1. Add new sources, choose ''Video Capture Device''
Operation steps for USB video capture(OBS):
2. Set the size of the image
Operation steps for USB video capture(OBS):
3. Choose ''Studio Mode''(double window)
Operation steps for USB video capture(OBS):
4. Click ''Start Recording''
HDMI resolution: Max to 3840×2160@30Hz
Video input format: 8/10/12bit Deep color
Video output format: YUV/JPEG

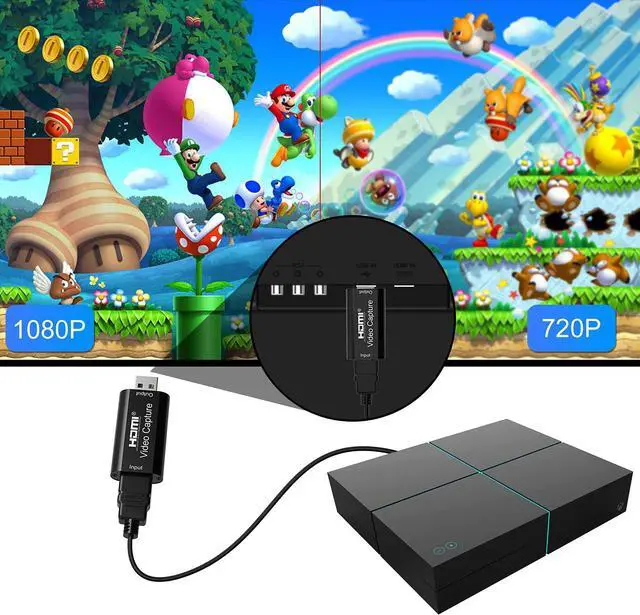

Video output resolution: Max to 1920×1080@30Hz
Support audio format: L-PCM Input cable length: =< 15m, AWG26 HDMI standard cable
Support most acquisition software, such as VLC / OBS / Amcap, etc

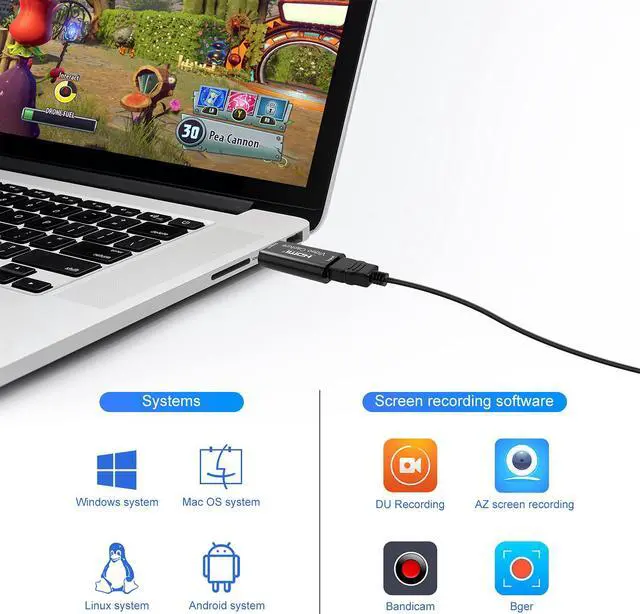

Support multiple operating systems, such as Windows / Android / MacOS
Interface: USB 2.0
Conform to USB Video and UVC standard; USB Audio UAC standard
Max working current: 0.4A/5V DC
