Fractal Design Node 804 Black Window Aluminum/Steel Micro ATX  Cube Computer Case

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Aluminum / Steel Micro ATX Cube Case
  • Highly effective dual chamber case layout for best possible cooling
  • Supports up to 4 radiators (1 X 280/240mm, 3 X 240mm)
  • Large Side Panel window to showoff hardware
  • Integrated Fan Controller
  • 2x USB3.0 Audio In/Out Front Ports
  • Removable Dust Filters

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

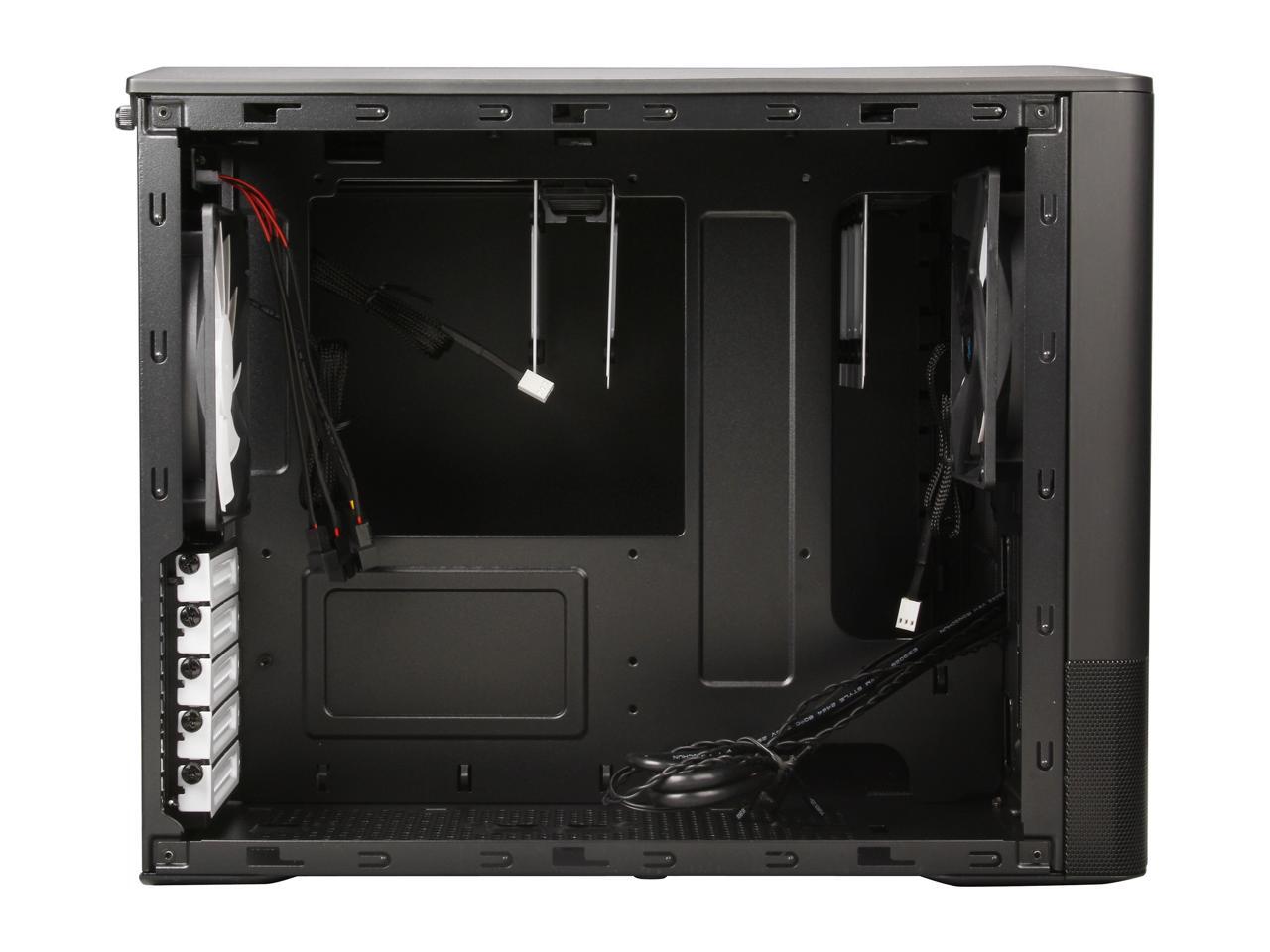

The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed. Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives. The flexibility of this case really gives the users the possibility to create their optimal system build.

Node 804 - Designed to Adapt

Awards

Node 804

Key Features

Node 804
  • Highly effective dual chamber case layout for best possible cooling.
  • Unique hard drive mounting system, fitting up to 8 x 3.5", 4 x 2.5" or up to 10 x 3.5", 2 x 2.5" drives HDD/SSD
  • Three Fractal Design Silent Series R2 fans included with the case and space for an additional 7 fans.
  • Minimalistic design with an elegant brushed aluminum front panel
  • Additional space in the front to mount a slim optical bay drive and 2 x 2.5" drives.
  • Fan controller included.
  • Five expansion slots that allow for multiple GPU setups

Feature Overview Video

Liquid Cooling

Node 804
  • Front (right chamber) - 240mm radiator
  • Front (left chamber) - 240mm radiator
  • Top (right chamber) - 240/280mm radiator - if the HDD drive bays are relocated.
  • Top (left chamber) - 240mm radiator

Maximum Radiator Configuration: 1 x 240mm, 1 x 280mm and 2 x 120mm Radiators Simultaneously

Family Comparison

Node 804 Node 804 Node 804
Node 804 Node 304 Node 605
Case Dimensions (W x H x D) 13.5 x 12 x 15.3in. (344 x 307 x 389mm) 9.8 x 8.2 x 14.7in. (250 x 210 x 374mm) 17.3 x 6.4 x 13.7in. (440 x 164 x 349mm)
Weight 13.2lbs (6kg) 10.8lbs (4.9kg) 13.2lbs (6kg)
Form Factor mATX Cube ITX ATX Desktop
MB Compatibility Micro ATX, Mini ITX Mini ITX, DTX ATX, Micro ATX, Mini ITX, DTX
5.25" Bays 1 - Slimline 1 - Slimline (with mATX only)
3.5" Bays (Compatible with SSD) 8 - 3.5" only 6 4
Additional SSD Mounts 4
Expansion Slots 5 2 7
Max PSU Length without Bottom Fan 10.2in. (260mm) 6.2in. (160mm) 7in. (180mm)
Max. Graphic Card Length with HDD Cage 11.4in. (290mm) 7in. (180mm)
Max. Graphic Card Length without HDD Cage 12.5in. (320mm) 12.2in. (310mm) 11.4in. (290mm)
Max. CPU Cooler Height 6.2in. (160mm) 6.4in. (165mm) 4.9in. (125mm)
Watercooling Compatibility in Top 9.4/11in. (240/280mm) Right chamber - 9.4in. (240mm) left chamber
Watercooling Compatibility in Front 9.4in. (240mm) Right chamber - 9.4in. (240mm) left chamber
Watercooling Compatibility in Rear 4.7in. (120mm) Right chamber if HDD cage removed - 4.7in. (120mm) left chamber
Number of Fans in Front Included 1 x 120mm 2 x 92mm
Numbers of Fans in Rear Included 2 x 120mm 1 x 140mm
Number of Fans in Top Included
Number of Fans on Side Included 2 x 120mm
Total Number of Fan Positions in Front 4 x 120mm 2 x 80/92mm
Total Numbers of Fan Positions in Rear 1 x 120mm 1 x 120/140mm
Total Number of Fan Positions in Top 4 x 120/140mm
Total Number of Fan Positions in Bottom
Total Number of Fans on Side Panel 2 3 1
USB 2.0 3 3 3
USB 3.0 2 2 2
Audio I/O ? ? ?
Card Reader ?

Learn more about the Fractal Design FD-CA-NODE-804-BL

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Great for DIY NAS 5/26/2020 4:17:10 PM

Overall Review: With 8 x 3.5" drive bays, this is great for my DIY NAS. Case is not too big either. I have it sitting in my closet connected to the network. I could see this being a decent case for many other applications too though.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Nice Case!! 5/13/2020 8:58:46 PM

Pros: - Well built
- Good design
- Comes with plenty of hard drive screws

Cons: None so far

Overall Review: Highly recommend!

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
4/ 5
Awesome mini-ATX case 5/12/2020 8:50:14 PM

Pros: Small case, but not too cramped
It comes with good instructions and plenty of screws
Solid and sturdy
10x3.5 drive spots!!! (2 bays with space for 5 drives each)
The included fans are good quality too

Cons: The light on the front is a little dim
The instructions should give more of an indication of which screws go where
I miss things like a post code beep speaker and reset switch (a front panel USB-C port would be nice)

Overall Review: This is probably the best case that I've ever built in. There's plenty of space to work in. It's nice that it comes with plenty of standoffs and screws for install. I usually have to beg, borrow and steal screws for my drives, or I'm missing one (and only one) standoff. The instructions are pretty well written. I like how half of the case is for the motherboard and cooler and the other half is for the power supply and drives.

The biggest problem I had was pretty much my fault. I assumed the hard drive screws that they call "3.5 drive screw" would work for screwing in the removable drive bays. But once I did that, I realized I had the wrong drives in there (it was a new rebuild of my media server, but I didn't put in my media drives). But once I got the screws in those holes, I couldn't get them out. They wouldn't catch on the screwhole, so it spun like it was stripped. I probably should have used the 2.5" drive screws instead. I had to snap the screws off.

But other than that last part, which I admit was my fault anyway, this was a near perfect case for me. I would have liked a reset button or a brighter case light, but those are minor issues.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Excellent Unraid Enclosure 5/8/2020 3:39:49 PM

Overall Review: A few years back I made a FreeNas server to hold my media and also do Plex. I used the Node 304 as my case for that build. That case is excellent and nicely sized. After a while something went wrong with the server and I let it sit collecting dust. Right before the pandemic, I got into a bit of a pc building binge and basically built a new gaming pc for myself and update my son’s rig. In doing so I discovered Unraid. I installed it and immediately knew this would work well for me.

I also knew that I should update the hardware to be able to effortlessly serve media in 4K and also be expandable. The Node 304 is a great case but it’s an ITX case so I would be limited to how many sata connections I would have and no way of expanding.

The Node 804 was my choice here. I could use a Micro ATX and get a sata expansion card. And it had room for 8 3.5” drives, with the hanging caddies and 10 fans for cooling. It’s little bigger than I thought but it is perfect for what it’s for.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
So nice! 5/7/2020 2:13:14 PM

Pros: It is small and quiet and has room for everything. The cooling is great with the built in fans. I was so impressed.

Cons: I knew what I was buying and it met all expectations. No cons.

Overall Review: If you want a small build with room for a powerful video card that is quiet and simple, this is it.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Great case for living room gaming 4/30/2020 10:39:36 AM

Pros: I bought this case for a mini-ITX gaming rig. Installation was as easy as can be expected. It's surprisingly roomy even with a 2-fan GPU and 2 HDDs.

- Opens nicely for easy access
- HDD mounting hardware is fantastic

Cons: - The blue power LED is too bright - I'm probably going to unplug it next time I open up the case.

Overall Review: The brushed finish makes the case look pretty handsome in my media center. I'm happy with the way the build turned out.

FYI, if you want to install a mini-ATX PSU, make sure you pick up a mini-ATX to ATX adapter bracket.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Great case, great design, easy to manipulate cable management 4/16/2020 11:00:39 AM

Pros: Everything is so close you dont have to worry about cable management, cables not reaching, everything is designed with openings very well.

Cons: -Airflow from the front could be better, not sure how you would accomplish but that may be better for future designs...

Overall Review: Definitely recommend the case, it gets its job done perfectly.

Did you find this review helpful?
Anonymous
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Recommended. 4/9/2020 9:34:36 AM

Pros: - As advertised.
- Short case makes it easier to fit in places.
- Roughly 1/4 of the space is dedicated to 8x 3.5 HDD slots; good for building a storage node.

Cons: - (Minor) One of the two HDD trays hangs immediately above the PSU fan, requiring cables from the HDDs to be at a harsh angle and pressing against the PSU cage. Hasn't caused any issues, though.

Overall Review: - Product recommended.
