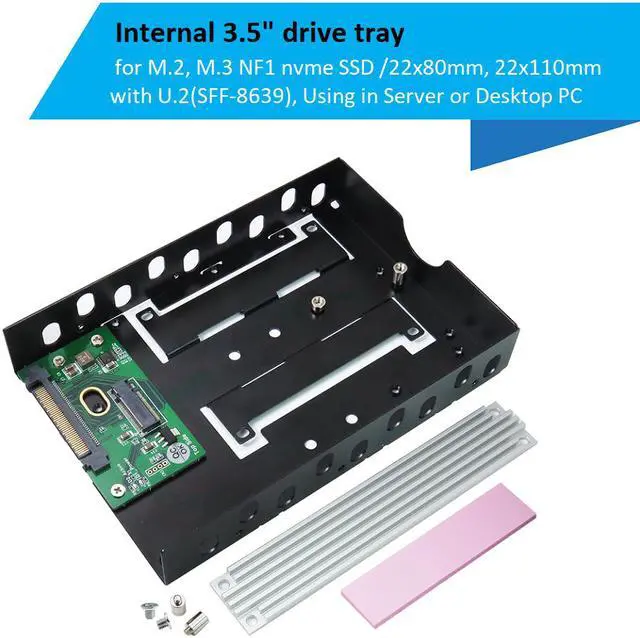

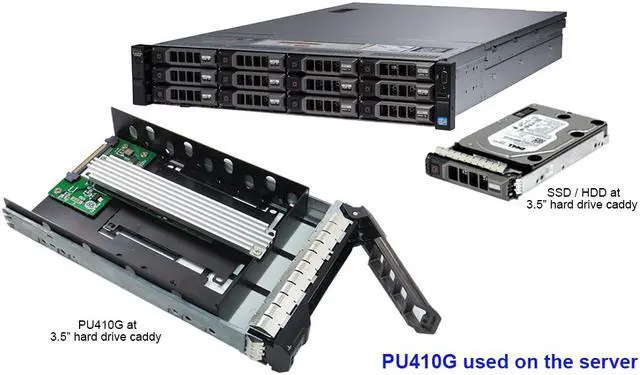

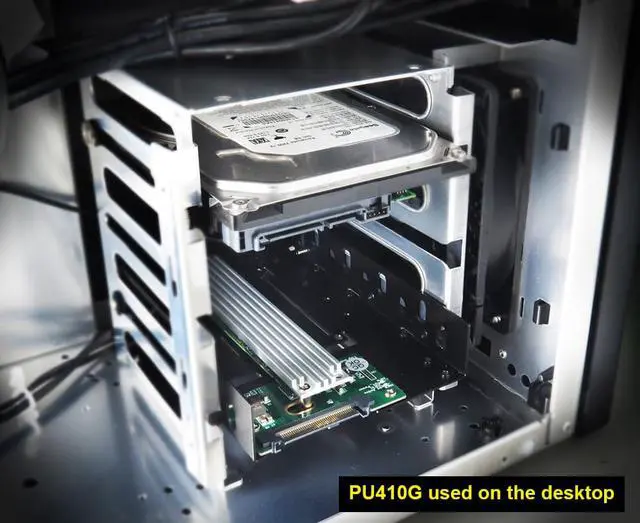

Internal 3.5" drive tray for M.2, M.3 NF1 nvme SSD /22x80mm, 22x110mm with U.2(SFF-8639), Using in Server or Desktop PC

Features M. 2 NVMe to U. 2(SFF-8639) convert Samsung M. 3 NVMe to U. 2(SFF-8639) convert Build in M. 2 M-key Female connector Build in SFF-8639 connector, pin-out defined by PCIe PWM synchronous buck converter Power IC 4A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode) /2KV Support CLKREQ# Supports M. 2 / 1.8V & M. 3/ 3.3V SMB_CLK Supports M. 2/ 1.8V & M. 3/ 3.3V SMB_DATA Supports M. 3 Dual ports, U. 2 Dual ports D1 Green LED on indicates M.

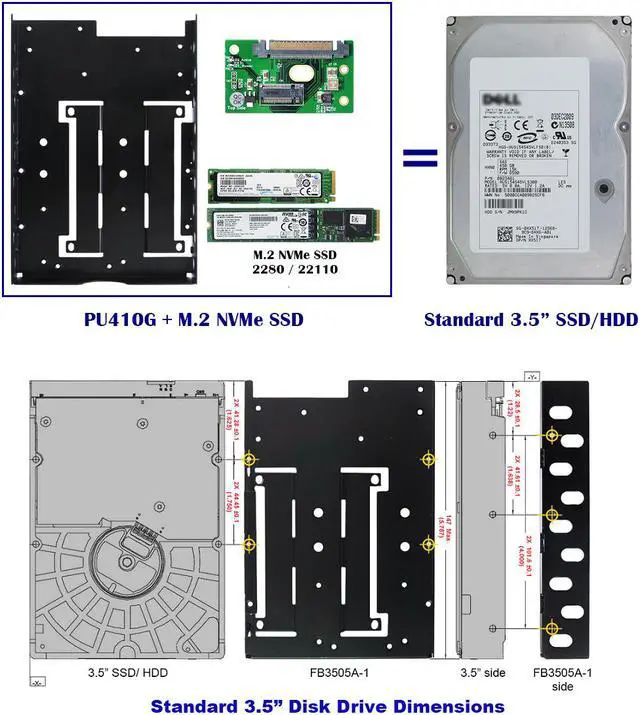

2 NVMe SSD power ready D2 RED LED Blinking indicates M. 2 SSD active status Specifications Compliant with NVM Express 1.0 a Support PCI Express Base Specification Rev 3.0 Support SSD_Form_Factor_Version1_a Compliant with PCI Express M. 2 Specification Version 1.0 Compliant with Samsung M. 3 Datasheet_v 0.4 Compliant with SFF-8639 Specification Rev 2.0 Compliant with SFF-8301 Specification for 3.5" Form Factor Drive Dimensions Compliant with SFF-8323 Specification Rev 1.6 for 3.5" Form Factor Drive with Serial Attached Connector Supports the following form factor M. 2 (NGFF) SSD
Type 2242-D2-B-M: 42mm (L) x 22mm (W)
Type 2260-D2-B-M: 60mm (L) x 22mm (W)
Type 2280-D2-B-M: 80mm (L) x 22mm (W)
Type 22110-D2-B-M: 110mm (L) x 22mm (W) Supports the following form factor M. 3 (NGFF) SSD
Type 22110-D2-B-M: 110mm (L) x 30.5 mm (W)
