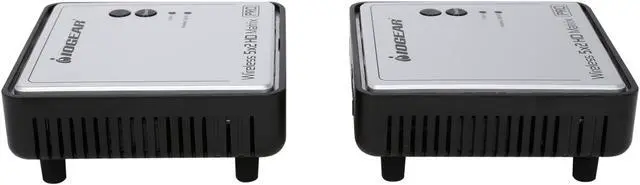

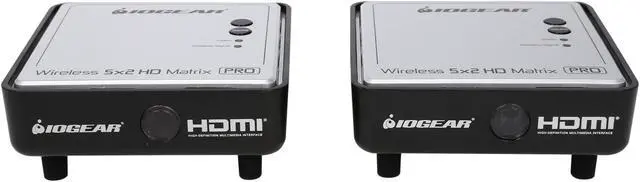

Multicast Kit The GWHDMS52MBK2 is a Multicast kit which includes one (1) additional wireless HD receiver (Part# GWHDRX01) for support of two (2) wireless locations. IOGEAR's Long Range Wireless 5 x 2 HD Matrix PRO with Multicast is the first to send uncompressed HD 1080p up to an astonishing 200 feet, including the ability of multicasting up to a total of 4 wireless receivers! Wireless Matrix The Wireless 5x2 HDMI Matrix PRO is setting a new standard in wireless connectivity, flexibility, convenience, and dConnectivity Technology: WirelessNumber of Input Devices Supported: 5Device Supported: TVDevice Supported: DisplayNumber of Displays Supported: 3Graphics Modes: Full HDMaximum Video Resolution: 1920 x 1080Component Video In: YesHDMI In: YesHDMI Out: YesNumber of USB Ports: 2Number of HDMI Inputs: 4Number of HDMI Outputs: 3Maximum Operating Distance: 200 ftPackage Contents: 1 x Wireless HDMI Transmitter 2 x Wireless HDMI Receivers 3 x Remote Controls 1 x Component Adapter Cable 1 x IR Blaster Cable (Transmitter) 2 x IR Sensor Extender Cables (Receiver) 3 x Power Adapters 2 x HDMI Cables 6 x AAA Batteries 1 x User's Guide 1 x Warranty Card Limited Warranty: 1 YearPackage Contents 1 x Wireless HDMI Transmitter 2 x Wireless HDMI Receivers 3 x Remote Controls 1 x Component Adapter Cable 1 x IR Blaster Cable (Transmitter) 2 x IR Sensor Extender Cables (Receiver) 3 x Power Adapters 2 x HDMI Cables 6 x AAA Batteries 1 x User's Guide 1 x Warranty Card
Learn more about the IOGEAR GWHDMS52MBK2
Model
Brand
IOGEAR
Model
GWHDMS52MBK2
Details
Type
Consumer Electronics
Color
Black
Specifications
Frequency 4.9 ~ 5.9GHz (Includes non-DFS and DFS Frequency Bands) Antenna Type: High Performance Internal Range Maximum video transmission range is 200ft (60m) Power Switch: 1 x Push Button (Transmitter and Receiver)
LEDs Power On Green / Red LED (Transmitter and Receiver) Link Green LED (Transmitter and Receiver) Input 5 x Green (Transmitter) 1 x Green (Receiver)
Power Voltage 100~240v - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver) Amps Transmitter: 2A, Receiver: 1.5A
Infrared Frequency 3ft IR Extension Cable 38kHz, 47kHz & 56kHz
Housing Case: Plastic
Cable Connections Input 1 x Mini USB (Female)
Security 128-Bit AES Encryption
Tuner
Video Format
Video Resolution 480p, 576p, 720p, 1080i, 1080p (24/30/60fps) and 3D Support Video Streaming <1ms Latency
Audio
Audio Output Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample
Ports In
4 x HDMI, 1 x Component
Ports Out
1 x HDMI Loop Through (Transmitter), 2 x HDMI (Receivers)
Features
Features
Long Range Wireless 5x2 HD Matrix with Multicast - Includes 1 additional Wireless HDMI Receiver
Wireless fully uncompressed HD video up to 200 feet through standard home walls
Built in 5 x 2 Matrix - Allows you to switch and independently select any of 5 sources between 2 HDTVs Location 1: HDTV can connect to transmitter's loop-through (local) port Location 2: HDTV can receive content from wireless receiver
Multicast up to 5 HDTVs– Send content up to 5 locations at the same time (4 wireless)*
Connect and wirelessly transmit content from a Blu-ray / DVD player, DVR / Cable box, Game console, Computer /laptop, and media server
Supports full uncompressed HD 1080p, 3D content, and 5.1 channel digital audio
Video Resolutions: 480p, 720p, 1080i and 1080p (24 / 30 / 60fps)
HDMI Inputs / Outputs : Transmitter: 4 x HDMI in 1 x Component in 1 x Mini USB in 1 x HDMI out (local port) 1 x IR In Receiver 1 x HDMI output
Based on WHDI Technology
HDCP 2.0 Compliant
Built-in Infrared (IR) pass-through allows user control over their source devices that are in a different location from the wireless receiver
No software or driver installation needed
Package Contents
Package Contents

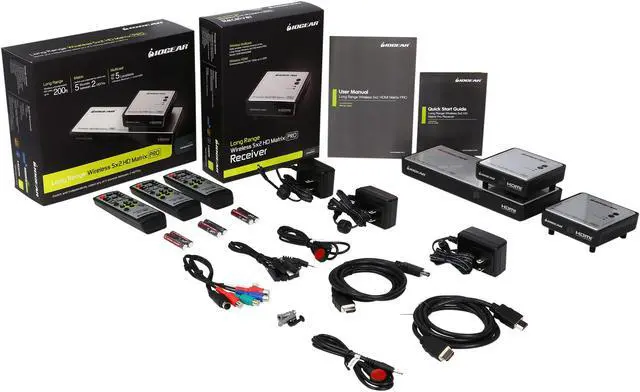

1 x Wireless HDMI Transmitter 2 x Wireless HDMI Receivers 3 x Remote Controls 1 x Component Adapter Cable 1 x IR Blaster Cable (Transmitter) 2 x IR Sensor Extender Cables (Receiver) 3 x Power Adapters 2 x HDMI Cables 6 x AAA Batteries 1 x User's Guide 1 x Warranty Card
Additional Information
First Listed on Newegg
April 03, 2025
