LIAN LI
Gallery
Specifications
| Model | DK-04F |
|---|---|
| Dimensions | (D) 1000mm X (H) 689mm~1175mm (adjustable) X (W) 740mm switchable glass: (D) 1000mm X (W) 740mm X (T) 8mm |
| Color | black |
| Material | tabletop: switchable glass exterior: aluminum interior and legs: iron |
| Motherboard compatibility |
MINI-ITX/M-ATX/ATX/E-ATX |

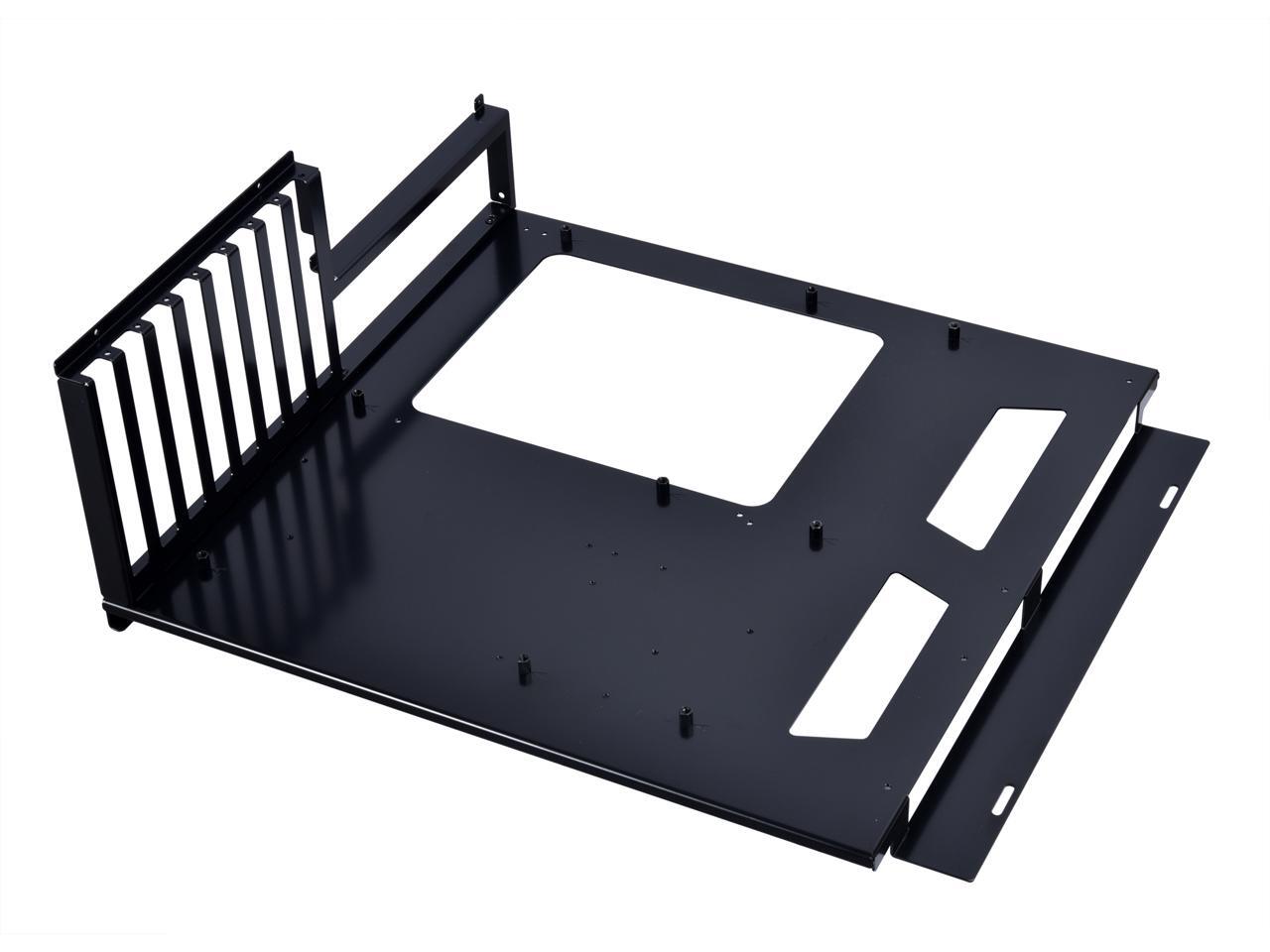

| Removable MB tray | 1 |
| Expansion slots | 8 |
| VGA length | 390mm (maximum) |
| PSU | ATX |
| PSU clearance | 240mm (maximum) |
| CPU cooler height | 185mm (maximum) |

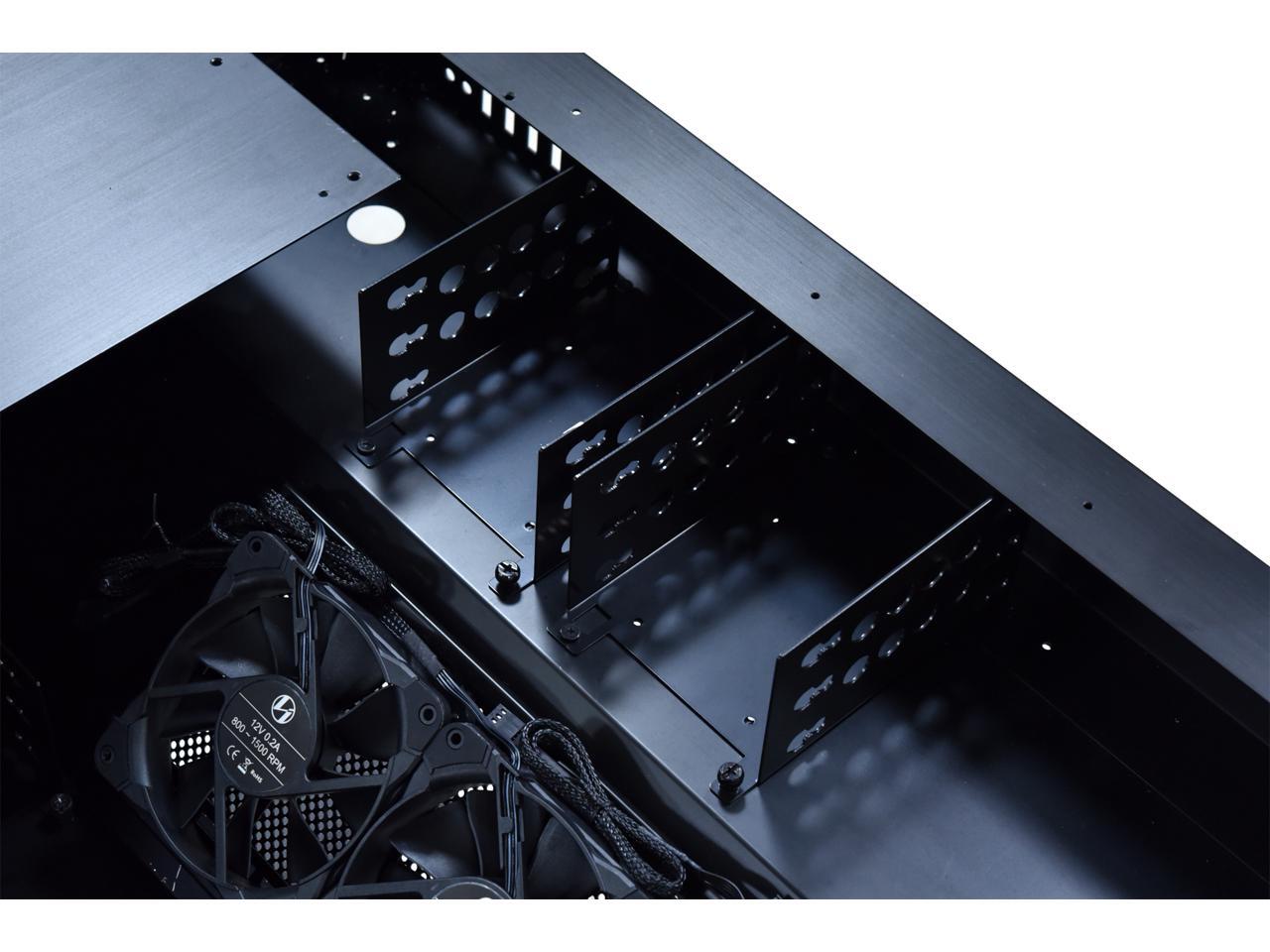

| Hard drive | 3.5" HDD X 9 or 3.5" HDD X 6 + 2.5" SSD X 3 |
| Removable drive tray | 3 |
| I/O Ports | fan control buttons X 5 RGB control buttons X 5 power/reset/G (glass effects control) USB 3.1 (TYPE-C) X 1/USB 3.0 X 4/HD audio desk height control: ? ? ? ? ? ? M |
| Fan controller | FAN: press FAN to sync with the motherboard I/II/III/IIII: fan speed control |
| RGB controller | RGB: 1. press for 3 secs to switch on/off the RGB 2. press RGB to sync with the motherboard + + : light mode control (7 modes) + +: light color control |
| Power Glass controller reset |

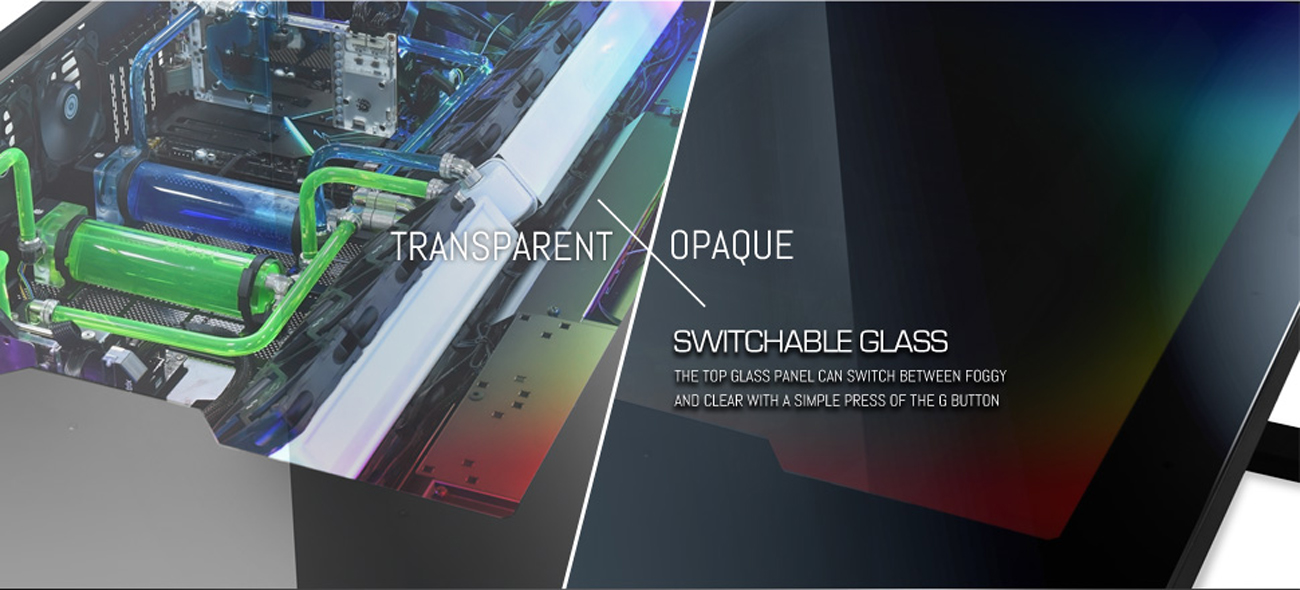

POWER G: glass control (on: transparent; off: opaque) reset |
| Desk height control buttons |
?: ascend ?: descend 1 2 3 4 M : 4 free settings allow users to customize and set their preferred sitting/standing heights; press M to memorize the setting. |
| Radiator support | front: 480mm/420mm X 1 rear left: 280mm/240mm X 1 |

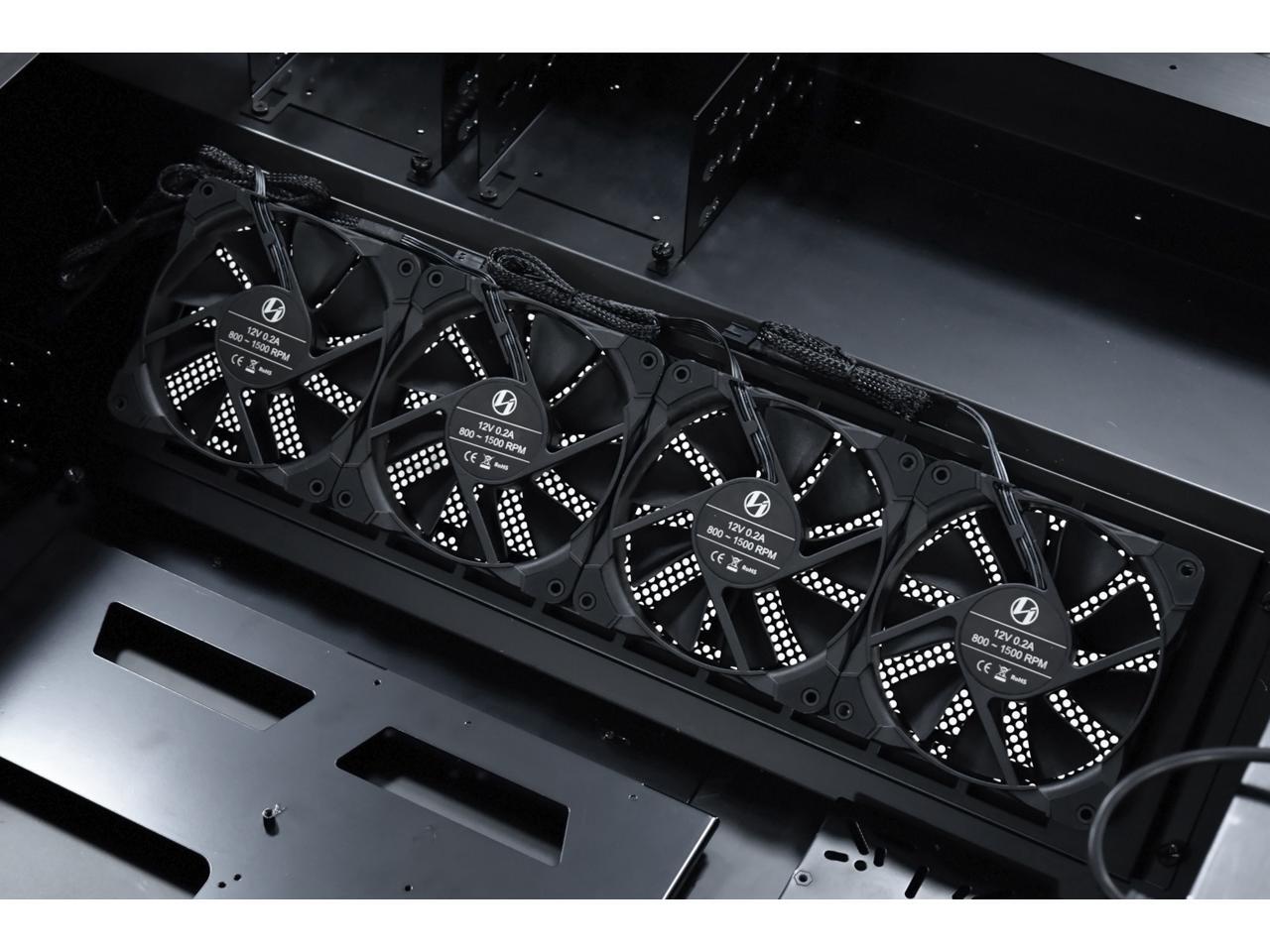

| Fan support | front: 140mm X 3 or 120mm X 4 rear left: 140mm/120mm X 2 rear right: 140mm/120mm X 1 |
| Removable fan/rad bracket |
1 X 480mm/420mm |
| Pump bracket | Pre-installed in the middle left |
| LEDs strip | 3 (LEDs: 50) |
