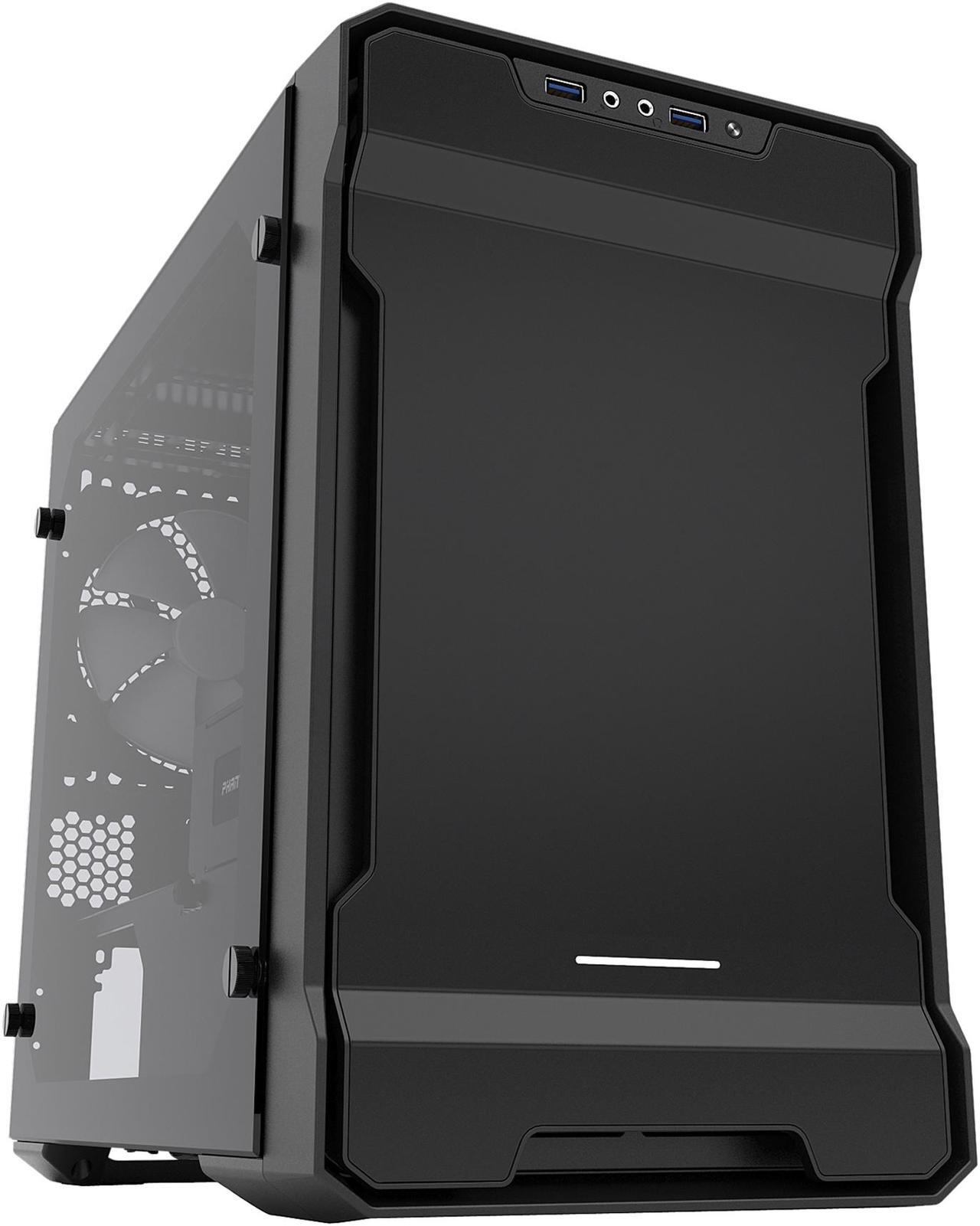

Phanteks Enthoo Evolv ITX Tempered Glass PH-ES215PTG_BK Black Steel plates, Plastic, Steel chassis Mini-ITX Tower Computer Case
- Steel plates, Plastic, Steel chassis Mini-ITX Tower
- 2 x USB 3.0 / Mic / Headphone / Reset Front Ports
- 2 (1 x extra upgrade slot) Internal 3.5" Drive Bays
Overview
Specs
Reviews (17)
Enthoo Evolv ITX Tempered Glass
Big on features and small in size, the EVOLV ITX is a budget
oriented chassis that uses a metal exterior, complemented
with a tempered glass side panel. The case introduces
innovative features for a convenient installation experience
in an ITX enclosure, such as a unique bracket solution for
mounting a radiator on top and a multifunctional bracket

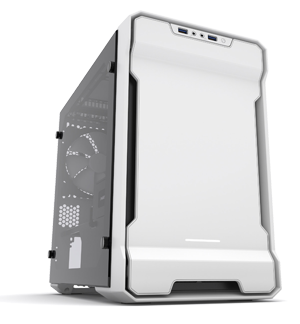

for reservoir, pump, and SSD/HDD. Available in Black,
Black/Red and White.
Appearance
- Metal exterior (powder-coated steel)
- Clean and Compact design

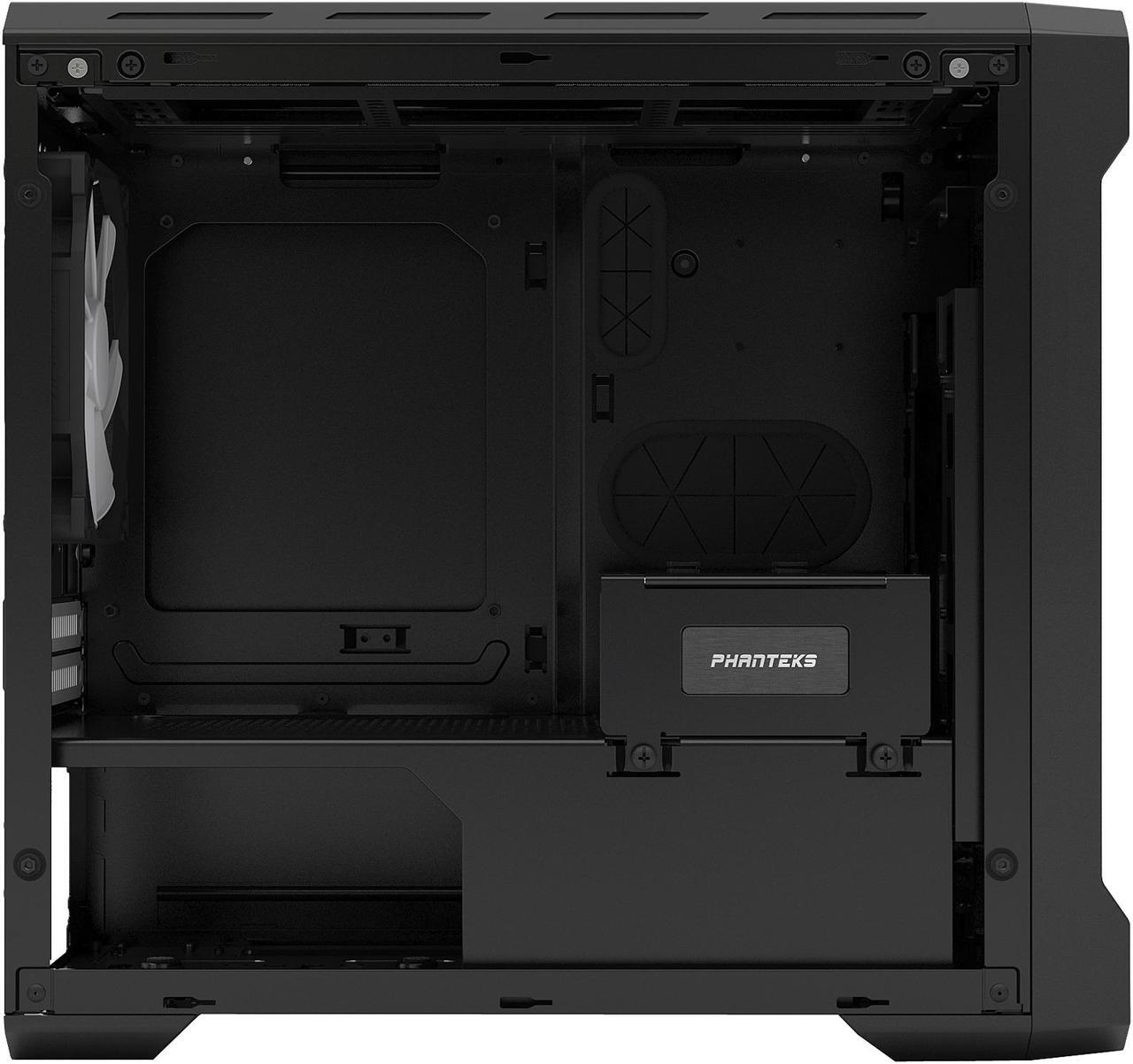

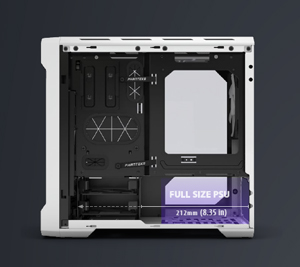

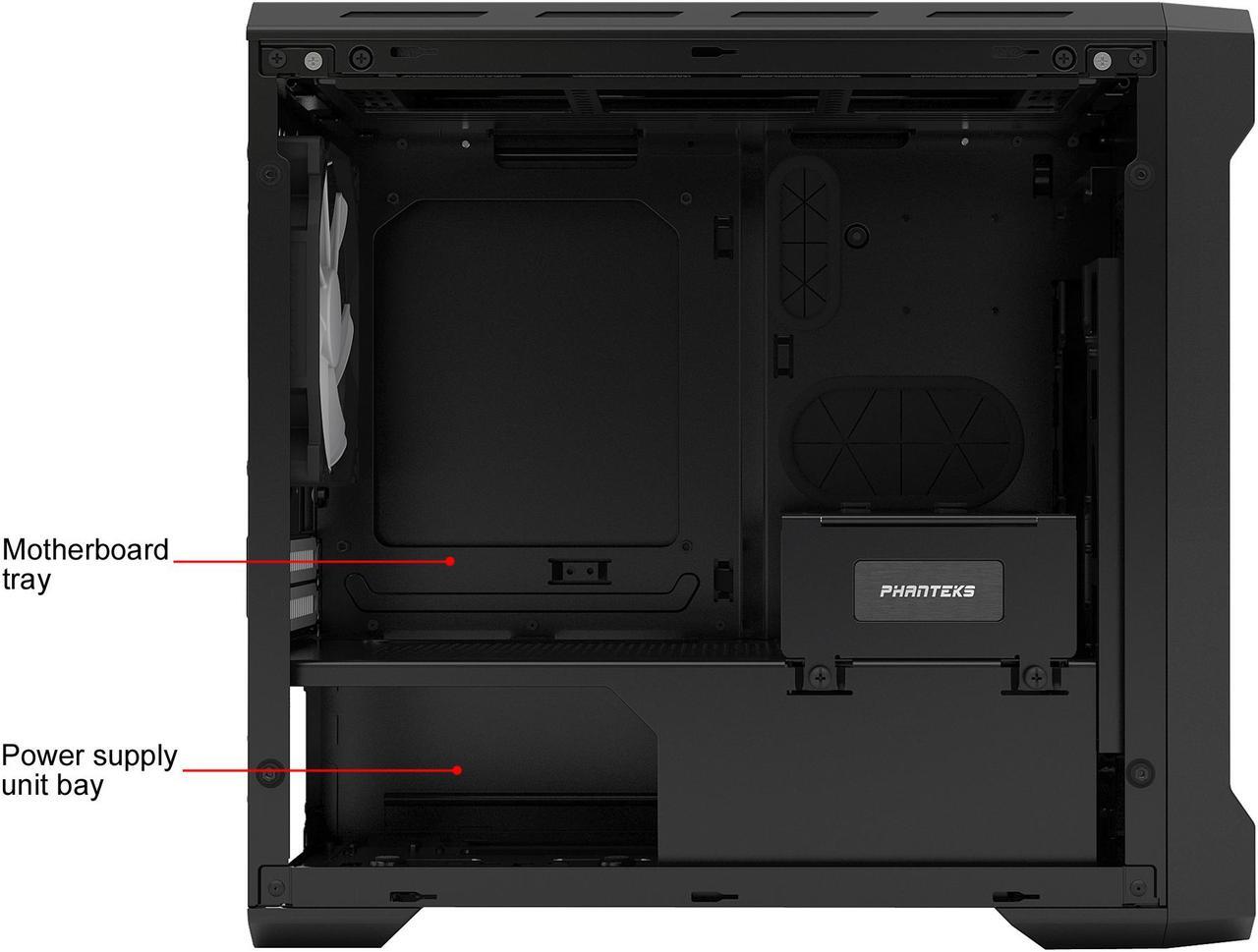

- Clean interior - Hidden PSU and HDD’s

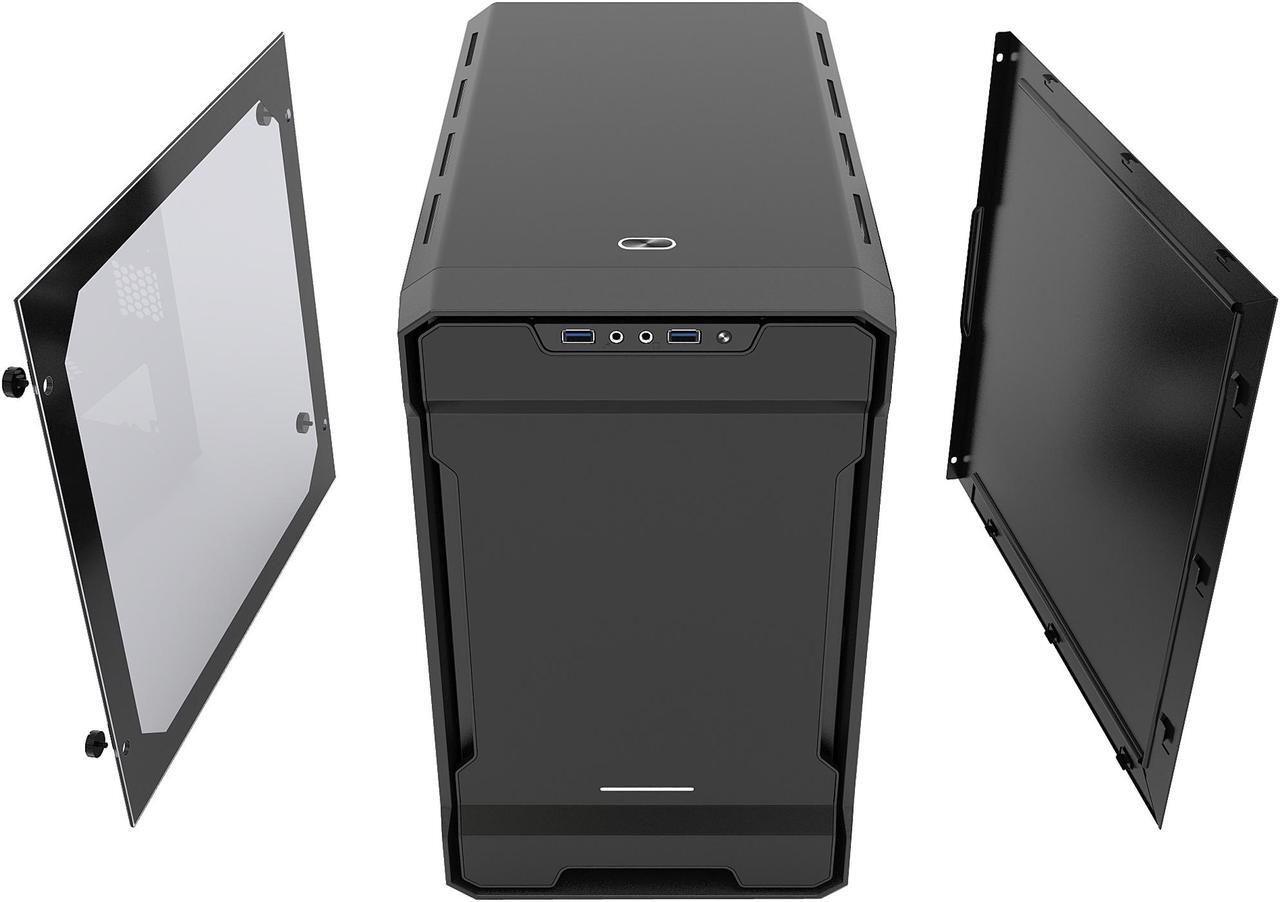

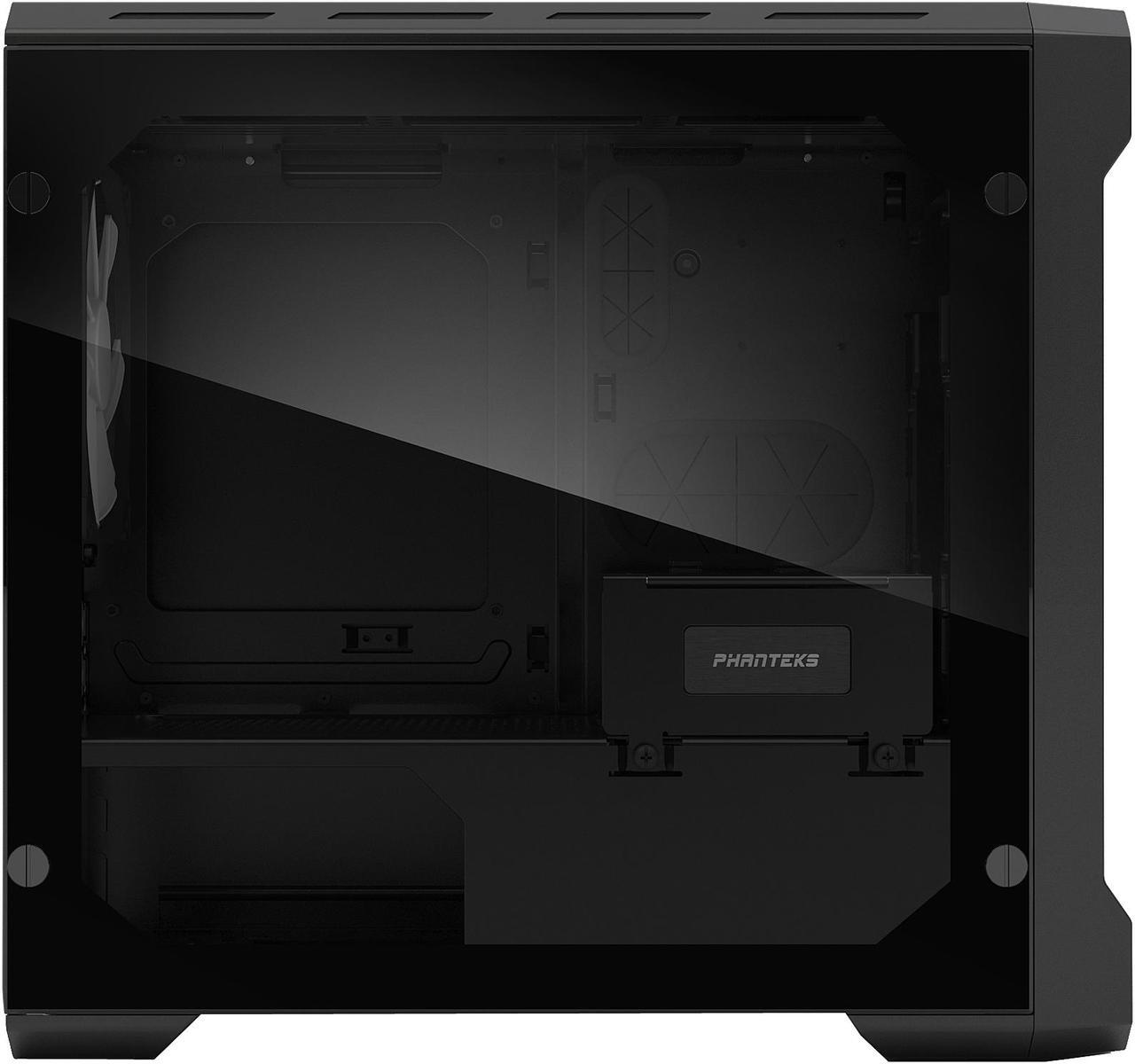

- Tempered Glass Side Panel
EXTREME COOLING

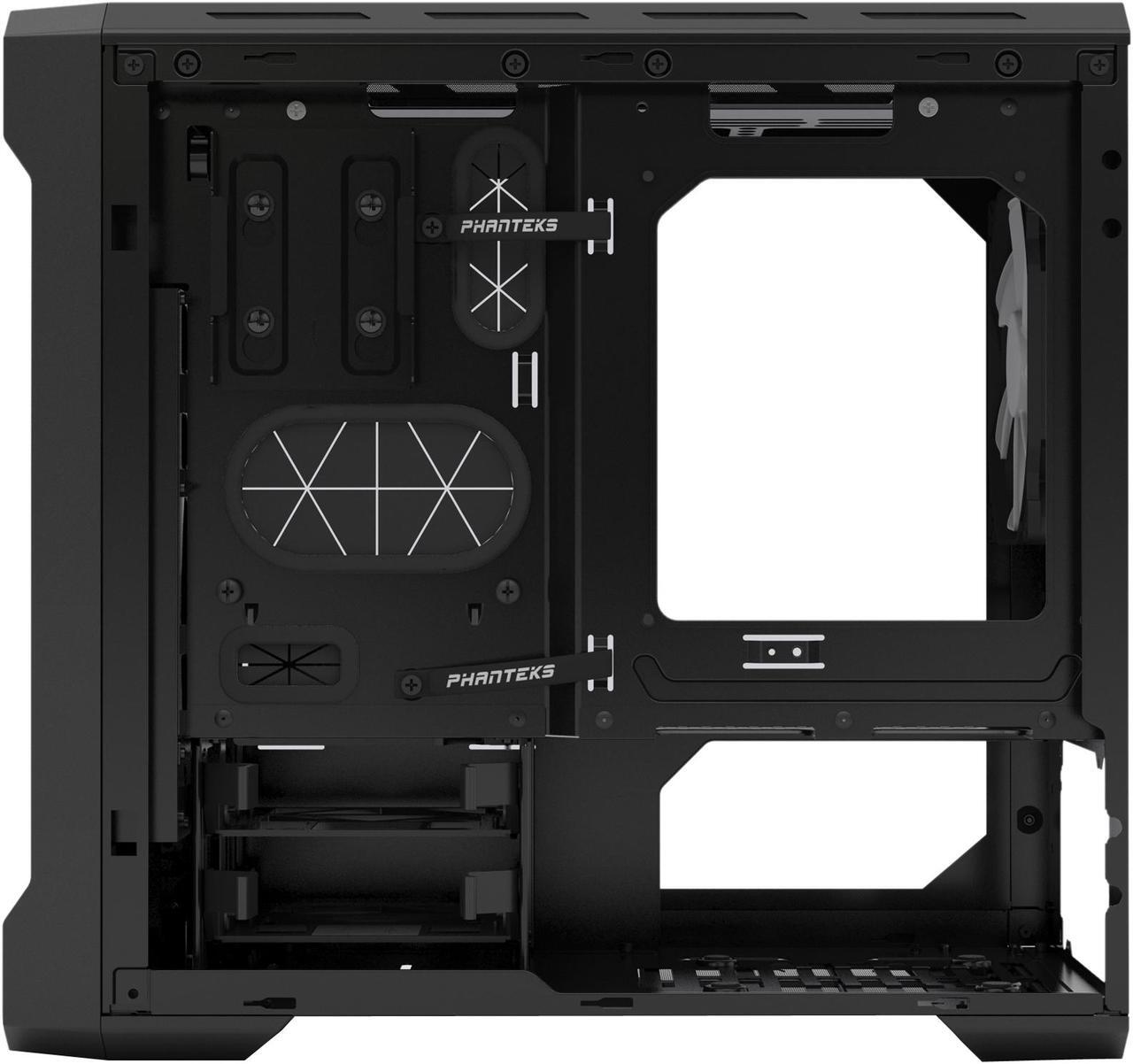

CABLE MANAGEMENT
- Equipped with Phanteks’ velcro cable ties
- 28mm cable management space

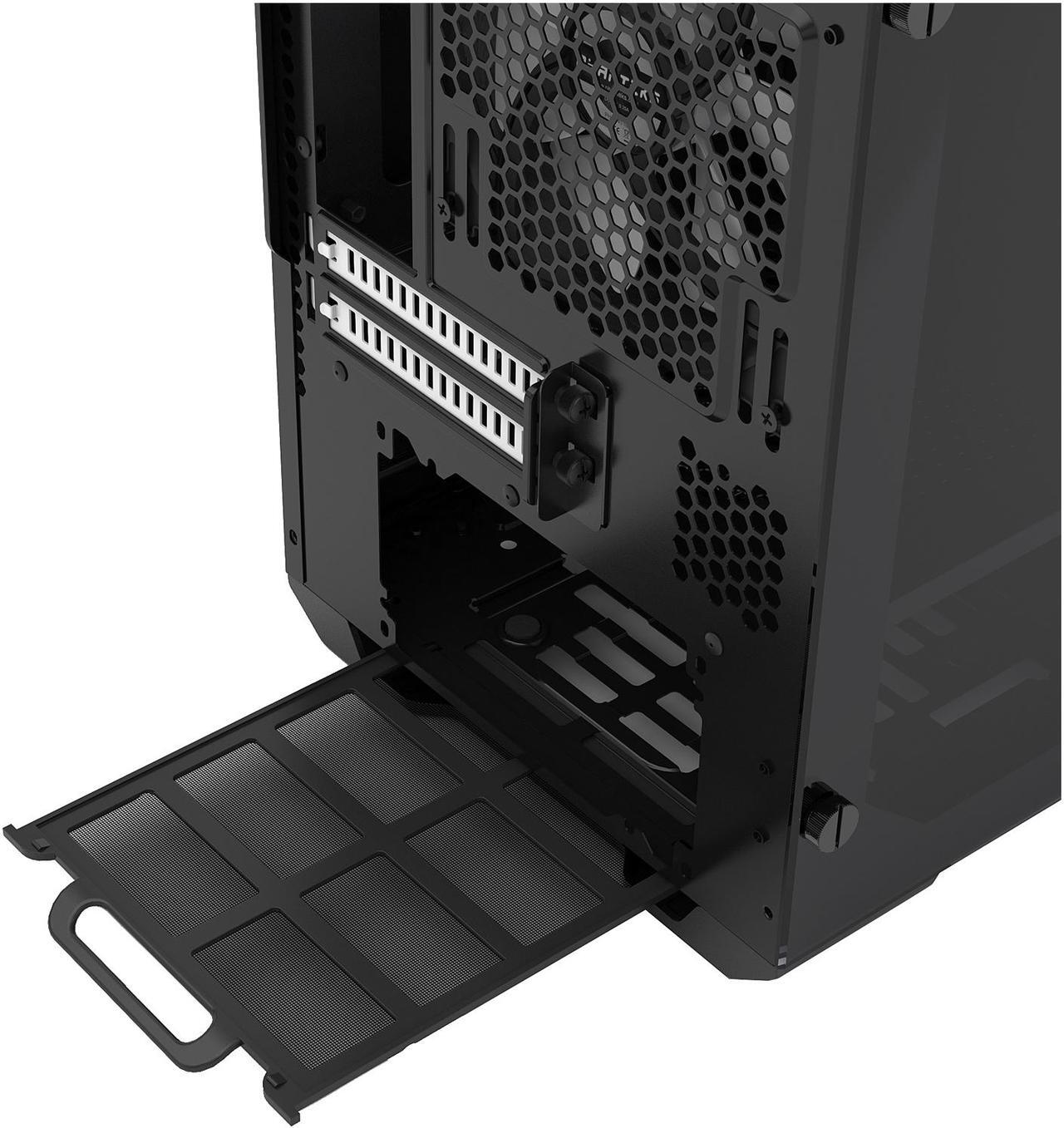

- Additional cable compartment in bottom
Feature

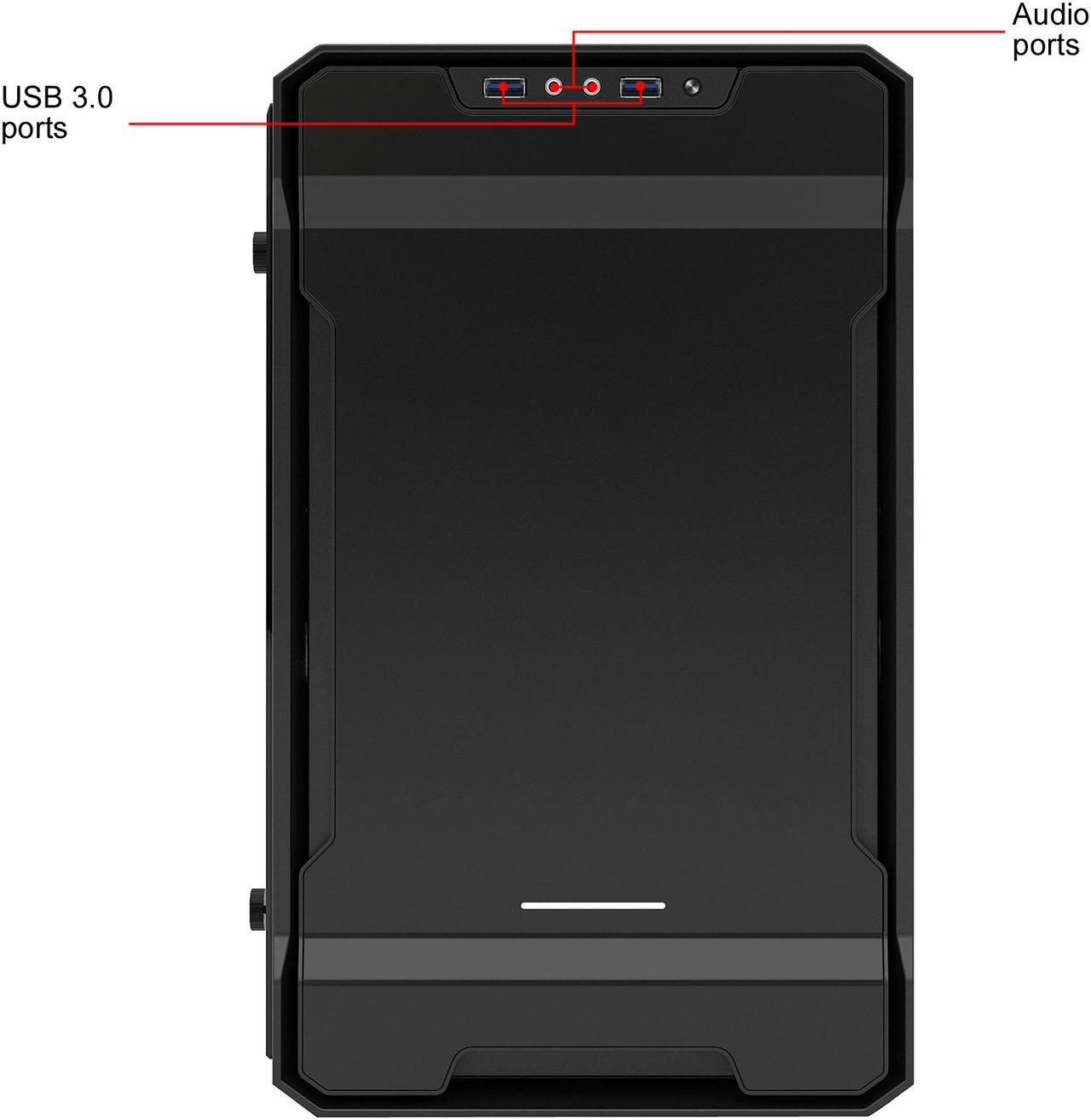

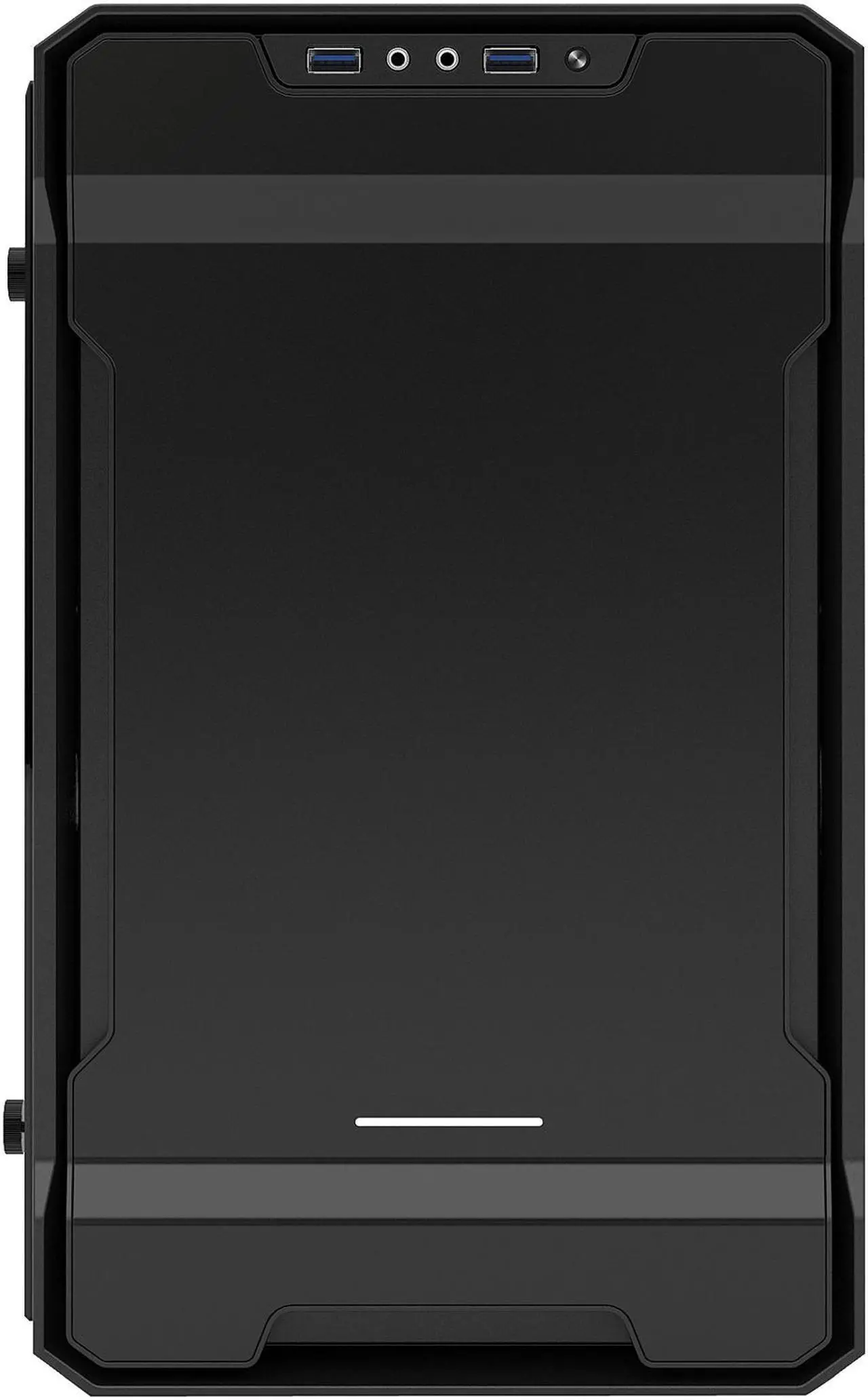

FRONT I/O:

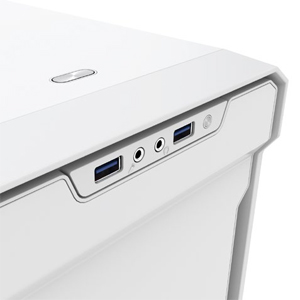

2x USB 3.0 / HEADPHONE / MIC / RGB BUTTON

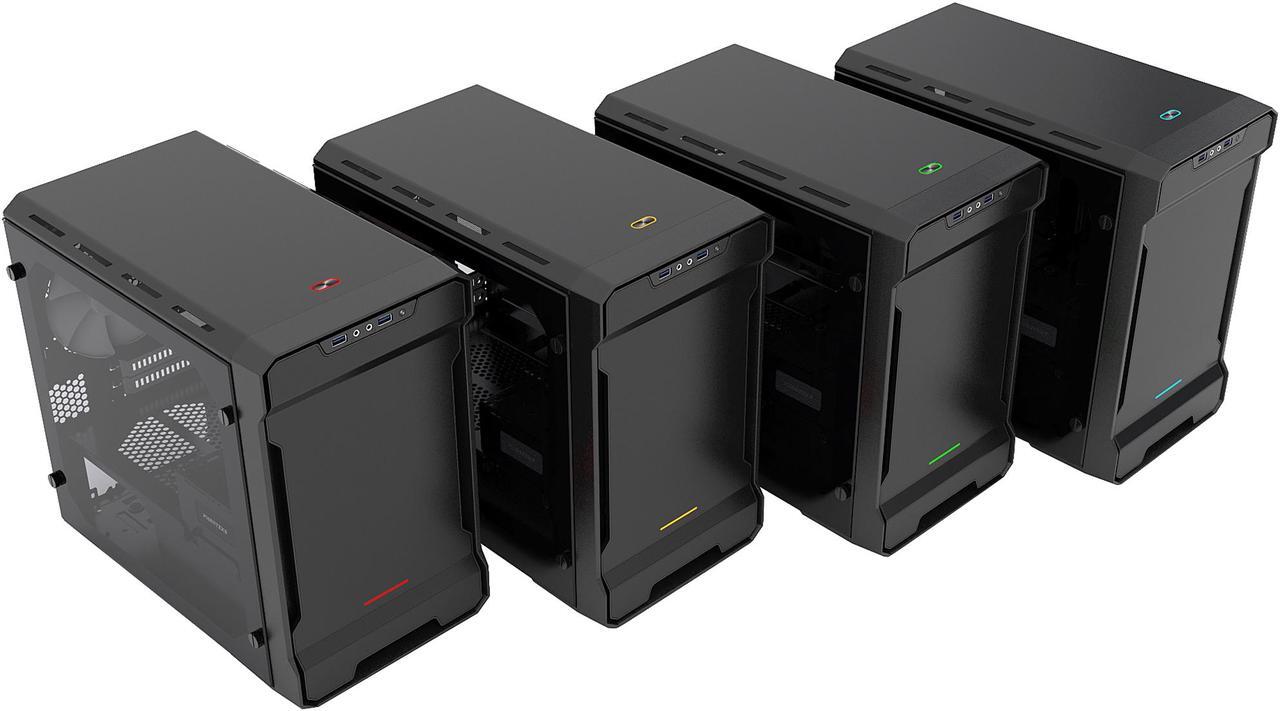

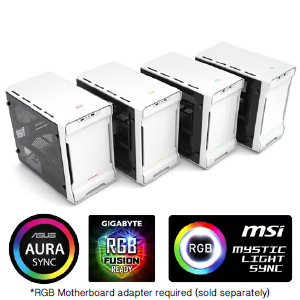

INTEGRATED RGB ILLUMINATION
SYNC WITH RGB MOTHERBOARDS /
PHANTEKS RGB PRODUCTS

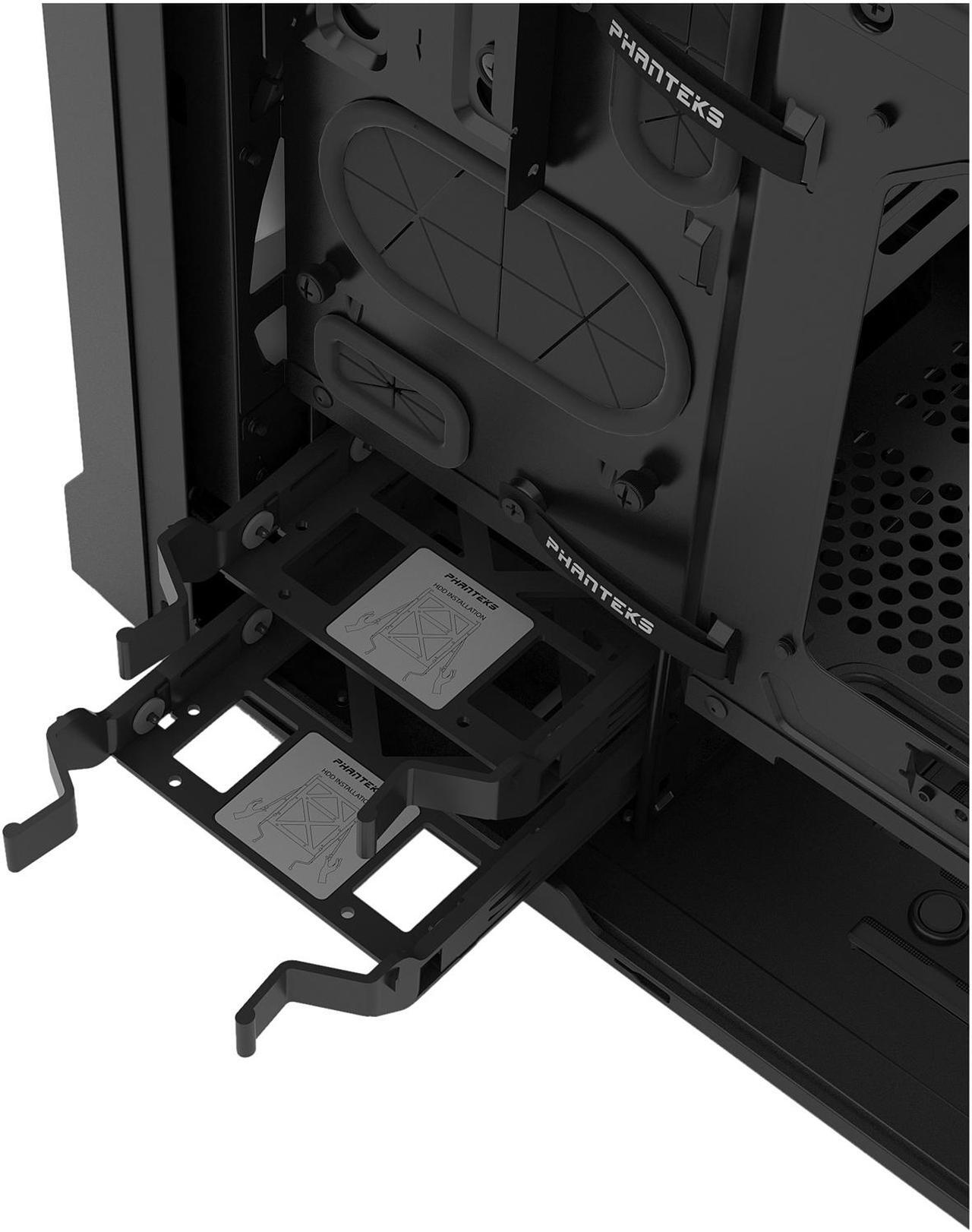

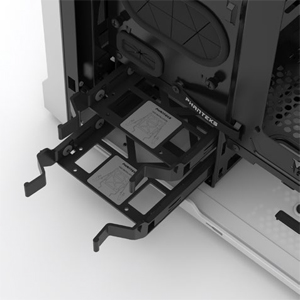

2x 3.5” HDD / REMOVABLE HDD BRACKET
WATERCOOLING READY

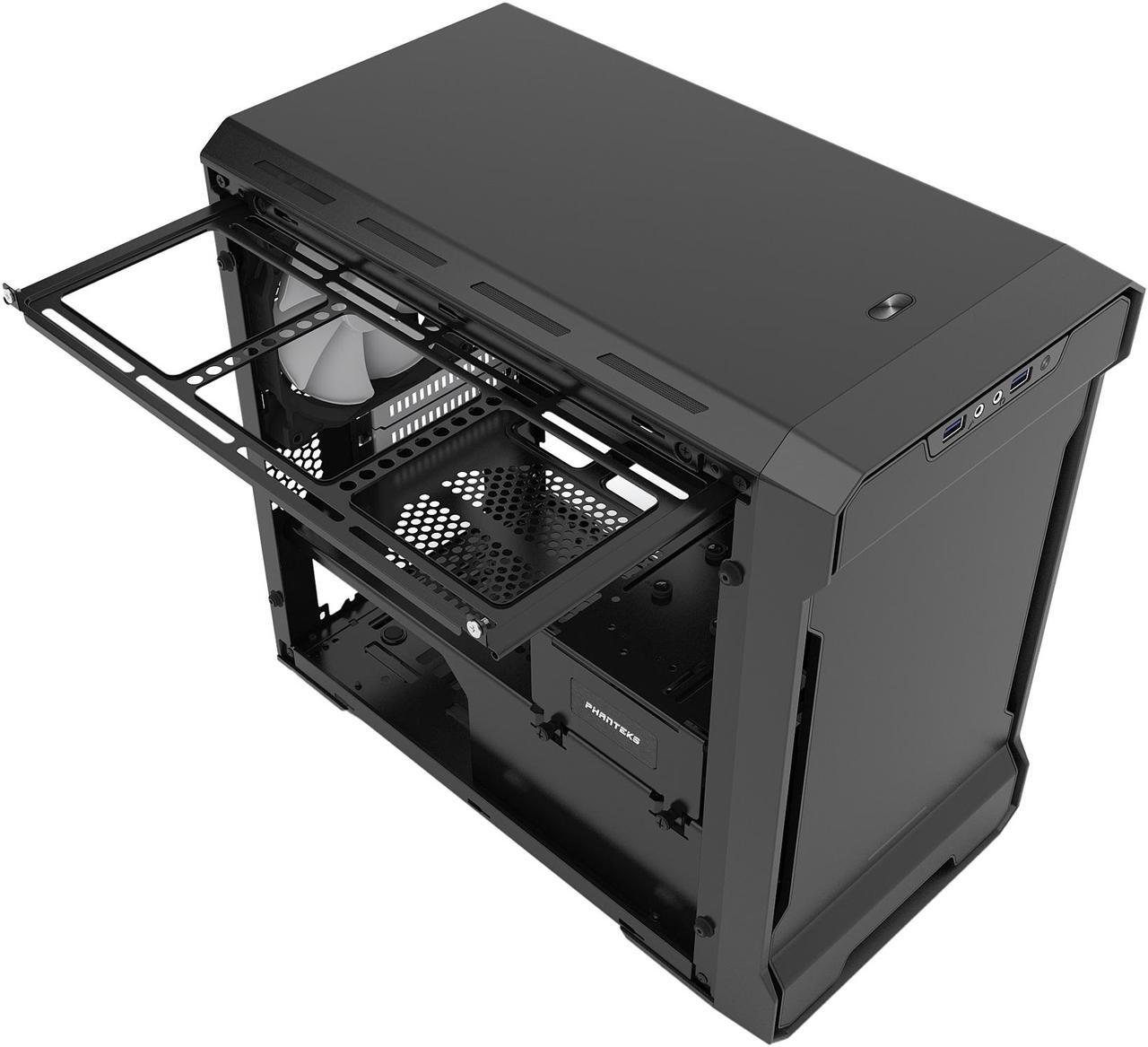

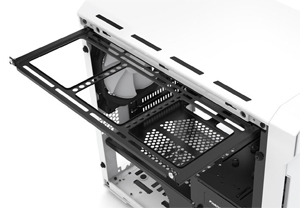

OFFSET RADIATOR BRACKETS
NO CONFLICTS BETWEEN RADIATOR AND MEMORY

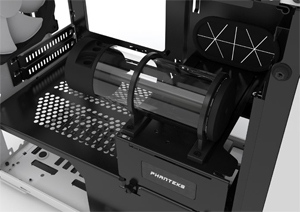

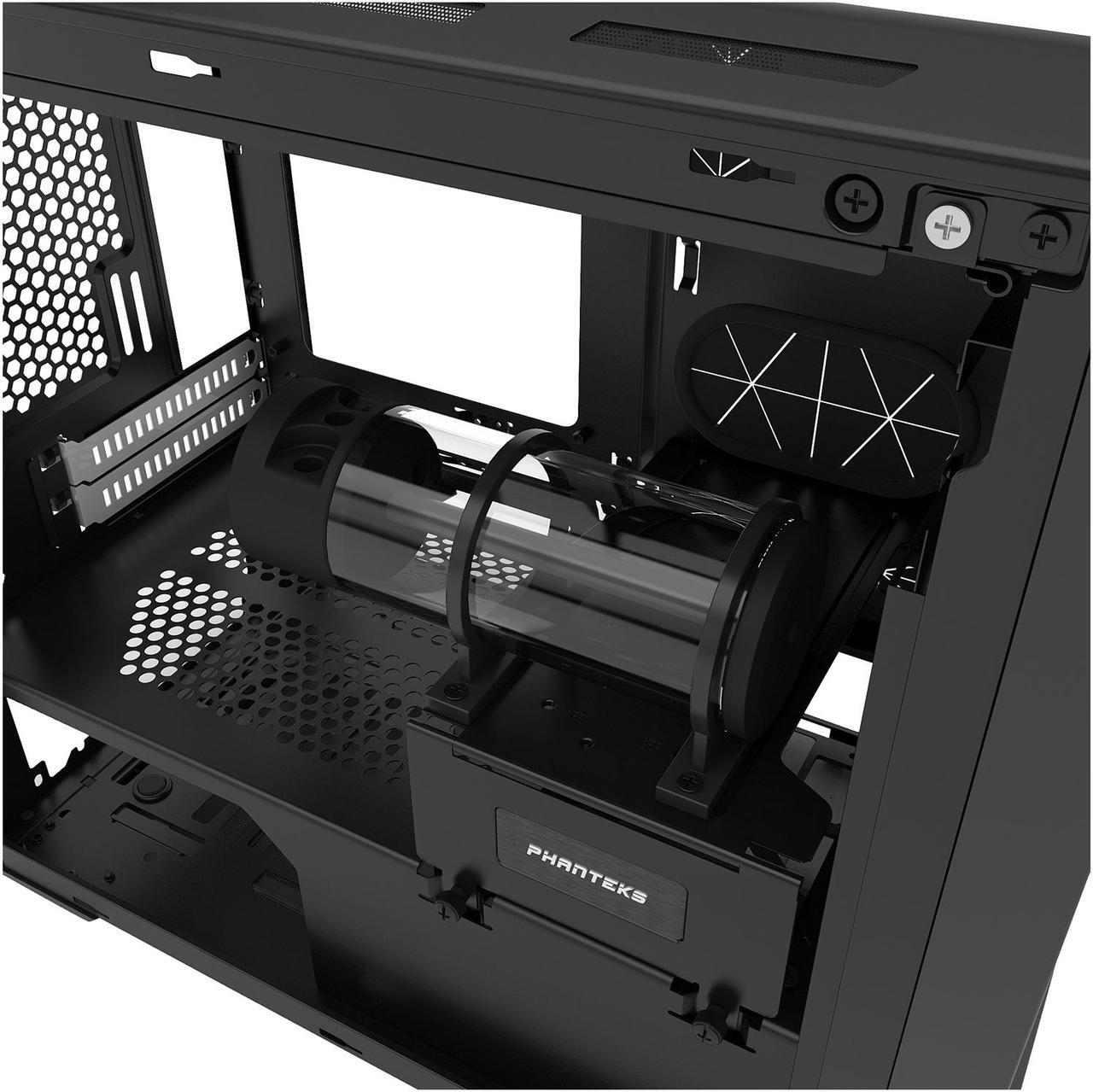

RESERVOIR MOUNT
Specifications
| Case Specifications | |||

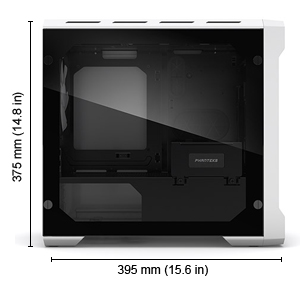

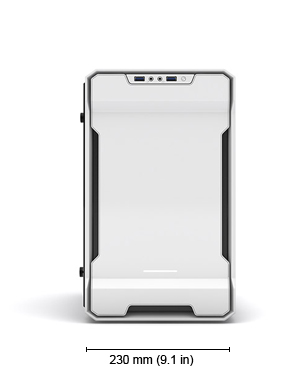

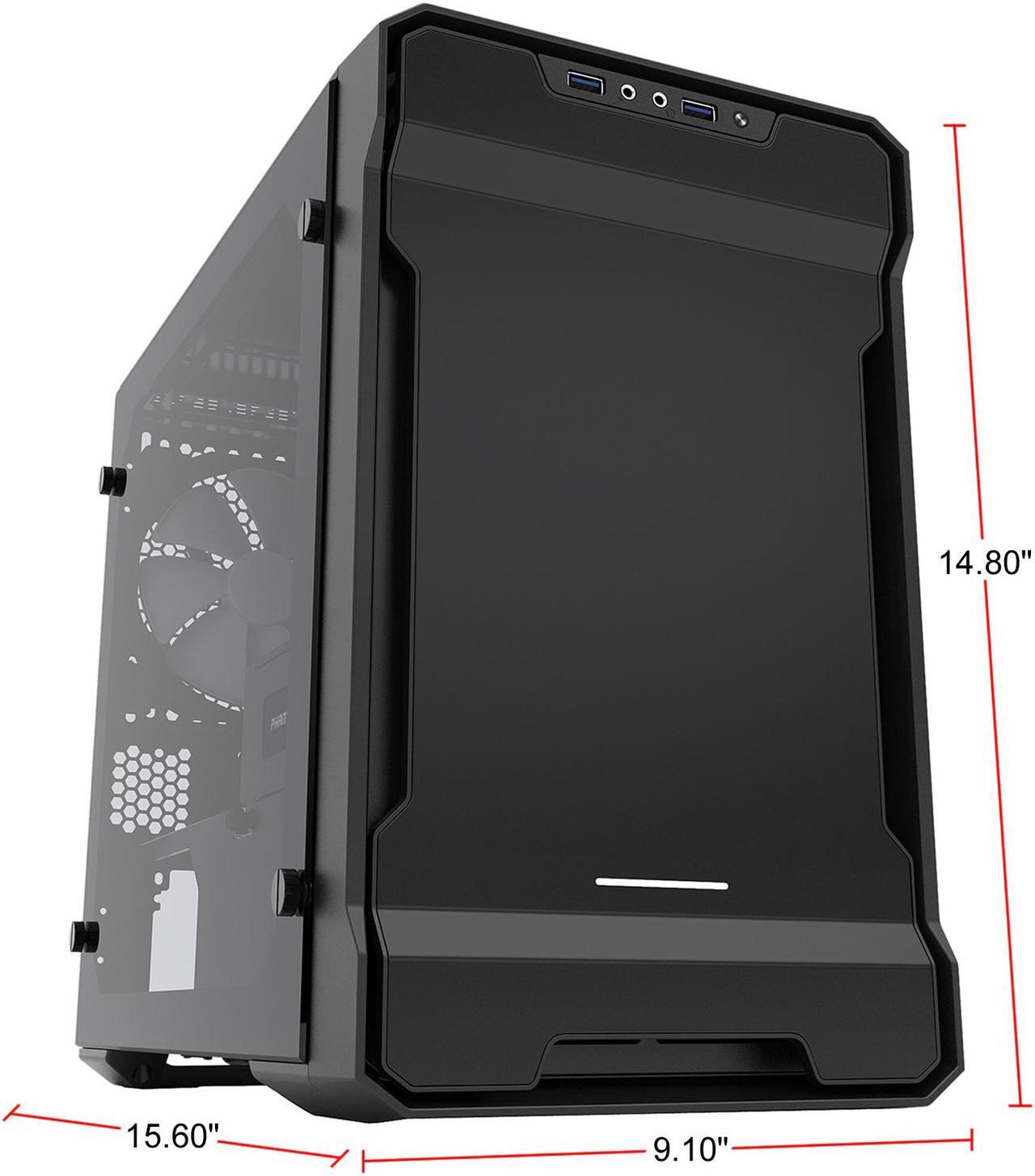

| Dimension | 230 mm x 375 mm x 395 mm (W x H x D) 9.1 in x 14.8 in x 15.6 in |
||
| Form Factor | Mini ITX tower | ||
| Material(s) | Powder coated steel, Plastic, Steel chassis | ||
| Motherboard Support | Mini ITX | ||
| Front I/O | 2x USB 3.0, Mic, Headphone, RGB Button | ||
| Side Window | Yes, Tempered Glass Side Panel | ||
| Expansion & Drive Bays | |||
| Expansion slots | 2 | ||
| Internal 3.5" | 2x (1x extra upgrade slot) | ||
| Internal 2.5" | 1x (1x extra upgrade slot) | ||
| Cooling | 120mm fan | 140mm fan | |
| Front | 2x | 2x | |
| Top | 2x | 2x | |

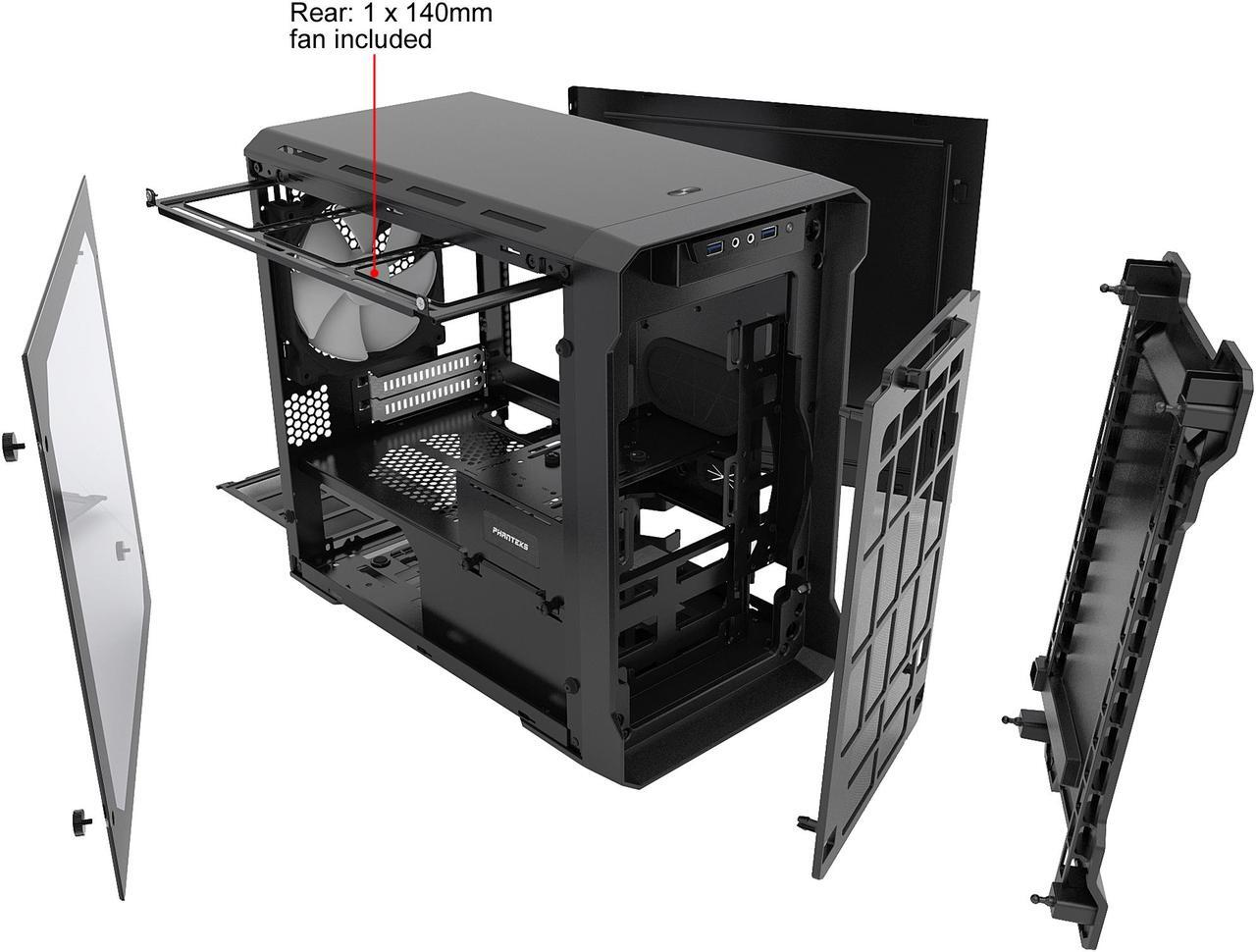

| Rear | 1x | 1x (included) | |
| Liquid Cooling | 120mm radiator | 140mm radiator | |
| Front | Up to 240 | - | |
| *Top | Up to 240 | Up to 280 | |
| Rear | 120 | 140 | |
| Clearance | |||

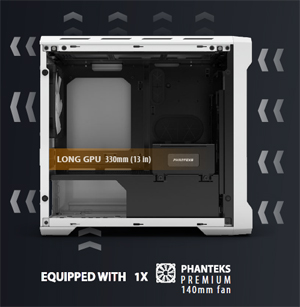

| Graphic card | 330 mm (13 in) | ||
| CPU cooler | 200 mm (7.9 in) | ||
| Cable management | 28 mm (1.1 in) | ||
| Packaging Information | PH-ES215PTG | ||
| Net Weigth | 6 kg (12 lbs) | ||
| Gross Weigth | 7 kg (17.7 lbs) | ||
| Package Dimension | 310 mm x 480 mm x 460 mm (WxHxD) | 12.2 in x 18.9 in x 18.1 in | |
| Warranty | |||
| Length | 5 Years Limited | ||
