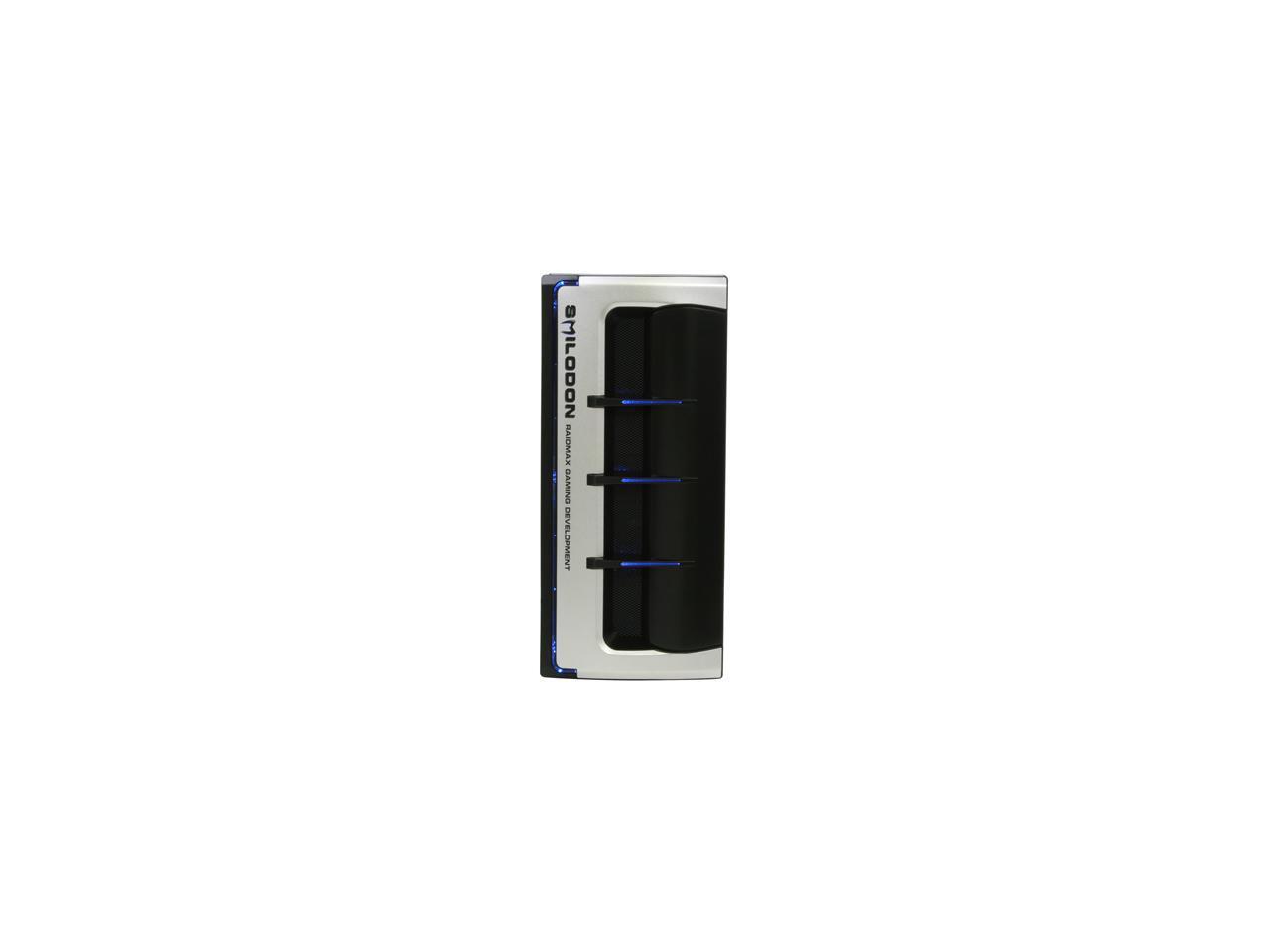

The Smilodon case from Raidmax makes assembling a system easier than ever before. It has a modular, tool-less design that makes the initial build and future upgrades easy. Both side panels latch into place for easy access. For the ultimate in convenience the right side panel has the motherboard tray completed with backplate attached. This lets you install the mobo and all your cards, then lock it into the case as a single unit.
Drive installation couldn’t be easier. The external bays all use Clicklock technology, just slide the drive into the bay and lock it into place. The hard drive rack is removable for easy installations and upgrades. All of the necessary drive rails come in a slide out box so you don’t lose them.
Once you have everything assembled you need to make sure it stays cool. In addition to the fan on the 500W power supply Raidmax has loaded the case with plenty of additional fans. A 120mm fan is mounted on the front of the case to draw cool air in and blow it across the hard drives. Side and rear mounted 80mm fans keep the air moving over all critical components. There is also an 80mm fan with blue LEDs that mounts to a support brace that holds your expansion cards steady and blows cool outside air over them.

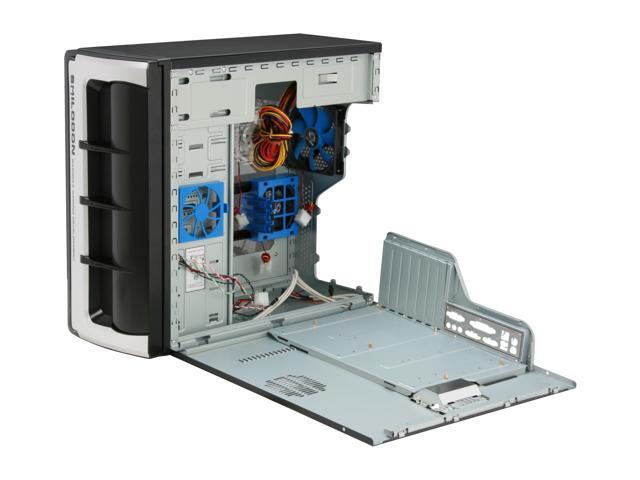

Convenient InstallationThe Raidmax Smilodon features a fully removable motherboard tray for easy system upgrade without removing your PCIe/AGP/PCI cards. Plus the tool-free design ensures quick assembly of other devices without the need for any tool, saving your precious time.

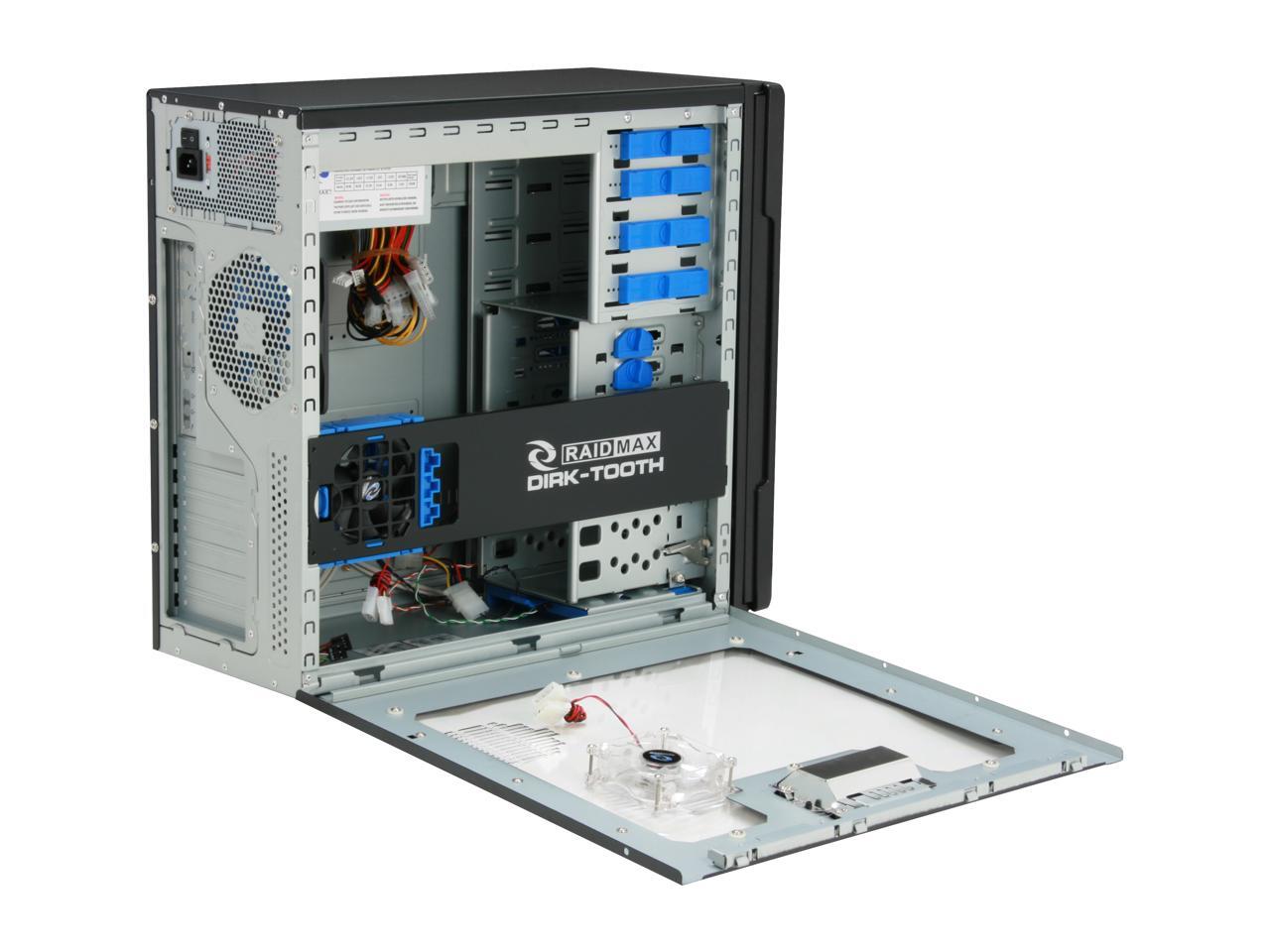

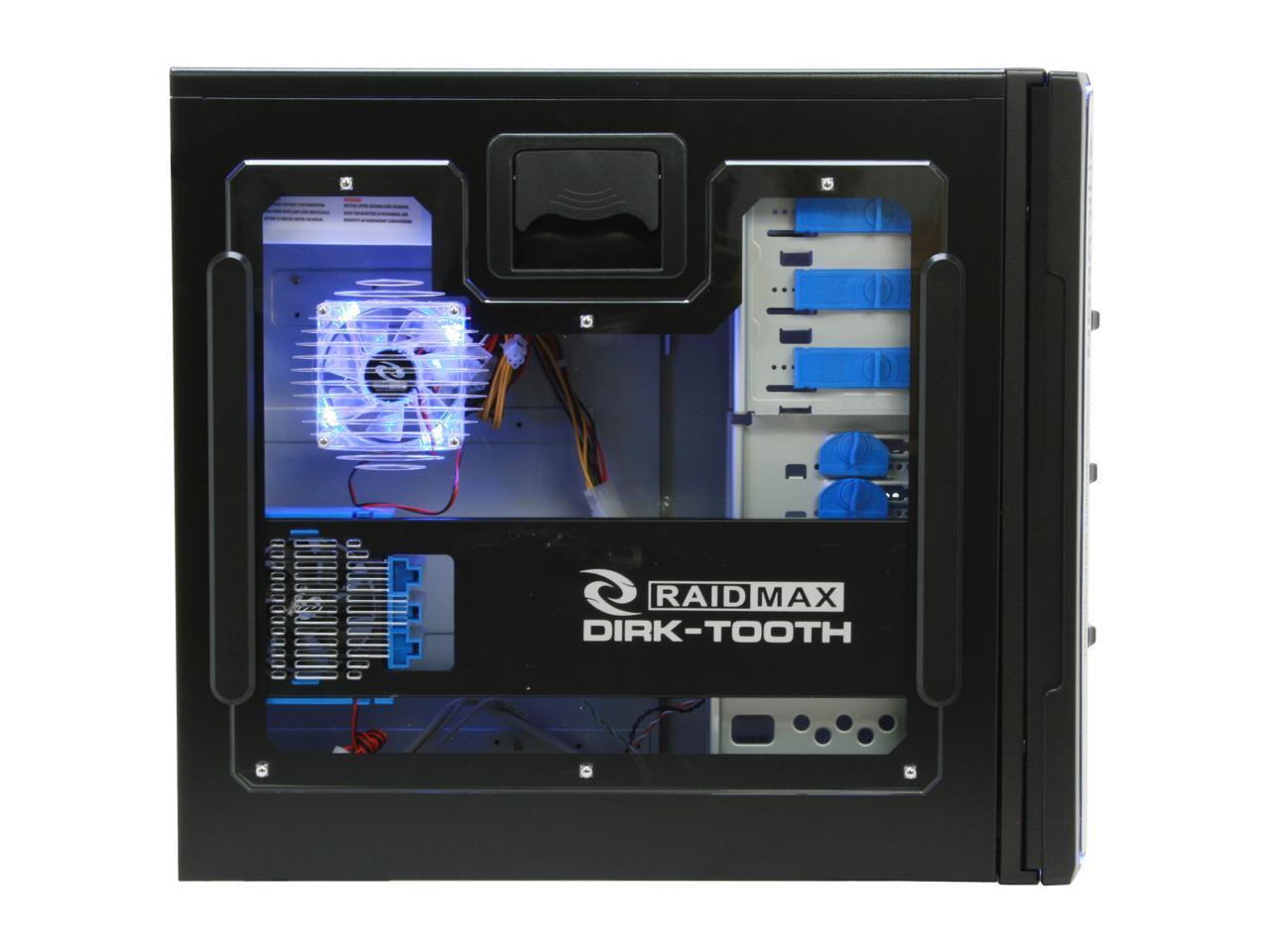

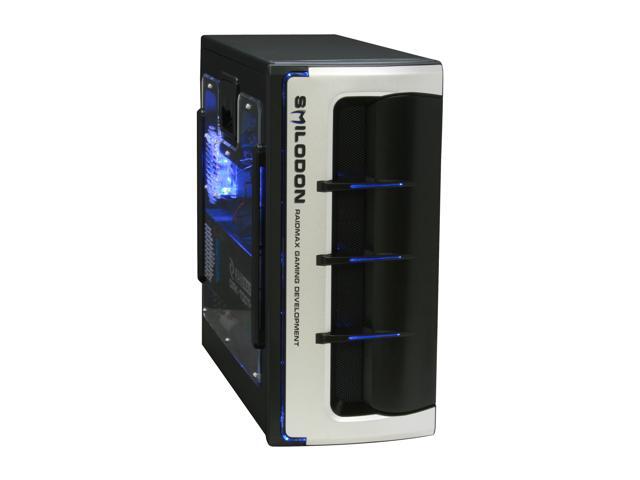

Transparent Side Panel WindowThe Raidmax Smilodon’s fantastic transparent side panel window provides a direct view of the inner system. An 80mm side fan with blue LEDs improves interior airflow and looks simply amazing too.

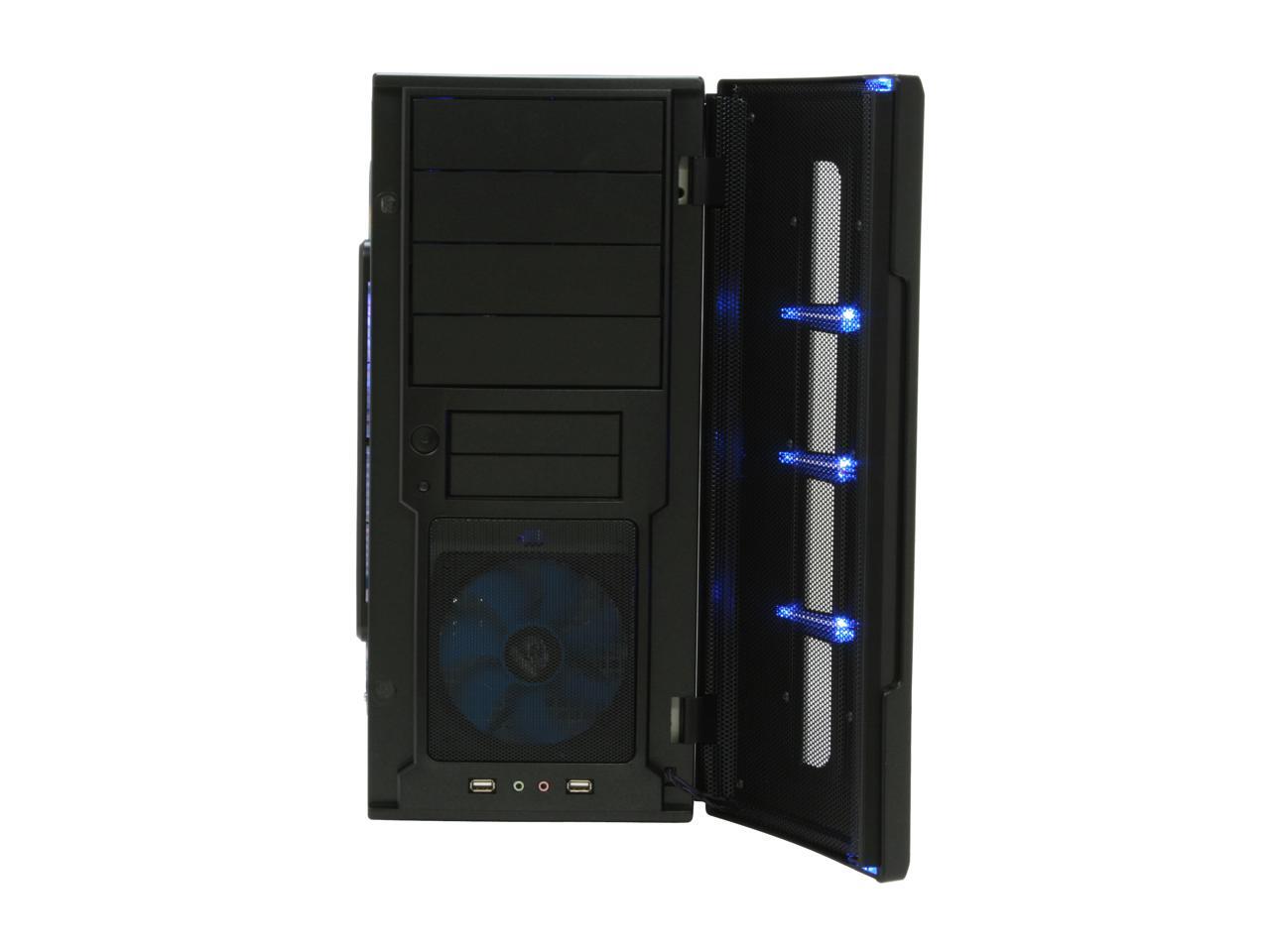

Superior Expandability with 10 Drive BaysFeaturing four 5.25" external drive bays, and six 3.5” drive bays (two external and four internal), the Raidmax Smilodon provides superior expandability.
Efficient VentilationThe Raidmax Smilodon features one 120mm front intake fan, three 80mm fans and side vents for efficient ventilation and effective system cooling.

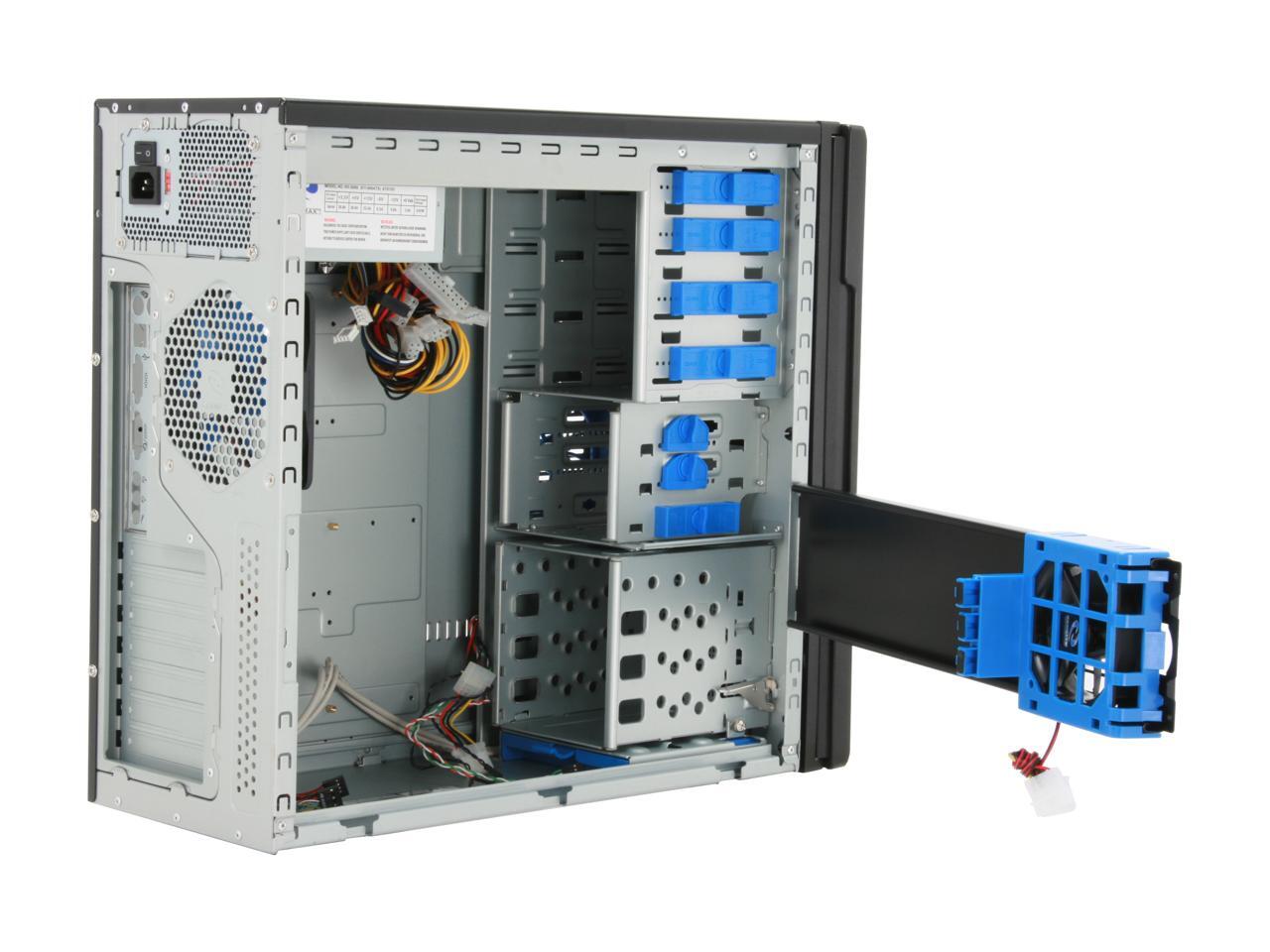

Video Card Cooler and StabilizerThe side video card stabilizer with an 80mm fan cools your video card and prevents it from moving for enhanced system stability.
Built-in 500W PSUThe Raidmax Smilodon is equipped with a powerful 500W power supply unit to feed energy-consumptive systems, making every computer component run robustly.
Learn more about the Raidmax ATX-612WBP
Model
Brand
RAIDMAX
Series
SMILODON
Model
ATX-612WBP
Details
Type
ATX Mid Tower
Color
Black
Case Material
1.0mm SECC Steel
With Power Supply
Yes
Power Supply
500W
Power Supply Mounted
Top
PSU Main Connector
20+4Pin
Motherboard Compatibility
ATX
Side Panel Window
Yes
Expansion
External 5.25" Drive Bays
4
External 3.5" Drive Bays
2
Internal 3.5" Drive Bays
4
Expansion Slots
7
Front Panel Ports
Front Ports
2 x USB 2.0 / Audio
Cooling System
80mm Fans
1 x 80mm Side Blue LED Fan 1 x 80mm Side Cooling Fan
120mm Fans
1 x 120mm Front Intake Fan 1 x 120mm Rear Exhaust Fan
Side Air duct
No
Dimensions & Weight
Dimensions (H x W x D)
20.50" x 8.00" x 17.75"
Additional Info
Features
One-Click Foldout Motherboard Tray - Removable Click-Lock Tool-Less Installation Design - 7 Slots Removable Hard Drive Rack Built-In Accessory Box Blue LED Front Panel Lights Large See Through Side Panel Window Roomy Interior Space High Efficient In-Take Air Flow Design 1 x 80mm Side Blue LED Fan 1 x 80mm Side Cooling Fan 1 x 120mm Front Intake Fan 1 x 120mm Rear Exhaust Fan 3 x PCIe/AGP/PCI Stabilizers
