Will a stock CPU heat sink fit? (r5 3600 comes with a wraith stealth.) All the builds I've found use an AIO and I'm not sure if I need one if I don't plan on overclocking. But the fan would blow air directly onto the glass which seems unproductive.

According to Raijintek, this case supports up to 140mm CPU Cooler Height, and the Wraith cooler is well within that. The Wraith cooler also blows "down" onto the CPU, not "up" toward the glass, pulling in air from the top and sides. Since this case is open-air, there should be even more air available to the CPU cooler than in a standard box case, so you should have no issues.

Will this case fit an Asus Z490-E Motherboard?

matx only. it can be modified for atx (it has the surface are) but requires you to mark, drill, and tap new holes

Can this be inverted?

I don't see why not. It's just a piece of metal that you connect all your stuff to, and has a glass pane on the front. It would not matter which direction it's sitting as long as you don't have a weird watercooling setup, or block off access to the power switch

Hello. Can I install ASUS RoG Formula 10? Is full ATX mobo fit ok? Thank you!

Nope, this fits only mini or micro ATX

Can you wall mount it?

No, it does not come with walk mounting brackets. I also have the thermaltake p3 and it does come with walk mounting brackets.

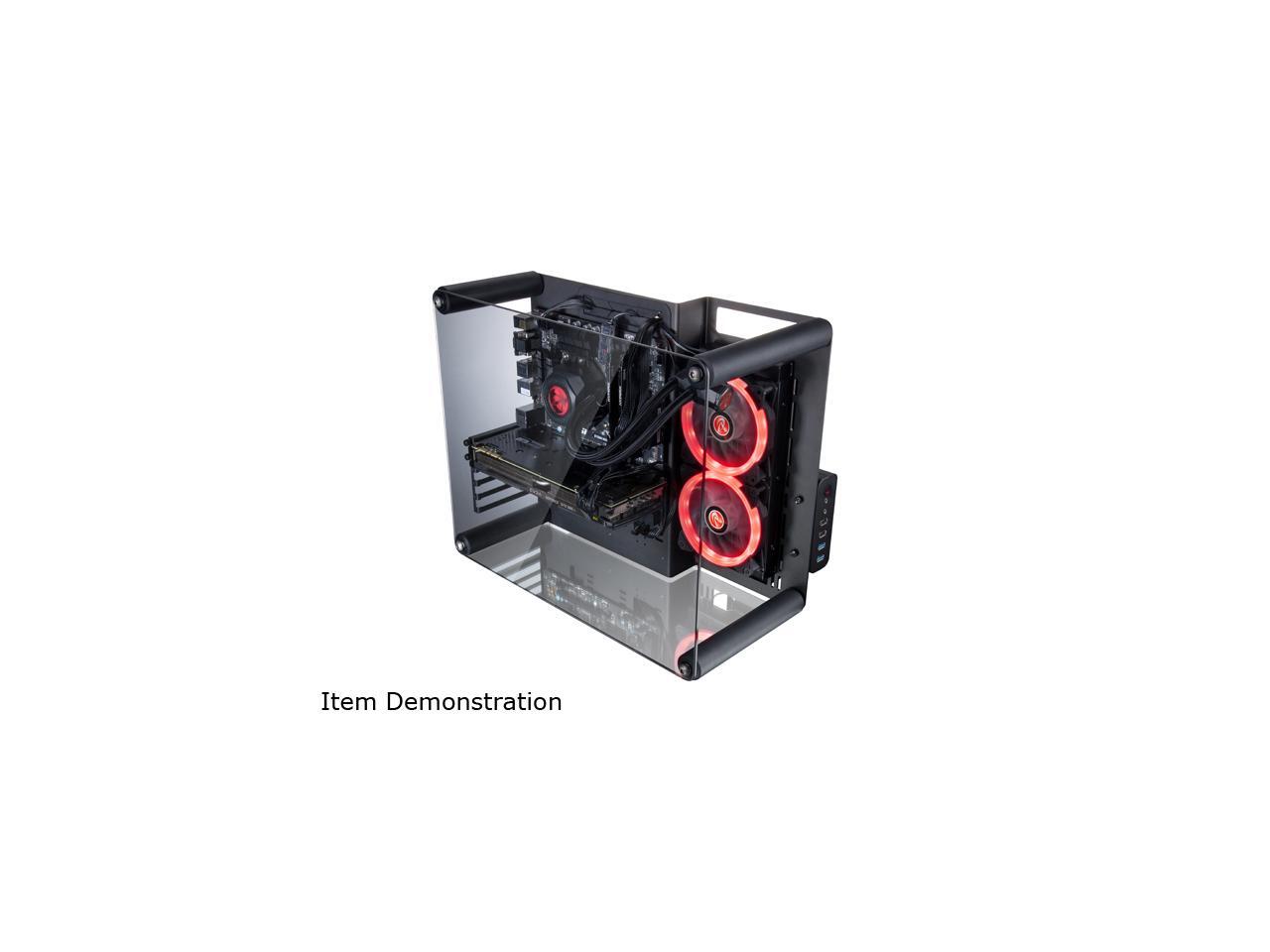

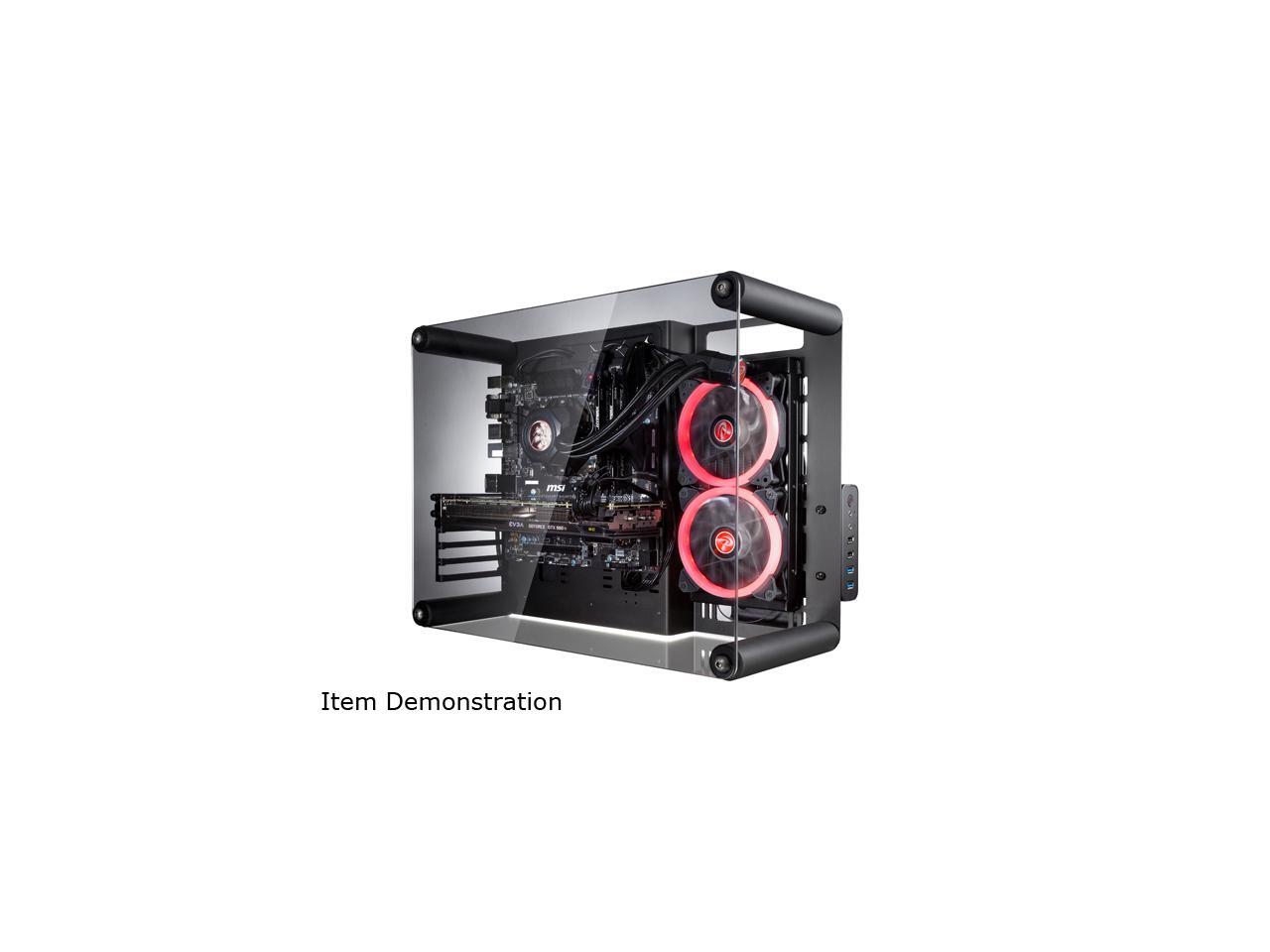

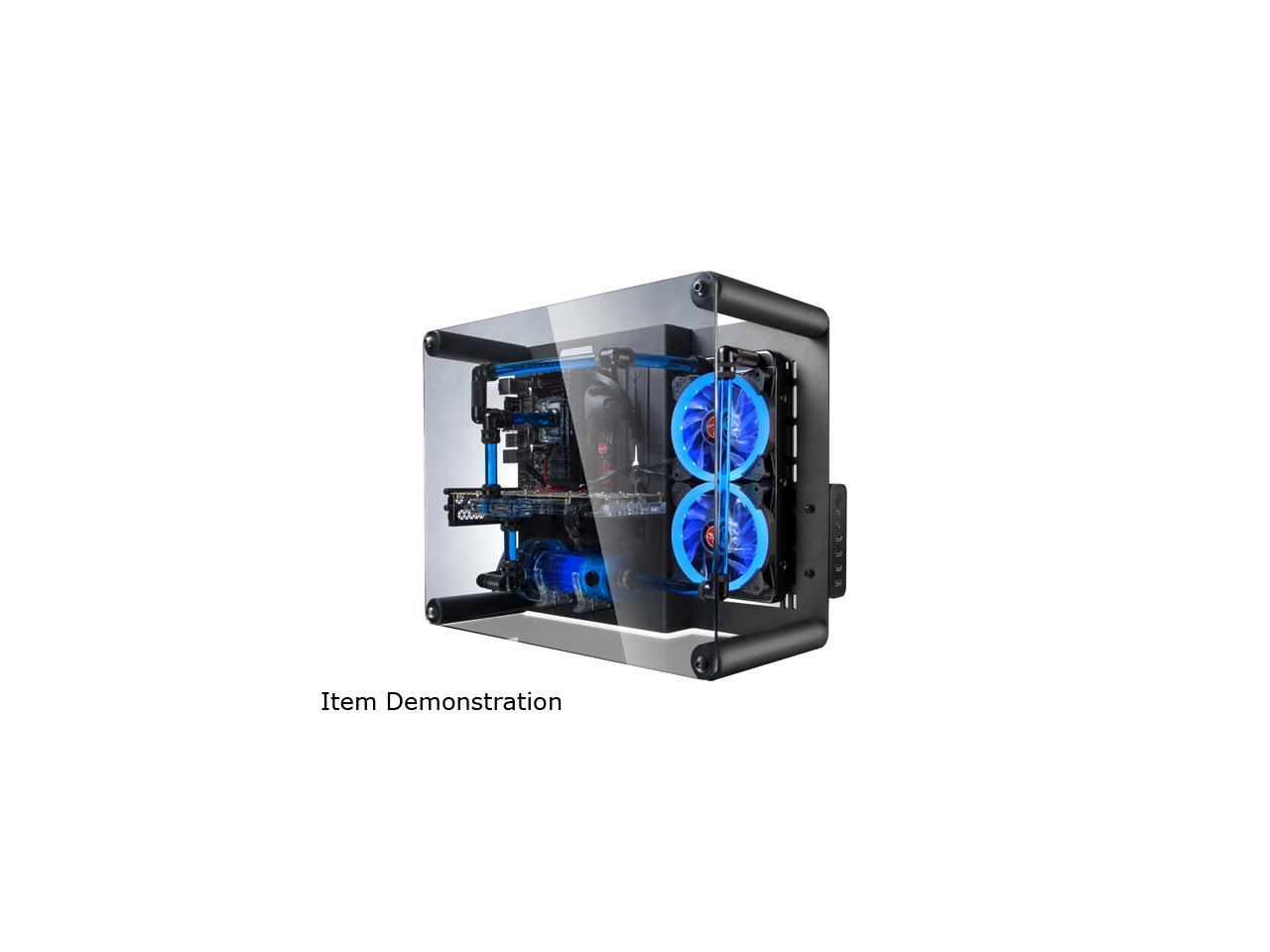

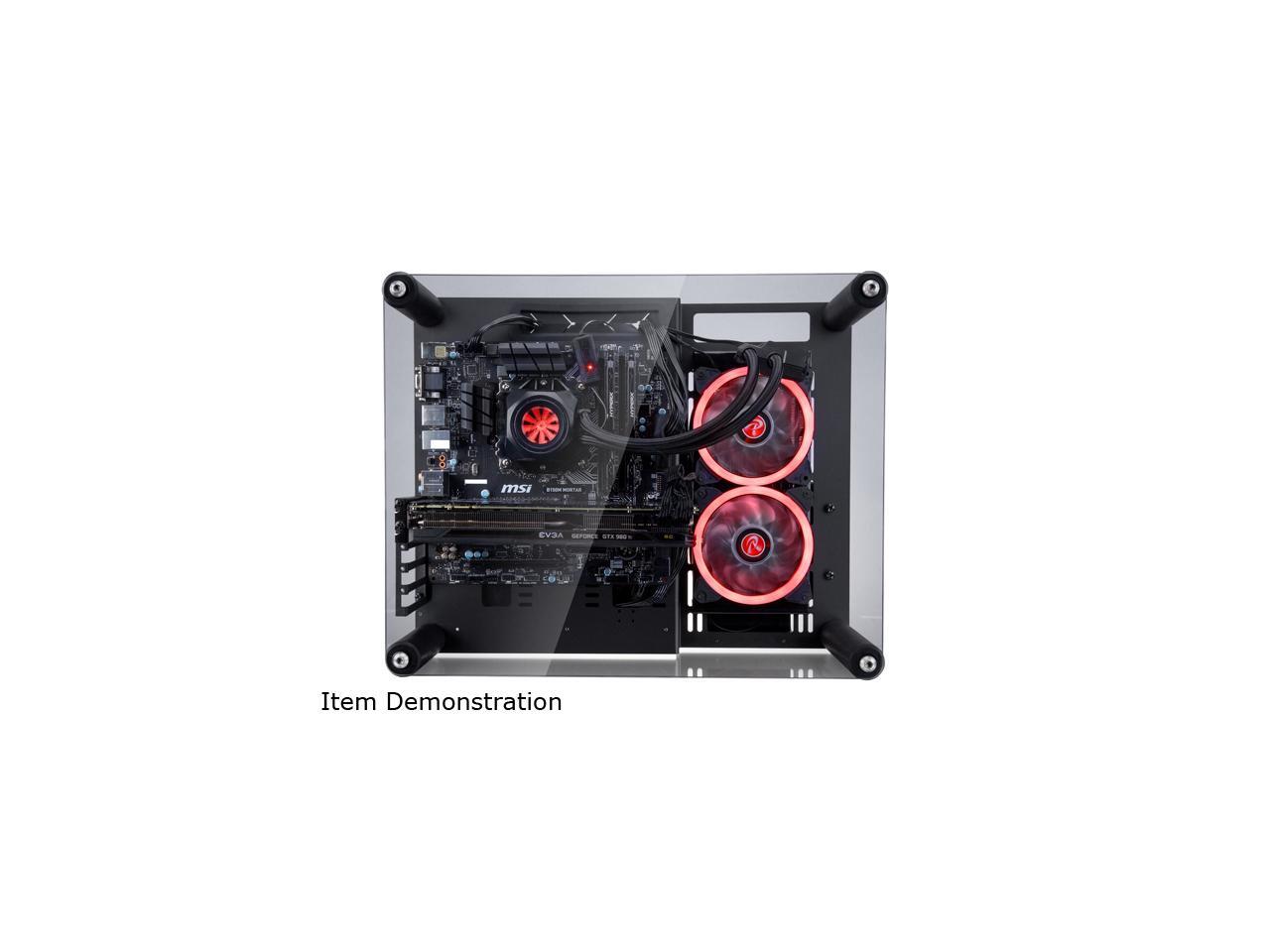

In the review video, you show a water loop, could you please tell me what company you used for the pump/res combo? Thanks!

The manufacturer of the Case, Raijintek also makes water cooling, so included their own equipment in the picutures.

Holiday Shipping Details & Extended Holiday Returns

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

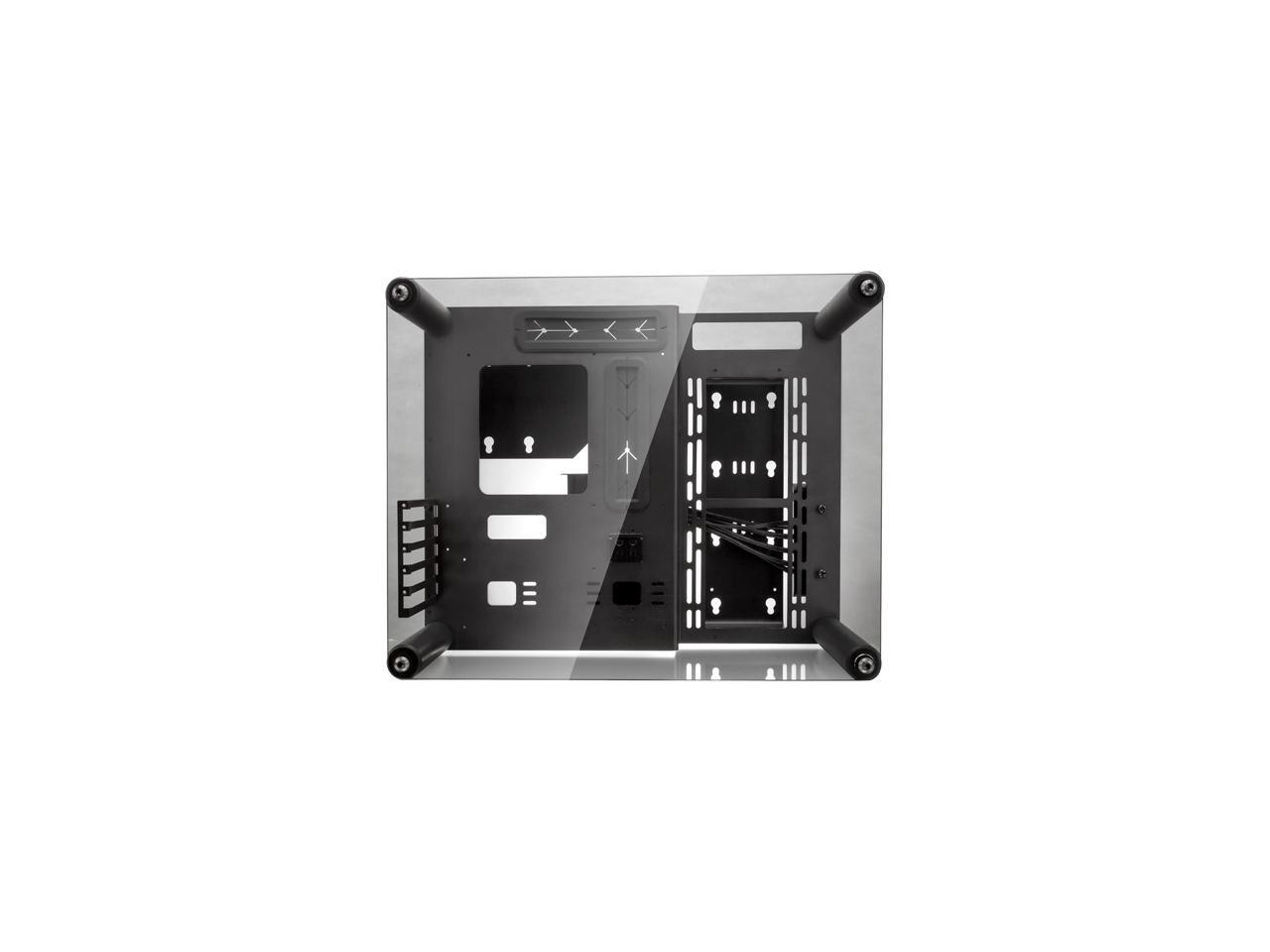

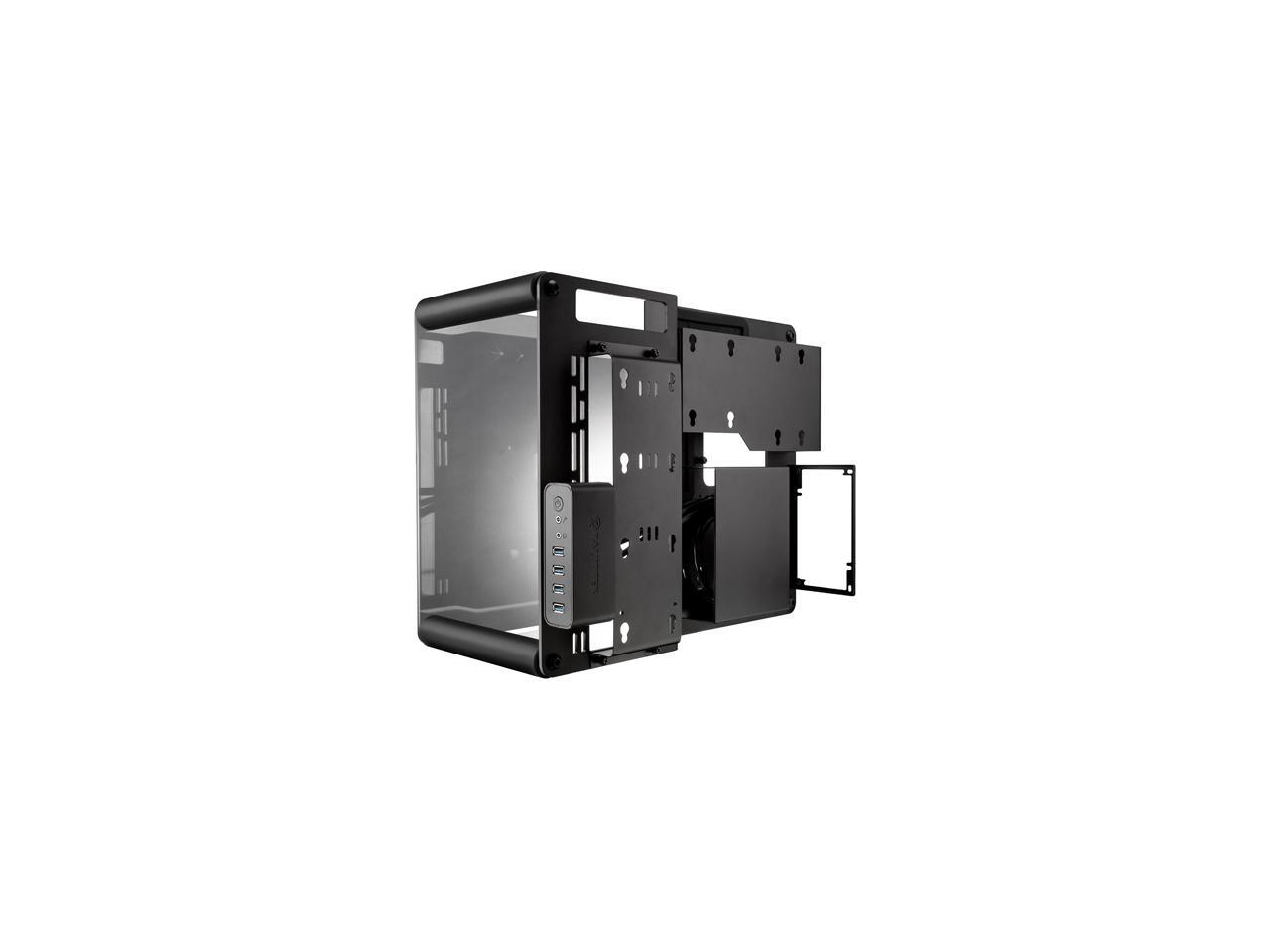

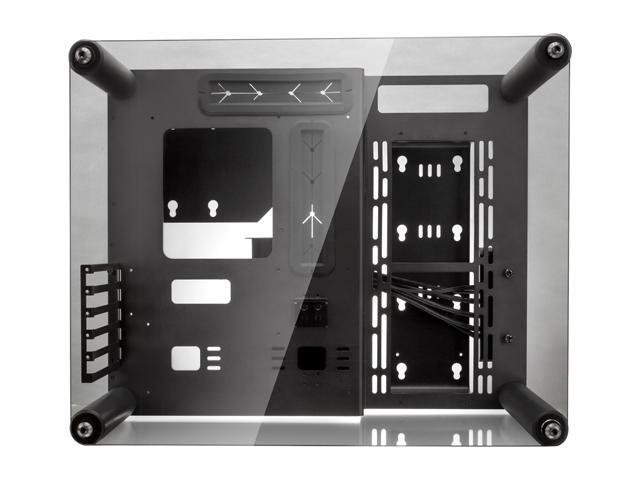

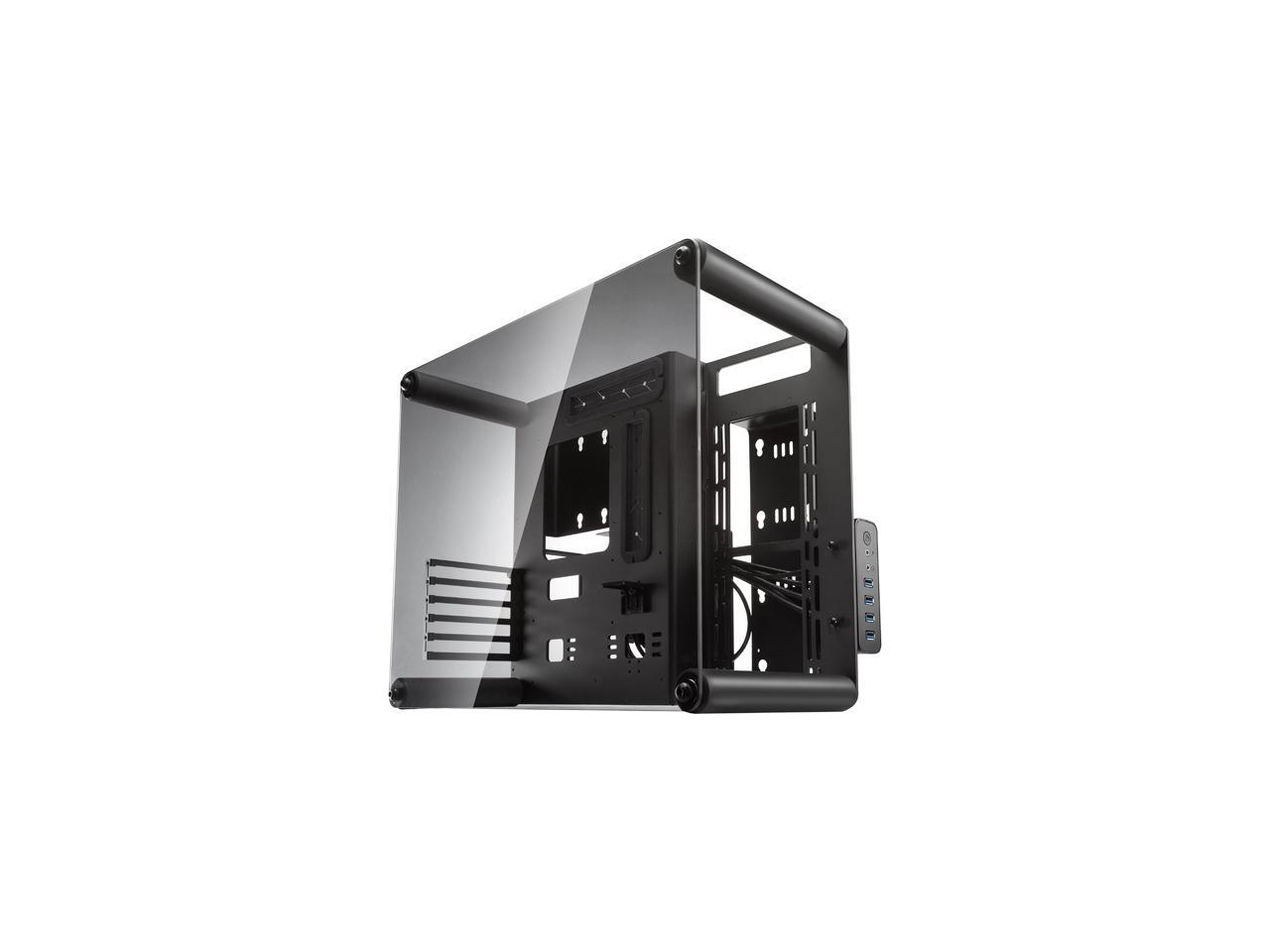

Main image of PAEAN M Open frame M-ATX Chassis

Alt view image 2 of 7 - PAEAN M Open frame M-ATX Chassis

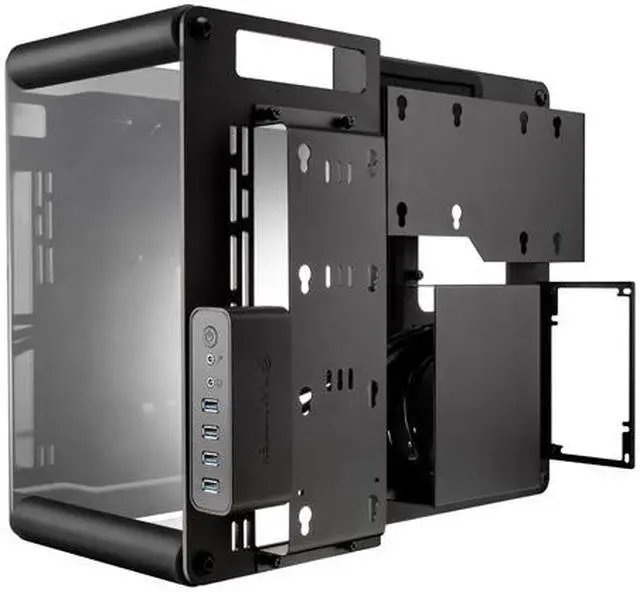

Alt view image 3 of 7 - PAEAN M Open frame M-ATX Chassis

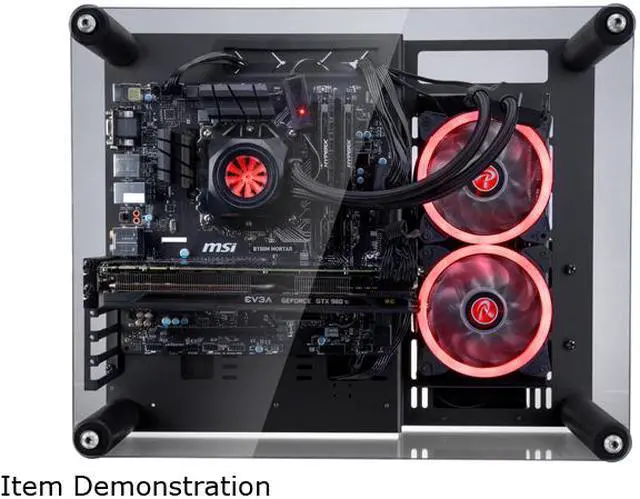

Alt view image 4 of 7 - PAEAN M Open frame M-ATX Chassis

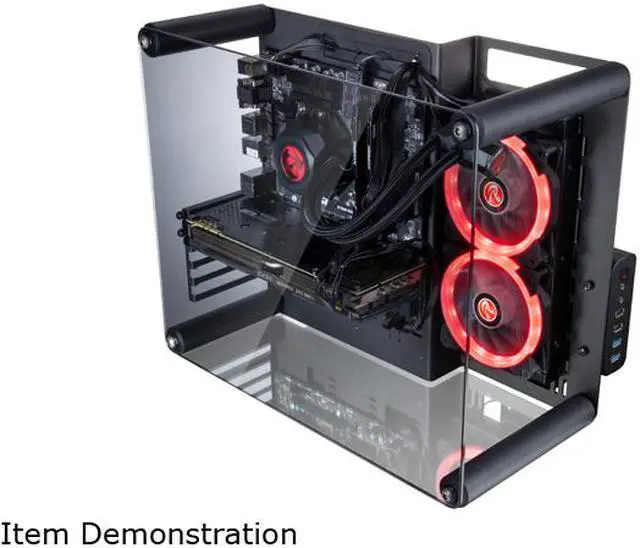

Alt view image 5 of 7 - PAEAN M Open frame M-ATX Chassis

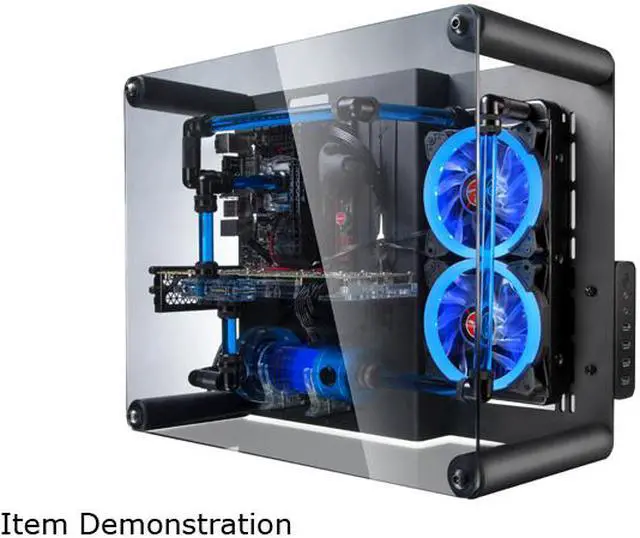

Alt view image 6 of 7 - PAEAN M Open frame M-ATX Chassis

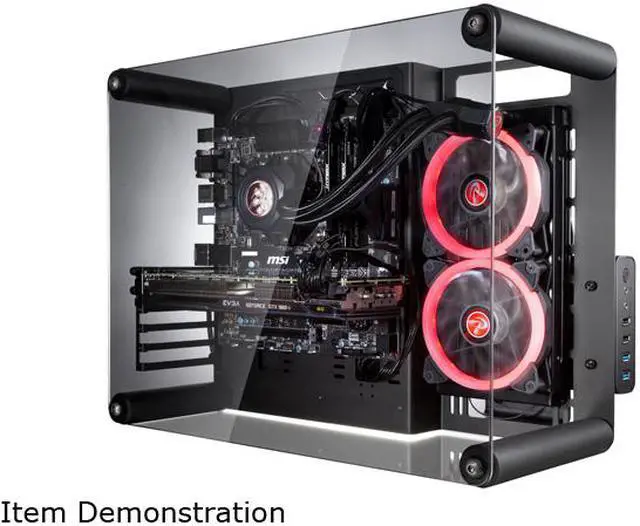

Alt view image 7 of 7 - PAEAN M Open frame M-ATX Chassis

Shop All RAIJINTEK CO., LTD Products

PAEAN M Open frame M-ATX Chassis

(18) Write a Review

An Open frame Micro ATX Chassis
3 mm Alu. Middle plate
4pcs Alu. cylinder with Rubber tube
4 mm tempered glass at front
Supports 240/280mm radiator, VGA length up to 430mm
Max PSU length up to 200mm

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (18)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

INTRODUCTION

PAEAN M, design art in its best by RAIJINTEK – an Open frame Micro ATX Chassis, main structure is including middle plate, made of 3.0mm Aluminum with black sand blasting, 4pcs Aluminum cylinder with Rubber tube, and 4.0mm tempered glass at front as well. PAEAN M provides surprising not only several functions, able to install Micro-ATX and Mini-ITX M/B, supporting 240/280mm radiator, 4pcs HDDs, 5PCI slots, and 2* USB3.0, but it is also with many features, tool-free for easy installation, max VGA length up to 430mm, max PSU length up to 200mm. PAEAN M satisfies not only your request of design and elegance, but also gives you freedom and the joy of installing device in a great case.

- Black and blasting anodized appearance design
- Entire Coating black internally design
- Compatible with ATX PSU
- Compatible with max. VGA length up to 430mm
- Supports max. 140mm height CPU coolers
- 2×USB3.0+ 2×USB2.0 ports
- Supports to install 1×3.5" HDD and 3×2.5" HDD
- Anti-vibration rubber for HDD installation
- Modern design with much options of Water cooling system
- Sturdy and reliable chassis body Chassis body: 3.0mm aluminum+1.0mm SGCC
- Accommodate an internal 240/280 mm radiator
- High quality 4.0mm tempered glass side panels
- Tool-free easy installation for all systems

Model
Brand	RAIJINTEK
Series	PAEAN M
Model	0R200068

Details
Type	Micro ATX
Color	Black
Case Material	Aluminum 3.0mm; SPCC 1.0mm
With Power Supply	No
Power Supply	compatible with ATX PSU, max PSU length up to 200mm
Power Supply Mounted	Bottom
PSU Main Connector	20+4Pin
Motherboard Compatibility	Micro ATX / Mini ITX
Side Panel	4mm Tempered Glass
LED	Non-LED

Expansion
Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	3
Expansion Slots	5

Front Panel Ports
Front Ports	2 x USB 2.0 / 2 x USB 3.0 / 1 x Audio

Dimensions & Weight
Max GPU Length	430 mm
Max CPU Cooler Height	140 mm
Max PSU Length	200 mm
Dimensions	14.04" x 9.95" x 17.36"
Weight	11.60 lbs.

Additional Info
Features	An Open frame Micro ATX Chassis, 3.0mm Aluminum middle plate, 4pcs Aluminum cylinder with Rubber tube, and 4.0mm tempered glass at front

Additional Information
First Listed on Newegg	December 28, 2020
