Streacom FC9B-ALPHA-OPT Fanless Chassis

Features

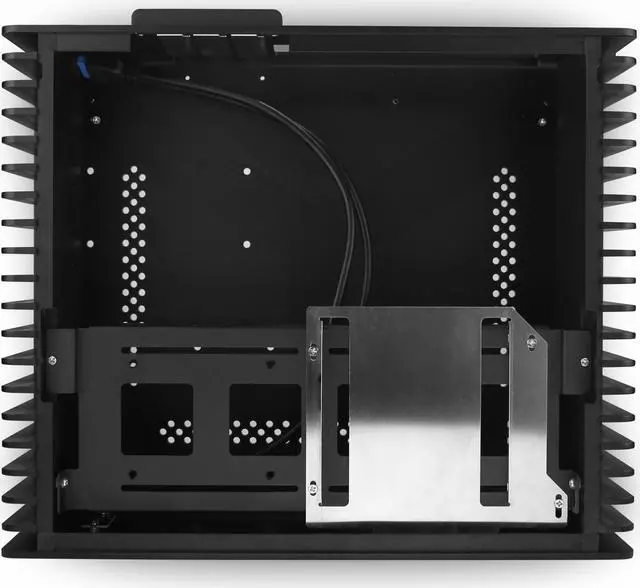

The FC9 Alpha takes all the great features of the original FC9 and improves upon then with small yet important changes. The drive tray has been re-design with variable drive positions, better airflow and now utilizes the new optical drive tray for easier installation and adjustment. The bottom panel has been updated with improved venting and more drive mounting locations, and USB ports have now been placed on both of the side panels for easier access and balance.

As with all Alpha cases, we have improved all tolerances, introduced a new refined sandblast finish, USB3.0 is native, the power LED is now a subtle pure white, the heatpipes and mounts have been uprated, and it is available with and without an optical drive opening. All these updates have been made whilst maintaining the original design ethos of crafting a work of art that beautifully combines form and function.

specifications

• Chassis Material: Premium Grade (6063) All Aluminium, 4mm Thick Extruded Panels
• Available Colors: Silver / Black – Sandblast Finish
• Motherboard Support: Mini-ITX and Micro-ATX
• Hard Drive Capacity: Minimum 1 x 3.5? + 2 x 2.5?, Maximum 3 x 3.5? + 3 x 2.5?*
• Optical Drive Capacity: 1 x Slim Slot Loading Drive (FC9 Optical Version Only)
• Expansion Slot: 3 x Low Profile Expansion Slots (Max Length 156mm)
• USB Ports: 2 x USB3.0, Left & Right Side, 19/20 PIN

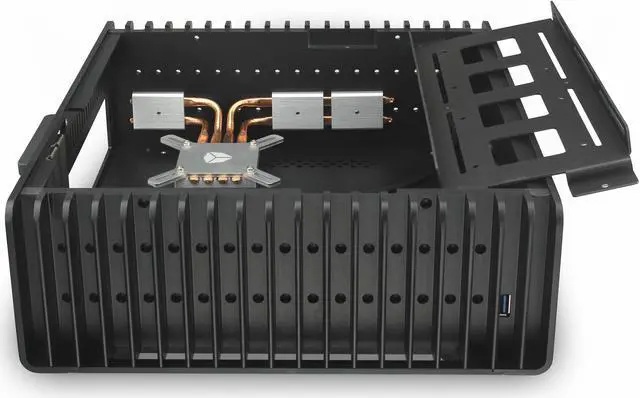

• Cooling: Heatpipe Direct Touch 4 Pipes – Recommended CPU TDP 65W, Max TDP 95W**
• Dimension: 348 x 289 x 100mm (W x D x H)
• Power Supply: ZF240 or Nano Series PSU (Not Included)
• Remote Control: FLirc or IRRC Solutions (not Included)
• Net Weight: 4.4KG

*Depending on hardware configuration, i.e. motherboard size

**As with any passive cooling solution, environmental conditions will have an impact on the performance. A TDP of 95W is only recommended when the chassis is placed in a location with adequate air flow and moderate ambient room temperature
