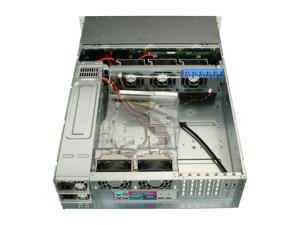

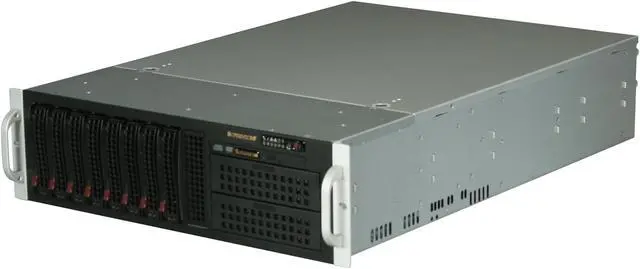

SUPERMICRO CSE-835TQ-R920B Black 3U Rackmount Server Case
- 920W Redundant
- 2 x External 5.25" Drive Bays
- 8 x 3.5" SAS / SATA Hot-Swap Drive Bays
- 5 x 80mm Fans
Overview
Specs
Reviews (2)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SUPERMICRO CSE-835TQ-R920B Rackmount Server Case
Features
- Versatile Storage Chassis with High Efficiency Power

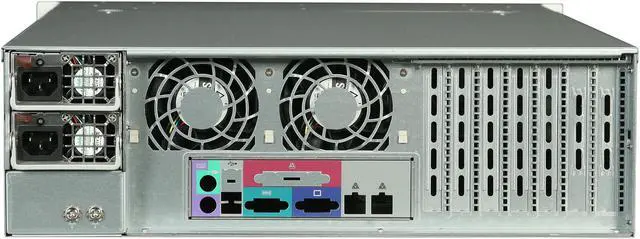

- 920W Redundant High-efficiency Platinum Level (94%+) Power Supply

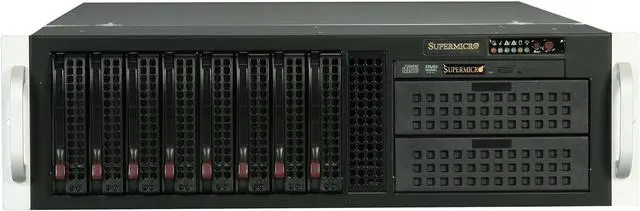

- 8x 3.5" Hot-swap SAS / SATA & 2x 5.25" Drive Bays
- 1x Slim DVD-ROM Drive
- 7x Full-height, Full-length Expansion Slots
- 100% Cooling Redundancy

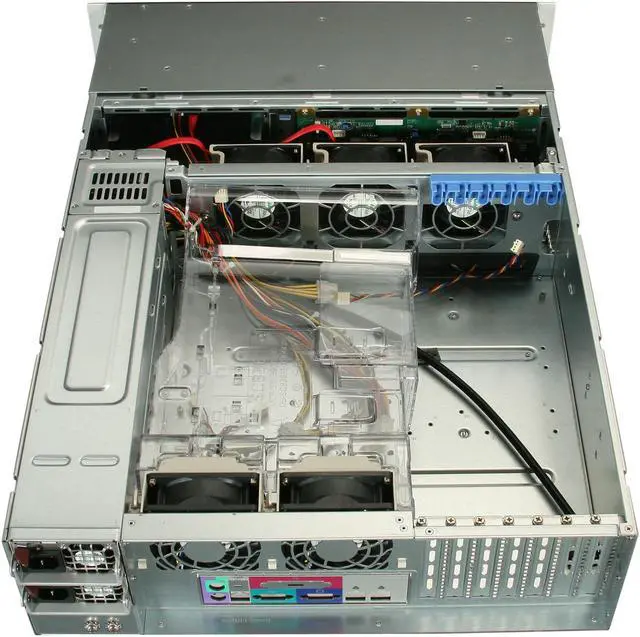

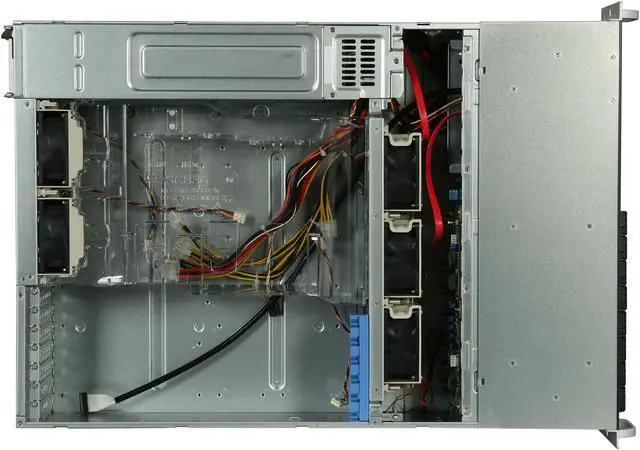

- Adjustable Air Shroud
- Please Note: Full SES2 Support is only available on SAS motherboards
Specifications
| Product SKUs | |
| CSE-835TQ-R920B | SuperChassis 835TQ-R920B (Black) |
| Form Factor | |
| Form Factor | 3U chassis support for max. motherboard size - 13.68" x 13" |
| Processor Support | |
| Processor Support | Supports dual, single Intel® / AMD processors |
| Dimensions | |
| Height | 5.2" (132mm) |
| Width | 17.2" (437mm) |
| Depth | 25.5" (648mm) |
| Gross Weight | 75 lb (34.02 kg) |
| Available Colors | Black |
| Expansion Slots | |
| Expansion Slots | 7x full-height full-length expansion slots |
| Drive Bays | |
| Hot-swap | 8x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended |
| SAS / SATA Backplane | |
| SAS / SATA Backplane | 1x 2U SAS / SATA Backplane with Enclosure Management |
| Peripheral Drives | |
| DVD-ROM | Slim DVD-ROM Drive |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| System Cooling | |
| Fans |
|
| System Monitoring | |
| System Monitoring | Chassis intrusion switch |
| Operating Environment (System) | |
| Operating Temperature Range | 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply | |
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| AC Voltage | 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output |
|
| With Power Distributor |
|
| Certification | 80 Plus Platinum Certified |
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|

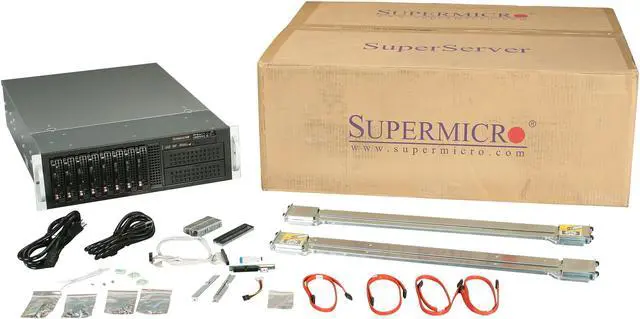

What's in the Box
CSE-835TQ-R920B Super Chassis; 920W Redundant High-efficiency; 80PLUS Platinum Level (94%+) Power Supply; 8x 3.5" Hot-swap SAS / SATA & 2x 5.25" Drive Bays; 1x Slim DVD-ROM Drive (optional); 7x Full-height, Full-length Expansion Slots; 100% Cooling Redundancy; Adjustable Air Shroud
