Thermaltake Core V71 full-tower chassis with power cover design, retaining the curved metal mesh look and delivering an outstanding cooling performance with the compatibility for the extensive DIY/AIO LCS. Core V71 Power Cover Edition is an enthusiast’s grade full-tower chassis that creates unprecedented space for high-end hardware and liquid cooling expansion, supporting the latest E-ATX, ATX, Micro ATX motherboards, and all high-end GPU cards.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

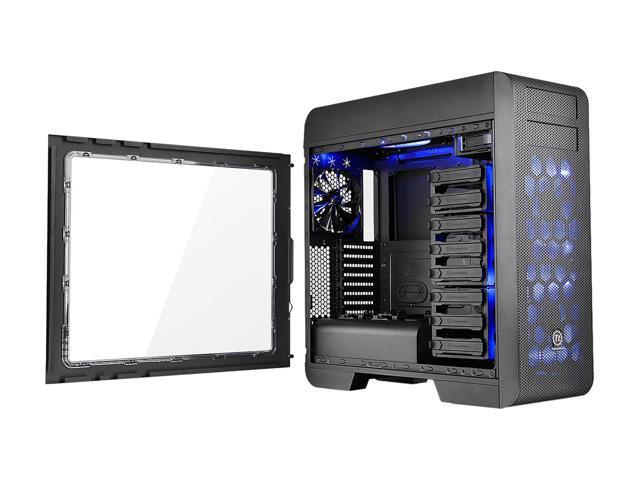

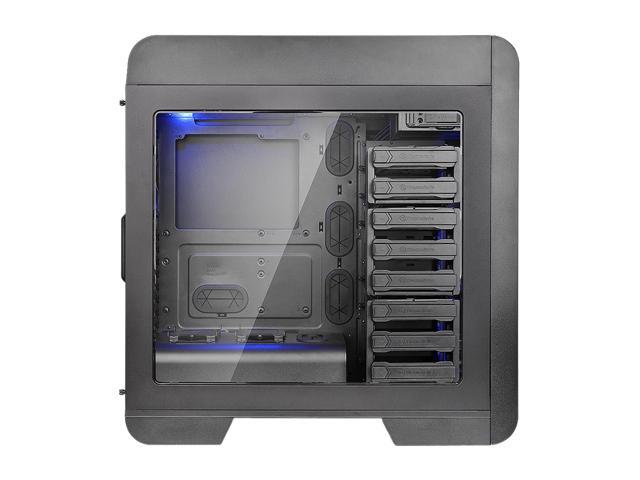

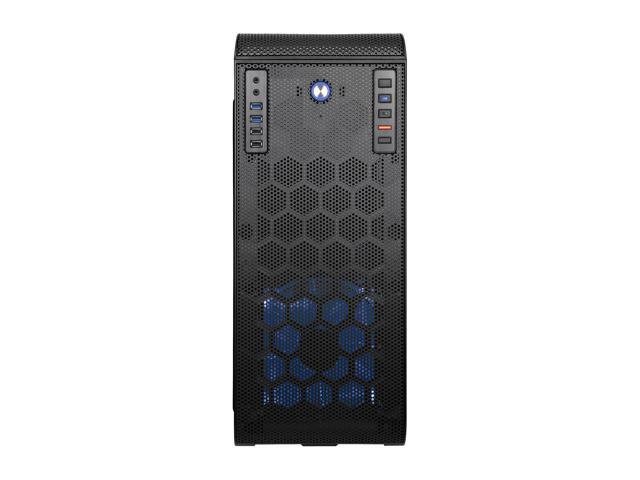

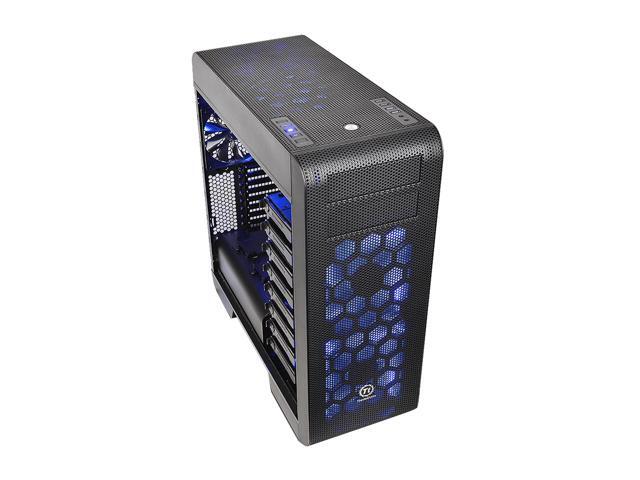

Designed for gamers, the perforated top panel allows easy heat dissipation and rapid air intake for maximum ventilation. The heightened case-stands at the bottom help to enhance airflow and overall stability during operation. Featuring a transparent side window to offer a direct view of the inner system.

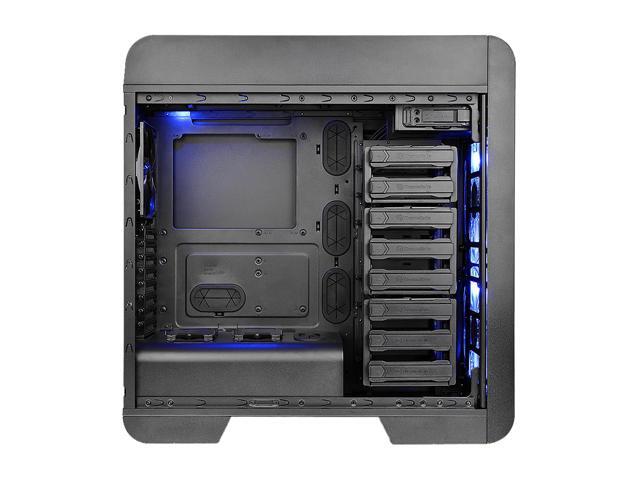

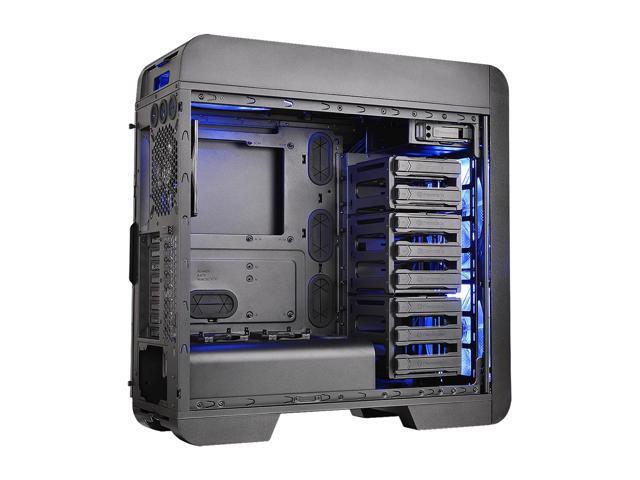

Power cover design is one of the Core V71 Power Cover Edition unique features. The entire bottom area can be used to reorganize unused cables, which makes for a tidy-looking system. Furthermore, the PSU cover can hold two additional 2.5” HDD drive bays.

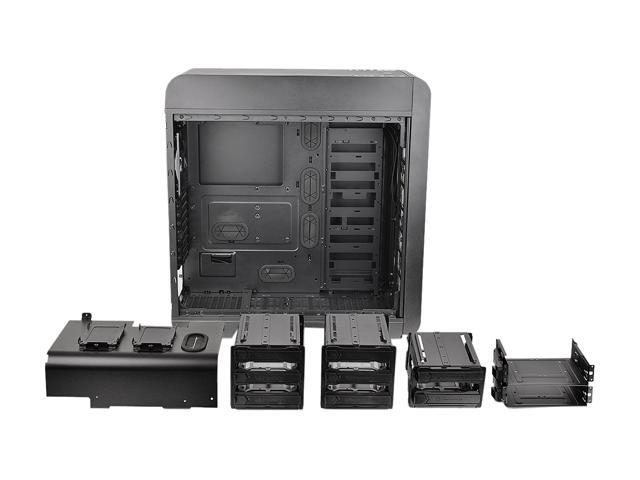

A highly customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their needs and remove the 5.25” & 3.5” drive bays to gain maximum interior space for advance cooling performance or liquid system build.

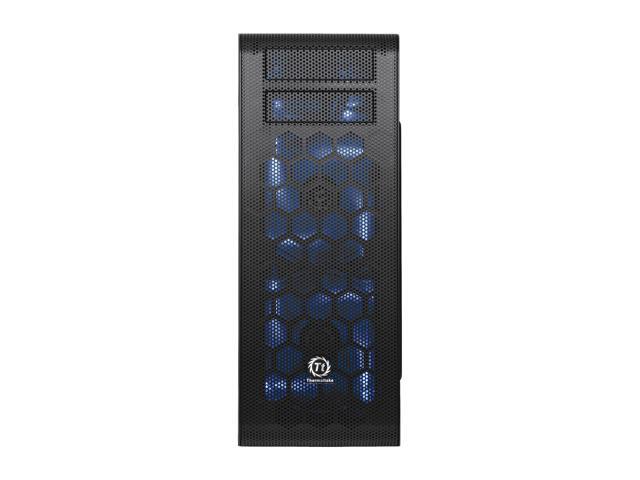

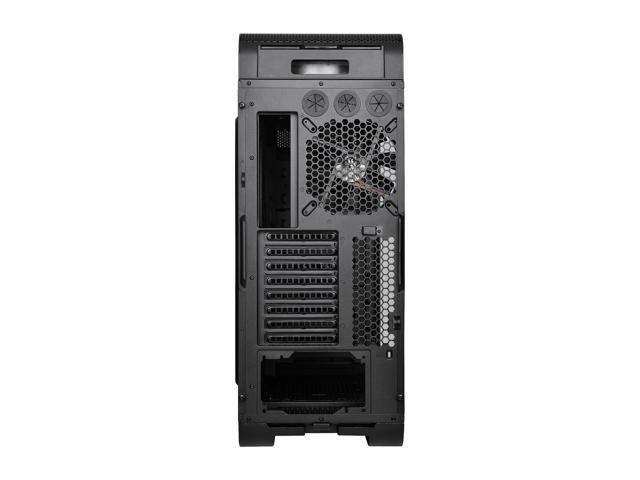

Core V71 Power Cover Edition delivers an outstanding cooling performance, consisting of DIY/AIO liquid cooling systems and air cooling units. Two large 200mm intake fans are hidden behind the front dust filter and the third one is at the top, quietly pushing vast amounts of air over the hard drives and GPUs. The air is then extracted by the fourth 140mm fan at the rear. Additionally, with the aid of the cable management design guaranteed to take the cooling performance to the next level.
Core V71 Power Cover Edition enables users to build a complete high-end system, whilst supporting up to either 420mm radiator liquid cooling, or 200mm case fans, with a long graphic card at the same time, and simultaneously protecting the user’s hardware as well as increasing the CPU’s overclocking potential. Most importantly, it has the capability to deliver an outstanding cooling efficiency throughout the entire case.
Model | Core V71 Power Cover Edition |
---|---|
P/N | CA-1B6-00F1WN-03 |
Case Type | Full Tower |
Dimension (H x W x D) | 583 x 230 x 560 mm (23 x 9.1 x 22 inch) |
Net Weight | 12.9 kg / 28.4 lb |
Color | Exterior & Interior : Black |
Material | SPCC |
Side Panel | Transparent Window |
Cooling System | Front (intake) : 200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) x 2 Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) Top (exhaust) : 200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) |
Drive Bays | -Accessible:2 x 5.25’’ -Hidden:8 x 3.5’’ or 2.5’’ (HDD Cage) 2 x 2.5’’ (With Power Cover) |
Expansion Slots | 8 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
I/O Port | USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1, Fan Speed Control, Fan LED On/Off |
PSU | Standard PS2 PSU (optional) |
Fan Support | Front: 3 x 120mm , 2 x 140mm , 2 x 200mm Top: 3 x 120mm , 2 x 140mm , 2 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 2 x 120mm |
Radiator Support | Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm Bottom: 1 x 240mm |
Clearance | CPU cooler height limitation: 185mm VGA length limitation: 310mm(with HDD rack) 480mm(without HDD rack) PSU length limitation: 220mm (With Bottom Fan) |
Pros: Spacious Easy to work in Ideal for water cooling Comes with 3x200mm fans and 1x140mm Dust filters
Cons: Nothing major. Fan controller did not work with my Aerocool fans.
Overall Review: I finally found a case to replace my Switch 810. I run a heavily overclocked 4790K along with a pair of GTX 970's all watercooled and usually have a pair of 240mm rads and a 140mm rad set up in my Switch. I now have a 240mm rad in the top of this case and a 360mm rad at the front of this case (30mm thick) and believe it or not there is enough space for the rad so that I do not have to remove the HDD caddies or the CD/DVD caddy at the top of the case. There is a massive amount of room behind the motherboard tray for cables. This is one of my neatest builds. I replaced all of the fans with Aerocool 120mm fans (except the rear which was Aerocool 140mm) for my rads and airflow is just as good, if not better than the Switch which has an extra 2 x 140mm fans. Excellent value, great looking build. Much recommended.
