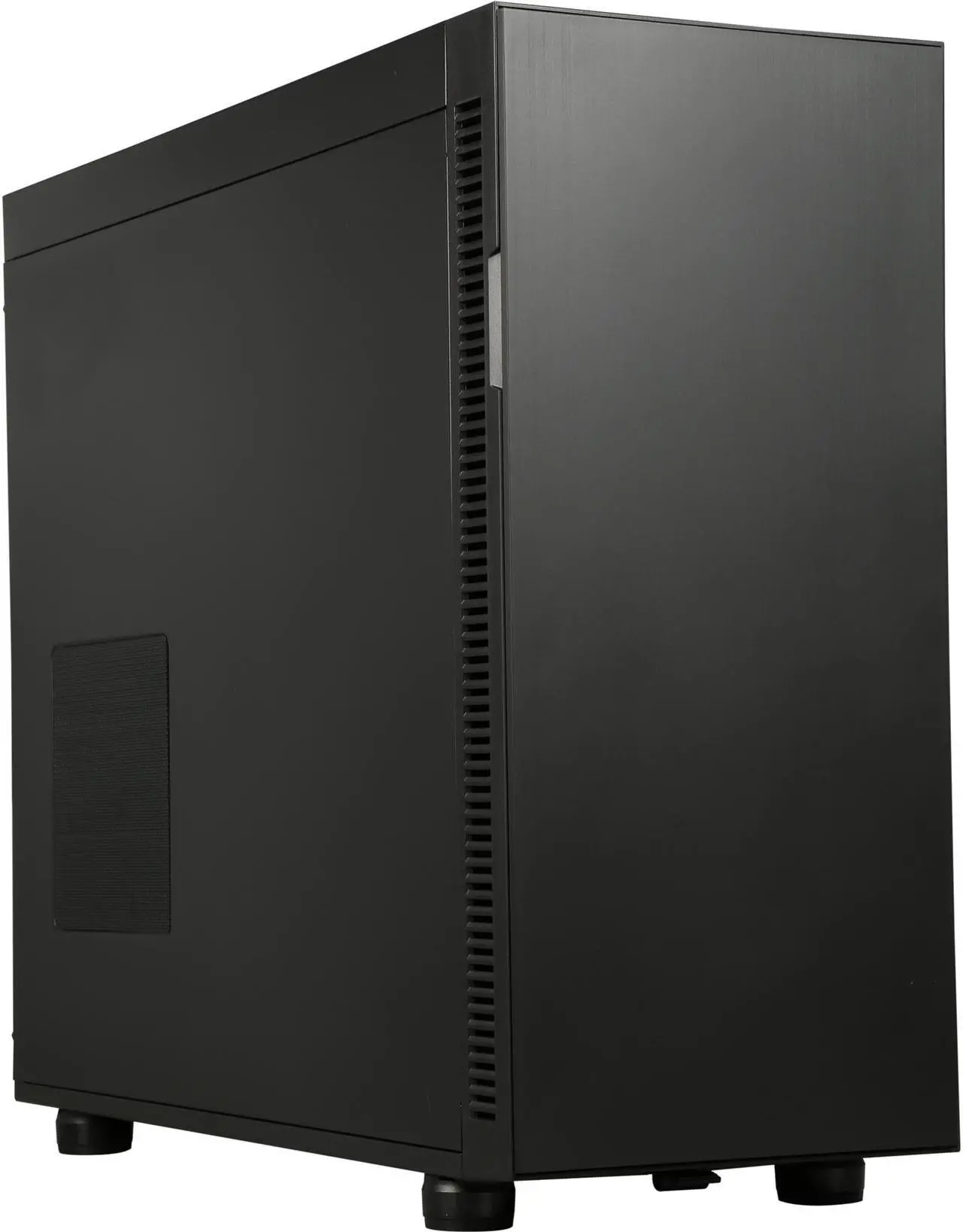

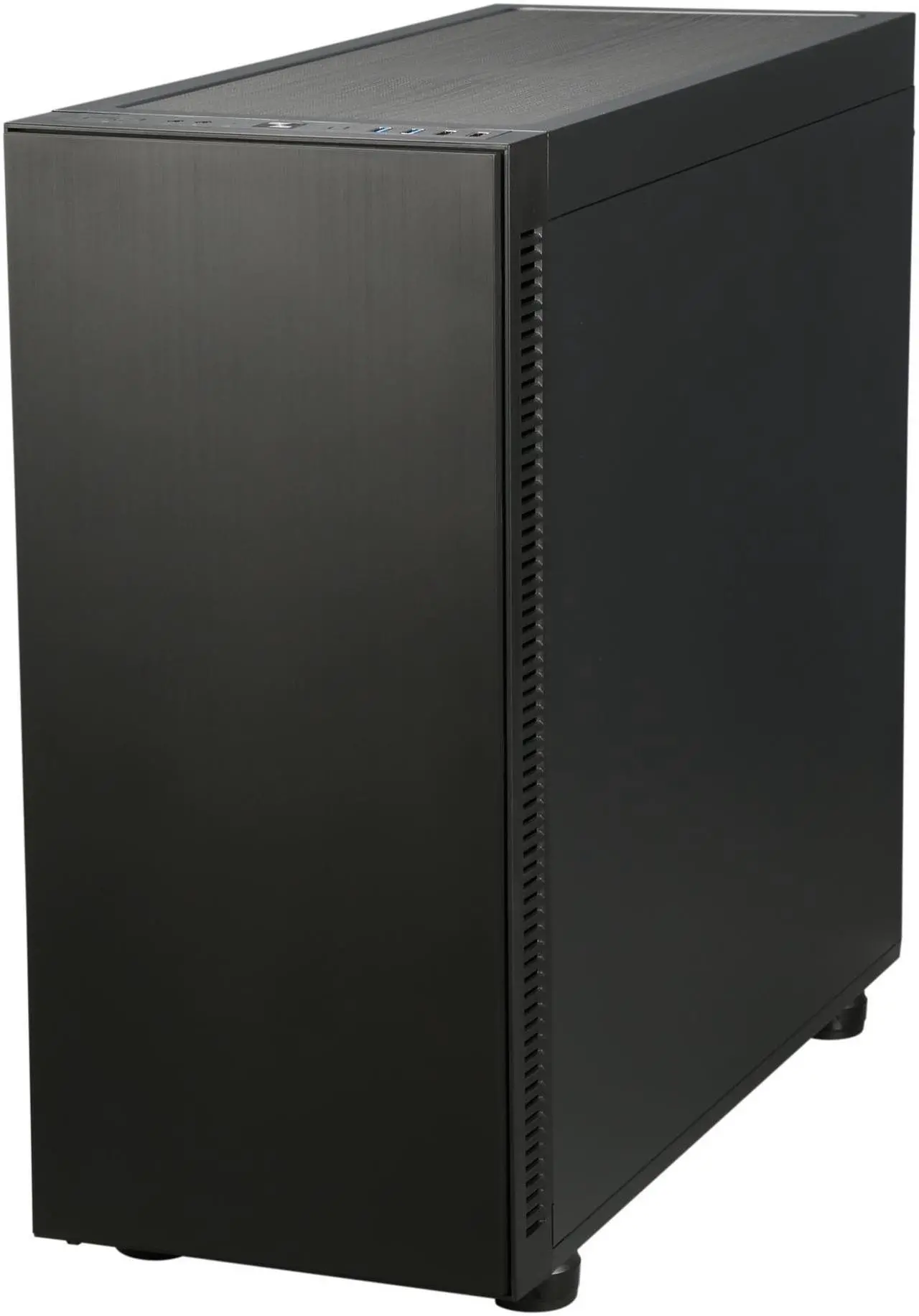

Thermaltake Suppressor F51 E-ATX Mid Tower Tt LCS Certified Gaming Silent Computer Case CA-1E1-00M1NN-00
- SPCC E-ATX Mid Tower
- 2 x USB 3.0 / 2 x USB 2.0 / 1x Headphone / 1x Mic Ports Front Ports
- Side Air duct
- 2 External 5.25" Drive Bays
- 6x 2.5"/3.5" w/ hidden drive mounts Internal 3.5" Drive Bays
Overview
Specs
Reviews (18)
MAIN OVERVIEW FEATURES:
- Motherboard Supported: Mini ITX,EATX,Micro ATX,ATX
- Number of Fans Supported: 10
- Number of Fans Installed: 2
- Installed Fan Size: 7.87",5.51"
- Number of External 5.25" Bays: 2
- Number of Internal 3.5" Bays: 6
- Number of Total Expansion Bays: 8
- Number of Total Expansion Slots: 8
- Total Number of USB Ports: 4
- Total Number of Audio In Ports: 1
- Total Number of Audio Out Ports: 1
- Power Supply Installed: No
- Number of Power Supplies Supported: 1
- Number of Power Supplies Installed: 0
- Color: Black
- Material: SPCC
- Form Factor: Mid-tower
- Height: 20.7"
- Width: 9.1"
- Depth: 22.7"
- Weight (Approximate): 28 lb
- Limited Warranty: 3 Year
Thermaltake's F51 E-ATX Mid-Tower Chassis
The Suppressor F51 mid-tower chassis is the latest series to the Thermaltake case line. Featuring leading-edge sound reduction panels on all sides, expand your cooling options with removable panels for the perfect balance in silent operation and cooling performance. Supporting a range of motherboard platforms from Mini ITX to E-ATX solutions, unrivaled liquid cooling expansion and expandability for all high-end GPU solutions users can expect an enthusiast built design they can trust.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Tool-Free Installation

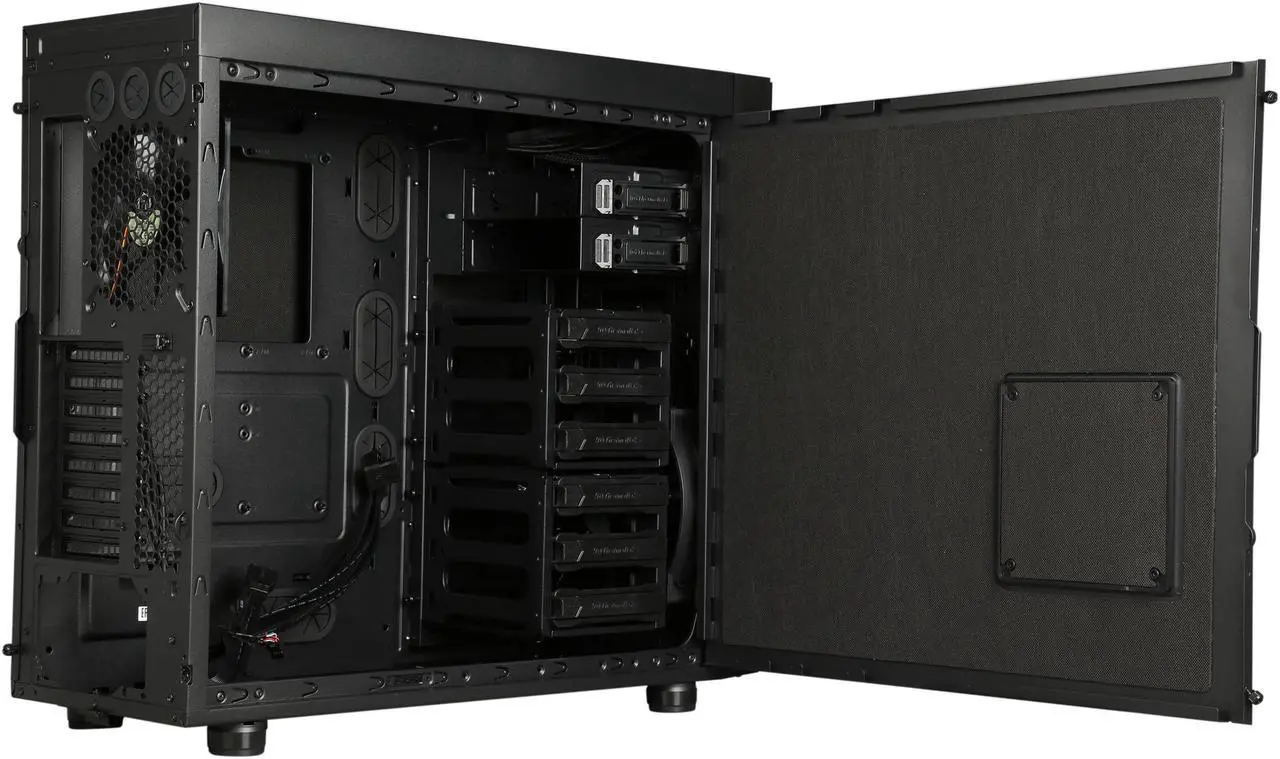

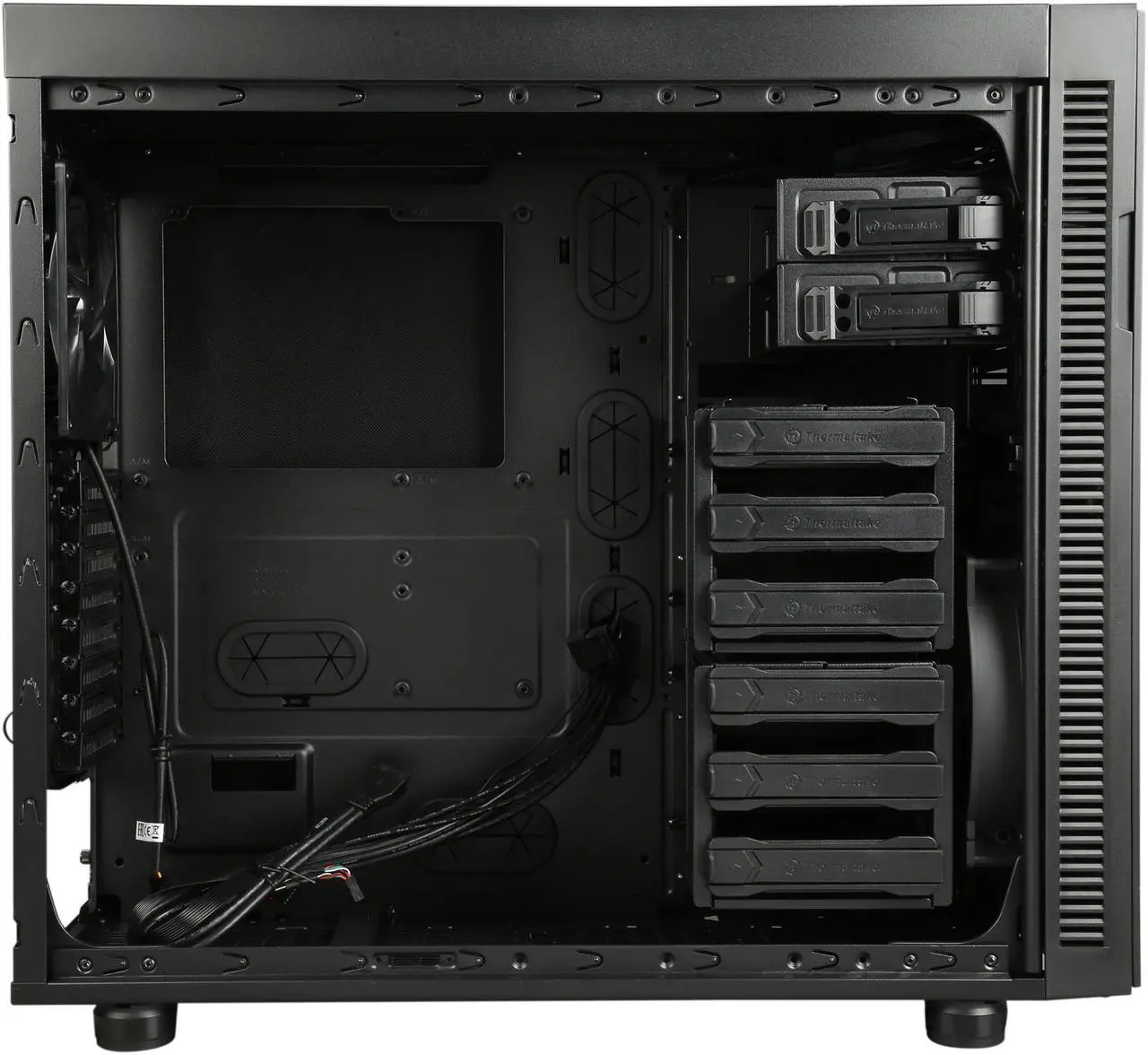

Innovative 5.25” and 3.5” tool-free drive bay design minimizes installation/removal with hidden drive bays on the back panel to provide a clean look and improved expansion for liquid cooling components. The “2 + 6” drive bay with modular drive racks allows multiple SSD/HDD devices for improved storage capacity.
Fully Modular Design

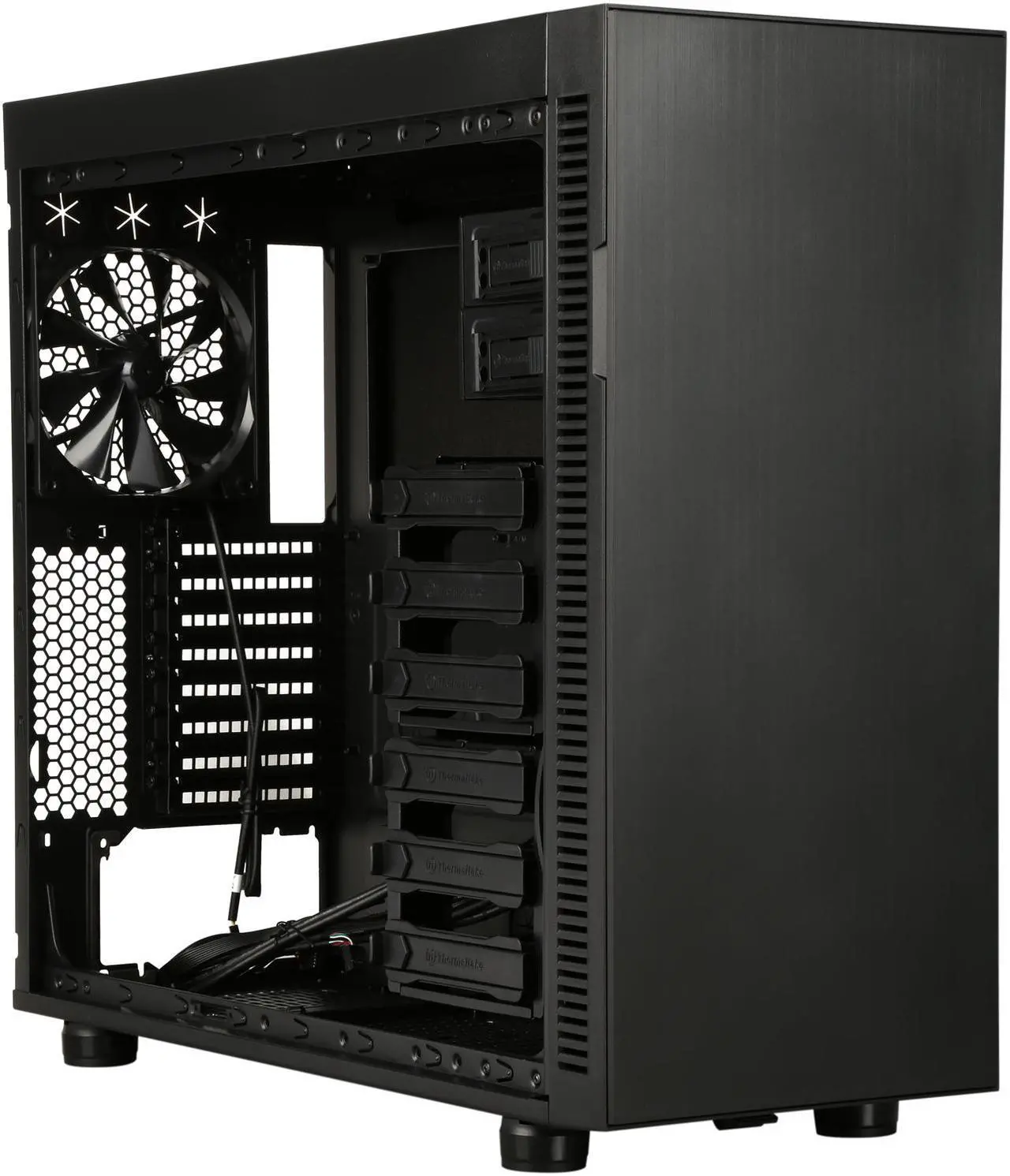

With removable “2 + 6” drive racks, gain more for custom cooling components to freely interchange SSD/HDD cage sections for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.
Dust Reduction
Super fine fan filters with excellent protection and reduction against dirt and dust on the top, inside the front panel, and at the bottom. Magnetic fan filter on the top simply attach the filter for dust filtration.
Handy I/O Ports with Fan Speed Control

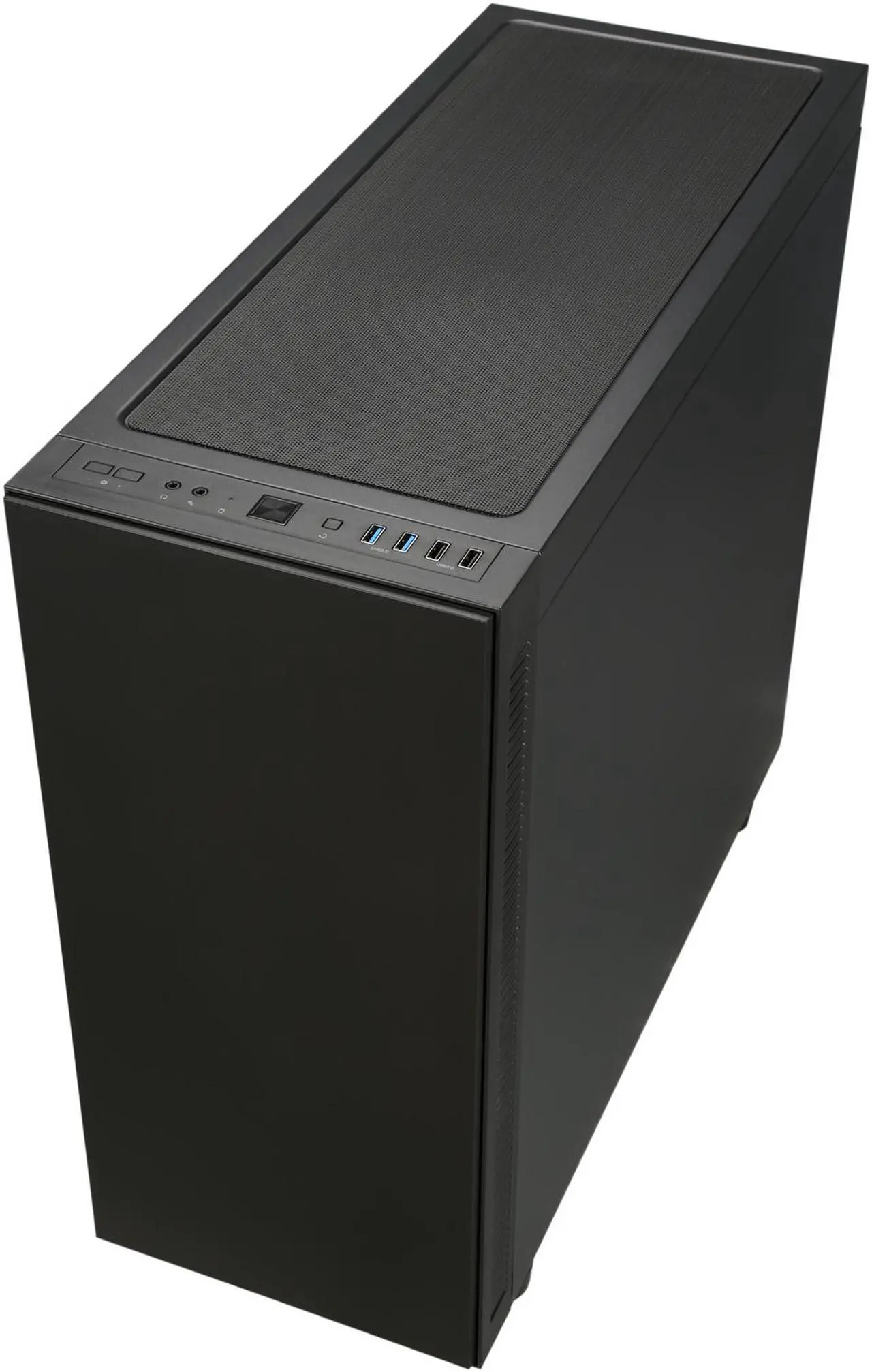

Design with convenience and cleanness in mind, Suppressor F51 has built in fan speed control that supports up to four fans at the same time on the top-front panel together with dual USB 3.0 and 2.0, a HD audio connector, power, and reset button, grants a direct and easy access for external devices.
Modular Sound-damping Design

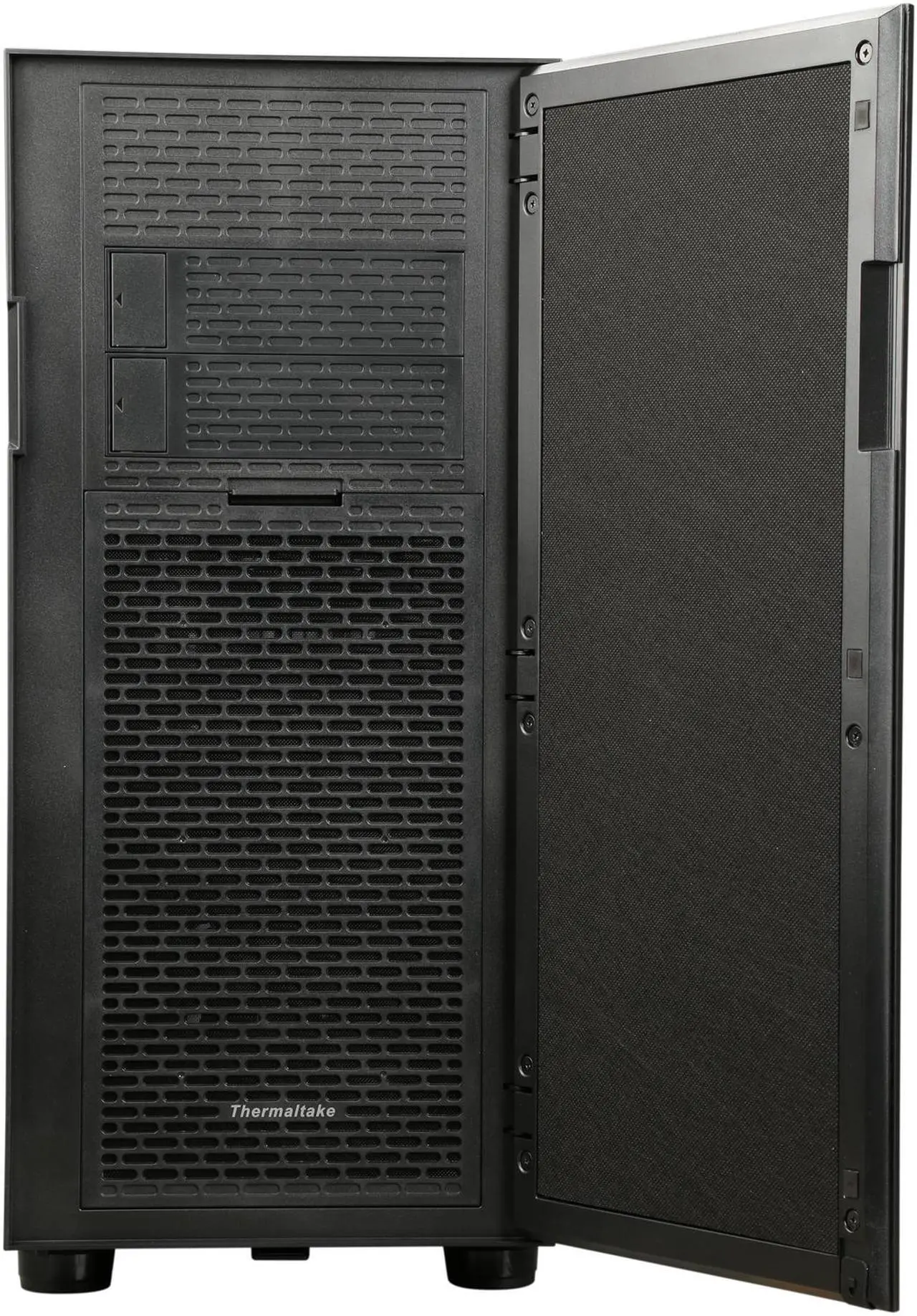

Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F51 chassis to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.

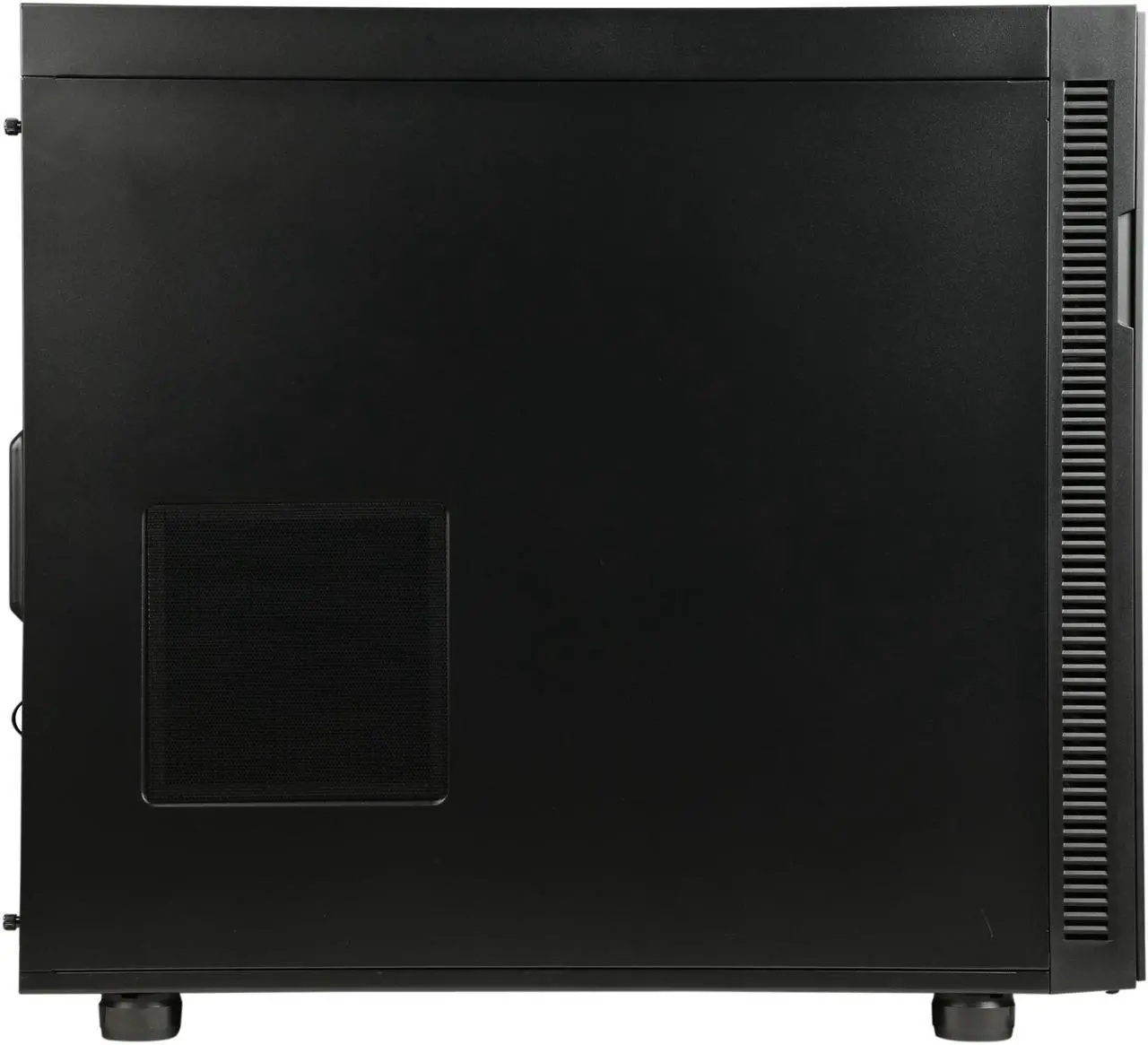

* Removable fan filter on the left panel.
Optimized Silent Operation
For acoustic test, Suppressor F51 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect. Preinstalled sound-damping foams of Suppressor F51 reduce noise and acoustic levels within the entire chassis for extreme silent purpose. Suppressor F51 Acoustic Test Result:
Optimized Cooling Performance
Thermal imaging camera was applied for the temperature test of the chassis. After the removal of all sound-damping covers from the top panel, Suppressor F51 dissipates heat more efficiently. The temperature decreases 2.6°C/36.38°F without any sound damping covers.
*Use thermal chamber (Ambient temp. of thermal chamber is 25°C/77.0°F) for heat testing, hardware includes:
CPU - IntelR CoreR i7-5960X,
M/B - ASUS RAMPAGE V EXTREME (IntelR X99),
Memory - Kingston DDR4-3000 8G,
HDD - Plextor M5S 128G ,
VGA - NVIDIA GTX780,
PSU – Toughpower DPS G 650W
Outstanding Ventilation
The Suppressor F51 delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, air intake is maximized with a single 200mm front fan built-in and includes options for up to (3) 120mm or 140mm front fans with the provided ODD bridge (optional) combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.
High-End Complete Solution
The Thermaltake Suppressor F51 Window enables users to build a complete high-end system that supports up to triple 120/140mm liquid cooling radiators or up to 200mm case fans. With extended graphic card support (up to 465mm), the Suppressor F51 simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Most importantly, the Suppressor F51 delivers outstanding cooling efficiency, reduced exterior noise and dust signatures for ideal silent operation.
F51 Radiator Supporting List
| Radiator Compatibility List | ||||||||
| 120mm | 140mm | 180mm | 240mm | 280mm | 360mm | 360mm (180mm based) | 420mm | |
| Front | * | * | * | * | * | * | * | * |
| Top | * | * | * | * | * | * | * | * |
| Rear | * | * | ||||||
| Bottom | * | * | ||||||
| Water 3.0 Compatibility List | ||||
| Ultimate | Extreme/ Extreme S |
Pro | Performer/ Performer C |
|
| Front | ||||
| Top | * | * | * | * |
| Rear | * | * | ||
| Bottom | ||||
F51 Fan Supporting List
| Fan Compatibility List | |||
| 120mm | 140mm | 200mm | |
| Front | 3 | 2 | 1 |
| Top | 3 | 3 | 2 |
| Rear | 1 | 1 | - |
| Bottom | 2 | - | - |
| Side (L/R) | - | - | - |
| Thermaltake Compatible Fan | |||
| 120mm | 140mm | 200mm | |
| Pure Fan Series | * | * | * |
| Luna Fan Series | * | * | * |
| Odin Fan Series | * | ||
