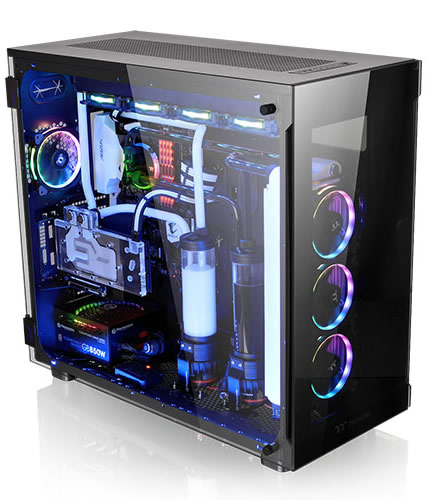

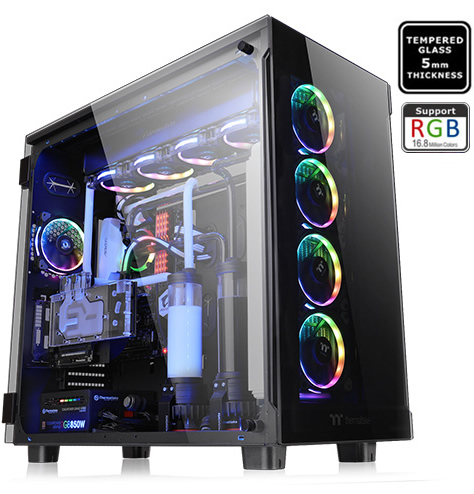

Thermaltake View 91 Tempered Glass RGB Edition Super Tower Chassis
Thermaltake adds the new Thermaltake View 91 Tempered Glass RGB Edition Super Tower Chassis to its TT Premium lineup. It’s a 16.8 million-color RGB-imbued XL-ATX tower featuring three 5mm thick tempered glass panels (front and both sides) and 4 preinstalled Riing Plus 14 RGB fans (three at the front and one at the rear). Comes with a USB type-C receptacle on the front panel plus dual liquid cooling capabilities to offer extraordinary LCS flexibility.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

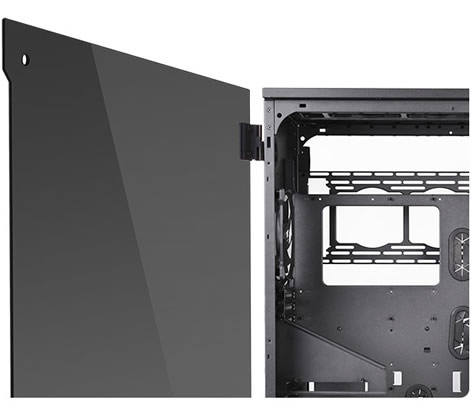

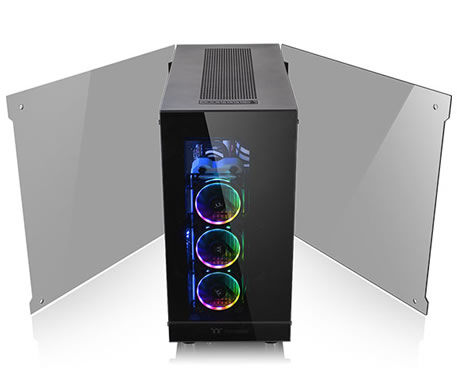

Three 5mm Thick Tempered Glass Panels with Swing Door Design
Three-panel 5mm thick tempered glass (front and both sides) gives the case a sleek look and guarantees the durability of the window while ensuring the ultimate internal component visibility. Both sides are hinged and swing-open for easy and full access to your build.
*The image is for reference only; four Riing Plus 14 RGB fans are included.
4 Built-in 140mm Riing PLUS LED RGB Fans
Preinstalled with 4 Riing PLUS 14 LED RGB fans (three front fans and one rear fan) to deliver a better RGB experience and improve thermal efficiency. Offering high-static pressure, patented 16.8 million colors LED ring, 12 single controllable LEDs, compression blades and hydraulic bearing, each fan is digitally PWM controlled through the patented Riing Plus RGB Software (Taiwan Patent: 105216989). The software also allows for fan performance monitoring, fan speed adjustment and lighting effects control.

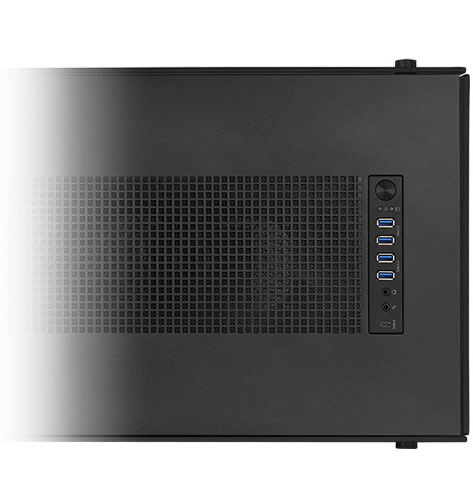

USB type-C Port
The front mounted USB 3.1 Type-C port allows for extra data transfer speed up to 10Gbps and power delivery potential, from video/audio to fast disks /quick-charging batteries. With USB 3.1 Type-C the USB cable is reversible, so there is no more “up” or “down” fumbling around, and users can plug it in either way.

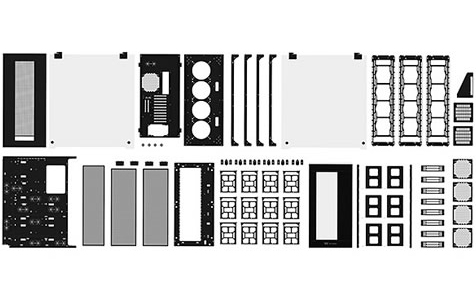

Make the Move to Modular Design
Freely build your system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.

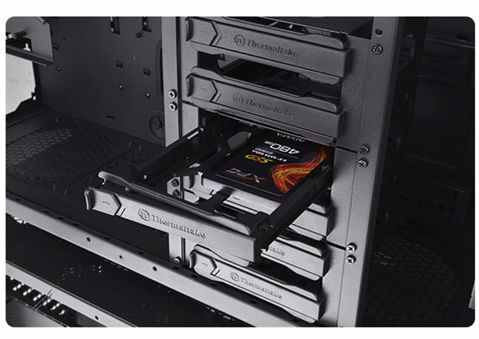

3.5” or 2.5” HDD Drive Compatible.

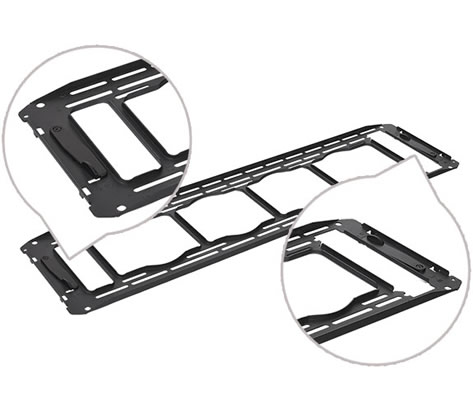

Quick-Release Fan Mount Bracket
The fan mount brackets feature a quick-release bar on each side for instant removal and reattachment of the fan with minimal movement, supporting up to three 200mm fans.

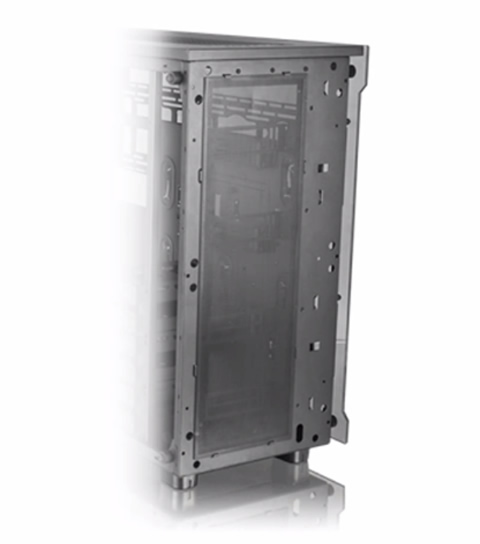

Magnetic Dust Filter
To smooth out your gaming experience and extend the life of your component, there are removable magnetic dust filters on the top, front and bottom sides to ensure clean air intake and efficient heat dissipation.

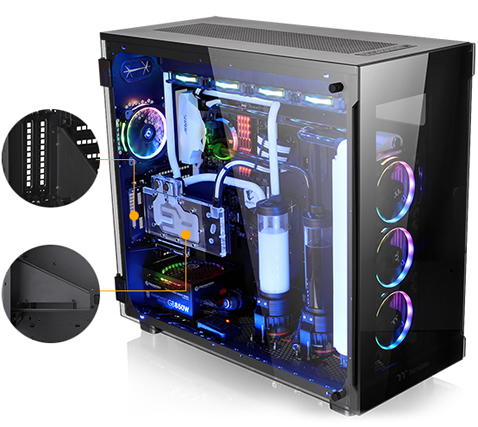

Riser GPU Support Bracket
Specially designed for dual GPU placement options, the View 91 TG RGB Edition has the support for vertical graphic card layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic card from sagging, but also helps to reduce the weight on the motherboard PCI-E slots.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.

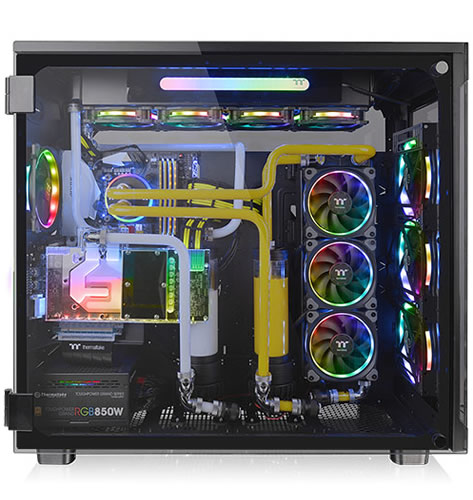

Vertical Radiator View (VRV)
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 480mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.
*Note: Cable management compatibility may vary based on motherboard size and design.
Superior Hardware Support
Enables users to build a complete high-end system that supports up to standard XL-ATX motherboards, CPU coolers up to 200mm in height, VGA lengths up to 600mm without HDD rack, and PSU sizes up to 220mm in length even with two 140mm bottom fans. With the included combo 3.5”/2.5” tool-free drive bays, the hassles of installation/removal are minimized, further, the 3.5” and 2.5” storage drives are freely interchanged, secured and stored with ease.
Outstanding Ventilation
Excellent airflow capabilities are permitted thanks to the four built-in 140mm Riing PLUS LED RGB fans (three at the front and one on the rear). To maximize cooling performance, users are able to mount the fan anywhere inside: up to (2) large 200mm fans on the top panel plus (3) 140mm fans at the bottom, while there is still room for up to (6) 200mm fans inside the right panel.
Workstation Concept
Features roomy installation space for advanced AIO/DIY liquid cooling components. Natively supports all types of AIO liquid cooling solutions and the capability to house up to triple 480mm DIY liquid cooling radiator fitment and up to 360mm AIO liquid coolers. Compatible with the latest Intel processors and AMD/Nvidia graphics cards, it is able to hold data or host a number of different features between computers so as to become another workstation for technical or scientific purposes.

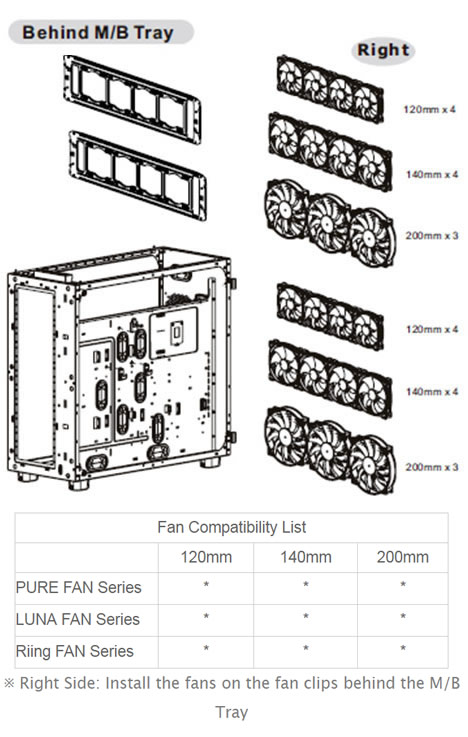

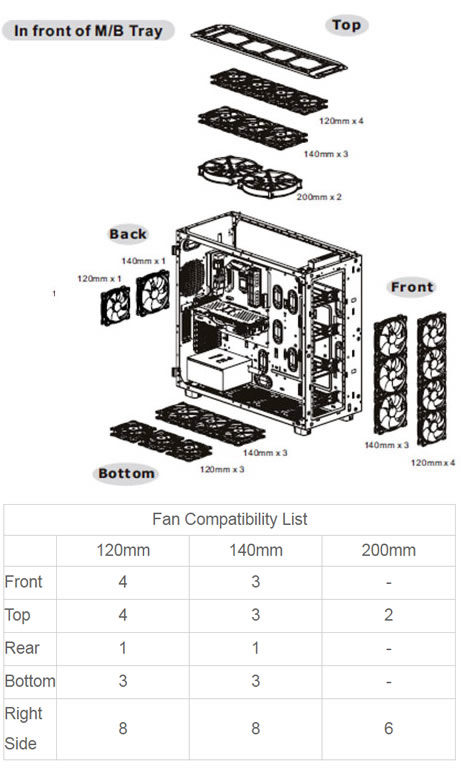

View 91 TG RGB Fan Supporting List

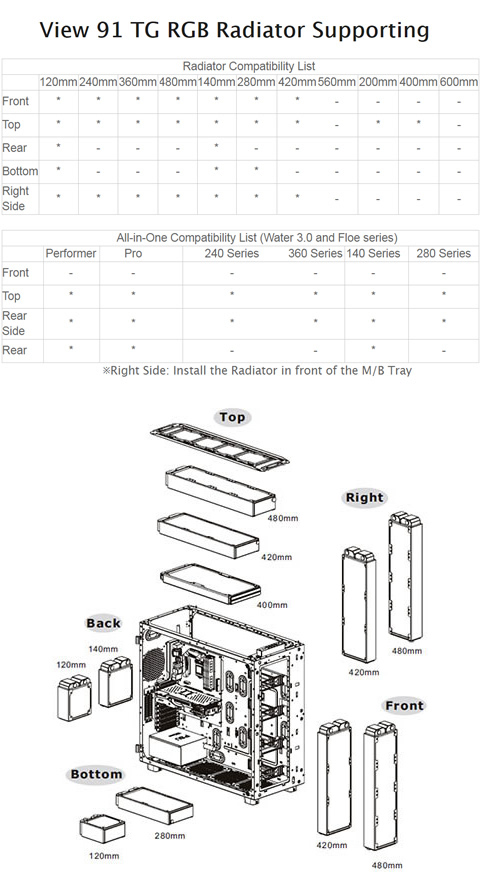

View 91 TG RGB Radiator Supporting List
Specification
| Case Type | Super Tower |
| Model | View 91 |
| P/N | CA-1I9-00F1WN-00 |
| Dimension (H x W x D) | 691 x 344 x 645 mm (27.2 x 13.5 x 25.4 inch) |
| Net Weight | 26.8 kg / 59.08 lb |
| Side Panel | 5mm Tempered Glass x 3 (Left & Right & Front) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) :
140 x 140 x 25 mm Riing Plus RGB fan
(500-1400rpm, 27.2dBA) Front (intake) : 140 x 140 x 25 mm Riing Plus RGB fan (500-1400rpm, 27.2dBA) x3 |
| Expansion Slots | 10 + 2 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX), 13.6” x 10.4” (XL-ATX) |
| I/O Ports | USB 3.0 x 4, Type-C x 1,HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| LCS Upgradable | Supports 1/2”?3/8”?1/4” water tube |
| Fan Support | Front: 4 x 120mm , 3 x 140mm Top: 4 x 120mm , 3 x 140mm , 2 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 3 x 120mm , 3 x 140mm Right Side(Behind M/B Tray): 8 x 120mm , 8 x 140mm , 6 x 200mm |
| Radiator Support | Front: 1 x 480mm , 1 x 420mm Top: 1 x 480mm , 1 x 420mm , 1 x 400mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 280mm Right Side(In front of M/B Tray): 1 x 480mm, 1 x 420mm |
| Clearance | CPU cooler height limitation: 200mm VGA length limitation: 470mm(with HDD rack) 600mm(without HDD rack) PSU length limitation: 180mm (With Three Bottom Fans) 220mm (With Two Bottom Fans) |
