Wavlink Technology
The new USB Type-C connector works seamlessly with this Triple Display Universal Docking Station. You can easily connect your two HDMI monitors and one DVI monitor. One of HDMI via Vesa Alt. Mode has 4K p30 resolution
This docking station supports USB Power Delivery (up to a maximum of 65W for Laptop charging), so you can power and charge your laptop directly through its USB-C port. You dont need to carry or remember an extra power adapter when you are traveling to or from the office.
Triple display with dual HDMI and DVI/VGA: HDMI output via USB-C Alt Mode supporting displays up to 4K@30Hz. Another HDMI and DVI output via DisplayLink.

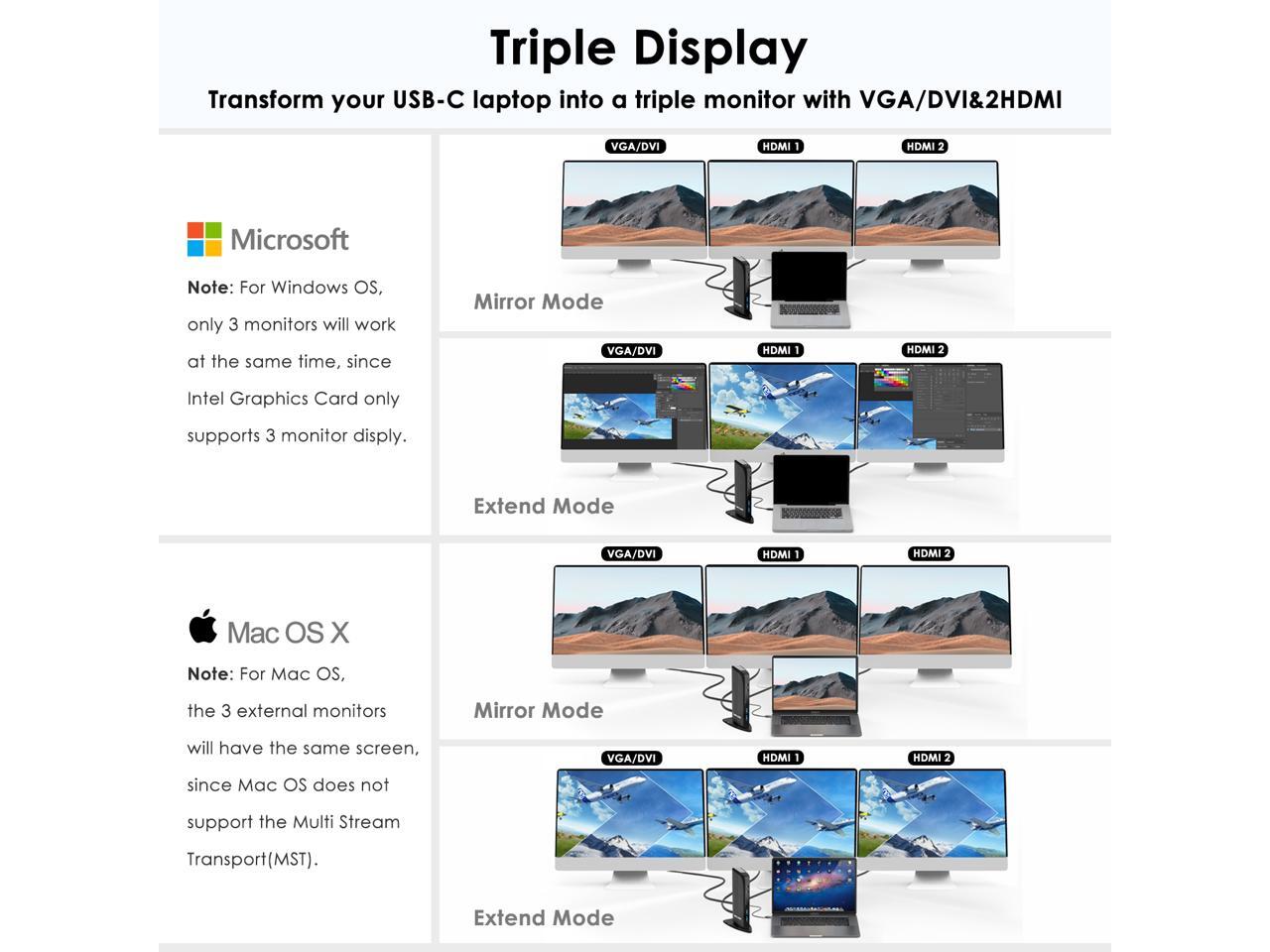

Support Extend and Mirror Video Mode. 5.1 Channel surround-sound. (Please note Mac OS does not support MST mode.)
Please note the connected laptop must support charging and video output via the USB-C port or the docking could not work.
13 ports on one dock offers a wide range of use for either working or gaming, in addition, issues such as repeated damage caused to dock is now improved to ensure a longer lifespan.
A single USB C port from your laptop expands to 13 ports! Power users need as many ports as possible, UG39PD1 can achieve it. enables additional 4k HDMI+2K HDMI+ DVI/VGA display, gigabit Intel Ethernet, audio input/output, and 2x USB-C 3.0(5Gbps) , 4x USB A 3.0(5Gbps) expansion.
Featuring both front and rear USB ports, 2x USB Type C 3.0 (5Gbps) , 4 xUSB A 3.0 (5Gbps). Type-C port and USB A 3.0.

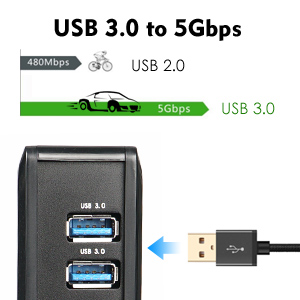

Add 6xUSB 3.0 SuperSpeed ports to your PC and enjoy data transfer rates of up to 5Gbps for faster sync times.

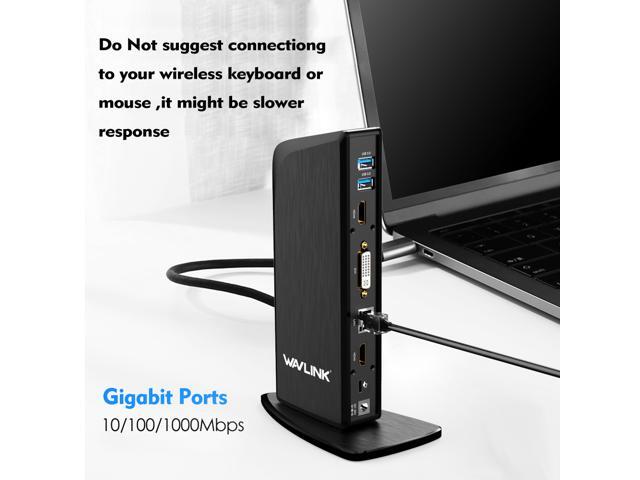

Gigabit Ethernet
Connect to your laptop, PC, game consoles and so on with RJ45 Gigabit Ethernet, your multitasking online will be amazingly sped up compared to regular Ethernet port. Theoretically speaking, it supports up to 1 gigabit/second (1000Mbps), thus bandwidth capacity would be largely enhanced.
One HDMI output via USB-C Alt Mode supporting displays up to 3840x2160@30Hz (4Kp30).
One HDMI output via DisplayLink up to 2560*1440.
One DVI/VGA output via DisplayLink up to 1920x1080 (1080p).
Two Capabilities in One
For anyone who wants to access audio files, one can connect microphones, headphones or mini stereos to this "two in one" audio/mic port, it has improved the access experience qualitatively and efficiently.

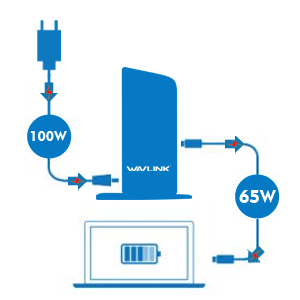

Dock provides usb-c power delivery up to 65W maximum of upstream charging to compatible USB C host systems and also power to the others peripherals simultaneously with 100Watt Power Adapter.
Supported Resolutions
Via USB C DisplayPort Alternate Mode Output
USB C Alt Mode output Maximum resolution is 3840x2160@30Hz (4K@30HZ) in the HDMI 1.4 , 2560x1600, 1920x1080 (1080p) and lower resolutions will display at 60Hz.
Via DisplayLink outputs
HDMI port supports resolutions up to 2560x1440@50Hz and DVI/VGA port supports display resolutions up to 2048x1152@60Hz / 1920x1200@60Hz, If dual displays are connected, each will be limited to a maximum resolution of 1920x1200@60Hz.
Feature
4k@30HZ HDMI(Via USB C DisplayPort Alternate Mode)
2K HDMI(Via Displaylink chips)
2K DVI/VGA (Via Displaylink chips)
USB C PD Power Delivery functionality to charge your host computer
Attention
Not all USB-C computers are able to charge through their USB-C port

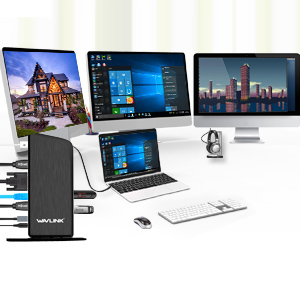

Triple Display with host charging
By connecting a laptop and the 4K/2K HD monitors through this multifunctional dock, it will make it possible and simple for engineers, gamers, and architects to watch videos or drawings on more than one screen.
Work with any USB connector, the charging function and the bottom of HDMI will not work.
Computer with Thunderbolt 3 port or USB C support DisplayPort Alternate Mode Computer with Power Delivery and Video Alternate Mode.
Specification
1 xUSB-C(to Host)
2 xHDMI(4K HDMI+2K HDMI)
1 x DVI/ VGA(DVI to VGA adapters)
1 x Gigabit Ethernet (Rj45)
6 x USB 3.0 ( 5Gb/s )
Phone Jack Stereo 4pole TRRS Stereo
In the Box
1x USB-C Universal Docking station
1x USB-C to C Cable 39.4 inch (E-Mark Chip)
1x User Manual
1x DC20V/5A 100W Power Adapter
WINDOWS
Windows 7, Windows 8, 8.1, Windows 10, Windows Vista is 7.7, Windows XP is 7.6
OS X 10.6 - 10.15 OS
Tips: macOS 10.13.4 - 10.13.6 has single extended display support with AirPlay
ANDROID: Available on the Google Play Store. For Android v5.0 (Lollipop) or Later
CHROME: DisplayLink USB devices are supported on Chromebooks.
Unsupported with Unix systems, Linux and iPad OS.
For more information: support.displaylink.com/knowledgebase/articles/891030
