The Blackmagic Design VHUBUV/72CH Universal Videohub 72 Rack Frame accpets a mix of SDI interface cards, crosspoint cards, and power supply cards for you to build your customized build your own broadcast quality video router. It's a fully scalable 3 Gb/s SDI solution. Add either regular copper SDI or optical fiber SDI interface cards as you need, up to a 72 x 72 SDI size router. The Universal Videohub 72 rack frame is only 5 RU and 6 inches deep and can support a single 72 x 72 crosspoint card and a single power supply card. All inputs have auto standards detection and all outputs are re-clocked. You also get Ethernet and serial connectivity, third party control and redundant power supplies.
Please Note:
This item is rack frame only, interface cards are sold separately.
Amazing Routing OptionsUniversal Videohub is perfect for when you need to route SDI and optical fiber connections. Get incredible 3 Gb/s SDI routing, plus the ability to send and receive video signals over long distances using optical fiber. That’s great for use in larger facilities and for large scale events. Route directly from one SDI or optical fiber device to another, from SDI to optical fiber or vice versa.

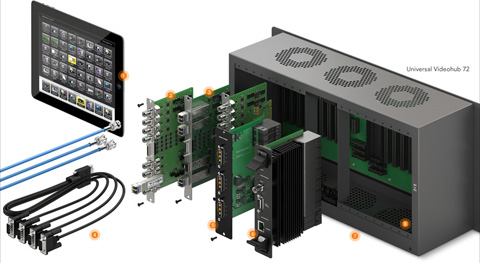

Innovative FeaturesUniversal Videohub 72 lets you add up to 18 interface cards, which is great for broadcast and post facilities with lots of equipment. You can hot swap interface cards while working live without the need to power down the router.
Intelligent DesignUniversal Videohub feature a frame based design with the freedom to build a router to suit your needs. The design also integrates crosspoint and power redundancy and when you need to expand you can use the same interface cards in a larger frame.
Automatic SDI Switching3 Gb/s SDI connections automatically switch between SD, HD, 4:4:4 and 2K video formats, so you can move the highest quality video between all your editing systems, decks, monitors and more. Simultaneously route copper SDI and optical fiber SDI signals in the same router.
Amazing Routing OptionsUniversal Videohub is perfect for when you need to route SDI and optical fiber connections. Get incredible 3 Gb/s SDI routing, plus the ability to send and receive video signals over long distances using optical fiber. That’s great for use in larger facilities and for large scale events. Route directly from one SDI or optical fiber device to another, from SDI to optical fiber or vice versa.
Innovative FeaturesUniversal Videohub 72 lets you add up to 18 interface cards, which is great for broadcast and post facilities with lots of equipment. You can hot swap interface cards while working live without the need to power down the router.
Intelligent DesignUniversal Videohub feature a frame based design with the freedom to build a router to suit your needs. The design also integrates crosspoint and power redundancy and when you need to expand you can use the same interface cards in a larger frame.
Automatic SDI Switching3 Gb/s SDI connections automatically switch between SD, HD, 4:4:4 and 2K video formats, so you can move the highest quality video between all your editing systems, decks, monitors and more. Simultaneously route copper SDI and optical fiber SDI signals in the same router.Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-954-0500
- Support Website
- View other products from Blackmagic Design Pty. Ltd.
