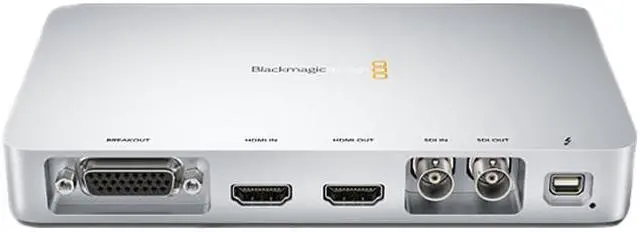

Blackmagic Design UltraStudio Express BDLKULSDEXPRESS
OPEN BOX Product Type
- Thunderbolt Powered I/O Device
- SD/HD SDI Input and Output
- HDMI Input and Output
- Captures in DPX and QuickTime
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. BDLKULSDEXPRESS
| Brand | Blackmagic Design |
|---|---|
| Model | BDLKULSDEXPRESS |
| Format | SD: 625/25, 625p PAL and 525/29.97, 525p NTSC, 480p HD: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080p50, 1080p59.94 and 1080p60 |
|---|---|
| Video Sampling | 4:2:2 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Color | Color Precision: 10-bit Color Space: REC 601, REC 709 |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources / always confirm copyright ownership before capture or distribution of content |
| Video | Video Input SDI x1 10-bit SD/HD switchable HDMI type A x1 Via breakout cable: Component YUV x1 on 3 BNC or RCA connectors, supports HD and SD, switchable to S-video or composite Video Output SDI x1 10-bit SD/HD switchable HDMI type A x1 Via breakout cable: Component YUV x1 on 3 BNC or RCA connectors, supports HD and SD, switchable to S-video or composite |
| Audio | Audio Input Via breakout cable: Analog -- 2 channels via balanced XLR connectors or unbalanced RCA connectors AES/EBU -- 2 channels unbalanced with sample rate converter on BNC connector SDI -- 16 channels embedded HD / 8 channels embedded SD HDMI -- 2 channels embedded in SD and HD Audio Output Via breakout cable: Analog -- 2 channels via balanced XLR connectors or unbalanced RCA connectors AES/EBU -- 2 channels unbalanced with sample rate converter on BNC connector SDI -- 16 channels embedded HD / 8 channels embedded SD HDMI -- 2 channels embedded in SD and HD |
| HDMI | HDMI Configuration: HDMI automatically configures to connected display HDMI Resolution: Pixel for pixel HD resolution input to connected device HDMI Color Precision: 10-bit |
|---|---|
| SDI | SDI Compliance: SMPTE 259M, SMPTE 292M and SMPTE 296M SDI Metadata Support: VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning. |
| Other Connector | Computer Interface: Thunderbolt x1 |
| System Requirements | Mac OS X 10.6.8 Snow Leopard or later, and Mac OS X 10.7 Lion or later |
|---|
| Specification | Sync Input: Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format Multi-Rate Support: SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD Colorspace Conversion: Hardware based real time HD Down Conversion: Software based down conversion during video playback HD Up Conversion: Real time standard definition to 1080HD and 720HD during video capture HD Cross Conversion: Real time 720HD to 1080HD during video capture Real Time Effects: Apple Final Cut Pro internal effects, Adobe Premiere Pro Mercury Playback Engine effects, Avid Media Composer 6 internal effects Software Upgrade: Software driver loads upgrades at system start or via updater software |
|---|
| Feature | The Blackmagic-Design UltraStudio Express is a capture and playback device that connects to a camera on one end and to a computer on the other. It captures saved footage or a live feed from the camera and passes it to the computer in formats ready to be edited. It can also up/down/cross convert the resolution of the footage as the footage is being passed to the computer. The third function of the Express is HDMI monitoring -- you can connect a top-quality HDMI monitor and monitor the footage you captured in the best resolution possible so to perform color correction in minute precision. UltraStudio Express features built-in SD/HD SDI, HDMI and Thunderbolt connections. It comes with two breakout cables via which it expands to composite, component, S-Video, RCA audio, AES/EBU audio on XLRs, sync input, genlock for bi and tri-level sync, and RS422 connections. Connection to a camera would be by SDI or HDMI where possible and to a computer by Thunderbolt. The formats the unit captures in are open standard DPX and QuickTime, which are compatible with all of the most common and popular software. UltraStudio Express can seamlessly be used with Final Cut Pro X, Final Cut Pro 7, Media Composer 6, Premiere Pro CS6, After Effects, Nuke, Photoshop, and DaVinci Resolve |
|---|
| Package Content | BDLKULSDEXPRESS 2 x Breakout Cables Media Express Software Disk Speed Test Blackmagic System Preferences Blackmagic Driver |
|---|
| First Listed on Newegg | July 03, 2014 |
|---|
