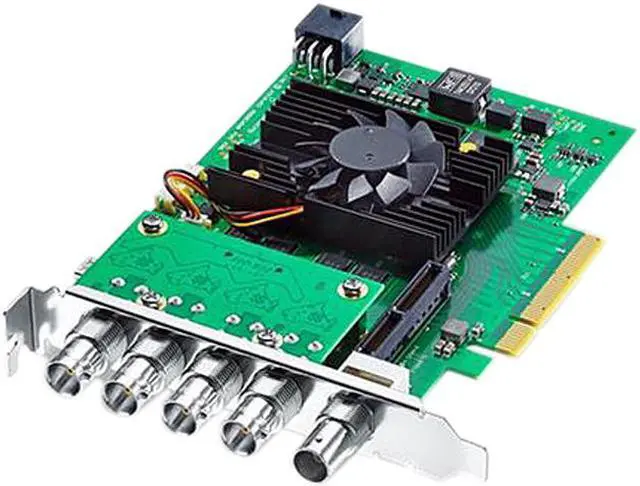

Blackmagic Design Cinema Capture Card DeckLink 8K Pro (BMD-BDLKHCPRO8K12G)
- PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
- Supported Codecs:
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. DeckLink 8K Pro (BMD-BDLKHCPRO8K12G)
| Best Seller Ranking | #28 in Video Capturing Device |
|---|
| Brand | Blackmagic Design |
|---|---|
| Model | DeckLink 8K Pro (BMD-BDLKHCPRO8K12G) |
| Interface | PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots. |
| Codecs | Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
|---|---|
| Video Sampling | 4:2:2 and 4:4:4 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601. |
| Audio Sampling | Television standard sample rate of 48 kHz at 24-bit. |
| Color | SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 8K DCI 30p, and 8, 10-bit YUV 4:2:2 in all modes. Color Space: REC 601, REC 709, REC 2020. |
| Video | SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p 8K Video Standards: 8K 23.98p, 8K 24p, 8K 25p, 8K 29.97p, 8K 30p, 8K 50p, 8K 59.94p, 8K 60p 8K DCI Video Standards: 8K DCI 23.98p, 8K DCI 24p, 8K DCI 25p, 8K DCI 29.97p, 8K DCI 30p, 8K DCI 50p, 8K DCI 59.94p, 8K DCI 60p 3D SDI Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI | SDI Video Inputs: 4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Video Outputs: 4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Audio Inputs: 16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K. SDI Audio Outputs: 16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K. |
|---|
| Software | Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software. Physical Installation: PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. |
|---|---|
| Software Application | DaVinci Resolve Fusion Final Cut Pro X Adobe Premiere Pro CC Avid Media Composer Adobe After Effects CC Avid Pro Tools Steinberg Cubase Autodesk Smoke Adobe Photoshop CC Other supported applications include: The Foundry Nuke, Grass Valley Edius, Steinberg Nuendo, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D. 8K playback and capture is application dependent, check with your software vendor. |
| System Requirements | Mac 10.12 Sierra, Mac 10.13 High Sierra or later Windows 7, 8.1 and 10, all 64-bit Linux |
|---|
| Power Consumption | 19W |
|---|
| Specification | SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning. Multiple Rate Support: SDI video connections are switchable between SD/HD/2K/4K and 8K. Processing Colorspace Conversion: Hardware based real time on output. 3D Processing: Left eye/right eye dual stream capture & playback. Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. EMC Certifications: EMC, FCC, CE, KCC and C-Tick Environmental Specifications Operating Temperature: 5 to 50 celsius degree Storage Temperature: -20 to 60 celsius degree Relative Humidity: 0% to 90% non-condensing |
|---|
| Feature | The ultimate digital cinema capture card! DeckLink 8K Pro features four bi-directional 12G-SDI connections and works in all SD, HD, Ultra HD, 4K and 8K DCI frame sizes. You get support for 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 60 frames per second in HD, 4K and 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows! |
|---|
| Weight | 0.50 lb. |
|---|
| Date First Available | August 26, 2023 |
|---|
