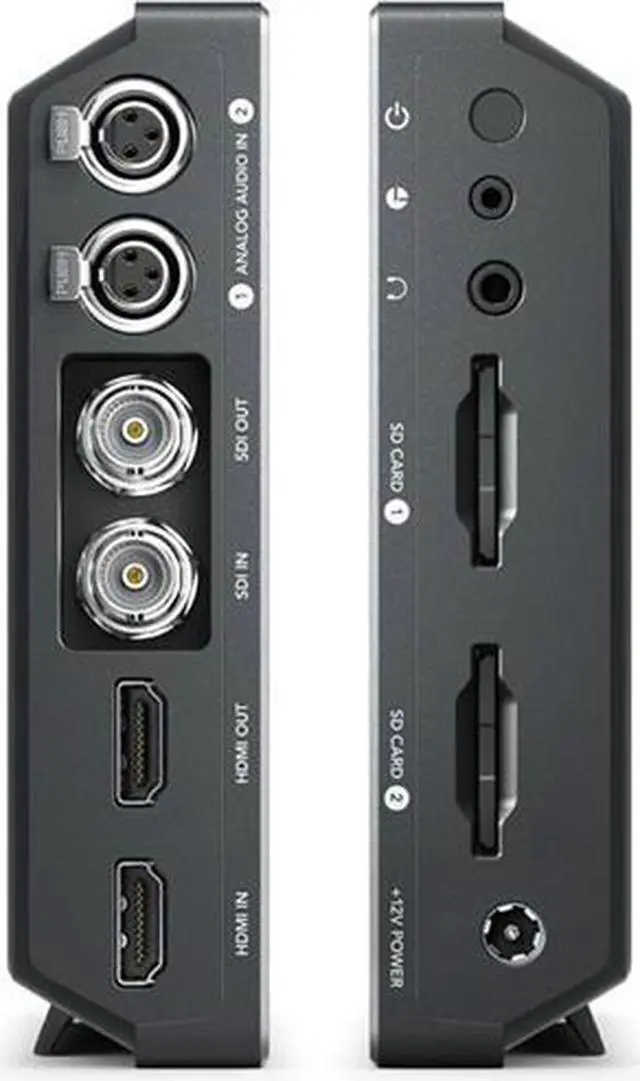

| Specification | Connections Built in Speaker: Mono Remote Control: 1 x 2.5mm LANC for Record Start and Stop Recorder Configuration: Via the device's USB port or the device's user interface
SDI Video Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 SDI Metadata Support: HD RP188 Multiple Rate support: SDI and HDMI switches between 270 Mb/s SD, 1.5 Gb/s HD, and 3.0 Gb/s 60P HD plus 6.0 Gb/s 30p Ultra HD
HDMI Video Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Media: 2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording Media Type: SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards
Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF

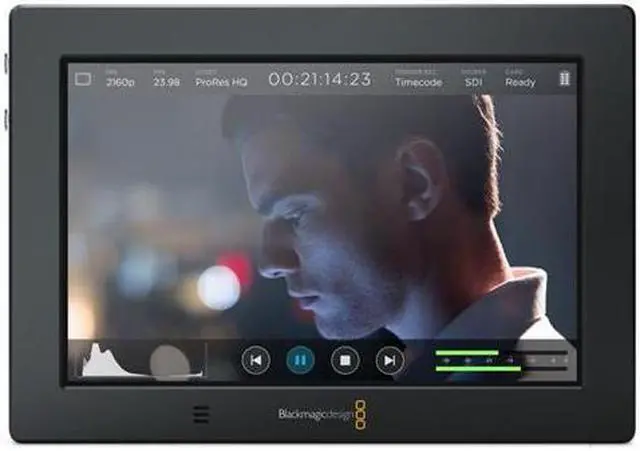

Control Recorder Control: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus External Control: LANC, SDI start/stop, timecode run
Environmental Specifications Operating Temperature: 0 to 40 celsius degree Storage Temperature: -21 to 45 celsius degree Relative Humidity: 0% to 90% non-condensing |
|---|
