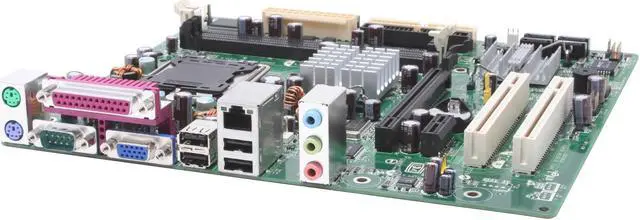

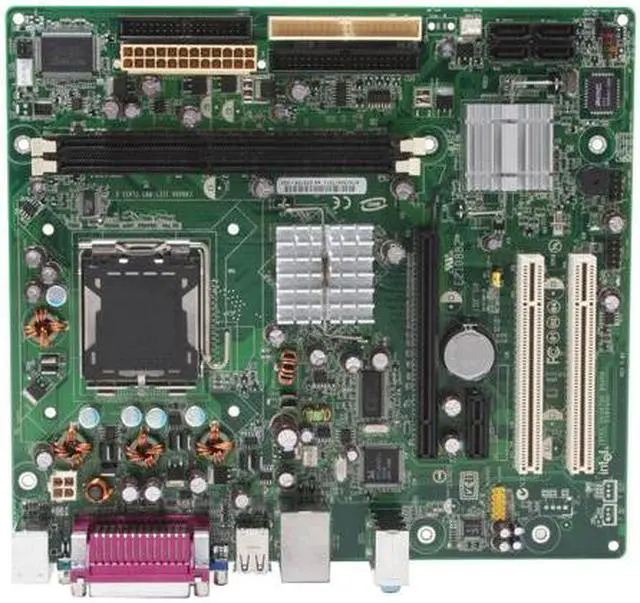

Intel BLKD101GGCL LGA 775 ATI Radeon Xpress 200 Micro ATX Intel Motherboard - OEM

(19) Write a Review
  • ATI Radeon Xpress 200
  • Pentium D / Pentium 4 HT / Celeron D
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (19)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel BLKD101GGCL

Model
Brand Intel
Model BLKD101GGCL
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium D / Pentium 4 HT / Celeron D
FSB 800/533 MHz
Chipsets
Chipset ATI Radeon Xpress 200
South Bridge ATI SB450
Onboard Video
Onboard Video Chipset ATI Radeon X300-based 2D/3D
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
Onboard Audio
Audio Chipset Realtek ALC861
Audio Channels 6 Channels
Onboard LAN
LAN Chipset RealTek
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.6"
Power Pin 24 Pin
Packaging

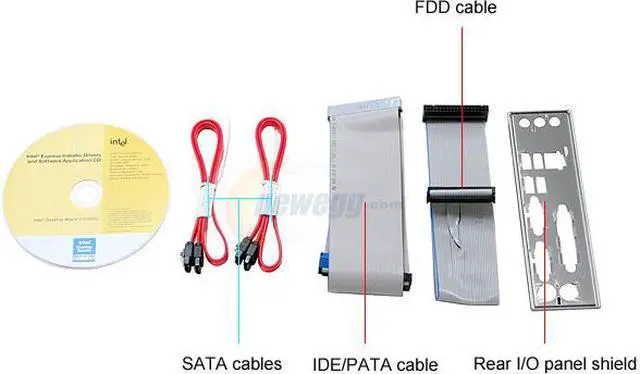

Package Contents BLKD101GGCL
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Additional Information
First Listed on Newegg November 25, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
