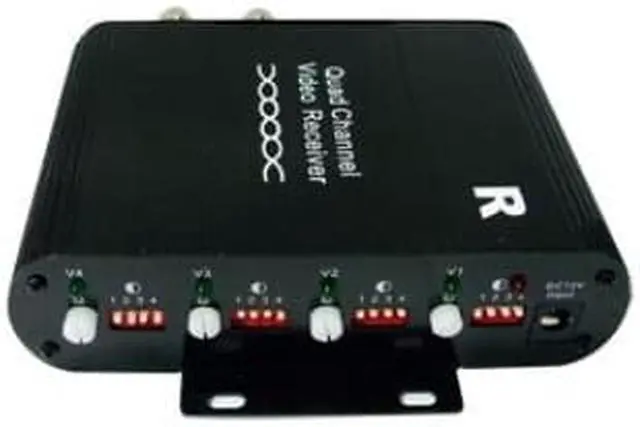

Quad Channel (4CH) Active Balue Video Receiver ( 12V Dc )
Feature
Transceiver Type
4CH Video Receiver (Active)
Video
Frequency Response Range: DC-6MHz;
Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type
24AWG UTP CAT5 or higher;
DC loop resistance ?18O/ 100m;
Differential capacitance: 62pF/m (max)
Impedance
UTP or Connection or RJ-45: 100O; BNC Coax:75O
Power
12V < 300mA
Transient Protection
6KV 10 x 700 us IEC61000-4-5
Dimensions
120 x 83 x 32
Weight (g)
200
Feature
Transceiver Type
4CH Video Receiver (Active)
Video
Frequency Response Range: DC-6MHz;
Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type
24AWG UTP CAT5 or higher;
DC loop resistance ?18O/ 100m;
Differential capacitance: 62pF/m (max)
Impedance
UTP or Connection or RJ-45: 100O; BNC Coax:75O
Power
12V < 300mA
Transient Protection
6KV 10 x 700 us IEC61000-4-5
Dimensions
120 x 83 x 32
Weight (g)
200
