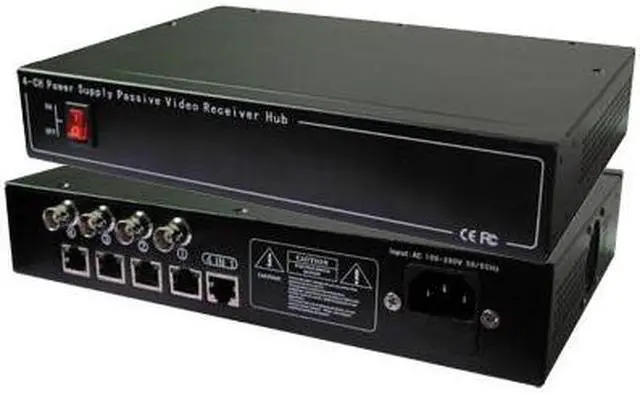

4CH Passive Video Balun Receiver & Power Supply Hub (VPS)
Feature
Transceiver Type
4CH Passive Video Balun Receiver & Power Supply Hub (VPS)
Video
Frequency Response Range: DC-5MHz;
Common-Mode / Differential-Mode rejection: 5KHz-5MHz 60dB type
Wire Type
24-16AWG UTP CAT5 or higher;
DC loop resistance ?18O/ 100m;
Differential capacitance: 62pF/m (max)
Impedance
UTP or Connection or RJ-45: 100O;
BNC Coax:75O
Power Input
n/a
Power Transmission
12V DC up to 750 ft Via UTP Cat5e / 6
Dimensions
7.9" x 6.7" x 1.8"
Weight (lb)
2.3
Feature
Transceiver Type
4CH Passive Video Balun Receiver & Power Supply Hub (VPS)
Video
Frequency Response Range: DC-5MHz;
Common-Mode / Differential-Mode rejection: 5KHz-5MHz 60dB type
Wire Type
24-16AWG UTP CAT5 or higher;
DC loop resistance ?18O/ 100m;
Differential capacitance: 62pF/m (max)
Impedance
UTP or Connection or RJ-45: 100O;
BNC Coax:75O
Power Input
n/a
Power Transmission
12V DC up to 750 ft Via UTP Cat5e / 6
Dimensions
7.9" x 6.7" x 1.8"
Weight (lb)
2.3
