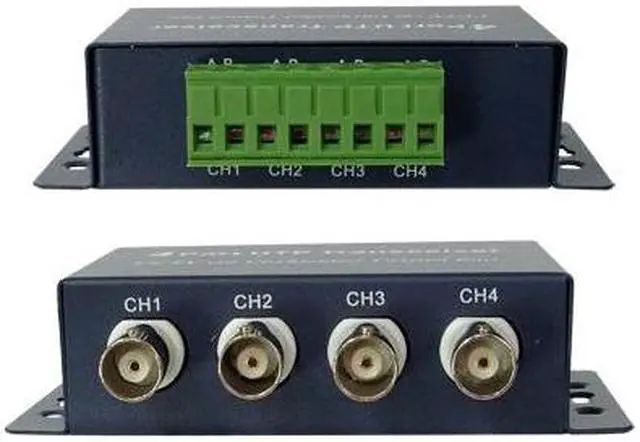

4CH Passive Balun Transceiver

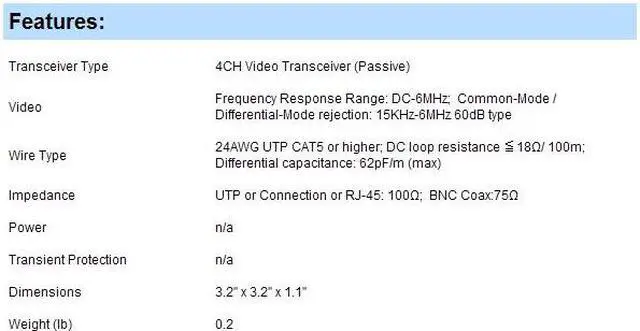

Feature
Transceiver Type
4CH Video Transceiver (Passive)
Video Frequency
Response Range: DC-6MHz;
Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type
24AWG UTP CAT5 or higher;
DC loop resistance ?18O/ 100m;
Differential capacitance: 62pF/m (max)
Impedance
UTP or Connection or RJ-45: 100O; BNC Coax:75O
Power
n/a
Transient Protection
n/a
Dimensions
3.2" x 3.2" x 1.1"
Weight (lb)
0.2
Feature
Transceiver Type
4CH Video Transceiver (Passive)
Video Frequency
Response Range: DC-6MHz;
Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type
24AWG UTP CAT5 or higher;
DC loop resistance ?18O/ 100m;
Differential capacitance: 62pF/m (max)
Impedance
UTP or Connection or RJ-45: 100O; BNC Coax:75O
Power
n/a
Transient Protection
n/a
Dimensions
3.2" x 3.2" x 1.1"
Weight (lb)
0.2
