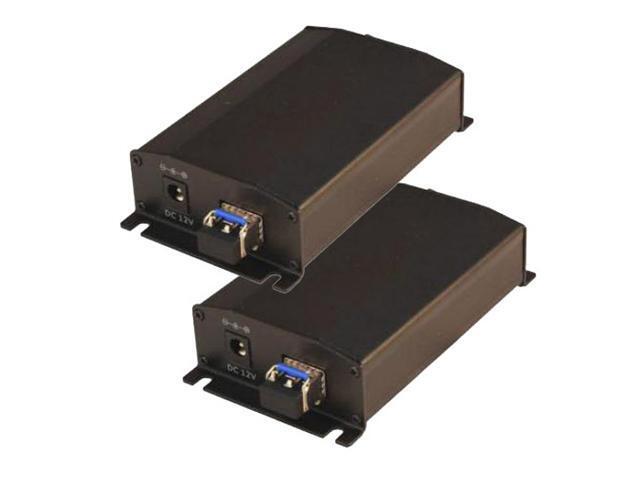

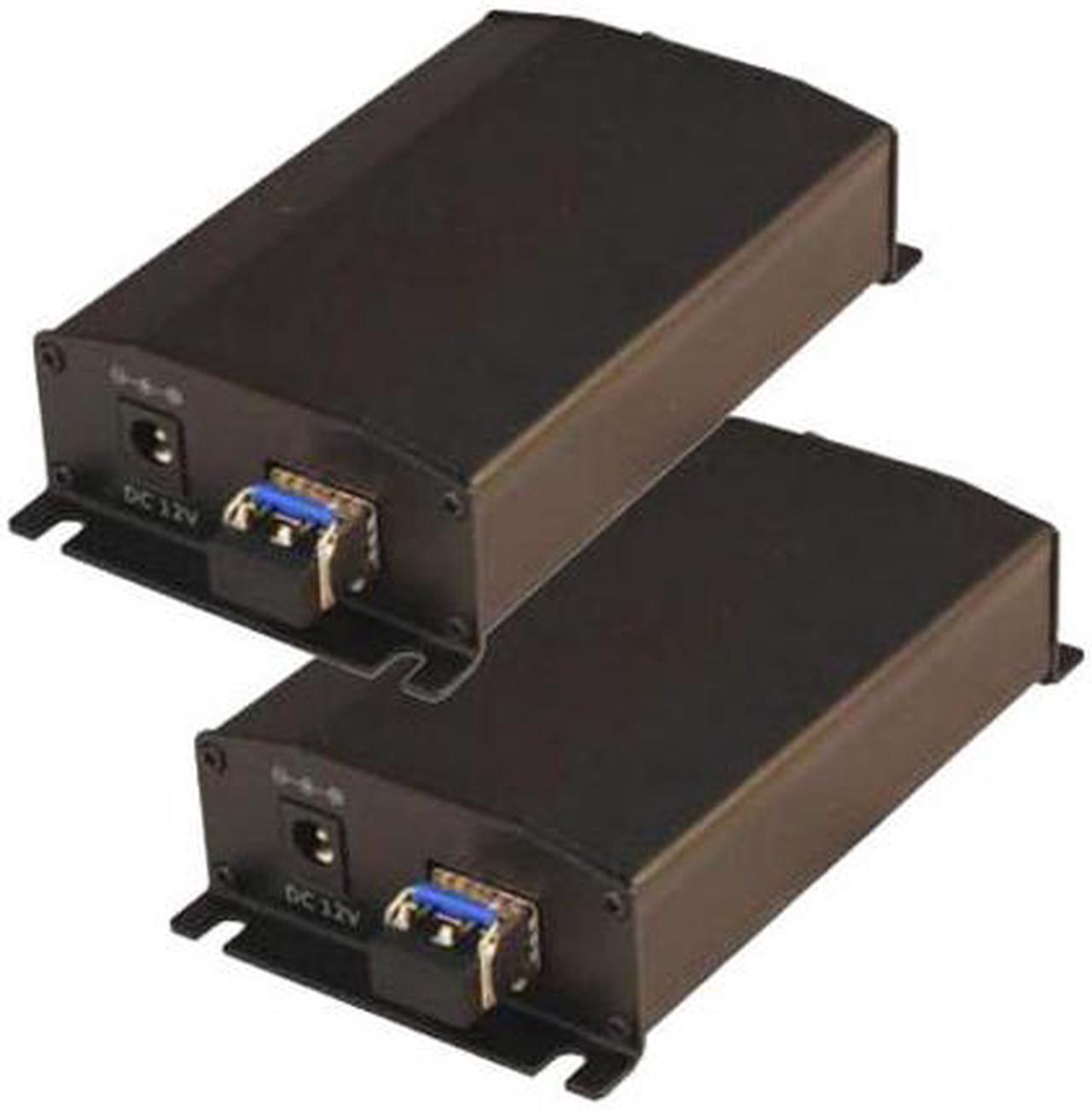

1CH HD-SDI to Fiber Converter Transmitter and Receiver
Feature
This is a 1CH HD-SDI to fiber converter transmitter and receiver kit for indoor use,
it supports the Max 20km transmission distance at 1080p@30f. It is suitable for current HD-SDI camera.
•HD-SDI digital video input
•Signal standard: SMPTE 292M, SMPTE 296M
•Automatic cable equalization: < 130m (1485Mbps)
•Impedance: 75ohm
•Connector: BNC
•HD-SDI digital video output
•Output signal standard: SMPTE 292M, SMPTE 296M
•Impedance: 75ohm
•Output level: 800mVP-P
•Connector: BNC
•Optical indicators
•Fiber Connector: LC SFP
•Wavelength: 1310nm/1550nm optional
•Optical fiber link loss: > 20db@1310nm
•Power adapter is not included.
•The product includes transmitter and receiver.
Feature
This is a 1CH HD-SDI to fiber converter transmitter and receiver kit for indoor use,
it supports the Max 20km transmission distance at 1080p@30f. It is suitable for current HD-SDI camera.
•HD-SDI digital video input
•Signal standard: SMPTE 292M, SMPTE 296M
•Automatic cable equalization: < 130m (1485Mbps)
•Impedance: 75ohm
•Connector: BNC
•HD-SDI digital video output
•Output signal standard: SMPTE 292M, SMPTE 296M
•Impedance: 75ohm
•Output level: 800mVP-P
•Connector: BNC
•Optical indicators
•Fiber Connector: LC SFP
•Wavelength: 1310nm/1550nm optional
•Optical fiber link loss: > 20db@1310nm
•Power adapter is not included.
•The product includes transmitter and receiver.
