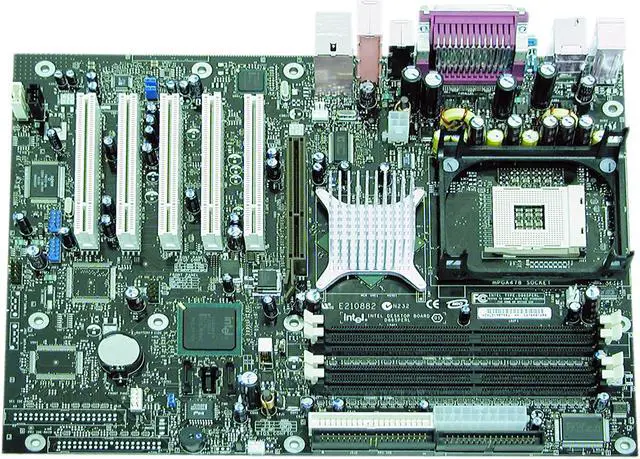

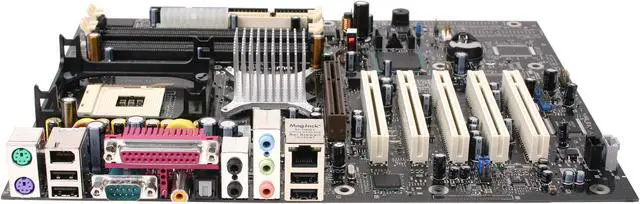

Intel BOXD865PERLL Socket 478 Intel 865PE ATX Intel Motherboard
- Intel 865PE
- Pentium 4 / Celeron
- DDR 400
Specs
Reviews (65)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXD865PERLL
| Brand | Intel |
|---|---|
| Model | BOXD865PERLL |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865PE |
|---|---|
| South Bridge | Intel ICH5R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| SATA RAID | 0/1 |
|---|
| Audio Chipset | ADI AD1985 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82562EZ(ET) |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Features | Hardware monitoring and fan control ASIC Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Four fan connectors Four fan sense inputs used to monitor fan activity Fan speed control Support for PCI Local Bus Specification Revision 2.2 Suspend to RAM support Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports |
|---|
| First Listed on Newegg | June 03, 2003 |
|---|
